This section provides an overview for pulse isolators as well as their applications and principles. Also, please take a look at the list of 3 pulse isolator manufacturers and their company rankings. Here are the top-ranked pulse isolator companies as of March, 2025: 1.VN TECH GROUP., 2.Watanabe Electric Industry Co. Ltd., 3.PR electronics.
Table of Contents
A pulse isolator is a device with inputs and outputs that converts and distributes pulse signals. It internally shapes the pulse signal received from the device connected to the input side.
The pulse isolator is a device that outputs the wave-formed pulse signal to the device connected to the output side.
Since the input and output sides are isolated inside the pulse isolator, it can be used without problems even when the potential of the input side differs from that of the output side. Noise and other effects generated on the input side are not transmitted to the output side.
When inputting measurement results from industrial equipment or measuring instruments to another device for data processing, direct input is not possible if the signal level, duty, etc. are different.
In this case, a pulse isolator is a device that matches the signal specifications and passes the signal between devices.
The pulse isolator also functions as a signal distributor when inputting measured data to multiple devices.
Uses of pulse isolators include the input of pulse signals from measuring instruments that output pulses, such as encoders that detect motor rotation, flow meters, watt-hour meters, counters, and proximity switches, to PLCs (Programmable Logic Controllers) and display devices, which are separate devices. The input pulse is converted into a pulse signal that matches the output device and output.
The pulse isolator also divides the signal input to the pulse isolator into two separate signals for input to two systems of PLCs or display devices, and outputs them. Since the inside of the pulse isolators are insulated, they can be used without problems even when the potentials of the input and output sides are different. It also serves to isolate noise generated on the input side from being transmitted to the output side.
Thus, it is a very effective device for electrically isolating circuits on the input side and the output side.
For example, circuit isolation ensures that even if the input side is damaged by a breakdown and an abnormal current is generated, the circuit and equipment on the output side will not be affected and will be protected.
Pulse isolators are devices designed to connect signals with different electrical specifications and distribute the signals. They have many signal conversion functions. For this reason, the input and output specifications of pulse isolators can be changed as desired by the internal settings of the device. As a result, various pulse signals can be converted and connected.
First, pulse isolators can convert and transmit logic signals of different levels. When transferring signals, the input and output signal levels must be matched. This function is useful when the input signal level is insufficient. As an example, a logic signal with an input signal of 3V can be converted to a 5V logic signal for output.
Next, if the output specification of the device connected to the input side of the pulse isolators is voltage output, open collector, or line driver, the input can be enabled by changing the pulse isolator setting.
Similarly, if the input specification of the device connected to the output side of the pulse isolators is voltage output, open collector, or line driver, changing the pulse isolator setting will enable output. In this way, pulse isolators can perform many signal conversions by combining input and output specifications.
Depending on the model, some pulse isolators also have a function to receive a zero-crossing signal (a signal whose polarity is inverted at 0V) on the input side and convert it into a general logic signal.
Thus, the use of pulse isolators makes it possible to connect devices with different signal levels.
When selecting pulse isolators, note that there are restrictions on the specifications of the power supply and pulse signals that can be handled.
*Including some distributors, etc.
Sort by Features
Sort by Area
Watanabe Electric Industry Co. Ltd. are manufacturers of measurement and control instruments since 1940 in Japan. The company deals in signal converters, digital panel meters, non-contact meter relays, and electric current recorders. The signal converters are used to isolate and convert signals to prevent current ground loops, protect from external noise, signal boosting, and more. Digital panel meters also have various applications such as filter clogging monitors, weight measurement, conveyor rotation speed management, and many other uses. The equipment is known for its accuracy and stability while being in use.
PR electronics, founded in Denmark, in 1976 is a manufacturer of signal conditioning devices. The company's product portfolio includes temperature transmitters, communication interfaces, multifunctional devices, displays and accessories. Their products are used to make industrial process control safer, more reliable, and more efficient. The company serves markets including Automotive and Electric Vehicles, Renewable Energy and Energy Storage and Electronics and IT Infrastructure. The company provides services such as Product Selection Guidance, Engineering Support, and Custom Manufacturing.
Ranking as of March 2025
Derivation Method| Rank | Company | Click Share |
|---|---|---|
| 1 | VN TECH GROUP. |
37.5%
|
| 2 | PR electronics |
37.5%
|
| 3 | Watanabe Electric Industry Co. Ltd. |
25.0%
|
Derivation Method
The ranking is calculated based on the click share within the pulse isolator page as of March 2025. Click share is defined as the total number of clicks for all companies during the period divided by the number of clicks for each company.Number of Employees
Newly Established Company
Company with a History
*Including some distributors, etc.
| Country | Number of Companies | Share (%) |
|---|---|---|
|
Japan
|
1 | 50.0% |
|
Vietnam
|
1 | 50.0% |
97 products found
97 products
Daiichi Electronics Co., Ltd.
130+ people viewing
Last viewed: 11 hours ago
5.0 Company Review
■Features - Compact size and high withstand voltage design.Withstand voltage AC2000V (50/60Hz) 1 minute insulation between input, output, auxiliary...
ANSeeN Co., Ltd.
110+ people viewing
Last viewed: 1 day ago
■Applications For isolation of high-speed TTL signals ■Main specifications ・Supported pulse width 90ns or more ・Power supplied from the signal o...
Shinko Technos Co., Ltd.
660+ people viewing
Last viewed: 11 hours ago

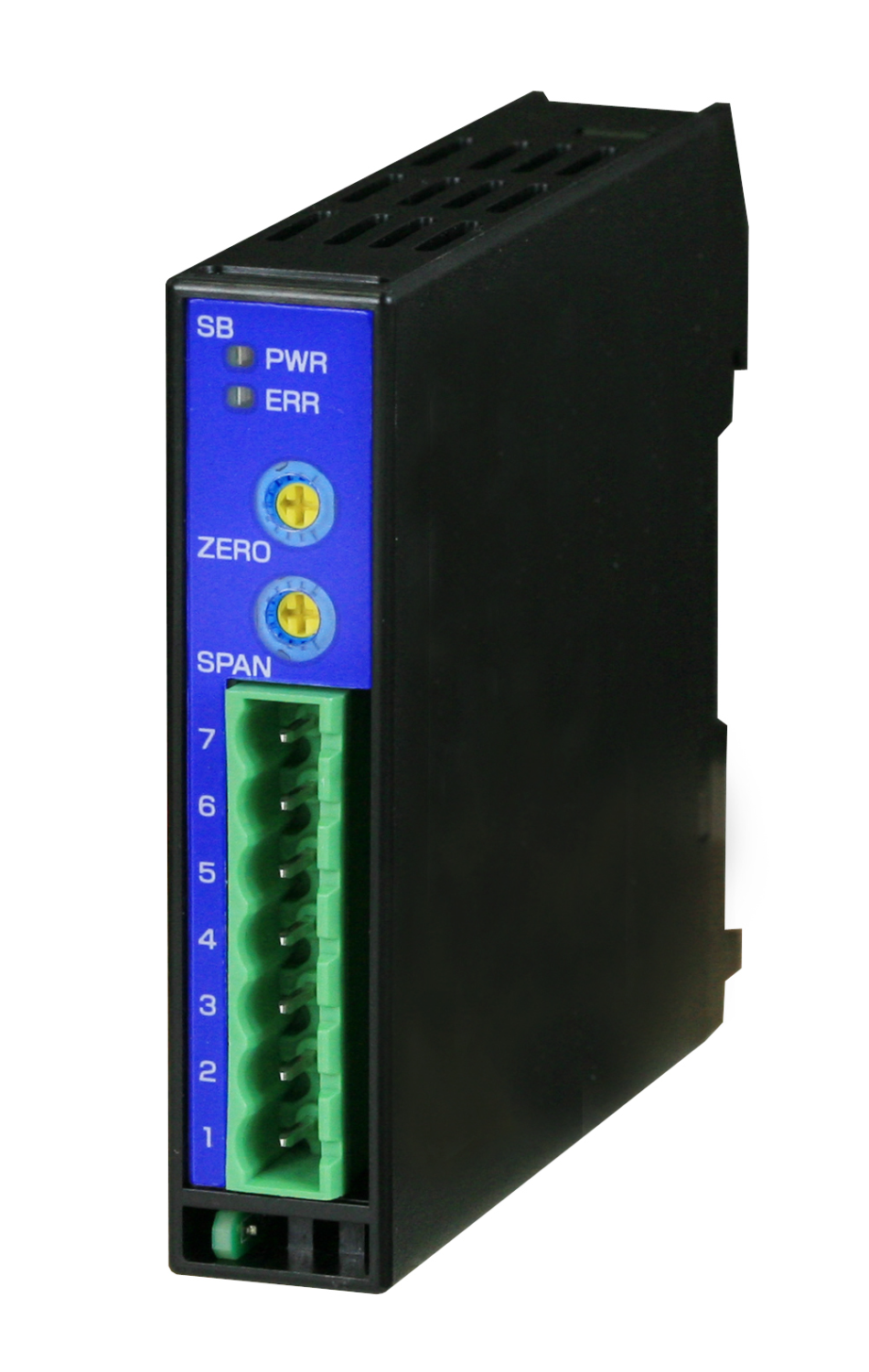

・ DIN rail mounting type signal converter ・ Simple product lineup without display (stick terminal connection type) ■ The SB series has realized ...
10 models listed
Shinko Technos Co., Ltd.
530+ people viewing
Last viewed: 1 hour ago
・ DIN rail mounting type signal converter ・ Simple product lineup without display (stick terminal connection type) ■ The SB series has realized ...
10 models listed
Shinko Technos Co., Ltd.
450+ people viewing
Last viewed: 1 day ago

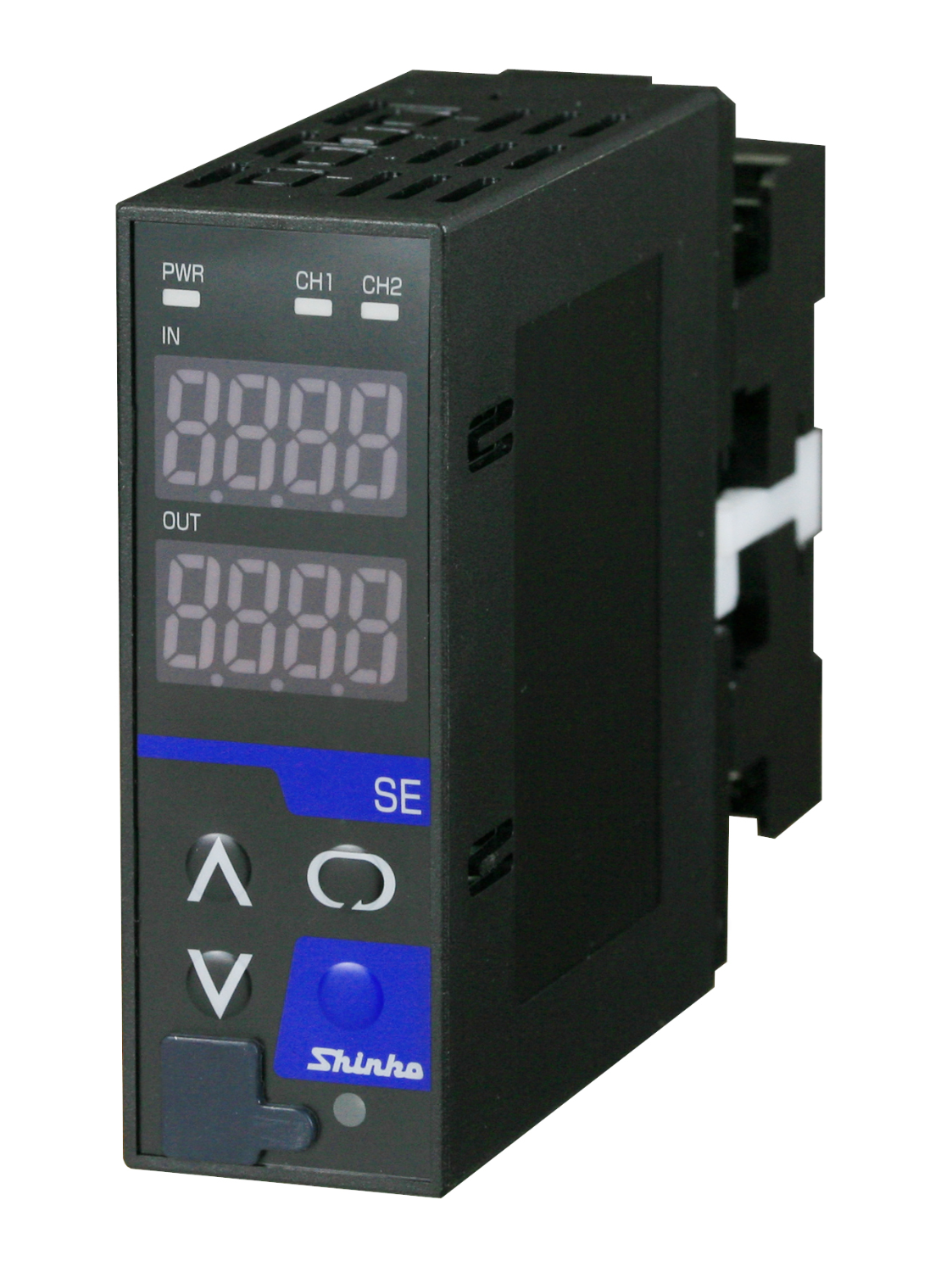

・ Plug -in -type signal converter ・ Input sampling cycle can be changed (25ms, 125ms, 250ms) ・ Lineup of 2ch type that has two roles
