What Is an X-Ray CT Machine?
An X-ray CT machine is a device that irradiates X-rays to examine the materials and structure inside an object.
There are two main types of X-ray CT systems: medical and industrial.
Medical X-ray CT machines can examine bones, muscles, blood vessels, and other tissues from the head to the feet, as well as internal organs.
Uses of X-Ray CT Machines
There are two main types of X-ray CT machines: medical and industrial. They are explained in the following order.
1. Medical X-Ray CT Machines
Medical X-ray CT machines detect X-rays transmitted through the human body to obtain information on the inside of the human body, and are used to determine medical conditions. There are two types of medical X-ray CT Machine: simple CT, which observes the human body as it is, and contrast-enhanced CT, in which a contrast agent is injected into the blood vessels for observation.
2. Industrial X-Ray CT Machines
Industrial X-ray CT machines are widely used in nondestructive inspection of materials, and such industrial X-ray CT machines are called "observation CT". Examples of nondestructive inspection include shape evaluation and defect investigation of semiconductor packages, internal structure evaluation of tablets, and shape and fiber orientation evaluation of carbon fiber reinforced plastics.
In recent years, many industrial X-ray CT machines have also been developed for measurement purposes. Like CT for observation, CT for measurement enables nondestructive inspection, size measurement, and data analysis using CAD.
The "CT for measurement" enables full acquisition of the three-dimensional shape of the object, high-precision shape measurement, and high-speed inspection and measurement.
Principle of X-Ray CT Machines
There are two types of X-ray CT machine: medical and industrial. Both systems irradiate an object with X-rays from all directions in 360 degrees to examine the transmitted and absorbed X-rays, but the imaging methods used in medical and industrial applications are different.
1. Medical X-Ray CT Machines
A medical X-ray CT machine is characterized by a doughnut-shaped gantry and a bed that moves slowly through the center hole of the gantry while a human body is lying in the center hole of the gantry. Inside the gantry, an X-ray tube that irradiates X-rays and a detector that detects X-rays irradiated from the X-ray tube is placed across the center hole.
When a human body on a bed enters the center hole of the gantry, some of the X-rays emitted from the X-ray tube are absorbed by the human body, and the rest are transmitted and detected by the detector. At this time, the gantry rotates around the bed, irradiating X-rays from 360 degrees and detecting the transmitted X-rays.
The gantry then rotates around the bed, irradiating X-rays from 360 degrees and detecting the X-rays transmitted through the gantry. Helical scan is commonly used in this medical X-ray CT machine.
Helical scan is an imaging method in which the bed moves slowly through the center hole of the gantry while continuously irradiating and detecting X-rays. This produces a series of horizontally sliced images of the human body in the longitudinal direction in the direction of height.
2. Industrial X-Ray CT Machines
Unlike medical X-ray CT machine, industrial X-Ray CT Machine is characterized by the fact that the material under investigation rotates instead of the X-ray tube and detector being fixed. There are two types of industrial X-Ray CT machines: the horizontal irradiation type and the vertical irradiation type.
The horizontal irradiation type has the X-ray tube, material, and detector arranged horizontally, while the vertical irradiation type has them arranged vertically. The appropriate type is selected according to the material to be investigated and the location to be investigated.
Other Information on X-Ray CT Machines
1. Multi-Slice Medical X-Ray CT Machines
Medical X-ray CT machines include multi-slice medical X-ray CT machines with multiple rows of detectors arranged in the direction of bed movement.
In this single-slice X-ray CT machine, the detectors are arranged in the direction perpendicular to the direction of bed movement, i.e., transversely for humans, and are distributed in a single row in the direction of bed movement. Therefore, when the gantry makes one rotation, only one cross-sectional view is constructed.
In contrast, the multi-slice medical X-ray CT machine has multiple rows of detectors distributed in the direction of bed movement, enabling acquisition of multiple cross-sectional views with a single rotation of the gantry. This enables imaging in a short time and reduces the burden on the human body. 3D images can also be constructed by combining this with helical scanning.
2. 3D Image Processing Methods for X-Ray CT Machines
The following three types of 3D image processing methods are used in X-ray CT machine technology.
Multi-Panel Reconstruction (MPR)
Multi-Panel Reconstruction (MPR) is characterized by its ability to construct images from three-dimensional data in the coronal and sagittal cross sections, which are cross sections in the direction of the human height, in addition to the transverse cross section of the human body. This method is the most used in current CT 3D processing.
Maximum Image Projection (MIP)
In the maximum intensity projection (MIP) method, an arbitrary viewpoint is set for the three-dimensional data. The maximum value along the path between the viewpoint and the projection plane is then projected onto a two-dimensional surface.
It is characterized by its ability to minimize the effect of image noise and to output images with good contrast, even if they are low-contrast images. However, since values other than the maximum value are not reflected in the image, several angles of observation are required if the front and rear positions are to be determined correctly.
Volume Rendering (VR)
The volume rendering method (VR) sets the upper and lower limits of CT values for the area of interest. The image is then constructed by adding parameters corresponding to opacity to the set range and performing shading processing. This method is suitable for 3D images of blood vessels, etc.
List of 13 X-Ray CT Machine Manufacturers
*Including some distributors, etc.
Sort by Features
- Default
- Company Size: largest first
- Year Founded: oldest first
- Year Founded: earliest first
Sort by Area
- United States of America
- Germany
- Japan
- Netherlands
- United Kingdom
-
-
-
North Star Imaging Inc.
INDUSTRIAL CT X-RAY INSPECTION SYSTEM
Manufacturer Overview
North Star Imaging Inc., founded in 1986 and based in Rogers, USA, is a manufacturer of industrial X-ray systems non-destructive testing (NDT) equipment. The company designs and manufactures 2D digital radiography & 3D computed tomography systems. These products are frequently used for failure analysis, Quality Control and internal measurements. This technology is used by many different markets including medical devices, electronics and aerospace. The company is ISO certified for its quality and environmental standards, and has ASNT & NAS 410 certified employees.
-
-
-
-
-
Nikon Metrology
X-ray and CT Systems
Manufacturer Overview
Nikon Metrology Inc., a manufacturer based in Brighton, Michigan, United States, specializing in providing solutions for industrial measurement, inspection, and quality assurance needs, was founded in 2010 with the merger of Nikon Instruments Inc.’s industrial instrument business unit and the former Metris NV, a company acquired by Nikon Corporation. The company develops systems for manufacturing operations, including 3D laser scanners, industrial microscopy tools, and laser radar measuring systems. It also provides X-ray and computed tomography (CT) systems, optical manual measuring instruments, and video measuring systems. Furthermore, the company extends its offerings to encompass flat-panel display (FPD) lithography systems and imaging solutions.
-
-
-
-
-
Siemens Medical Solutions USA, Inc.
Single Source CT Scanner
Manufacturer Overview
Siemens Healthineers USA (formerly known as Siemens Medical Solutions USA, Inc.), founded in 1847 and a subsidiary of Siemens Healthineers, is a manufacturer based in Malvern, Pennsylvania, specializing in healthcare solutions and services. The company’s portfolio includes a range of medical and diagnostic imaging equipment and machinery. It also provides products and services for laboratory diagnostics, including assays, automation, testing systems, and educational resources. Moreover, the company offers therapeutic concepts and minimally invasive procedures for clinical conditions. The company also offers value partnerships, aiding enterprises in enhancing performance and achieving healthcare targets, along with consulting services facilitated by ECG Management Consultants.
-
-
-
-
-
-
-
YXLON International
CT inspection systems
Manufacturer Overview
Building on decades of experience and an unfailing passion for technology, Comet Yxlon is a globally leading company for industrial X-ray and CT system solutions with integrated services for industrial environments – from R&D labs to production settings. Comet Yxlon supplies tailored service solutions for a wide range of production environments through offline applications, at-line scenarios, or in-line implementation, and their diverse field of quality assurance and quality control. With inspection systems that help manufacturers and developers control product quality, their specialized systems are used in the most diverse areas such as aerospace, automotive, electronics, science & research, and many more.
-
-
-
-
-
-
-
Yamato Scientific Co., Ltd.
3D X-Ray Microscopic CT Scanner
Manufacturer Overview
Yamato Scientific Co., Ltd. is a Japanese manufacturer of scientific industrial equipment originally founded as Yamato Sosuke Morikawa Company 1889 before its rebrand in 1972. Based in Chuo-ku, Tokyo, the company produces a wide range of products including high temperature furnaces, plasma equipment, water purifiers, and emulsifiers. It also designs and constructs various types of bio-clean rooms for food production, manufacturing pharmaceuticals, or pathogen research. Aside from its products, Yamato Scientific offers R&D and on-site system integration services to clients with demanding requirements.
-
-
-
-
-
Matsusada Precision Inc.
Industrial x-ray CT Scanners
Manufacturer Overview
Matsusada Precision Inc is located in Shiga, Japan, and was established in 1978, known as the developer, manufacturer, and global supplier of power supply products and imaging products. The power supply products include high voltage amplifiers, AC, DC, and regenerative DC power supplies as well as optical sensors, which have their use in research centers, aerospace, analytical instruments, electronics, and almost all industries that use power to operate. The imaging products are associated with businesses that use X-ray inspection as a service such as life sciences and electronics Environmental improvement equipment is also supplied, but only in Japan.
-
-
-
-
-
Ma Stoken Solution
X-ray inspection system
Company Overview
Ma Stoken Solution, established in 1998 and based in Tokyo, Japan, is a manufacturer and supplier of automatic identification systems. The company's product portfolio includes handheld barcode scanners, barcode verification machines, RFID printers, image processing systems, and other related systems. These products are used in various industries, including pharmaceuticals, transport, construction, distribution, retail, and more. The company holds the ISO 9001:2000 Quality Management System and ISO 14001 Environmental Management System certifications, and also provides services such as design, operation, sale, and maintenance.
-
-
-
-
-
-
-
-
-
ZKTECO CO., LTD.
X-Ray Scanner
-
-
-
X-Ray CT Machine Manufacturer Ranking
*Including some distributors, etc.Ranking as of April 2024
Derivation Method| Rank | Company | Click Share |
|---|---|---|
| 1 | Shimadzu Seisakusho Co., Ltd. |
15.6%
|
| 2 | ZKTECO CO., LTD. |
11.3%
|
| 3 | Braun & Company Limited. |
11.3%
|
| 4 | North Star Imaging Inc. |
8.8%
|
| 5 | Siemens Medical Solutions USA, Inc. |
8.8%
|
| 6 | LHSC |
8.1%
|
| 7 | Nikon Metrology |
7.5%
|
| 8 | YXLON International |
7.5%
|
| 9 | ST Instruments B.V |
6.3%
|
| 10 | Canon Medical Systems, USA. INC. |
5.0%
|
Derivation Method
The ranking is calculated based on the click share within the x-ray ct machine page as of April 2024. Click share is defined as the total number of clicks for all companies during the period divided by the number of clicks for each company.Number of Employees
- Shimadzu Seisakusho Co., Ltd.: 13,499
- YXLON International: 400
- Matsusada Precision Inc.: 160
Newly Established Company
- ZKTECO CO., LTD.: 2007 (17 years ago)
- YXLON International: 1998 (26 years ago)
- North Star Imaging Inc.: 1986 (38 years ago)
Company with a History
- Braun & Company Limited.: 1848 (176 years ago)
- Shimadzu Seisakusho Co., Ltd.: 1875 (149 years ago)
- LHSC: 1875 (149 years ago)
X-Ray CT Machine Manufacturers in United States
*Including some distributors, etc.
- North Star Imaging Inc.
- Nikon Metrology
- Siemens Medical Solutions USA, Inc.
- Canon Medical Systems, USA. INC.
Global Distribution of X-Ray CT Machine Manufacturers by Country
*Including some distributors, etc.
| Country | Number of Companies | Share (%) |
|---|---|---|
United States of America
|
4 | 40.0% |
Japan
|
3 | 30.0% |
Germany
|
1 | 10.0% |
Netherlands
|
1 | 10.0% |
United Kingdom
|
1 | 10.0% |
List of X-Ray CT Machine Products
20 products are listed.
You Hiichi System Co., Ltd.
Ultra-high-resolution 3D 3D XVA-160αII "Z" "Z" "Z"
10+ people viewing
■ Overview New technologies and devices enable further analysis of fine defects. The world's first development function, such as a user trick funct...
Ma Stoken Solution
Equipped with high sensitivity detector, Ideal for observing light -original materials such as resin and carbon
10+ people viewing
Ideal for observation of light elements such as resin and carbon with high sensitivity detector ･ Industrial highest resolution (JIMA chart 0.4μm ...
Tesco Co., Ltd.

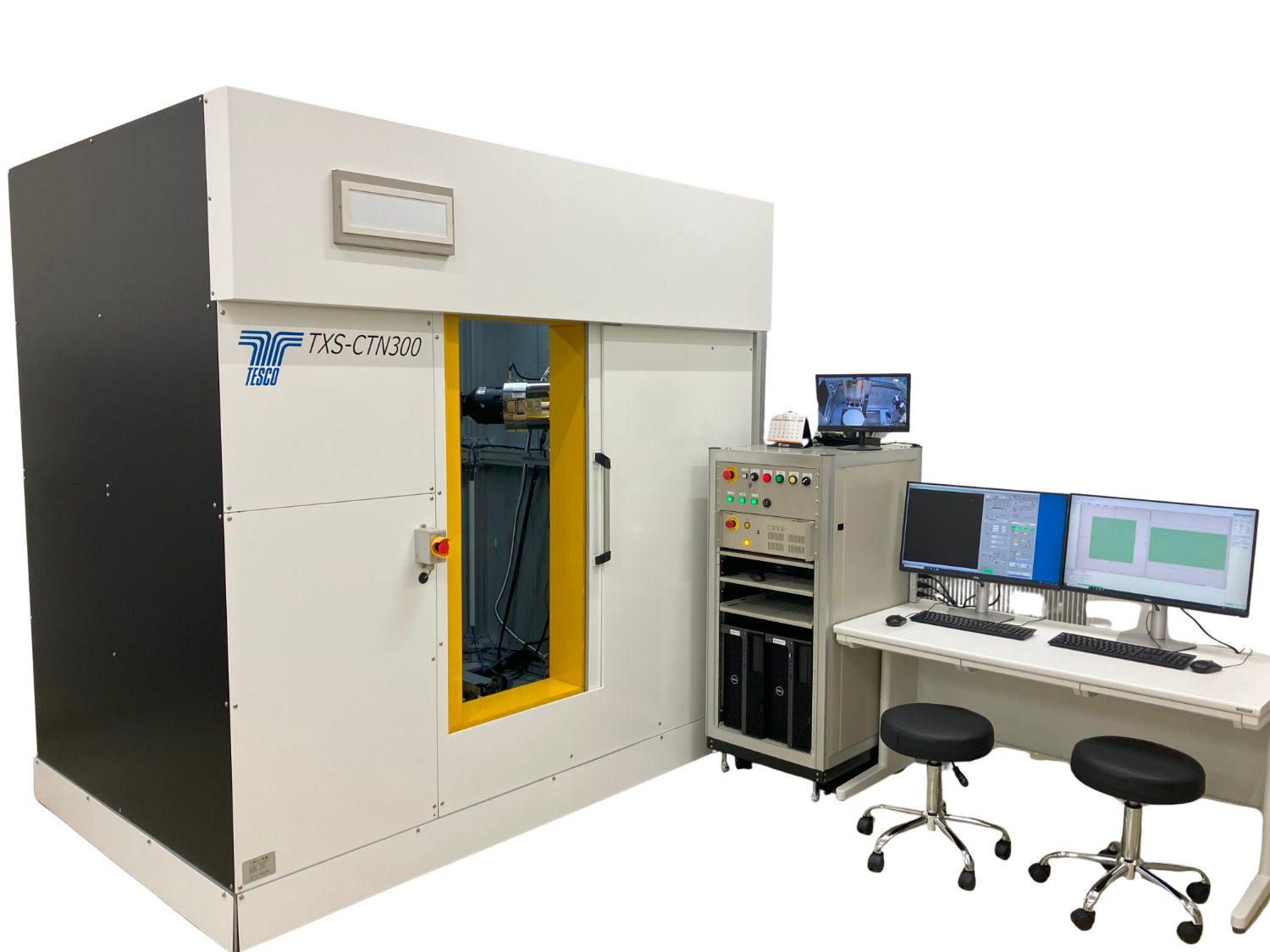

High -output microfocus X -ray CT system TXS240/300 micro
10+ people viewing
■ Characteristics A system that makes it easy to use high -power microfocus, which can obtain clear image quality with a wide range of products. De...
You Hiichi System Co., Ltd.
High resolution 3D 3D CT system XVA-160RZ that does not overlook a slight abnormality
■ Overview New technologies and devices enable further analysis of fine defects. The world's first development function, such as a user trick funct...
Tesco Co., Ltd.
Ultra high output Linax X -ray CT system TXS950/3m/6m/9m linatron
10+ people viewing
A cutting -edge system that enables large metal products CT scanning with an ultra -high -energy X -ray CT system using linax as an X line source. ...
YXLON International
X -ray CT System FF Series FF85 CT
10+ people viewing
The high -resolution FF85 CT achieves a very precise test result for various types of materials and parts size by two tubes. ■ Characteristics ・ ...
You Hiichi System Co., Ltd.
Microfocus 3D XVA-160RCE that does not overlook a slight abnormality
■ Overview New technologies and devices enable further analysis of fine defects. The world's first development function, such as a user trick funct...
YXLON International
X -ray CT System FF Series FF20 CT
10+ people viewing
Micro CT system for R & D, defective analysis, or CT measurement. It is designed for inspection of very small parts and objects in the electronics ...
You Hiichi System Co., Ltd.
Microfocus 3D X-ray system EVA-160
10+ people viewing
■ Overview New technologies and devices enable further analysis of fine defects. The world's first development function, such as a user trick funct...
Tesco Co., Ltd.
High output 450kV focus X -ray CT system TXS450 mini/micro/dual
10+ people viewing
■ Characteristics ・ TXS450 DUAL is a microfocus that can obtain clear image quality even with aluminum products. ・ Custom systems equipped with b...
Tanida
X-ray CT Scanning can also be used for internal analysis X-ray ct scanning y.ct compact
20+ people viewing
A mini -focus X -ray CT system that is ideal for large work inspections. It corresponds to the thickness of 65mm for iron and 250mm for aluminum. S...
YXLON International
X -ray CT System FF Series FF35 CT
10+ people viewing
The optional double pipe setup combines the unprecedented CT data quality and the highest versatility in the examination of small and medium -sized...
