A stress analyzer is an instrument used to determine the type of stress applied to a material.
There are several types of stress-measuring machines, each designed for specific purposes. This section broadly describes stress-measuring machines. Stress can be compressive or tensile. Excessive stress, whether compressive or tensile, can cause component damage. In addition to stresses from external mechanical forces, materials can also experience residual stresses due to processes like heat treatment or film formation.
Reinforcing materials like glass or steel can increase a product's strength by intentionally creating residual compressive stress on the surface.
Stress analyzers are employed in various fields, ranging from product development to heat treatment, film deposition, and glass strengthening. In research and development, these analyzers are utilized to assess component strength by determining the stress they endure and to optimize designs by reducing unnecessary material, thereby cutting weight and costs.
In the semiconductor industry, stress measurement is crucial for quality control, as various thin films are deposited on silicon wafers. Excessive stress can lead to film peeling.
Moreover, in glass tempering processes, stress measurement is conducted after the strengthening process to ensure increased compressive stress near the surface, enhancing the glass's strength.
The principle of a stress analyzer varies based on the measurement method. However, all analyzers detect the strain in the material under test. Strain refers to the stretching, shrinking, twisting, or deformation of a material under external force.
Stress is defined as force per unit area and is calculated by multiplying the material's strain by its Young's modulus. Therefore, stress analyzers indirectly measure stress by capturing the strain caused by external forces on a material and converting this data into stress values using Young's modulus.
There are various methods for detecting strain, and stress analyzers are developed based on these different principles.
Stress analyzers come in various types, suited to the specific material and stress magnitude to be measured. Here are four typical examples:
Strain gauges are primarily used to measure stress in structural components. They detect strain through changes in electrical resistance. Strain gauge-based stress measurement is specific to the part where the gauge is attached.
These gauges are often used in conjunction with CAE for structural analysis verification.
Infrared stress measurement is another method for structural components. Material deformation due to external forces leads to surface temperature changes, a phenomenon known as thermoelastic effects.
This method involves detecting stress from temperature changes on the material's surface due to strain. Unlike strain gauges, infrared stress measurement can assess a broader area.
Laser light reflection is used for stress measurement in thin film deposition. Changes in the radius of curvature, due to substrate warping after deposition, are determined by comparing laser light reflection before and after deposition, thereby assessing film stress.
This technique is also used in evaluating semiconductor silicon wafers and tempered glass.
X-ray diffraction measures residual compressive stress caused by heat or surface treatment of materials like steel. It utilizes the diffraction of X-rays scattered by irradiating materials with X-rays of a wavelength similar to the distance between atoms in a regularly arranged atomic structure.
Beyond stress measurement, X-ray diffraction is also used for material analysis, including qualitative and quantitative analysis, crystal size calculation, and lattice distortion assessment.
*Including some distributors, etc.
Sort by Features
Sort by Area
Advanced Manufacturing Techniques Inc., founded in 1983 and located in Clifton Park, New York, is an American manufacturer providing precision manufacturing services. The company’s capabilities includes electrical discharge machining (EDM) for material vaporization using electrically charged wire. It also offers milling services for prototyping and production, turning services using lathes and turning machines, as well as steel and alloy grinding using centerless, cylindrical computer numerical control (CNC) and surface grinders. The company also provides inspection and quality control services for finished parts. The company serves the automotive, education, energy and power generation, medical, and military sectors.
Pulstec Industrial Co., Ltd. was founded in the year 1969, based in Hamamatsu city, Shizuoka prefecture, Japan and it is a manufacturer of electronic equipments. The company produces products such as the XRD residual stress analyzer, single crystal orientation system, surface hardness variation scanner, and optical disc evaluation tools. Additionally, the comopany provides services like on-site residual stress management, in-house residual stress management, equipment rentals, and parts servicing. This company is ISO 9001 and ISO 14001 certified. Moreover, they frequently hold stress workshops.

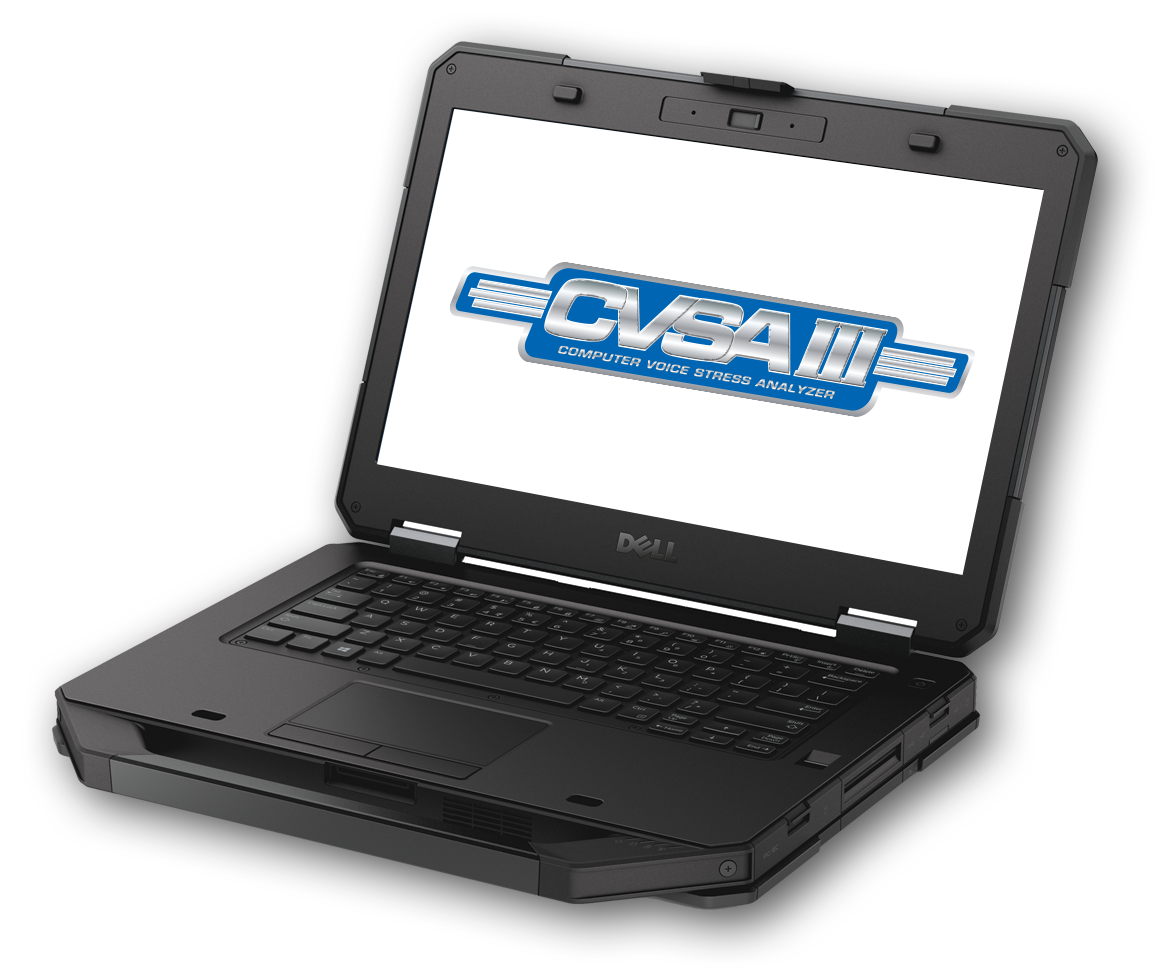

NITV Federal Services LLC. is an American manufacturer based in West Palm Beach, Florida, engaging in voice stress analysis technology. The company offers the patented Computer Voice Stress Analyzer (CSA) III instrument, a technology employed for credibility assessment and lie detection, housed in ruggedized Dell hardware. This technology includes the Final Analysis Confirmation Tool Plus (FACT+), a patented voice stress analysis (VSA) scoring system, along with voice imaging, report auto-writing, and a patented scoring algorithm. It is used by over 2,800 local, state, federal, and international law enforcement agencies, as well as by United States Military Special Operations and intelligence units.
Specialty Testing and Development Company, founded in 1992 and based in Seven Valleys, Pennsylvania, is an American manufacturer of stress testing equipment for electroplated deposits. The company specializes in tensile and compressive stress tests on metallic coatings. Its product range includes tools for measuring internal deposit stress using the deposit stress analyzer system, compliant with ASTM Standard B8975. The company also offers tools for evaluating excessive plating stress using the spiral contractometer system, certified under ASTM Standard B636.
KYOWA ELECTRONIC INSTRUMENTS CO., LTD., founded in 1949 as Kyowa Radio Laboratory Co., Ltd., is a Japanese manufacturer and distributor based in Chofu, Tokyo, specializing in stress measuring equipment with strain gages. Their product offerings include strain gages, bridge boxes or input adapters, transducers, and related accessories. Additionally, KYOWA operates TAMAYA TECHNICS INC., a subsidiary that manufactures navigation, surveying, and meteorological instruments. KYOWA's stress measuring products find applications in various industries. For example, their measurement instruments are used in riding quality evaluation and safety tests of automobiles and railway roads. These devices are also utilized in construction, civil engineering, and healthcare sectors.
XI’AN UTOP MEASUREMENT INSTRUMENT CO., LTD, established in 2008, based in Xi’an, China, is a professional high-tech enterprise that manufactures pressure sensor products. The company specialized in manufacturing and exporting a series of isolated diaphragm pressure sensors, melt pressure transducers/transmitters, differential pressure transmitters, level transducers/transmitters, digital intelligent transmitters, and temperature transmitters. They provide intensive cooperation with all of their customers for mutual benefit, and offer professional services, active and efficient support. The company’s products have been exported to Singapore, Vietnam, Thailand, Malaysia, Pakistan, Iran, Taiwan, Peru, Italy, Greece, USA, and Australia.
Ranking as of November 2024
Derivation MethodRank | Company | Click Share |
---|---|---|
1 | Pulstec Industrial Co., Ltd. |
34.1%
|
2 | Advanced Manufacturing Techniques |
26.8%
|
3 | Specialty Testing and Development Company. |
14.6%
|
4 | XI'AN UTOP MEASUREMENT INSTRUMENT CO.,LTD |
9.8%
|
5 | NITV Federal Services, LLC |
7.3%
|
6 | KYOWA ELECTRONIC INSTRUMENTS CO., LTD |
4.9%
|
7 | Pulstech Industry |
2.4%
|
Derivation Method
The ranking is calculated based on the click share within the stress analyzer page as of November 2024. Click share is defined as the total number of clicks for all companies during the period divided by the number of clicks for each company.Number of Employees
Newly Established Company
Company with a History
*Including some distributors, etc.
*Including some distributors, etc.
Country | Number of Companies | Share (%) |
---|---|---|
United States of America | 3 | 60.0% |
Japan | 1 | 20.0% |
China | 1 | 20.0% |
