What Is a Thickness Gauge?
A thickness gauge is a device used to measure the thickness of an object.
A thickness gauge can be a contact type that measures thickness by contacting the object to be measured or a non-contact type that measures thickness without contacting the object to be measured.
Uses of Thickness Gauges
Thickness gauges are used to measure the thickness of various objects. Typical contact-type thickness gauges that measure thickness by contacting the object to be measured are calipers and ultrasonic thickness gauges. Calipers are used to measure the wall thickness of pipes, etc., while ultrasonic thickness gauges are used for items that cannot be pinched, such as tank corrosion inspection.
On the other hand, non-contact types that measure thickness without coming into contact with the object to be measured include infrared and radiation types. The infrared type is used to measure the thickness of plastic film, while the radiation type is used to measure the thickness of cold-rolled metal sheets.
Principle of Thickness Gauges
Thickness gauges are available in two types: contact-type for quick measurement and non-contact type for non-destructive measurement by shining a light on them. Thickness gauge measuring instruments of the contact type measure thickness by placing the instrument directly on the object to be measured and calculating the distance between the reference surface of the instrument and the object to be measured (relative value measurement). On the other hand, the non-contact type thickness gauge measures thickness without contacting the object to be measured, and calculates the thickness by detecting the difference between the surface and the opposite backside of the object to be measured (absolute value measurement).
Types of Thickness Gauges
Thickness gauges can be classified into contact type and non-contact type.
1. Contact Type
Thickness gauges of the contact type have the advantages of being inexpensive, convenient, and easy to see. However, because of the contact, care must be taken to avoid errors due to damage or deformation of the object to be measured. This section describes typical contact-type thickness gauges, such as calipers and ultrasonic thickness gauges.
Calipers
Calipers are measuring instruments with a part that can measure length, outer diameter, inner diameter, depth, and steps, and are equipped with a scale called the main scale and sub-scale. Analog, dial, and digital calipers are available, and the digital type is widely used because it is easy to check the value. Operation is simple: slide the jaws open, slowly insert the object to be measured, and check the value.
Ultrasonic Thickness Gauge
Ultrasonic thickness gauges irradiate an object to be measured with ultrasonic waves and calculate the thickness of the object based on the propagation time of the ultrasonic waves. Ultrasonic waves are emitted from a probe (probe or transducer), which is placed in contact with the surface of the object to be measured.
The ultrasonic waves emitted from the probe are reflected from the opposite side of the object to be measured, and the thickness is calculated by measuring the propagation time until the ultrasonic waves return to the probe. The thickness is calculated by the following formula.
Thickness d = 1/2 x sound velocity of the object to be measured c x propagation time t
Since the propagation time t is a round-trip time, it can be multiplied by 1/2 to calculate the one-way time, i.e., the thickness of the object to be measured.
2. Non-Contact Type
Thickness gauges of the non-contact type are large-scale devices, but their advantage is that they can measure thickness without damaging the object to be measured. Thickness gauges of the non-contact type include the infrared type, radiation type, and laser displacement sensor type.
Infrared Thickness Measuring Instruments
Infrared thickness gauges use the property of infrared rays to penetrate specific materials to measure the thickness as an absolute value. When an object to be measured is irradiated with infrared light, the light is reflected from the surface irradiated with infrared light and the opposite back surface. The reflected light is received by the probe, and the thickness is calculated from the time difference (interference difference) of the reflected light.
Radiation Type
A thickness gauge is calculated by measuring the amount of radiation absorbed by the object to be measured. Thickness gauges are used in many products because this absorption is not affected by the color tone of the object to be measured.
The types of radiation include alpha rays, beta rays, gamma rays, and X-rays, but the principle is the same for all. Radiation is irradiated to the object to be measured, and the amount absorbed (attenuation) by the object is measured and converted to thickness. The type of radiation is selected to suit the object to be measured. The materials suitable for each radiation source are as follows:
- Alpha rays ... polymer thin film
- Beta rays ... thin metal films, rubber, plastic, etc.
- γ-rays/X-rays: metal plate, etc.
Laser Displacement Sensor Type
A thickness gauge is calculated by using one or two laser displacement sensors. When two laser displacement sensors are used, the thickness is calculated based on the difference in transmitted light between the surface and the backside of the object to be measured.
When two laser displacement sensors are used, the thickness of the object to be measured is calculated by measuring the distance between the upper and lower reference surfaces of the laser displacement sensor and the surface of the object to be measured, and subtracting the distance between the reference surfaces.
Thickness d = distance between reference surfaces d0 - (distance between the top of reference surface and surface of object to be measured d1 + distance between bottom of reference surface and surface of object to be measured d2)
Other Information on Thickness Gauges
Precautions for Ultrasonic Thickness Gauges
There are three types of ultrasonic thickness gauges: Zero Point/First Bottom Echo (Pulse Echo), Multiple Echo (Echo Echo), and Surface Echo/First Bottom Echo (Interface Echo).
As each has different characteristics, so it is important to choose the method that best suits the object to be measured. The most common is the pulse echo method (zero point and first bottom echo method), which can measure thick or curved parts, even if the surface condition of the object to be measured is not so good.
Note that since the ultrasonic thickness gauge uses ultrasonic waves, it cannot measure materials that contain air bubbles through which ultrasonic waves cannot pass, such as styrofoam, or rubber, which cannot receive ultrasonic waves because they are attenuated.
In addition, the layer of air has acoustic resistance and inhibits the propagation of ultrasonic waves between the probe and the object to be measured. For this reason, a special liquid called a contact catalyst (couplant) must be applied between the probe and the object to eliminate the acoustic resistance of the air as much as possible.
List of 49 Thickness Gage Manufacturers
*Including some distributors, etc.
Sort by Features
- Default
- Company Size: largest first
- Year Founded: oldest first
- Year Founded: earliest first
Sort by Area
- United States of America
- Austria
- Belarus
- Canada
- China
- France
- Germany
- Italy
- Japan
- Switzerland
- United Kingdom
-
-
-
Pratt & Whitney Measurement Systems, Inc.
Labmaster Standard
Manufacturer Overview
Pratt & Whitney Measurement Systems, Inc. is a manufacturer of ultra-precision metrology products and solutions. Established in 1860, the company is headquartered in Bloomfield, Connecticut, USA. Its main activities revolve around designing, and manufacturing advanced metrology solutions, including Universal (ID/OD) Measuring Instruments and Long Length Universal (ID/OD) Measuring Instruments. The company offers a range of high-precision products, such as gages, calipers, and micrometers, catering to industries like aerospace, automotive, and manufacturing. Pratt & Whitney Measurement Systems provides comprehensive calibration and certification services, ensuring accurate measurements. The company serves applications like dimensional inspection, quality control, and process optimization, supporting various industries.
-
-
-
-
-
Rex Gauge, LLC.
Material Thickness Gauge
Manufacturer Overview
Rex Gauge Company Inc., established in 1946 and headquartered in Illinois, US, is a manufacturer that specializes in durometer hardness gauges. The company offers a range of products, including durometer models, test block kits, operating stands, O-ring hardness kits, multi-scale durometers, and more. It also offers accessories, material thickness gauges, and pocket hardness testers. The products can measure hardness on multiple durometer scales, providing adaptability for different materials. In 2005, its custom durometer SG-5000 was officially luched as a Certified Space Technology. The company serves various industries such as science & technology, manufacturing, aerospace, defense, and more.
-
-
-
-
-
Gagemaker
Specialty Items
Manufacturer Overview
Gagemaker is a manufacturer of industrial-grade measurement devices and inspection equipment that was established in Pasadena, Texas, USA, in 1979. The company primarily produces taper gages, thread height gages, and lead gages for large-diameter measurement or API thread inspection. It also offers indicators, cases, and calibration equipment for its portfolio products. The company is ISO 9001-certified, and provides custom design, part measurement, and inspection services to its clients. It chiefly serves the oil and gas, mining, and machine shop industries.
-
-
-
-
-
Filmetrics
Film Thickness Measurement Products
Manufacturer Overview
Filmetrics, established in 1995 and based in California, USA, is a manufacturer of thin-film thickness measurement devices. The company's main products are UV to NIR spectrometer systems capable of measuring thin film thickness from 1nm to 12mm. The company also offers devices that are able to measure subnanometer surface roughness and precision step heights. The company offers its services to companies that manufacture cell phones, eyeglasses, coatings, wafers and membranes, and liquid-crystal displays.
-
-
-
-
-
Chino Works America Inc.
Infrared Multi Analyzer
Manufacturer Overview
CHINO Works America Inc. (CWA), a wholly owned subsidiary of CHINO Corporation, headquartered in Naperville, Illinois, established in 1983, is a manufacturer of industrial process instruments. The company manufactures sensors, instruments, systems, and control equipment used in the measurement of temperature, moisture, and humidity. The extensive range of instruments includes temperature sensors, recorders, infrared thermometers, controllers, systems, and various accessories. Operating with manufacturing facilities, offices, and agents across the globe, CHINO Corporation supplies its products and services around the globe.
-
-
-
-
-
Phase II Plus
COATING THICKNESS GAUGES
Manufacturer Overview
Phase II Plus, incorporated in 1982 and based in Upper Saddle River, New Jersey, is a manufacturer of material testing instrument as well as machine tool accessories and precision measuring tools. The company offers a comprehensive line of hardness testers, including rockwell hardness testers, portable hardness testers, Brinell hardness testers, and Vickers hardness testers. The company also offers ultrasonic thickness gauges for testing both ferrous and non-ferrous substrates, durometers, as well as force gauges comprising of analog handheld force gauges, ranging up to 100lb/50kg capacity.
-
-
-
-
-
Fischer Technology, Inc.
COULOSCOPE CMS2 AND COULOSCOPE CMS2 STEP
Manufacturer Overview
Fischer Technology, Inc., established in Windsor, CT in 1979 is a manufacturer of coating thickness and material testing instrumentation. Their product portfolio includes coating thickness gauges, material testing instruments such as hardness testers, adhesion testers, and gloss meters, adhesion testers, used for assessing the bond strength between coatings and substrates. The company serves markets including Electronics and Semiconductors, Marine and Offshore, Construction and Architecture and Quality Control. The company has a national distribution network and a customer support center.
-
-
-
-
-
Omega Engineering, Inc.
Hardness
Manufacturer Overview
OMEGA Engineering Inc., founded in Norwalk, CT, in 1962 is a manufacturer of products used to measure temperature and humidity, flow and level, and pressure. The company's product portfolio includes thermocouple probes and assemblies, pressure gauges and switches, and air velocity measurement systems, wireless systems and portable optic sensors. The company serves markets including Automotive and Electric Vehicles, Renewable Energy and Energy Storage and Electronics and IT Infrastructure. The company also offers customer services that include support, custom research projects and customized services.
-
-
-
-
-
Global Gauge Corporation
X Ray Thickness Gauges
Manufacturer Overview
Global Gauge Corporation, established in 1999 and headquartered in Moraine, Ohio, US, is a manufacturer and supplier of precision systems. The company's product portfolio covers X-ray thickness gauges, coating weight gauges, and visualization systems. The products are also used in material, lumber, metal, plastic, and paper industries. With systems essential in multiple applications in-line, scanning, and centreline, the company is ISO 9001:2015 and ISO/IEC 17025:2017 certified. It also offers installation, fabrication, system engineering, and design services to global clients
-
-
-
-
-
DeFelsko Corporation
Coating Thickness Gages
Manufacturer Overview
DeFelsko Corporation is a manufacturer of coating thickness gauges and inspection instruments, located in Ogdensburg, NY, USA, and was established in 1965. The company offers a range of products, including, environmental gauges, soluble salt testers, ultrasonic wall thickness gauges, and analog & digital material hardness testers, used in various industries, including metals, fiberglass, and plastic.They continue to develop new products and technologies to meet the needs of customers. They also actively participate in several key organizations (SSPC, NACE, ASTM, ISO) to improve and promote the science of coating inspection.
-
-
-
-
-
Precision Brand Products, Inc.
Thickness Gages
Manufacturer Overview
Precision Brand Products, Inc. (PBP) is a manufacturer of various tool room maintenance products and accessories founded in 1946 and headquartered in Downers Grove, Illinois. The company is a subsidiary of Precision Steel Warehouse, Inc., and is an ISO 9001 certified global supplier of over 3,800 products including keystock, hose clamps, drill rods, and fasteners. PBP offers custom fabrication and packaging services to its clients in the marine, energy, construction, and energy sectors.
-
-
-
-
-
GEI International, Inc.
Thickness Gages
Manufacturer Overview
GEI International, Inc., founded in 1961 and headquartered in East Syracuse, New York, is a manufacturer of measuring tools. The company's product line includes stainless steel rulers, metric and imperial rulers, custom-made rulers, depth gauges, wire gauges, as well as vernier calipers, magnifiers, and microscopes. Serving various industries such as manufacturing, construction, and healthcare, these tools are utilized for obtaining precise measurements, as well as for inspecting components, and conducting various analyses.
-
-
-
-
-
Brunswick Instrument, LLC
Thickness Gages
Manufacturer Overview
Brunswick Instrument LLC, located in Kiel, Wisconsin, is a manufacturer of precision dimensional measurement instruments. Their product lineup encompasses a diverse range of equipment designed for accurate measurement and evaluation purposes. This includes gear inspection equipment for measuring gears, and calibration equipments to ensure the precision of other measuring instruments. They also provide flatness measuring equipment for evaluating surface flatness. The company serves both large and small manufacturing companies across various industries that require precise measurement of dimensions in components made of materials such as metal, plastic, and glass.
-
-
-
-
-
Vitrek Corp.
Laser Thickness Gauges
Company Overview
Vitrek Corp, established in 1990 and based in Poway, California, USA, is a manufacturer and supplier of high voltage test and measurement equipment. The company's product range includes Non-Contact Measurement devices, MTI Instruments Accumeasure Capacitance Products, Portable Hand-Held Signal Simulators/Calibrators, and Semiconductor/Solar Metrology Systems. These products are designed for various testing and measurement tasks. They mainly serve the electronic, appliance, medical, aerospace, and semiconductor industries. The company's services include safety and electrical test equipment provisioning, solar and metrology system offerings, vibration/engine balancing system solutions, and high-speed data acquisition.
-
-
-
-
-
Hitachi High-Tech America, Inc.
Coating Thickness Measurements
Company Overview
Hitachi High Tech was established in April 1947 and operates in 26 countries with products and services ranging from semiconductor manufacturing equipment and Medical and Biosystems to Analytical Systems and Manufacturing related equipment and solutions. A unique state-of-the-art technology company with two functions as a manufacturer and a trading company with the motto of "Tackling social issues," the Hitachi High-Tech Group aspires to be a company that pursues not only economic value, such as revenue and profit, but also provides social and environmental value by contributing to resolving social issues through its business activities, including products and services. They also provide one-stop services, such as evaluations and analysis at a global level.
-
-
-
-
-
Western Gage Corp.
Thickness Gages
Company Overview
Western Gage Corporation is a manufacturer, supplier, and distributor of air and electronic gages since 1968 and is based in Camarillo, California. They produce dimensional air gages for internal and external diameters, custom gage design, precision components, and automated inspection systems as well as air gage readouts (analog and digital) and microprocessor-based instruments such as MilliCheck readouts with high-resolution LCD displays and Micro IIi Readout that have both bar graph and digital displays. These instruments incorporate USB & RS-232 serial outputs, and can handle up to four inputs. The equipment is ideal for high volume production environments ensuring precision and accuracy.
-
-
-
-
-
-
-
Cincinnati Automation Ltd.
Thickness Gages
Distributor Overview
Cincinnati Automation Ltd., established in 1993 and headquartered in Florence, Kentucky, is a service supplier of custom automation solutions for manufacturing and industrial processes. Its offerings include automated inspection systems for defect detection, general inspection systems for tasks like sorting and verification, automated gaging systems for precise measurements, robotic inspection systems for complex areas, and custom automation systems. The company also employs sensors, software, robots, and more to enhance quality, efficiency, and precision in sectors such as automotive, medical, aerospace, and packaging. The company offers a free evaluation of inspection, robotic automation, laser measurement, and laser marking projects.
-
-
-
-
-
Herz GmbH
Thickness measuring device
Manufacturer Overview
HERZ GmbH, established in 1964 and headquartered in Rheinland-Pfalz, Germany is a manufacturer of plastics welding and process heat technology. The company offers a wide range of products, including flat roofs, extruders, hot air generators, hot water generators, plastic welding machines, and more. It also offers welding rods, steam generators, nozzles, and spare parts. Its products have strong and durable welds, ensuring the longevity of the finished product. Furthermore, the company serves the plastics welding and process heat technology industries.
-
-
-
-
-
SONOTEC GmbH
Thickness Gauges
Manufacturer Overview
SONOTEC GmbH, established in 1991, is a German manufacturer based in Halle (Saale), Saxony-Anhalt, specializing in ultrasonic measurement technology solutions. The company offers non-invasive flow meters and air bubble detectors for fluid monitoring in medical technologies, bioprocessing, and the semiconductor industry. It also supplies ultrasonic testing devices used for condition monitoring, inspections, predictive maintenance, tightness testing, and ultrasonic leak detection. Additionally, the company engages in non-destructive testing (NDT) using ultrasound, primarily for flaw detection, thickness measurements, and weld seam testing, commonly applied in industries like aerospace, aviation, power plants, as well as other sectors including pipelines, railways, and sheet metal inspections.
-
-
-
-
-
Anton Paar GmbH
Coating Thickness Measurements
Manufacturer Overview
Anton Paar, founded in 1933 and headquartered in Graz, Austria, is a manufacturer and supplier of analytical instruments Their product range includes density meters for measuring liquid and solid density, concentration meters for analyzing solution concentration, viscosity meters for assessing liquid viscosity, particle size analyzers for measuring particle size in liquids or solids, and chromatography systems for substance separation and identification in mixtures. Anton Paar's products cater to a wide range of industries, including food and beverage, pharmaceutical, and chemical, providing analytical solutions for diverse applications.
-
-
-
-
-
Marposs
thickness measurements
Manufacturer Overview
Marposs S.p.A. is headquartered in Bentivoglio, Italy. The company serves industries such asa aerospace, semiconductors, machine tooling, and biomedical as a manufacturer and as a service provider. The company’s products vary by industry but include tools for gauging, profiling, and monitoring, as well as data management systems and machines for testing and automation. The company’s services include after sales service, customer training, original spare parts, retrofit and upgrade of existing machinery, and project management consulting services.
-
-
-
-
-
RSF Elektronik
Length Measurements
Manufacturer Overview
RSF Elektronik is a manufacturer of electronic linear measuring systems, high-precision and resistant graduations, and customized cable systems. Their lineup comprises electronic linear measuring systems that offer resolutions from a few micrometers to the nanometer range, as well as high-precision and durable graduations produced using thin-layer technology on glass or other substrates. Additionally, they design tailor-made cable systems to cater to various sectors and applications, encompassing automation, robotics, automotive, aerospace, and medical technology. The company holds certifications in accordance with EN ISO 9001 and EN ISO 14001.
-
-
-
-
-
LMI Technologies
chroma+scan
Manufacturer Overview
LMI Technologies is based in Burnaby, British Columbia, Canada, and is a manufacturer of 3D inspection and scanning products that was established in 1979 before its acquisition by the Dutch company TKH Group NV in 2019. The company’s product lineup includes snapshot sensors for capturing high resolution 3D images, line confocal sensors for measuring thickness, shape, and surface roughness using three-dimensional data, and laser line profilers for measuring the dimensions using laser triangulation. The company’s products are commonly used in the manufacture of automotive parts, consumer electronics, and furniture.
-
-
-
-
-
Haida International Equipment Co., Ltd.
Coating Thickness Gauge
Manufacturer Overview
Haida International Equipment was founded in 2004 as a manufacturer and supplier of Testing Equipment in China. The company deals in various precision testing instruments, machines, and services such as Batteries, Furniture, Textiles, Leather and Shoes, and Rubber and Plastic test equipment. There is also Adhesive tape, Cookware, Luggage, Optical, and Vibration test equipment along with Accelerated Environment Test Chamber (AES) that executes QC inspection on electronic appliances, paper products, metals, research institutes, and lots more. The other testing machines cater to industrial and mining enterprises, colleges and universities, engineering quality supervision stations, and other departments.
-
-
-
-
-
Teclock
Thickness Gauge
Manufacturer Overview
Teclock, founded in 1950 and based in Okaya, Nagano, Japan, is a distinguished manufacturer of precision measuring instruments. Its instruments has a high dimensional accuracy with a smallest scale of 0.0005mm. Its product lineup includes dial indicators, lever testers, thickness gauges, depth gauges, and calipers. The company also offers height gauges, stands, handy durometers, and micrometers. The company also provides a Cloud-based IoT measurement solution, enabling the seamless digitization and analysis of measurement data.
-
-
-
-
-
Shinwa Rules Co., Ltd.
Digital Thickness Caliper
Manufacturer Overview
Shinwa Rules Co. was founded in Niigata, Japan, in 1971. Shinwa Rules Co. develops a variety of measuring products including calipers, thermometers, hygrometers, laser optical apparatuses, and sheet heating elements. Above these, Shinwa develops metallic rulers and squares. Additionally, Shinwa operates as an OEM supplier for special calibrations and machine tools, special surface fabrication, and etching on metallic parts.
-
-
-
-
-
SCANTECH I LEGAL NOTICE
THICKNESS MEASUREMENT GAUGE
Manufacturer Overview
Scantech SAS was established in 1992 in La Motte-Servolex, France, and is a manufacturer of measuring and control systems helpful in textile and non-woven applications. It deals in laser, x-ray, microwave online measurement, visual inspection tools, and infrared. It also manufactures sensors used in the fuel cell applications, an end-to-end solution for gigafactories, and a scanner for blown film lines. The company provides an ergonomic user interface, automatic calibration, and laser triangulation. The products benefit energy, metal, extrusion, lamination, and converting industries.
-
-
-
-
-
Shanghai KeyWay Electronic Technology Co., Ltd.
Thickness Measurement
Manufacturer Overview
Shanghai KeyWay Electronic Technology Co. Ltd. is a Chinese low power x-ray tubes manufacturer that was established in Shanghai in 1998. The company’s product lineup includes tubes for x-ray fluorescence (XRF) coating measurement and analysis, as well as x-ray imaging, liquid level measurement, and x-ray diffraction analysis (XRD). It also offers tubes for custom applications manufactured to meet client specifications. The company’s products are used mainly in the medical, research, consumer electronics, and industrial sectors.
-
-
-
-
-
Labthink
Thickness Tester
Manufacturer Overview
Labthink, established in 1989 with its international headquarters located in Boston, USA, is a manufacturer and supplier of testing instruments and solutions for quality control. Their products include gas permeability testers, tensile strength testers, thickness gauges, burst strength testers, and heat seal testers. These instruments are used to ensure the quality and performance of various materials and products in industries such as food packaging, textiles, and pharmaceuticals. Labthink holds ISO 9001:2000 certification and CNAS laboratory accreditation certificate.
-
-
-
-
-
Danatronics Corporation
Thickness Gages
Manufacturer Overview
Danatronics Corporation is a manufacturer of non-destructive testing equipment and related products established in Danvers, Massachusetts, USA, in 2006. The company’s products include ultrasonic flaw detectors for characterizing defects such as voids or porosity, ultrasonic thickness gauges for measuring the thickness of active materials or composites, and video inspection equipment for hard to reach places such as tubes or cavities. The company’s products are used across the defense, energy, and aerospace industries.
-
-
-
-
-
Hitachi High-Tech Analytical Science
Coating Thickness Handheld Gauges
Manufacturer Overview
Hitachi High-Tech Analytical Science, established in 1947, is a manufacturer of analytical solutions such as analyzers, handheld thickness gauges, calorimeters, mobile & stationary spectrometers, and elemental analysis products used in environmental screening, general chemicals, metal finishing, metal production, and PMI inspection. The company offers consumables and accessories such as springs for electrodes, mineral oil, x-ray warning lamp bulbs, electrode brush, tungsten electrode, and sample films. The Westford, MA, company offers customized support packages, warranties, preventative maintenance & recertification, consultation services, and rental equipment.
-
-
-
-
-
MicroSense, LLC
Capacitive Sensors for Thickness Measurement and Gauging
Manufacturer Overview
MicroSense LLC., founded in 1967 and based in Lowell, Massachusetts, is a manufacturer of precision capacitive sensors, wafer geometry metrology systems, and vibrating sample magnetometers (VSMs). It also sells magneto-optical Kerr effect (MOKE) tools and serves industries such as data storage and semiconductor manufacturing. In 2012, the company introduced the world’s first 300mm ready non-contact magnetic property measurement tool. The company’s precision capacitive sensors feature non-contact measurements with short measurement ranges from 10 micrometers to 4 millimeters. Its VSMs have five systems in one, including magneto electric, vector, and true Torque, and reach up to 3.7 Tesla.
-
-
-
-
-
Mahr Inc.
Thickness gages
Manufacturer Overview
Mahr Inc., founded in 1861 and located in Rhode Island, United States, is a supplier of production metrology, rotary stroke bearings, gear metering pumps, and meter mix dispense technology. The company offers a range of products, including handheld gages, stereo-zoom microscopes, planetary spinning pumps, spin finish metering pumps, and the N500 ball cage, that cater to various industries including automotive, aerospace, medical, and energy. Mahr Inc.'s metrology systems include coordinate measuring machines, optical measuring machines, contour measuring machines, and gear measurement systems to meet the stringent requirements of industries.
-
-
-
-
-
Yamabun Electronics Co.,Ltd.
PRODUCT INTRODUCTION
Manufacturer Overview
Yamabun Electronics Co. Ltd., founded in 1971 and based in Osaka, Japan, is a manufacturer of thickness measuring systems, thickness controllers, and related equipment. The company serves the chemical, packaging, and LCD industries, and its products are used in several regions like South America, the Middle East, and ASEAN. It allows customers to send film samples and proposes the ideal thickness measuring systems. Its TOF- 4R05 contact-type desktop film and sheet thickness measuring system displays real-time measurement data on the screen. It has a measurement range of between 0.03 to 3 mm and a measurement length of 10 to 10000mm.
-
-
-
-
-
Micro-Epsilon
Sensor system
Manufacturer Overview
Micro-Epsilon was originally founded in Osaka and Micro-Epsilon America was founded in 1998, headquartered in Raleigh, North Carolina. Micro-Epsilon develops, manufactures, and distributes sensors to aerospace, battery production, glass production, wind power, precision optics, medical technology, transportation, semiconductor, and other industries. Micro-Epsilon’s sensor product categories include inductive, capacitive, laser, confocal, laser distance, magneto-inductive, draw-wire, rotation speed, color, paint thickness measurement, and fiber optic sensors in addition to interferometers and other sensor equipment.
-
-
-
-
-
Industrial Physics
Seam Thickness Gauge
Manufacturer Overview
Industrial Physics, a portfolio company of KKR a private-equity firm, is a manufacturer of test, measurement, and inspection equipment, based in the United States. The company specializes in the food and beverage, paper and plastics, paint and coatings, materials testing, and consumer electronics markets. They operate across a family of brands, including TQC Sheen, Technidyne, and C&W Equipment. They have been supporting manufacturers, laboratories, and production lines across a multitude of industries.
-
-
-
-
-
ABB E-mobility
Thickness Gages
Manufacturer Overview
ABB E-mobility provides electric vehicle charging solutions for customers around the globe. ABB E-mobility offers DC fast chargers as well as AC chargers with focus on reliability and uptime. Since 2010, ABB E-mobility has sold over 50,000 DC fast chargers and over 1 million total AC chargers. ABB E-mobility offers home single and multi-charge units, retail, workplace, and hospitality charge units, electric vehicle fleet sales, as well as public transportation. Additionally, numerous digital solutions and software services are available.
-
-
-
-
-
Cygnus Instruments Ltd.
thickness measurements
Company Overview
Cygnus Instruments Ltd, established in 1987, and based in Florida, USA, is a manufacturer and supplier of ultrasonic measurement equipment. Their product portfolio includes ultrasonic thickness gauges, hatch cover leak detectors, and flooded member detection systems. The products are used in various applications which include aeronautical, electrical, forensic, mechanical, civil, and medicine systems. The company offers robust ultrasonic thickness gauges with high quality and premium expertise. They also provide digital multiple echo technology for accurate measurements.
-
-
-
-
-
RIFTEK
Thickness Measurement System
Company Overview
RIFTEK LLC, a company established in 1993, based in Minsk, Belarus, is a manufacturer and supplier of optoelectronic instruments for measuring geometrical quantities. The company provides various products such as laser triangulation sensors, 2D and 3D laser scanners, absolute linear encoders, optical micrometers, and specialized systems for measuring dimensions, displacements, thickness, and diameter. These products are used for various applications such as power generation, distribution, industrial automation, railway transport, machine vision, and others. The company also offers engineering, installation, testing, and maintenance services for its customers.
-
-
-
-
-
TOSHIBA CORPORATION
Americium Thickness Gauge
Company Overview
Toshiba has nearly a century-and-a-half-long history of pioneering the development of electrical equipment in Japan, providing customers with products and services such as energy systems and solutions and infrastructure systems and solutions. With a focus on digital technologies, Toshiba boasts cutting-edge products in semiconductors, barcode printers, and rechargeable Lithium-ion battery cells, modules, and industrial pack series. With arms in business, R & D, AI, sustainability, and digital solutions, Toshiba and its people evolve with the times, ensuring its continuing ability to solve ever-changing social issues through constant change. By utilizing the knowledge that Toshiba has amassed across numerous business domains, along with cutting-edge technologies like IoT, AI, and quantum related technologies, they have created digital solutions that provide our customers with new value and services
-
-
-
-
-
PCE Instruments UK Ltd
Thickness Gages
Company Overview
PCE Instruments UK Ltd., started in 199 and headquartered in Manchester, UK, is a manufacturer and supplier of test instruments, equipment, and tools for weighing, measuring, and control systems. The company offers more than 500 test equipment, including analyzers, inspection cameras, meters, detectors, and sensors, with applications in various fields like data acquisition, electrical engineering, environmental science, building inspection, and food processing. Its manufacturing and development division is ISO 9001 certified, all its test instruments, equipment, and tools are factory calibrated, and the company also provides services for custom test instrument design, installation, and maintenance.
-
-
-
-
-
Kett US
Coating Thickness Gauges
Company Overview
Kett US, an American company founded in 1946 and headquartered in Villa Park, California, is a manufacturer and supplier of moisture meters and organic composition analyzers. The company's product portfolio includes laboratory mixers, near-infrared composition analyzers, and moisture determination balances. These products find applications in various industries, including agriculture, construction, and the laboratory and research industry. The company provides services, including technical support and product training to ensure customers can effectively use its products.
-
-
-
-
-
Toolsavings, LLC
Thickness Gages
Company Overview
Toolsavings, LLC is based in Chicago, Illinois and is a supplier and distributor of industrial supplies for both individual and corporate customers. Toolsavings offers an extensive catalog spanning over 10 categories such as Cutting Tools, Toolholding, Air and Power Tools, Fasteners, and Measuring Instruments from brands such as 3M and Destaco. Cutting tools include drills, reamers, and saws. Toolholding includes boring heads, retention knobs, and sawholders. Air and Power Tools includes blow guns, grinders, and tire gages. Fasteners includes screws and pins. Measuring instruments includes calipers, microscopes, and squares.
-
-
-
-
-
Dr. Brockhaus Messtechnik GmbH & Co. KG
Inline Thickness Measuring Instrument TGD
Company Overview
Dr. Brockhaus Messtechnik GmbH & Co. KG is a manufacturer of instrumentation systems and devices for magnetic materials established in 1975 and headquartered in Lüdenscheid, Germany. The company offers magnetization devices for soft as well as hard magnetic materials, and magnetic field measurement devices such as magnetometers and Tesla meters. It also offers magnetization and measurement services, as well as calibration of its portfolio products. The company mainly serves clients in the electrical, engineering, and R&D industries.
-
-
-
-
-
Evident
Thickness Gauges
Company Overview
Evident Corporation is a scientific research and development company in Shinjuku, Tokyo that was established in 2008. Formerly known as Olympus Scientific Solutions, the company specializes in developing cutting-edge technology and products for various industries, including aerospace, automotive, electronics, energy, and medical research. Evident Corporation has proliferated and expanded its product offerings and services to meet the needs of its customers. Their product offerings include non-destructive testing (NDT) solutions such as thickness gauges and automated inspection systems, XRF analyzers like handheld XRF analyzers, industrial microscopes, and video scopes and borescopes.
-
-
-
-
-
-
ABTech Inc.
Thickness Gages
-
-
-
-
-
InspectorTools
THICKNESS GAGES
Distributor Overview
Inspector Tools, founded in 1999 and based in Ventura, California, is a distributor and supplier of test equipment catering to sectors such as facility maintenance, building inspection, and energy conservation. The company maintains a diverse inventory featuring products from over 20 brands, including Extech Instruments, Met One Instruments Inc., and General Wire Spring Company. Offerings range from home inspection kits to carbon monoxide detectors and infrared cameras. Inspector Tools provides customers with an online catalog showcasing its entire product range. Additionally, customers can create digital accounts for faster checkouts and access to order history.
-
-
Thickness Gage Manufacturer Ranking
*Including some distributors, etc.Ranking as of November 2024
Derivation Method| Rank | Company | Click Share |
|---|---|---|
| 1 | Global Gauge Corporation |
8.7%
|
| 2 | Precision Brand Products, Inc. |
7.4%
|
| 3 | TOSHIBA CORPORATION |
6.0%
|
| 4 | Pratt & Whitney Measurement Systems, Inc. |
4.7%
|
| 5 | SCANTECH I LEGAL NOTICE |
4.7%
|
| 6 | GEI International, Inc. |
4.7%
|
| 7 | Cincinnati Automation Ltd. |
4.0%
|
| 8 | Gagemaker |
3.4%
|
| 9 | Labthink |
3.4%
|
| 10 | Brunswick Instrument, LLC |
3.4%
|
Derivation Method
The ranking is calculated based on the click share within the thickness gage page as of November 2024. Click share is defined as the total number of clicks for all companies during the period divided by the number of clicks for each company.Number of Employees
- TOSHIBA CORPORATION: 106,648
- ABB: 105,000
- Hitachi High-Tech America, Inc.: 13,397
Newly Established Company
- Haida International Equipment Co., Ltd.: 2004 (20 years ago)
- Hitachi High-Tech America, Inc.: 2002 (22 years ago)
- Cincinnati Automation Ltd.: 1993 (31 years ago)
Company with a History
- Pratt & Whitney Measurement Systems, Inc.: 1860 (164 years ago)
- Kett US: 1946 (78 years ago)
- Reid Supply: 1948 (76 years ago)
Thickness Gage Manufacturers in United States
*Including some distributors, etc.
- Pratt & Whitney Measurement Systems, Inc.
- Rex Gauge, LLC.
- Gagemaker
- Filmetrics
- Chino Works America Inc.
- Phase II Plus
- Fischer Technology, Inc.
- Omega Engineering, Inc.
- Global Gauge Corporation
- DeFelsko Corporation
- Precision Brand Products, Inc.
- GEI International, Inc.
- Brunswick Instrument, LLC
- Vitrek Corp.
- Hitachi High-Tech America, Inc.
- Western Gage Corp.
- Reid Supply
- Cincinnati Automation Ltd.
Global Distribution of Thickness Gage Manufacturers by Country
*Including some distributors, etc.
| Country | Number of Companies | Share (%) |
|---|---|---|
United States of America
|
18 | 48.6% |
Japan
|
4 | 10.8% |
Germany
|
3 | 8.1% |
China
|
3 | 8.1% |
Austria
|
2 | 5.4% |
United Kingdom
|
2 | 5.4% |
Italy
|
1 | 2.7% |
Canada
|
1 | 2.7% |
France
|
1 | 2.7% |
| Belarus | 1 | 2.7% |
Switzerland
|
1 | 2.7% |
List of Thickness Gage Products
6 products are listed.
Kett Electric Laboratory Co. Ltd.
Built-in membrane thick meter L-500
60+ people viewing
It is a built -in membrane thick meter with a built -in printer. The measured data can be printed on the spot, so you can easily and ensure film th...
Yasuoka Co., Ltd.

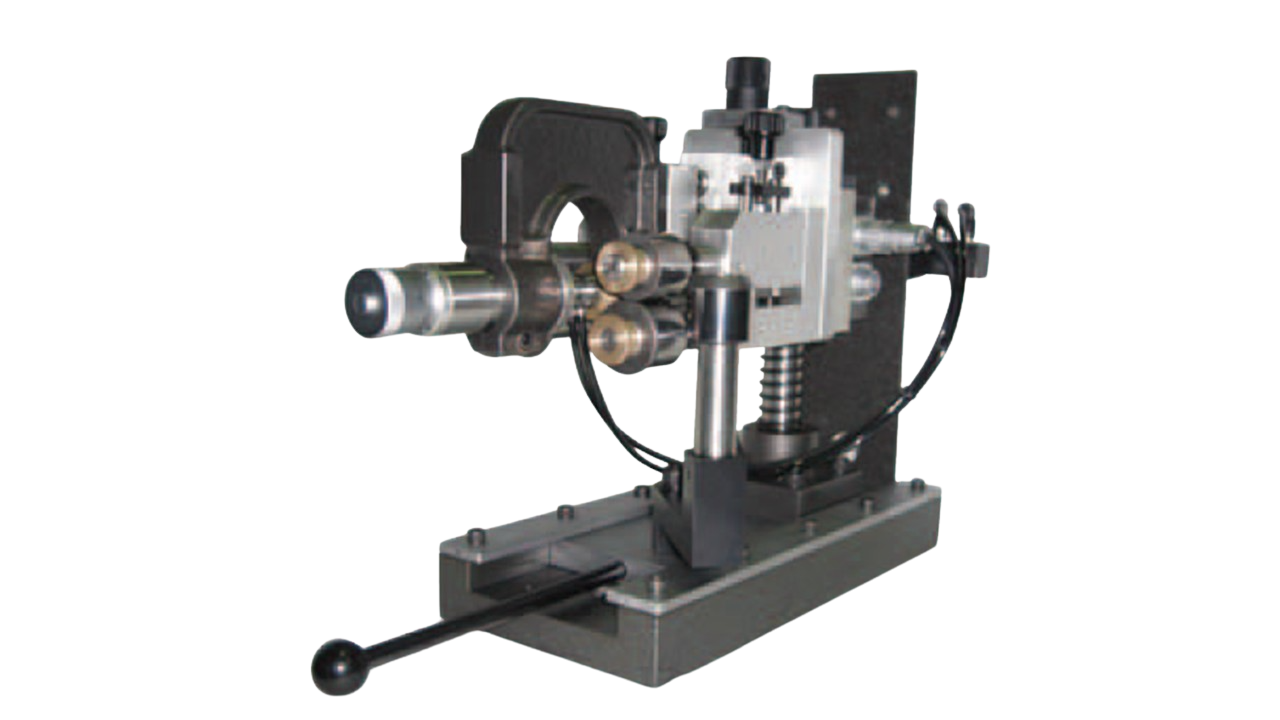

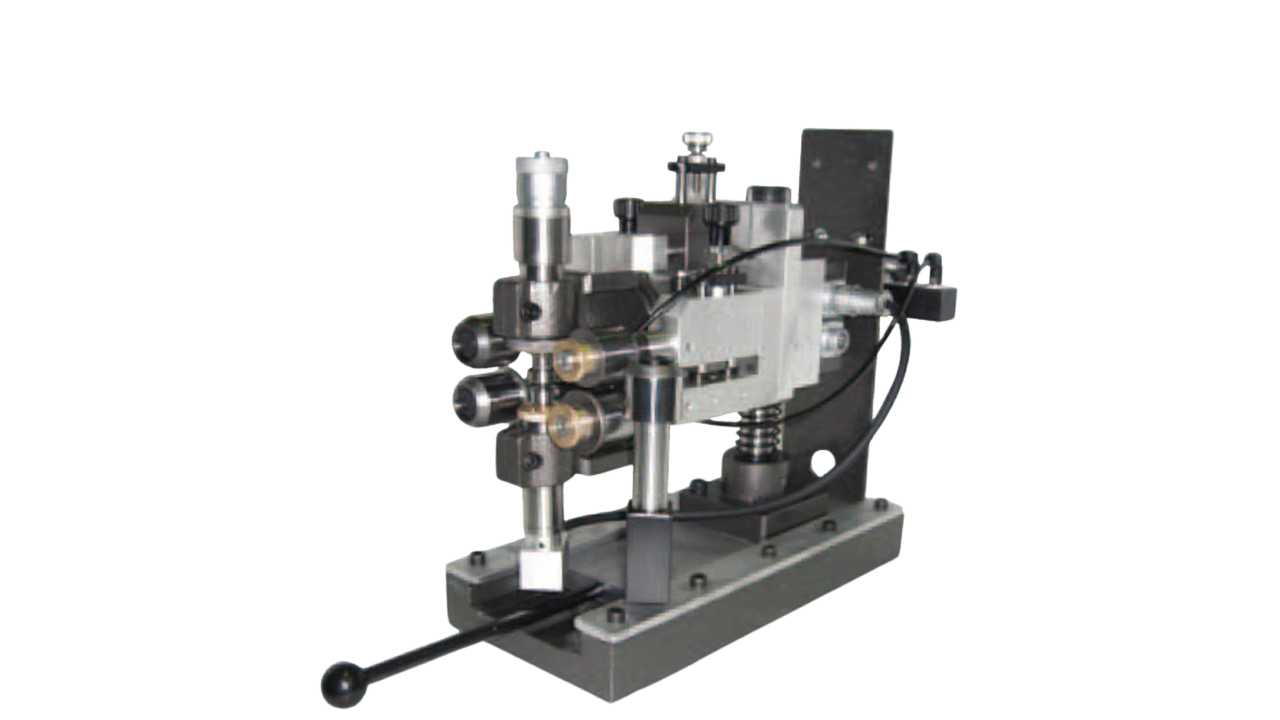

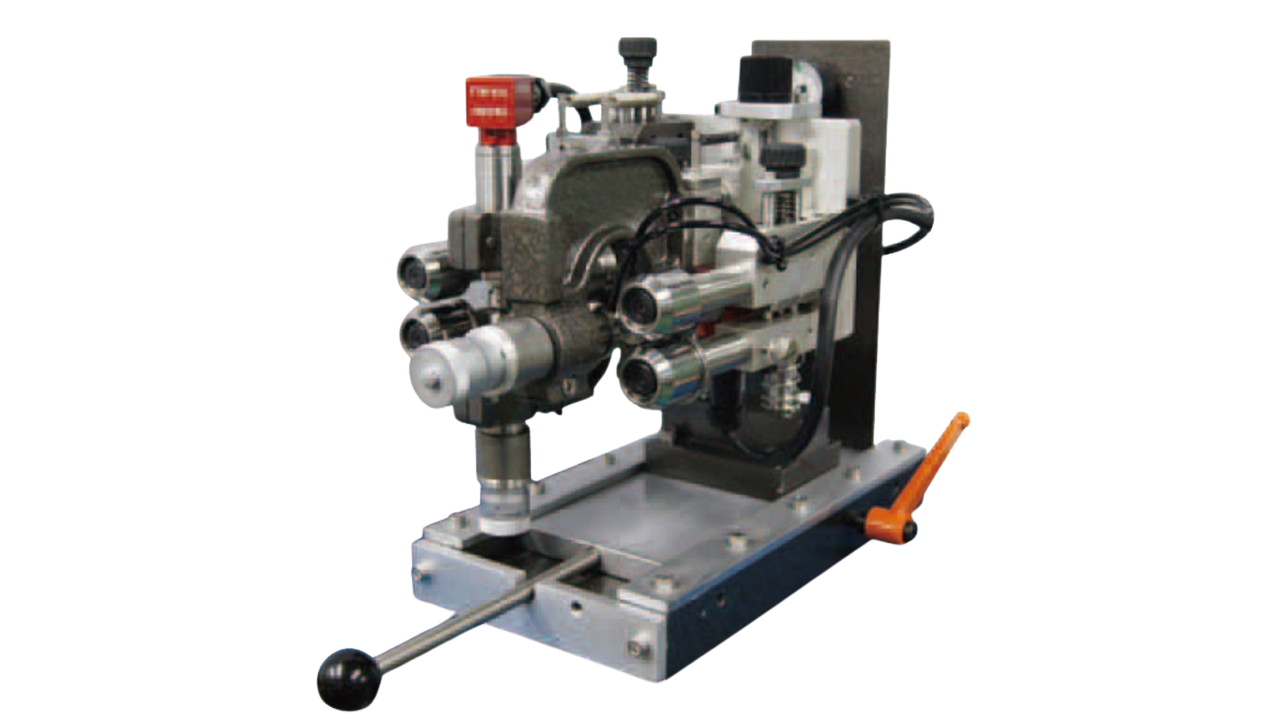

High -precision rolling thickness thickness measuring instrument for wires
20+ people viewing
■ Design, manufacture, and sales of high -precision rolling -up gymnastics measuring instruments We design, manufacture, and sell plate thickness m...
Fiblab Co., Ltd.
Simultaneous measurement of the tilt and thickness of the sample
30+ people viewing
■ Angle / displacement composite sensor (TANDEM product) ・ Maximum features: Simplifications and thickness of sample can be measured simultaneousl...
Fiblab Co., Ltd.
Measurement of thickness of men's lens can also be measured
30+ people viewing
■ Characteristics -The optical micrometer is a non -contact / non -destruction fault measurement device using the Michaelson interference method. ...
Yasuoka Co., Ltd.

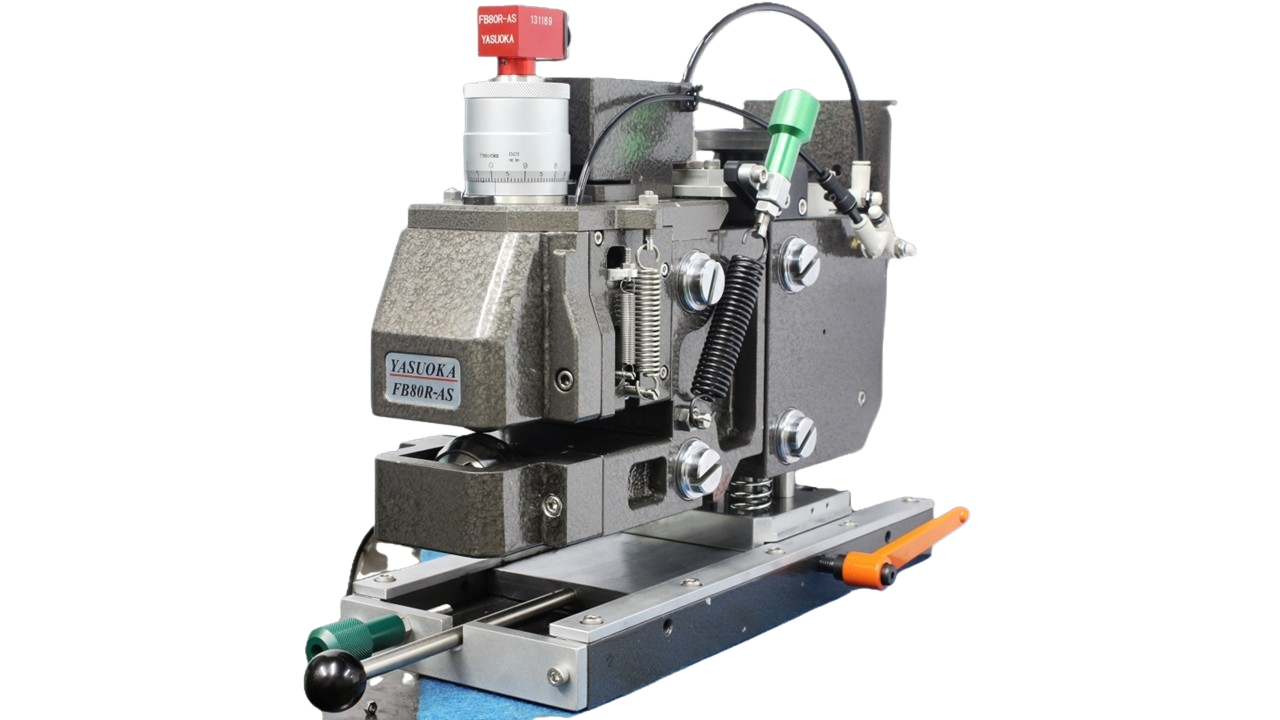

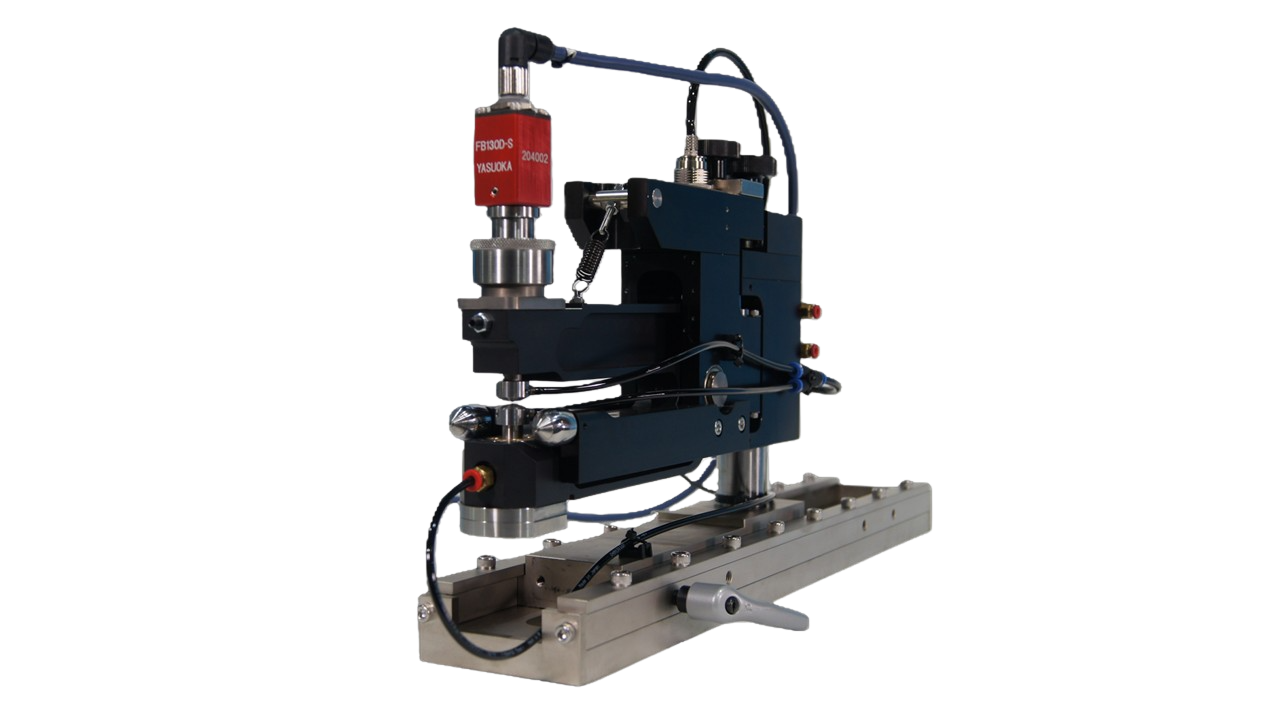

Realize high -precision rolling for plate material for board material
20+ people viewing
■ Design, manufacture, and sales of high -precision rolling -up gymnastics measuring instruments We design, manufacture, and sell plate thickness m...
