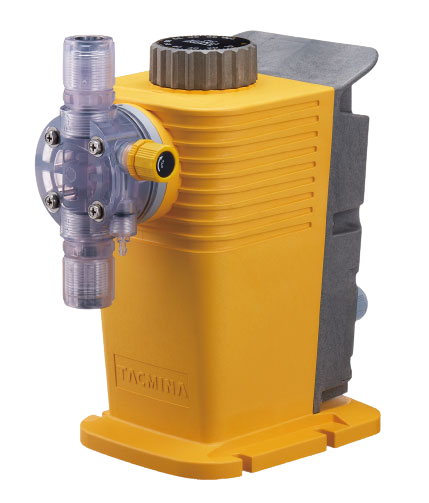

Positive displacement pump Motor-driven metering pump Small direct-acting diaphragm metering pump V
Takumina Co., Ltd.
About This Product
Outdoor specifications that are resistant to rain and dust. 3 year warranty for added peace of mind.
■Outdoor use OK
After repeated rigorous tests and evaluations, we have significantly improved the dustproof and waterproof performance.
■3-year warranty on main unit
As a result of further increasing durability, we have realized a warranty period that is three times longer than previous models.
■Easy flow rate adjustment
The large, easy-to-read dial on the top of the pump allows for intuitive settings.
■Domestic production and reliable support
We perform everything from parts processing to assembly at our own domestic factory, achieving high quality. After-sales service is available nationwide, so you can rest assured.
*Other product numbers are available.
-
Product
Positive displacement pump Motor-driven metering pump Small direct-acting diaphragm metering pump V
-
Handling Company
Takumina Co., Ltd.
-
Categories
10 Models of Positive displacement pump Motor-driven metering pump Small direct-acting diaphragm metering pump V
Items marked with have different values depending on the model number.
Click on the part number for more information about each product
| Product Image | Part Number | Price (excluding tax) | Connection diameter hose | Mass (kg) | Maximum discharge amount (L/min) 50Hz | Maximum discharge amount (L/min) 60Hz | Maximum discharge pressure (MPa) With relief | Maximum discharge pressure (MPa) without relief | Maximum stroke length (mm) | Output (W) | Port size flange | Stroke number (strokes/min) 50Hz | Stroke number (strokes/min) 60Hz | Transfer liquid viscosity (mPa・s) | Transferable temperature (℃) Ambient | Transferable temperature (℃) Transfer liquid |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
V-10-VTCE |
Available upon quote | Φ4×Φ9 | 4.3 | 15 | 18 | 0.7 | 1 | 2 | Twenty five | JIS10K15A | 60 | 72 | 100 | 0~40 | 0~40 (no freezing) |
|
|
V-40-VTCE |
Available upon quote | Φ4×Φ9 | 4.3 | 45 | 54 | 0.7 | 1 | 2 | Twenty five | JIS10K15A | 60 | 72 | 100 | 0~40 | 0~40 (no freezing) |
|
|
V-70-VTCE |
Available upon quote | Φ6×Φ11 | 4.3 | 70 | 84 | 0.7 | 1 | 3 | Twenty five | JIS10K15A | 60 | 72 | 100 | 0~40 | 0~40 (no freezing) |
|
|
V-100-VTCE |
Available upon quote | Φ6×Φ11 | 4.3 | 125 | 150 | 0.7 | 1 | 3 | Twenty five | JIS10K15A | 108 | 130 | 100 | 0~40 | 0~40 (no freezing) |
|
|
V-300-VTCE |
Available upon quote | Φ6×Φ11 | 4.3 | 325 | 390 | 0.7 | 1 | 6 | Twenty five | JIS10K15A | 108 | 130 | 50 | 0~40 | 0~40 (no freezing) |
|
|
V-600-VTCE |
Available upon quote | Φ12×Φ18 | 4.8 | 675 | 810 | - | 0.5 | 6 | Twenty five | JIS10K15A | 108 | 130 | 50 | 0~40 | 0~40 (no freezing) |
|
|
V-1000-VTCE |
Available upon quote | Φ12×Φ18 | 5.5 | 1,150 | 1,380 | - | 0.3 | 6 | Twenty five | JIS10K15A | 108 | 130 | 50 | 0~40 | 0~40 (no freezing) |
|
|
V-10-VTCF |
Available upon quote | Φ4×Φ9 | 4.3 | 15 | 18 | 0.7 | 1 | 2 | Twenty five | JIS10K15A | 60 | 72 | 100 | 0~40 | 0~40 (no freezing) |
|
|
V-40-VTCF |
Available upon quote | Φ4×Φ9 | 4.3 | 45 | 54 | 0.7 | 1 | 2 | Twenty five | JIS10K15A | 60 | 72 | 100 | 0~40 | 0~40 (no freezing) |
|
|
V-70-VTCF |
Available upon quote | Φ6×Φ11 | 4.3 | 70 | 150 | 0.7 | 1 | 3 | Twenty five | JIS10K15A | 60 | 72 | 100 | 0~40 | 0~40 (no freezing) |
