Large poly tank Sealed round tank MC
Takumina Co., Ltd.
About This Product
Keeps out UV rays and protects delicate liquid contents.
■Features
・Excellent rigidity due to multilayer structure + iron frame
・Compatible with strict earthquake resistance standards
・For use with liquids with high specific gravity
・Ideal for large capacity storage
・Inner layer is natural and clean
- High earthquake resistance and high specific gravity can be achieved by changing the use of the steel frame.
*Other product numbers are available.
-
Product
Large poly tank Sealed round tank MC
-
Handling Company
Takumina Co., Ltd.
-
Categories
10 Models of Large poly tank Sealed round tank MC
Items marked with have different values depending on the model number.
Click on the part number for more information about each product
| Product Image | Part Number | Price (excluding tax) | Capacity L | Height body (mm) | Number of anchors | Outer diameter (mm) | Overall height (mm) | PDC (mm) | Remarks | Standard design specifications | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|

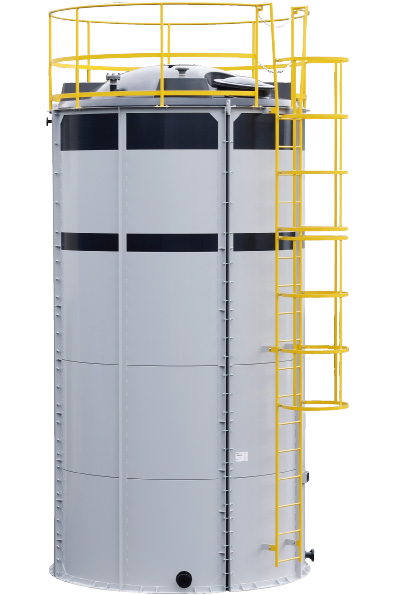

MC2-50000 |
Available upon quote | 50,000 | 6,475 | 20 | 3,270 | 6,975 | 3,350 | With double-layer iron frame |
Liquid specific gravity 1.6 Liquid temperature 60℃ |
3,280 |
|
|
MC2-40000 |
Available upon quote | 40,000 | 6,505 | 20 | 2,910 | 7,000 | 2,990 | With double-layer iron frame |
Liquid specific gravity 1.6 Liquid temperature 60℃ |
2,880 |
|
|
MC2-30000 |
Available upon quote | 30,000 | 5,250 | 16 | 2,860 | 5,750 | 2,930 | With double-layer iron frame |
Liquid specific gravity 1.6 Liquid temperature 60℃ |
2,270 |
|
|
MC2-20000 |
Available upon quote | 20,000 | 3,810 | 12 | 2,710 | 4,260 | 2,763 | With triple-layered foamed iron frame |
Liquid specific gravity 1.6 Liquid temperature 60℃ |
1,160 |
|
|
MC2-15000 |
Available upon quote | 15,000 | 3,120 | 8 | 2,600 | 3,540 | 2,653 | With triple-layered foamed iron frame |
Liquid specific gravity 1.6 Liquid temperature 60℃ |
950 |
|
|
MC2-10000 |
Available upon quote | 10,000 | 2,780 | 6 | 2,280 | 3,190 | 2,333 | With triple-layered foamed iron frame |
Liquid specific gravity 1.6 Liquid temperature 60℃ |
700 |
|
|
MC2-8000 |
Available upon quote | 8,000 | 2,415 | 6 | 2,170 | 3,005 | 2,223 | With triple-layered foamed iron frame |
Liquid specific gravity 1.6 Liquid temperature 60℃ |
570 |
|
|
MC2-6000 |
Available upon quote | 6,000 | 2,350 | 6 | 1,922 | 2,800 | 1,965 | With triple-layered foamed iron frame |
Liquid specific gravity 1.6 Liquid temperature 60℃ |
430 |
|
|

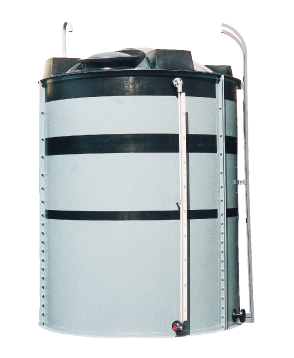

MC2-5000 |
Available upon quote | 5,000 | 2,050 | 6 | 1,890 | 2,480 | 1,933 | With triple-layered foamed iron frame |
Liquid specific gravity 1.6 Liquid temperature 60℃ |
370 |
|
|
MC2-4000 |
Available upon quote | 4,000 | 1,940 | 6 | 1,740 | 2,370 | 1,783 | With triple-layered foamed iron frame |
Liquid specific gravity 1.6 Liquid temperature 60℃ |
350 |
