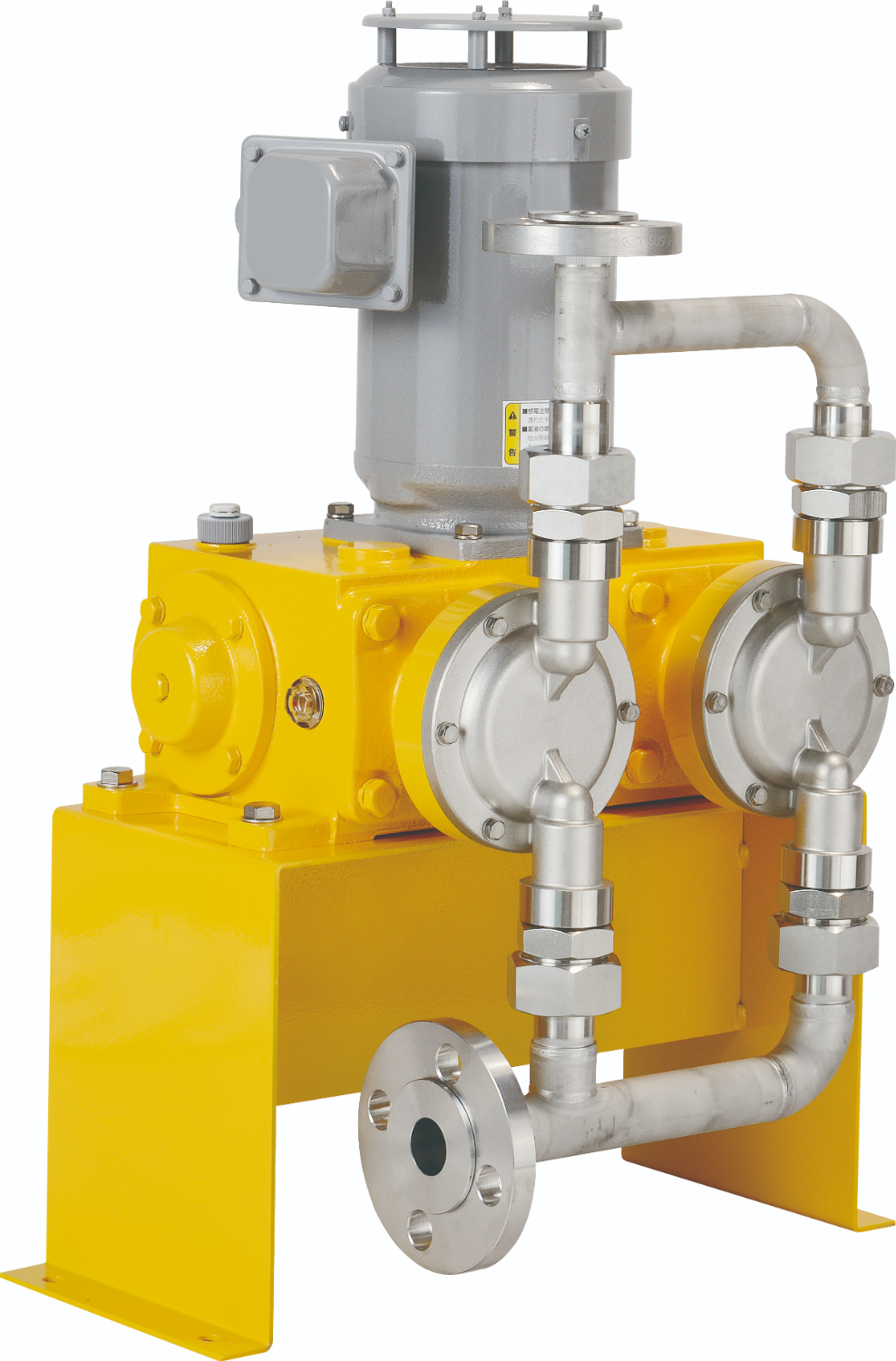

Positive Displacement Pump Smooth Flow Pump PL (Direct Acting)
Takumina Co., Ltd.
About This Product
For quantitative supply and injection of a wide range of chemical solutions and fluids, including long-distance transport of water treatment chemicals and additive injection.
■No foreign matter mixed in.
There are no rotating or sliding parts where foreign matter is likely to be generated, reducing the risk of foreign matter contamination. It can be used with confidence in processes that require strict quality control, such as in the food, pharmaceutical, and electrical industries.
■Flow rate does not decrease due to pressure fluctuations.
The pump has a built-in check mechanism, so the flow rate will not drop even if the pressure fluctuates. Suitable for applications that require high-precision supply capability, such as coating and chemical compounding. Suitable for applications that require accurate mixing ratios and transfer amounts.
■No liquid leakage.
There are no seals, so there is no need to worry about liquid leakage. It is also suitable for transporting toxic substances that are dangerous if leaked to the outside, and liquids that easily vaporize.
■Does not break due to dry running.
It has a seal-less structure that does not affect the drive part even if it is run dry, so there is no need to worry about it breaking down in the unlikely event of an accident.
■Liquid quality does not change.
Unlike other types of pumps, it does not stir the liquid or apply excessive pressure locally. Shear - There is no need to worry about changes in liquid quality due to friction, pressure, or temperature changes.
■Liquid delivery structure ideal for slurry
Diaphragm pumps pump fluid gently, so wetted parts are not worn out by slurry such as diatomaceous earth.
■Achieve inline process.
Solving the production process issues of increasing efficiency (time), improving yield (materials), and saving labor (people) all at once. Furthermore, by eliminating contact between the liquid and the outside air and uneven injection, the quality of the product is improved.
■Easy maintenance.
There is no need for an accumulator or a cushion tank to eliminate uneven injection. Since there are few parts that come in contact with liquid, total maintenance such as disassembly and cleaning can be performed very easily.
■No need for dampers, accumulators, etc.
Commonly used accumulators have a slow response and pressure management is essential. Smoothflow pumps respond quickly and eliminate the need for troublesome pressure adjustments and maintenance.
■ Significantly reduces the causes of trouble.
Since the stirring and mixing process in the tank, which is a major cause of trouble, can be omitted, accidents and breakdowns can be reduced.
■Piping is easy, saving cost and space.
Compared to pulsating pumps, the piping on the discharge side needs to be thinner, so there is less loss of chemical liquid to be transferred, making it very economical.
*Other product numbers are available.
-
Product
Positive Displacement Pump Smooth Flow Pump PL (Direct Acting)
-
Handling Company
Takumina Co., Ltd.
-
Categories
10 Models of Positive Displacement Pump Smooth Flow Pump PL (Direct Acting)
Items marked with have different values depending on the model number.
Click on the part number for more information about each product
| Product Image | Part Number | Price (excluding tax) | Maximum discharge amount (L/h) | Maximum discharge amount (L/min) | Maximum discharge pressure (MPa) |
|---|---|---|---|---|---|
|
|
PLFXD2-01 |
Available upon quote | 0.24 | 14.4 | 1 |
|
|
PLFYD2-01 |
Available upon quote | 0.24 | 14.4 | 1 |
|
|
PLFXD2-03 |
Available upon quote | 0.72 | 43.2 | 1 |
|
|
PLFXD2-06 |
Available upon quote | 1.44 | 86.4 | 1 |
|
|
PLFXD2-08 |
Available upon quote | 2 | 120 | 1 |
|
|
PLFXD2-1 |
Available upon quote | 2.4 | 144 | 0.5 |
|
|
PLFXD2-2 |
Available upon quote | 3.6 | 216 | 0.5 |
|
|
PLFXW-03 |
Available upon quote | 0.72 | 43.2 | 1 |
|
|
PLFXW-06 |
Available upon quote | 1.44 | 86.4 | 1 |
|
|
PLFXW-08 |
Available upon quote | 2 | 120 | 1 |
