Product
Separate photo sensorHandling Company
Shinkoh ElectronicsCategories
Usage Scenarios
Electronics & Electrical Use / Retail & Distribution Use / Medical Industry UseClick on the part number for more information about each product
| Image | Part Number | Price (excluding tax) | Package | Output format | Detection distance | Features | Photocurrent |
|---|---|---|---|---|---|---|---|
|
|
KB1240 |
Available upon quote |
Screw connector type |
High (when PIC light is received) |
100mm (max.) |
Visible light cut, pull-up resistor included, dustproof |
- |
|
|
KB1241 |
Available upon quote |
Screw connector type |
Low (when PIC light is received) |
100mm (max.) |
Visible light cut, pull-up resistor included, dustproof |
- |
|
|
KB1242 |
Available upon quote |
Screw connector type |
Ptr |
100mm (max.) |
Visible light cut, dustproof, analog output |
0.2mA (min.) |
|
|
KB1246 |
Available upon quote |
Screw harness type |
Low (when PIC light is received) |
400mm (max.) |
Visible light cut, optical modulation synchronous type, strong lock connector adopted, dustproof |
- |
|
|
KB1281 |
Available upon quote |
Screw connector type |
Low (when PIC light is received) |
400mm (max.) |
Optical modulation synchronous type, visible light cut, long distance, dustproof |
- |
|
|
KB1284 |
Available upon quote |
Screw connector type |
Ptr |
100mm (max.) |
Visible light cut, dustproof |
0.2mA (min.) |
|
|
KB1581 |
Available upon quote |
Screw connector type |
Low (when PIC light is received) |
~800mm (max.) |
Optical modulation synchronous type, visible light cut, long distance, dustproof |
- |
|
KB1700 |
Available upon quote |
Connector type |
Low (when PIC light is received) |
400mm (max.) |
Visible light cut, pull-up resistor included, dustproof |
- |
|
KB3290 |
Available upon quote |
Connector type |
Ptr |
100mm (max.) |
Visible light cut, compact, dustproof |
0.3mA (min.) |
|
KB3390 |
Available upon quote |
Snap-in connector type |
Ptr |
100mm (max.) |
Visible light cut, completely dustproof |
0.5mA (min.) |
|
KB3820-12/22 |
Available upon quote |
Screw connector type |
Ptr |
100mm (max.) |
Visible light cut, completely dustproof, compact |
0.5mA (min.) |
|
KB3820-14/24 |
Available upon quote |
Screw connector type |
Ptr |
200mm (max.) |
Visible light cut, completely dustproof, compact |
0.5mA (min.) |
|
KB3830 |
Available upon quote |
Screw connector type |
Ptr |
1~100mm (max.) |
Visible light cut, completely dustproof |
0.5mA (min.) |
|
KB3870 |
Available upon quote |
Connector type |
Ptr |
1~100mm (max.) |
Visible light cut, completely dustproof, compact |
1.0mA (min.) |
|

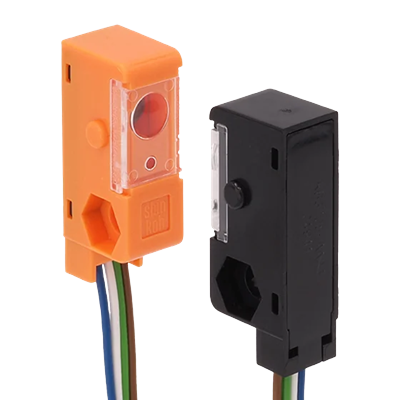

KB3725 |
Available upon quote |
Screw harness type |
Low (when PIC light is received) |
2000mm (max.) |
Light modulation asynchronous type, visible light cut, dustproof, long distance, ambient light permissible illuminance 50,000 lx (conditions apply) |
#VALUE! |
|
KB5280 |
Available upon quote |
Harness type |
Low (when PIC light is received) |
800mm (max.) |
Visible light cut, with pull-up resistor, optical modulation synchronous type, compact, long distance, dustproof, splashproof |
- |
|
KB5900 |
Available upon quote |
Screw harness type |
High (when PIC light is received) |
2000mm (max.) |
Optical modulation asynchronous type, strong lock connector adopted, long distance, dustproof |
- |
|
KB5901 |
Available upon quote |
Screw harness type |
Low (when PIC light is received) |
2000mm (max.) |
Asynchronous optical modulation, strong locking connector, long distance, dustproof |
- |
|
KB5921 |
Available upon quote |
Screw harness type |
Low (when PIC light is received) |
1500mm (max.) |
Optical modulation synchronous type, strong lock connector adopted, long distance, dustproof |
- |
Click on the part number for more information about each product
