Monitor & Camera Set (3MP) Wireless Camera Set WC3A10ML-WC3A10ML
Monitor & Camera Set (3MP) Wireless Camera Set WC3A10ML-WC3A7ML
Monitor & Camera Set (3MP) Wireless Camera Set WC3A10ML-WC3A10ML (BK)
Monitor & Camera Set (3MP) Wireless Camera Set WC3A10ML-WC3A7ML (BK)
Monitor & Camera Set (3MP) Wireless Camera Set WC3A10ML-MASPRO DENKOH CORP.

Monitor & Camera Set (3MP) Wireless Camera Set WC3A10ML
MASPRO DENKOH CORP.


About This Product

A set of monitor and wireless cameras that displays images immediately with simple setup. Just switch on the power and the camera image appears on the 10.1-inch monitor. It is a camera with a sensor light for even better crime prevention. Add-on cameras with model numbers beginning with "WHC" cannot be connected.

■Intruder Deterrence with the Sensor Light

Because a sensor light (white LED) is built in, it lights up instantly when it detects human movement. It can also be switched on from the monitor.

■Two-Way Talk Between Camera and Monitor

Because a microphone is built into the monitor, you can talk through the camera's speaker.

■Warning Sound from the Camera Speaker

Because a speaker is built into the camera, a warning sound can be sounded from the camera when human movement is detected. It can also be triggered from the monitor.

■3-Megapixel* High-Resolution Camera

With approximately 3 megapixels (2304x1296), the camera captures scenes in greater detail. * Please play back video recorded at 3 megapixels on a PC with a 4K-compatible monitor. Video on this unit's monitor is displayed in HD quality.

■Check and Receive Alerts on Your Smartphone

Human movement is detected and reported to the monitor and to your smartphone. The "iHomeCam" app also lets you monitor from your smartphone or tablet. (The monitor must be connected to the Internet.) Compatible with iOS 8.0 or later and Android 7.0 or later. This service may be discontinued without prior notice. Please understand this in advance.

■Display on an External Monitor with an HDMI Mini Cable (Commercially Available)

Because an HDMI mini terminal is built in, camera video and audio can be output to an external monitor such as a TV.

■Zoom Display Function

Just touch the monitor to enlarge the area of interest (2x digital zoom), so you can check even fine details. (HDMI output and recorded video are not zoomed.)

■Simultaneous Recording

●3-Megapixel Camera Models By connecting optional add-on cameras to the monitor, up to 4 cameras can record at the same time. You can choose from a variety of types to suit your application.

■Night Vision (Nighttime / Dark Locations) Shooting Supported (Infrared-Capable Camera)

When it gets dark, the camera automatically switches to infrared shooting so it can record at night or in dark locations. (Images are black and white, and differences in brightness may appear)

■Recording and Playback with an External Hard Disk or microSD Card

Recording and playback are possible with an optional external hard disk or a commercially available microSD card (Class 10 or higher, up to 256GB). Recording can also be started at a set time or in response to human movement.

■Dust-Proof and Waterproof (IP66) Camera

Because it supports IP66 dust-proof and waterproof performance, outdoor installation such as under eaves is possible. (It is not fully waterproof, so installation in a location not directly exposed to rain is recommended)

■Update Function

Connect to the Internet to use the latest software.

■RoHS Compliant

■WC3A10ML Specifications (Camera Unit)

[Image Sensor] 1/2.8-inch CMOS sensor [Effective Pixels H x V] Approx. 3 megapixels (2304H x 1296V) [Video Compression Format] H.264, H.265 [Shooting Distance] Approx. 1.5 m to ∞ [Field of View] Horizontal: approx. 83°, Vertical: approx. 45° [Sensor Light] White LED: max. 1000 lm, brightness adjustment: 4 levels [Minimum Illumination] 0 lx or higher (infrared black-and-white shooting) [Infrared Illumination Distance] Max. 15 m *1 [Infrared Motion Sensor] Detection distance approx. 7 m (at an ambient temperature of 20°C) (detection angle approx. 80°) *2 [Built-in Speaker] Yes [Built-in Microphone] Yes [Wireless Communication] Operating frequency band 2.4GHz (2412 to 2484MHz) [Modulation Method] DSSS, OFDM, DBPSK, DQPSK, CCK, 16-QAM, 64-QAM [Data Rate] Max. 18Mbps [Communication Range] Max. 300 m (in an environment with clear line of sight and no radio interference) *3 [Camera Power Cable Length] Approx. 2.8 m [Operating Temperature Range] -10 to +50°C (AC adapter: 0 to +40°C) [Dust and Water Resistance] IP66 (a location not directly exposed to rain, such as under eaves, is recommended) [Power Supply] DC9V (AC adapter): AC100V [Power Consumption] 12W (22.8VA) (with the sensor light on) [External Dimensions H x W x D] 82x75x119 mm (camera body) [Mass (Weight)] Approx. 650 g

■WC3A10ML Specifications (Monitor Unit)

[Monitor H x V] 10.1-inch full-color monitor (1024x600) [Touch Panel] Capacitive [Number of Connectable Cameras] Max. 4 units (4 units can record simultaneously) [Recording Storage] microSDHC / microSDXC memory card (max. 256GB) (Class 10 or higher) *4 External hard disk WHC-HDD2TB *5 (sold separately) (max. 2TB) [Recording Resolution H x V] 2304x1296 (3MP) / 1920x1080 (Full HD) / 1280x720 (HD) [Recording Mode] Motion detection, schedule, manual [Overwrite Recording] Supported (ON/OFF): 4 units can record simultaneously [Playback Method] Playback on the main monitor, smartphone, tablet (recording file formats: ASF, WMV) [USB Port] For external hard disk WHC-HDD2TB only [HDMI Mini Terminal] Type C, Ver1.4 compatible (a high-definition TV monitor supporting 1080i / 720p input is required) [Operating Temperature Range] 0 to +40°C [Dust and Water Resistance] Indoor use (not waterproof) [Power Supply] DC5V (AC adapter): AC100V [Power Consumption] 4.7W (10.5VA) [External Dimensions H x W x D] 178x266x71 mm [Mass (Weight)] Approx. 610 g *1 The distance over which good images can be captured in dark locations is roughly half. *2 Movement crossing in front of the camera is easy to detect, while movement approaching head-on is harder to detect. Detection distance also becomes shorter at night, and may be shortened by other environmental conditions. *3 The wireless communication range is up to 300 m in an environment with clear line of sight and free from interference by other radio waves. If there are walls or similar obstacles between the camera and the monitor (wooden walls and floors, metal doors, concrete, steel frames, metal obstructions), the radio waves attenuate and the usable communication distance becomes shorter. (Wooden construction: approx. 10 to 40 m; communication is not possible in structures or buildings that radio waves cannot reach at all) *4 microSD cards are consumable items. Periodic replacement is recommended. Recommended products are also available from us. *5 The format used for the microSD card and the external hard disk is FAT32.

■WC3A10ML Accessories

AC adapter for the camera (cord approx. 1.7 m) x 1 pc AC adapter for the monitor (cord approx. 1.4 m) x 1 pc Antenna for the camera x 1 pc Antenna for the monitor x 1 pc Anchors and screws (for camera installation) x 3 pcs each Positioning guide x 1 pc Hex wrench (for camera angle adjustment) x 1 pc LAN cable (approx. 1.5 m) x 1 pc

  • Product

    Monitor & Camera Set (3MP) Wireless Camera Set WC3A10ML

Share this product


2080+ people viewing


Free
Get started with our free quotation service - no cost, no obligation.

No Phone Required
We respect your privacy. You can receive quotes without sharing your phone number.

4 Models of Monitor & Camera Set (3MP) Wireless Camera Set WC3A10ML

Click on the part number for more information about each product

Image Part Number Price (excluding tax) HDMI Mini Terminal USB Port Image Sensor Number of Connectable Cameras Camera Power Cable Length Sensor Light Touch Panel Data Rate Monitor H x V Overwrite Recording Operating Frequency Band Operating Temperature Range Playback Method Modulation Method Dimensions H x W x D Minimum Illumination Angle of View Shooting Distance Video Compression Format Effective Pixels H x V Power Consumption Weight Infrared Motion Sensor IR Illumination Distance Communication Range Recording Modes Recording Storage Recording Resolution H x V Dust and Water Resistance Power Supply
Monitor & Camera Set (3MP) Wireless Camera Set WC3A10ML-Part Number-WC3A10ML

WC3A10ML

Available upon quote

Type C, Ver1.4 compatible
(a high-definition TV monitor supporting 1,080i / 720p input is required)

For external hard disk WHC-HDD2TB only

1/2.8-inch CMOS sensor

Max. 4 units (4 units can record simultaneously)

Approx. 2.8m

White LED: max. 1,000lm Brightness adjustment: 4 levels

Capacitive

Max. 18Mbps

10.1-inch full-color monitor (1,024x600)

Supported (ON/OFF) : 4 units can record simultaneously

2.4GHz (2,412~2,484MHz)

Camera unit -10~+50°C (AC adapter: 0~+40°C) Monitor unit 0~+40°C

Playback on the main monitor, smartphone, tablet (recording file format: ASF, WMV)

DSSS, OFDM, DBPSK, DQPSK, CCK, 16-QAM, 64-QAM

Camera unit 82x75x119mm (camera body) Monitor unit 178x266x71mm

0lx or higher (infrared black-and-white shooting)

Horizontal: approx. 83° Vertical: approx. 45°

Approx. 1.5m~∞

H.264, H.265

Approx. 3 megapixels (2,304H x 1,296V)

Camera unit 12W (22.8VA) (with the sensor light on) Monitor unit 4.7W (10.5VA)

Camera unit approx. 650g Monitor unit approx. 610g

Detection distance approx. 7m (at an ambient temperature of 20°C) (detection angle approx. 80°)

Max. 15m

Max. 300m (in an environment with clear line of sight and no radio interference)

Motion detection, schedule, manual

microSDHC / microSDXC memory card (max. 256GB) (Class 10 or higher) External hard disk WHC-HDD2TB (sold separately) (max. 2TB)

2,304x1,296 (3MP) 1,920x1,080 (Full HD) 1,280x720 (HD)

Camera unit IP66 (a location not directly exposed to rain, such as under eaves, is recommended) Monitor unit indoor use (not waterproof)

Camera unit DC9V (AC adapter) : AC100V Monitor unit DC5V (AC adapter) : AC100V

Monitor & Camera Set (3MP) Wireless Camera Set WC3A10ML-Part Number-WC3A7ML

WC3A7ML

Available upon quote

Type C, Ver1.4 compatible (a high-definition TV monitor supporting 1,080i / 720p input is required)

For external hard disk WHC-HDD2TB only

1/2.8-inch CMOS sensor

Max. 4 units (4 units can record simultaneously)

Approx. 2.8m

White LED: max. 1,000lm Brightness adjustment: 4 levels

Resistive

Max. 18Mbps

7-inch full-color monitor (1,024x600)

Supported (ON/OFF) : 4 units can record simultaneously

2.4GHz (2,412~2,484MHz)

Camera unit -10~+50°C (AC adapter: 0~+40°C) Monitor unit 0~+40°C

Playback on the main monitor, smartphone, tablet (recording file format: ASF, WMV)

DSSS, OFDM, DBPSK, DQPSK, CCK, 16-QAM, 64-QAM

Camera unit 82x75x119mm (camera body) Monitor unit 137x202x59mm

0lx or higher (infrared black-and-white shooting)

Horizontal: approx. 83° Vertical: approx. 45°

Approx. 1.5m~∞

H.264, H.265

Approx. 3 megapixels (2,304H x 1,296V)

Camera unit 12W (22.8VA) (with the sensor light on) Monitor unit 4.6W (10.4VA)

Camera unit approx. 650g Monitor unit approx. 390g

Detection distance approx. 7m (at an ambient temperature of 20°C) (detection angle approx. 80°)

Max. 15m

Max. 300m (in an environment with clear line of sight and no radio interference)

Motion detection, schedule, manual

microSDHC / microSDXC memory card (max. 256GB) (Class 10 or higher) External hard disk WHC-HDD2TB (sold separately) (max. 2TB)

2,304x1,296 (3MP) 1,920x1,080 (Full HD) 1,280x720 (HD)

Camera unit IP66 (a location not directly exposed to rain, such as under eaves, is recommended) Monitor unit indoor use (not waterproof)

Camera unit DC9V (AC adapter) : AC100V Monitor unit DC5V (AC adapter) : AC100V

Monitor & Camera Set (3MP) Wireless Camera Set WC3A10ML-Part Number-WC3A10ML (BK)

WC3A10ML (BK)

Available upon quote

Type C, Ver1.4 compatible (a high-definition TV monitor supporting 1,080i / 720p input is required)

For external hard disk WHC-HDD2TB only

1/2.8-inch CMOS sensor

Max. 4 units (4 units can record simultaneously)

Approx. 2.8m

White LED: max. 1,000lm, brightness adjustment: 4 levels

Capacitive

Max. 18Mbps

10.1-inch full-color monitor (1,024x600)

Supported (ON/OFF) : 4 units can record simultaneously

2.4GHz (2,412~2484MHz)

Camera unit -10~+50°C (AC adapter: 0~+40°C) Monitor unit 0~+40°C

Playback on the main monitor, smartphone, tablet (recording file format: ASF, WMV)

DSSS, OFDM, DBPSK, DQPSK, CCK, 16-QAM, 64-QAM

Camera unit 82x75x119mm (camera body) Monitor unit 178x266x71mm

0lx or higher (infrared black-and-white shooting)

Horizontal: approx. 83°, Vertical: approx. 45°

Approx. 1.5m~∞

H.264, H.265

Approx. 3 megapixels (2,304H x 1,296V)

Camera unit 12W (22.8VA) (with the sensor light on) Monitor unit 4.7W (10.5VA)

Camera unit approx. 650g Monitor unit approx. 610g

Detection distance approx. 7m (at an ambient temperature of 20°C) (detection angle approx. 80°)

Max. 15m

Max. 300m (in an environment with clear line of sight and no radio interference)

Motion detection, schedule, manual

microSDHC / microSDXC memory card (max. 256GB) (Class 10 or higher) External hard disk WHC-HDD2TB (sold separately) (max. 2TB)

2,304x1,296 (3MP) / 1,920x1,080 (Full HD) / 1,280x720 (HD)

Camera unit IP66 (a location not directly exposed to rain, such as under eaves, is recommended) Monitor unit indoor use (not waterproof)

Camera unit DC9V (AC adapter) : AC100V Monitor unit DC5V (AC adapter) : AC100V

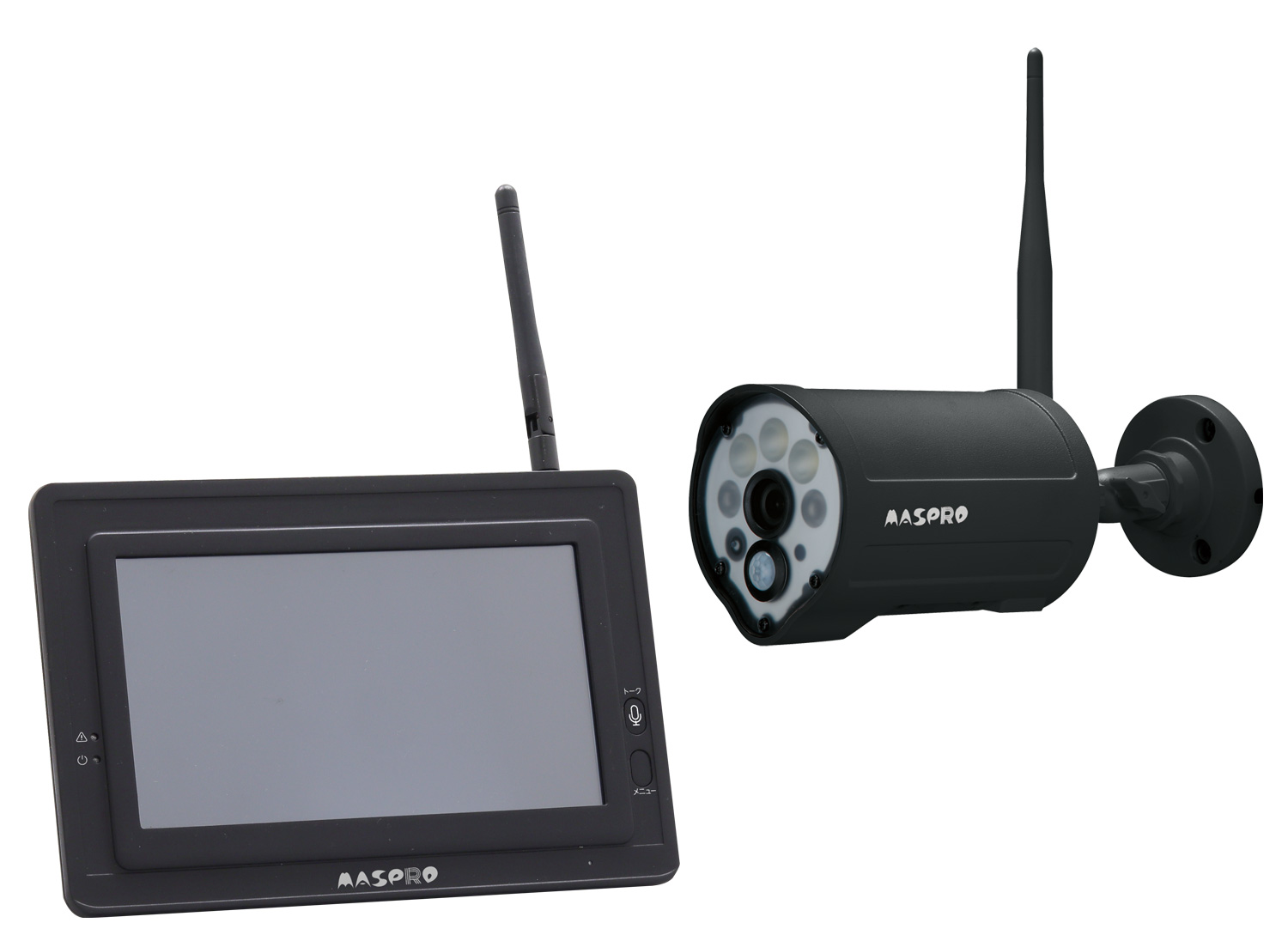

Monitor & Camera Set (3MP) Wireless Camera Set WC3A10ML-Part Number-WC3A7ML (BK)

WC3A7ML (BK)

Available upon quote

Type C, Ver1.4 compatible (a high-definition TV monitor supporting 1,080i / 720p input is required)

For external hard disk WHC-HDD2TB only

1/2.8-inch CMOS sensor

Max. 4 units (4 units can record simultaneously)

Approx. 2.8m

White LED: max. 1,000lm, brightness adjustment: 4 levels

Resistive

Max. 18Mbps

7-inch full-color monitor (1,024x600)

Supported (ON/OFF) : 4 units can record simultaneously

2.4GHz (2,412~2,484MHz)

Camera unit -10~+50°C (AC adapter: 0~+40°C) Monitor unit 0~+40°C

Playback on the main monitor, smartphone, tablet (recording file format: ASF, WMV)

DSSS, OFDM, DBPSK, DQPSK, CCK, 16-QAM, 64-QAM

Camera unit 82x75x119mm (camera body) Monitor unit 137x202x59mm

0lx or higher (infrared black-and-white shooting)

Horizontal: approx. 83°, Vertical: approx. 45°

Approx. 1.5m~∞

H.264, H.265

Approx. 3 megapixels (2,304H x 1,296V)

Camera unit 12W (22.8VA) (with the sensor light on) Monitor unit 4.6W (10.4VA)

Camera unit approx. 650g Monitor unit approx. 390g

Detection distance approx. 7m (at an ambient temperature of 20°C) (detection angle approx. 80°)

Max. 15m

Max. 300m (in an environment with clear line of sight and no radio interference)

Motion detection, schedule, manual

microSDHC / microSDXC memory card (max. 256GB) (Class 10 or higher) External hard disk WHC-HDD2TB (sold separately) (max. 2TB)

2,304x1,296 (3MP) / 1,920x1,080 (Full HD) / 1,280x720 (HD)

Camera unit IP66 (a location not directly exposed to rain, such as under eaves, is recommended) Monitor unit indoor use (not waterproof)

Camera unit DC9V (AC adapter) : AC100V Monitor unit DC5V (AC adapter) : AC100V
