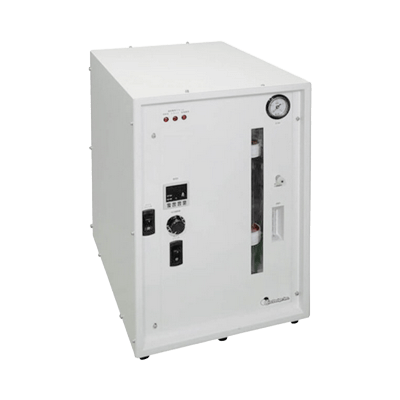

Industrial radiator-cooled ozone generator Fabozone 40 FOG-RC40G-FOG-RC40G

Industrial radiator-cooled ozone generator Fabozone 40 FOG-RC40G
EcoDesign, Inc.

🍎 Food Industry Use ♻️ Environment & Recycling Use 💻 Electronics & Electrical Use

About This Product

■ No external cooling water required, achieving high durability and ease of maintenance. Two models available: 15g/h and 40g/h ozone generation.While requiring no external cooling water, it generates 40g/h of ozone. It boasts high durability and excellent concentration stability. Designed with on-site ozone use in mind. Efficient cooling of the discharge section is essential for stable generation of high-concentration ozone. This ozone generator incorporates a radiator-type cooling water circulation system, combining the ease of use of a fully air-cooled system with the high performance and stability of a water-cooled system.

Furthermore, by using a radiator-type cooling system, it is possible to seal other parts, achieving high durability. In addition, since the ozone generation section and radiator section are unitized, quick recovery is possible in the event of trouble.

Features
■ High concentration and high stability without the need for cooling waterBy adopting a radiator cooling water circulation system, high concentration and high stability are achieved without the need for external cooling water introduction.

■ Metal-Free Ozone Contact SectionThe ozone contact section is made without metal, generating clean ozone free from particles. *Excluding the 10L/min specification of the Favozone 40.

■ External Input/Output SupportOperation via external input/output is possible, allowing integration into equipment combined with external control panels, etc.

■ Selectable Flow MeterThe flow meter range can be selected from 500ml/min, 1L/min, 5L/min, and 10L/min to suit your application.


■Key Features of This Product• Ozone Generation Rate: 40g/h
• Maximum Ozone Concentration: 180g/m3 or higher
• Radiator Cooling Water Circulation System
• No Metal Used in Ozone Gas Contact Area
• Wide Range Concentration Adjustment
• External Input/Output Support
• Flow Meter Equipped
• Pressure Gauge Equipped

■What It Can Do• Integration into Equipment
• Combination with Microbubbles
• Ultra-High Concentration Ozone Water Generation
• Surface Oxidation
• Organic Synthesis

Main Applications and Industries
■Water Treatment SystemsAs an ozone supply source for water treatment equipment. It is increasingly being used to reduce the load on wastewater treatment facilities and for decolorizing activated sludge after treatment.

■Deodorization EquipmentExcept for the radiator section, it is sealed, making it suitable for the harsh environments expected in deodorization sites.

■Combination with MicrobubblesDue to its ability to generate high-concentration ozone at low flow rates, it is frequently used in combination with microbubbles.

Model
There is 1 model available for this product.

Product
Industrial radiator-cooled ozone generator Fabozone 40 FOG-RC40G

Handling Company
EcoDesign, Inc.

Categories

Generators

Ozonators & Ozone Generators

Usage Scenarios
Food Industry Use / Environment & Recycling Use / Electronics & Electrical Use

130+ people viewing

Last viewed: 15 hours ago

Free
Get started with our free quotation service - no cost, no obligation.

No Phone Required
We respect your privacy. You can receive quotes without sharing your phone number.

1 Models of Industrial radiator-cooled ozone generator Fabozone 40 FOG-RC40G

Image	Part Number	Price (excluding tax)
	FOG-RC40G	Available upon quote

Customers who viewed this product also viewed

Reviews shown here are reviews of companies.

Ozone generator OR-800ZW (water cooling)

Wako System Control Co., Ltd.

4.5

420+ people viewing

Last viewed: 23 hours ago

Response time: 9.60 hours

Ozonators & Ozone Generators

Ozone generated by air raw material by compressor, ozone generator

Kotobuki Environmental Equipment Co., Ltd.

5.0

1190+ people viewing

Last viewed: 23 hours ago

Response time: 21.91 hours

Ozonators & Ozone Generators

3 models listed

Small ozone generator

Special Electric Co., Ltd.

330+ people viewing

Last viewed: 23 hours ago

Response time: 20.75 hours

Ozonators & Ozone Generators

6 models listed

The power of ozone to eliminate odors Ozone generator [Air Fresh EX]

Green Utility Co., Ltd.

$929.50

790+ people viewing

Last viewed: 4 hours ago

Response time: 113.88 hours

Ozonators & Ozone Generators

Contributing to the production of short gaps and high concentrations Ozonizer (Ozonizer)

Tada Electric Co., Ltd

630+ people viewing

Last viewed: 23 hours ago

Response time: 15.51 hours

Ozonators & Ozone Generators

2 models listed

Weak ozone & UV deodorization sterilization device Tabletop type YS Kurin YS09IRZ

Wise Company Co., Ltd.

5.0

370+ people viewing

Last viewed: 9 hours ago

Response time: 43.05 hours

Ozonators & Ozone Generators

3 models listed

Ozone related products Quartz lamp type ozone generator Clean Day CL-30UTZ

Wako Seiki Co., Ltd.

5.0

510+ people viewing

Last viewed: 20 hours ago

Response time: 4.94 hours

Ozonators & Ozone Generators

3 models listed

Ozone generator OZK-EPIII-105A-AC

Masuda Research Institute Co., Ltd.

5.0

780+ people viewing

Last viewed: 11 hours ago

Response time: 4.88 hours

Ozonators & Ozone Generators

Ozone generator air essence that exerts excellent effects on bacterial disinfecting and freshness of food

Onit Co., Ltd.

5.0

780+ people viewing

Last viewed: 23 hours ago

Response time: 7.12 hours

Ozonators & Ozone Generators

2 models listed

Ozone generator AIR PURELY

Futaba Keiki Co., Ltd.

4.8

850+ people viewing

Last viewed: 23 hours ago

Response time: 18.25 hours

Ozonators & Ozone Generators

2 models listed

Commercial sterilization/deodorization small ozone generator Tessen

Shiko Giken Co., Ltd.

$868.73

5.0

730+ people viewing

Last viewed: 7 hours ago

Response time: 28.62 hours

Ozonators & Ozone Generators

3 models listed

Ozone Ultra Fine Bubble (Micronano Bubble) Ozone generating device Ozonizer EVOG series

Envyro Vision Co., Ltd.

5.0

780+ people viewing

Last viewed: 8 hours ago

Response time: 32.50 hours

Ozonators & Ozone Generators

4 models listed

See More Ozonators & Ozone Generators Products

Other products of EcoDesign, Inc.

Reviews shown here are reviews of companies.

Ozone generator with built-in air pump ED-OG-AP1

EcoDesign, Inc.

150+ people viewing

Last viewed: 1 second ago

Response time: 10.22 hours

Ozonators & Ozone Generators

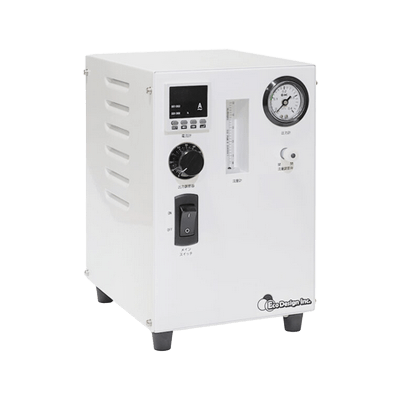

Ozone wastewater treatment system; Industrial/research air-cooled ozone generator Fabozon 5 FOG-AC5G

EcoDesign, Inc.

50+ people viewing

Last viewed: 8 hours ago

Response time: 10.22 hours

Wastewater Treatment Equipment

2 models listed

UV-LED Ozone Gas Concentration Meter O3M-S-G Series

EcoDesign, Inc.

310+ people viewing

Last viewed: 19 hours ago

Response time: 10.22 hours

Ozone Concentration Meters

3 models listed

Metal-free ozone water generator

EcoDesign, Inc.

210+ people viewing

Last viewed: 9 hours ago

Response time: 10.22 hours

Ozone Water Generators

8 models listed

Research and development ozone generator Labozon 40 LOG-LC40G

EcoDesign, Inc.

140+ people viewing

Response time: 10.22 hours

Ozonators & Ozone Generators

Ozone wastewater treatment system; Industrial radiator-cooled ozone generator; Fabozone 40 FOG-RC40G

EcoDesign, Inc.

40+ people viewing

Last viewed: 8 hours ago

Response time: 10.22 hours

Wastewater Treatment Equipment

2 models listed

Research and development ozone generator Labozon 15 LOG-LC15G

EcoDesign, Inc.

120+ people viewing

Last viewed: 1 second ago

Response time: 10.22 hours

Ozonators & Ozone Generators

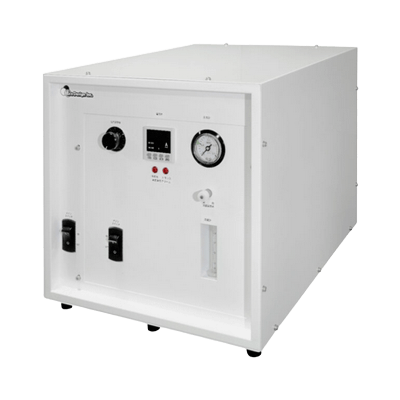

Ozone wastewater treatment system, industrial radiator-cooled ozone generator, Fabozone 15 FOG-RC15G
