Distributor (for field communicator) SBD-F-SBD-0101-0F

Distributor (for field communicator) SBD-F
Shinko Technos Co., Ltd.

🔩 Metal Processing Industry Use ⚙️ Plastic & Rubber Manufacturing 💻 Electronics & Electrical Use

Shinko Technos Co., Ltd.'s Response Status

Response Rate

100.0%

Response Time

56.0hours

About This Product

・ DIN rail mounting type signal converter
・ Simple product lineup without display (stick terminal connection type)

■ The SB series has realized your request.・ I want to consider it with priority.
Most cost advantage. Finished in both functions and performance.

・ The use is fixed, so after obtaining it, you can use it immediately.
We will make it into the specifications that meet the customer's wishes and we will deliver it, so we will not take much effort.

・ Wiring is complicated, it takes time to waste work.
Easy design with smooth installation and removal. Eliminates the seeds of worries on the site.

・ There is little room for installation.
The housing is slim, compact and adherent, so you can save space inside the board.

■ Plug -in socketSince the plug -in socket method is adopted, it is a simple wiring just to insert it into the socket. The installation is one touch that only fits into the DIN rail. Easy to remove and maintain. We will contribute to improving workability.

■ Compact size17.5 x 75 x 85mm (W x H x D) and compact. The gaps in the control panel can be used effectively, contributing to the reduction of design costs.

■ Input-Output-between power supply 3 ports insulationInsulation, input, output, and power supply are insulated. Safety design that is not affected by noise. Ideal as an input signal insulator (isolator).

* There are other model numbers

Model
There are 10 models for this product.

Product

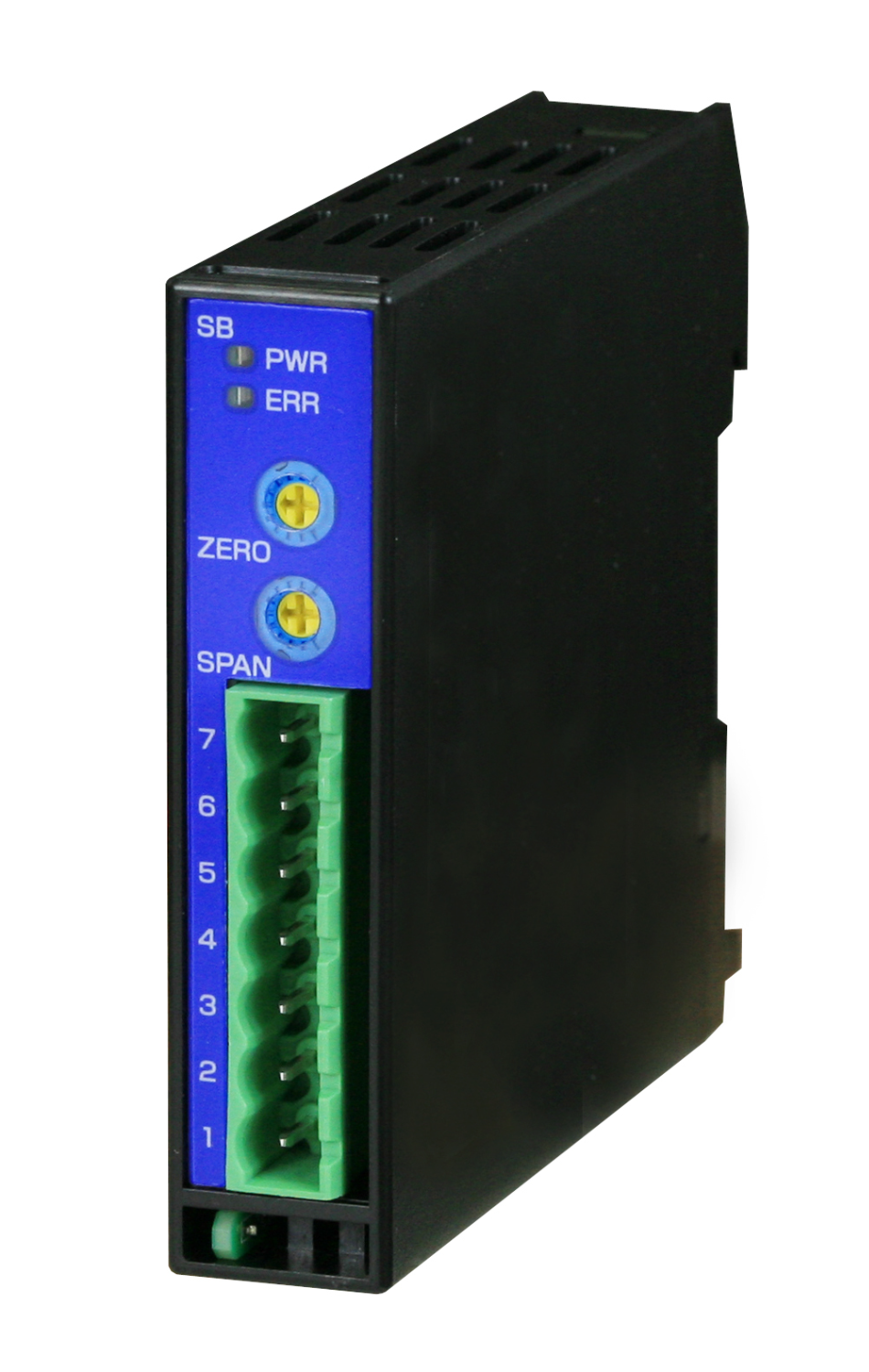

Distributor (for field communicator) SBD-F

Handling Company
Shinko Technos Co., Ltd.

Categories

Converters & Transducers

Signal Converters

Usage Scenarios
Metal Processing Industry Use / Plastic & Rubber Manufacturing / Electronics & Electrical Use

600+ people viewing

Last viewed: 23 hours ago

Free
Get started with our free quotation service - no cost, no obligation.

No Phone Required
We respect your privacy. You can receive quotes without sharing your phone number.

10 Models of Distributor (for field communicator) SBD-F

Click on the part number for more information about each product

Part Number	Price (excluding tax)	input	output	Tolerant resistance	Zero adjustment range	Span adjustment range	Output voltage	Ripple voltage	Maximum load current	Output impedance	Standard accuracy	Response time	Temperature coefficient	Insulation resistance	Withstand voltage	isolation	Case	panel	Spring plug	Adjustment	Show 1	Show 2	Select output status	Burnout	Instant power outage	self-diagnosis	Power-supply voltage	Available voltage range	power consumption	Ambient temperature	Peripheral humidity
SBD-0101-0F	Available upon quote	DC current: 4 ~ 20mA DC, reception resistance: 50Ω built -in	DC current: 4 ~ 20mA DC	600Ω or less	-2.5 to 2.5%	97.5 ~ 102.5%	24V DC ± 3V (when loading current is 20 mA)	Within 200mV DC (when loading current is 20 mA)	25ma DC	240Ω (field communicator compatible)	Within ± 0.2%	1 second (0 → 90%) (average 0.5 seconds)	± 0.015%/℃	Input-Output-between power supply: 500V DC 10mΩ or more	Input-Output-Power Source: 2.0kV AC 1 minute	3-port insulation (between input-output-power supply)	Flame -retardant resin color: Light gray	Polycarbonate	Polyamide color green	・ Front potential ・ Zero adjustment: ± 2.5% ・ Span adjustment: ± 2.5%	・ PWR lamp green ・ Lights when the power is turned on ・ Flashes in about 0.5 seconds in case of non -volatile memory abnormalities	・ ERR lamp red ・ Flashes in about 0.25 seconds when input is 110%or more ・ Flashes in about 0.5 seconds when the input is -10%or less	・ Select the output status (normal, reverse) with the dip switch ・ No.1 OFF: Normal, ON: Reverse	・ Select the output direction (upward, down) when input disconnection with the dip switch ・ No.2 OFF: Up, ON: Bottom	30msec	Monitor the CPU with a watchdog timer, restart with reset operation in the event of abnormalities	100 ~ 240V AC 50/60Hz	85 ~ 264V AC	Approximately 3.5va	-5 ~ 55 ℃	35 ~ 85%RH (but not condensation)
SBD-0101-1F	Available upon quote	DC current: 4 ~ 20mA DC, reception resistance: 50Ω built -in	DC current: 4 ~ 20mA DC	600Ω or less	-2.5 to 2.5%	97.5 ~ 102.5%	24V DC ± 3V (when loading current is 20 mA)	Within 200mV DC (when loading current is 20 mA)	25ma DC	240Ω (field communicator compatible)	Within ± 0.2%	1 second (0 → 90%) (average 0.5 seconds)	± 0.015%/℃	Input-Output-between power supply: 500V DC 10mΩ or more	Input-Output-Power Source: 2.0kV AC 1 minute	3-port insulation (between input-output-power supply)	Flame -retardant resin color: Light gray	Polycarbonate	Polyamide color green	・ Front potential ・ Zero adjustment: ± 2.5% ・ Span adjustment: ± 2.5%	・ PWR lamp green ・ Lights when the power is turned on ・ Flashes in about 0.5 seconds in case of non -volatile memory abnormalities	・ ERR lamp red ・ Flashes in about 0.25 seconds when input is 110%or more ・ Flashes in about 0.5 seconds when the input is -10%or less	・ Select the output status (normal, reverse) with the dip switch ・ No.1 OFF: Normal, ON: Reverse	・ Select the output direction (upward, down) when input disconnection with the dip switch ・ No.2 OFF: Up, ON: Bottom	30msec	Monitor the CPU with a watchdog timer, restart with reset operation in the event of abnormalities	24V DC	20-28V DC	Approximately 3.5va	-5 ~ 55 ℃	35 ~ 85%RH (but not condensation)
SBD-0102-0F	Available upon quote	DC current: 4 ~ 20mA DC, reception resistance: 50Ω built -in	DC current: 0 ~ 20mA DC	600Ω or less	0 to 2.5%	97.5 ~ 102.5%	24V DC ± 3V (when loading current is 20 mA)	Within 200mV DC (when loading current is 20 mA)	25ma DC	240Ω (field communicator compatible)	Within ± 0.2%	1 second (0 → 90%) (average 0.5 seconds)	± 0.015%/℃	Input-Output-between power supply: 500V DC 10mΩ or more	Input-Output-Power Source: 2.0kV AC 1 minute	3-port insulation (between input-output-power supply)	Flame -retardant resin color: Light gray	Polycarbonate	Polyamide color green	・ Front potential ・ Zero adjustment: ± 2.5% ・ Span adjustment: ± 2.5%	・ PWR lamp green ・ Lights when the power is turned on ・ Flashes in about 0.5 seconds in case of non -volatile memory abnormalities	・ ERR lamp red ・ Flashes in about 0.25 seconds when input is 110%or more ・ Flashes in about 0.5 seconds when the input is -10%or less	・ Select the output status (normal, reverse) with the dip switch ・ No.1 OFF: Normal, ON: Reverse	・ Select the output direction (upward, down) when input disconnection with the dip switch ・ No.2 OFF: Up, ON: Bottom	30msec	Monitor the CPU with a watchdog timer, restart with reset operation in the event of abnormalities	100 ~ 240V AC 50/60Hz	85 ~ 264V AC	Approximately 3.5va	-5 ~ 55 ℃	35 ~ 85%RH (but not condensation)
SBD-0102-1F	Available upon quote	DC current: 4 ~ 20mA DC, reception resistance: 50Ω built -in	DC current: 0 ~ 20mA DC	600Ω or less	0 to 2.5%	97.5 ~ 102.5%	24V DC ± 3V (when loading current is 20 mA)	Within 200mV DC (when loading current is 20 mA)	25ma DC	240Ω (field communicator compatible)	Within ± 0.2%	1 second (0 → 90%) (average 0.5 seconds)	± 0.015%/℃	Input-Output-between power supply: 500V DC 10mΩ or more	Input-Output-Power Source: 2.0kV AC 1 minute	3-port insulation (between input-output-power supply)	Flame -retardant resin color: Light gray	Polycarbonate	Polyamide color green	・ Front potential ・ Zero adjustment: ± 2.5% ・ Span adjustment: ± 2.5%	・ PWR lamp green ・ Lights when the power is turned on ・ Flashes in about 0.5 seconds in case of non -volatile memory abnormalities	・ ERR lamp red ・ Flashes in about 0.25 seconds when input is 110%or more ・ Flashes in about 0.5 seconds when the input is -10%or less	・ Select the output status (normal, reverse) with the dip switch ・ No.1 OFF: Normal, ON: Reverse	・ Select the output direction (upward, down) when input disconnection with the dip switch ・ No.2 OFF: Up, ON: Bottom	30msec	Monitor the CPU with a watchdog timer, restart with reset operation in the event of abnormalities	24V DC	20-28V DC	Approximately 3.5va	-5 ~ 55 ℃	35 ~ 85%RH (but not condensation)
SBD-0103-0F	Available upon quote	DC current: 4 ~ 20mA DC, reception resistance: 50Ω built -in	DC current: 0 ~ 12ma DC	1kΩ or less	0 to 2.5%	97.5 ~ 102.5%	24V DC ± 3V (when loading current is 20 mA)	Within 200mV DC (when loading current is 20 mA)	25ma DC	240Ω (field communicator compatible)	Within ± 0.2%	1 second (0 → 90%) (average 0.5 seconds)	± 0.015%/℃	Input-Output-between power supply: 500V DC 10mΩ or more	Input-Output-Power Source: 2.0kV AC 1 minute	3-port insulation (between input-output-power supply)	Flame -retardant resin color: Light gray	Polycarbonate	Polyamide color green	・ Front potential ・ Zero adjustment: ± 2.5% ・ Span adjustment: ± 2.5%	・ PWR lamp green ・ Lights when the power is turned on ・ Flashes in about 0.5 seconds in case of non -volatile memory abnormalities	・ ERR lamp red ・ Flashes in about 0.25 seconds when input is 110%or more ・ Flashes in about 0.5 seconds when the input is -10%or less	・ Select the output status (normal, reverse) with the dip switch ・ No.1 OFF: Normal, ON: Reverse	・ Select the output direction (upward, down) when input disconnection with the dip switch ・ No.2 OFF: Up, ON: Bottom	30msec	Monitor the CPU with a watchdog timer, restart with reset operation in the event of abnormalities	100 ~ 240V AC 50/60Hz	85 ~ 264V AC	Approximately 3.5va	-5 ~ 55 ℃	35 ~ 85%RH (but not condensation)
SBD-0103-1F	Available upon quote	DC current: 4 ~ 20mA DC, reception resistance: 50Ω built -in	DC current: 0 ~ 12ma DC	1kΩ or less	0 to 2.5%	97.5 ~ 102.5%	24V DC ± 3V (when loading current is 20 mA)	Within 200mV DC (when loading current is 20 mA)	25ma DC	240Ω (field communicator compatible)	Within ± 0.2%	1 second (0 → 90%) (average 0.5 seconds)	± 0.015%/℃	Input-Output-between power supply: 500V DC 10mΩ or more	Input-Output-Power Source: 2.0kV AC 1 minute	3-port insulation (between input-output-power supply)	Flame -retardant resin color: Light gray	Polycarbonate	Polyamide color green	・ Front potential ・ Zero adjustment: ± 2.5% ・ Span adjustment: ± 2.5%	・ PWR lamp green ・ Lights when the power is turned on ・ Flashes in about 0.5 seconds in case of non -volatile memory abnormalities	・ ERR lamp red ・ Flashes in about 0.25 seconds when input is 110%or more ・ Flashes in about 0.5 seconds when the input is -10%or less	・ Select the output status (normal, reverse) with the dip switch ・ No.1 OFF: Normal, ON: Reverse	・ Select the output direction (upward, down) when input disconnection with the dip switch ・ No.2 OFF: Up, ON: Bottom	30msec	Monitor the CPU with a watchdog timer, restart with reset operation in the event of abnormalities	24V DC	20-28V DC	Approximately 3.5va	-5 ~ 55 ℃	35 ~ 85%RH (but not condensation)
SBD-0104-0F	Available upon quote	DC current: 4 ~ 20mA DC, reception resistance: 50Ω built -in	DC current: 0 ~ 10ma DC	1kΩ or less	0 to 2.5%	97.5 ~ 102.5%	24V DC ± 3V (when loading current is 20 mA)	Within 200mV DC (when loading current is 20 mA)	25ma DC	240Ω (field communicator compatible)	Within ± 0.2%	1 second (0 → 90%) (average 0.5 seconds)	± 0.015%/℃	Input-Output-between power supply: 500V DC 10mΩ or more	Input-Output-Power Source: 2.0kV AC 1 minute	3-port insulation (between input-output-power supply)	Flame -retardant resin color: Light gray	Polycarbonate	Polyamide color green	・ Front potential ・ Zero adjustment: ± 2.5% ・ Span adjustment: ± 2.5%	・ PWR lamp green ・ Lights when the power is turned on ・ Flashes in about 0.5 seconds in case of non -volatile memory abnormalities	・ ERR lamp red ・ Flashes in about 0.25 seconds when input is 110%or more ・ Flashes in about 0.5 seconds when the input is -10%or less	・ Select the output status (normal, reverse) with the dip switch ・ No.1 OFF: Normal, ON: Reverse	・ Select the output direction (upward, down) when input disconnection with the dip switch ・ No.2 OFF: Up, ON: Bottom	30msec	Monitor the CPU with a watchdog timer, restart with reset operation in the event of abnormalities	100 ~ 240V AC 50/60Hz	85 ~ 264V AC	Approximately 3.5va	-5 ~ 55 ℃	35 ~ 85%RH (but not condensation)
SBD-0104-1F	Available upon quote	DC current: 4 ~ 20mA DC, reception resistance: 50Ω built -in	DC current: 0 ~ 10ma DC	1kΩ or less	0 to 2.5%	97.5 ~ 102.5%	24V DC ± 3V (when loading current is 20 mA)	Within 200mV DC (when loading current is 20 mA)	25ma DC	240Ω (field communicator compatible)	Within ± 0.2%	1 second (0 → 90%) (average 0.5 seconds)	± 0.015%/℃	Input-Output-between power supply: 500V DC 10mΩ or more	Input-Output-Power Source: 2.0kV AC 1 minute	3-port insulation (between input-output-power supply)	Flame -retardant resin color: Light gray	Polycarbonate	Polyamide color green	・ Front potential ・ Zero adjustment: ± 2.5% ・ Span adjustment: ± 2.5%	・ PWR lamp green ・ Lights when the power is turned on ・ Flashes in about 0.5 seconds in case of non -volatile memory abnormalities	・ ERR lamp red ・ Flashes in about 0.25 seconds when input is 110%or more ・ Flashes in about 0.5 seconds when the input is -10%or less	・ Select the output status (normal, reverse) with the dip switch ・ No.1 OFF: Normal, ON: Reverse	・ Select the output direction (upward, down) when input disconnection with the dip switch ・ No.2 OFF: Up, ON: Bottom	30msec	Monitor the CPU with a watchdog timer, restart with reset operation in the event of abnormalities	24V DC	20-28V DC	Approximately 3.5va	-5 ~ 55 ℃	35 ~ 85%RH (but not condensation)
SBD-0105-0F	Available upon quote	DC current: 4 ~ 20mA DC, reception resistance: 50Ω built -in	DC voltage: 0 ~ 1V DC	100Ω or more	0 to 2.5%	97.5 ~ 102.5%	24V DC ± 3V (when loading current is 20 mA)	Within 200mV DC (when loading current is 20 mA)	25ma DC	240Ω (field communicator compatible)	Within ± 0.2%	1 second (0 → 90%) (average 0.5 seconds)	± 0.015%/℃	Input-Output-between power supply: 500V DC 10mΩ or more	Input-Output-Power Source: 2.0kV AC 1 minute	3-port insulation (between input-output-power supply)	Flame -retardant resin color: Light gray	Polycarbonate	Polyamide color green	・ Front potential ・ Zero adjustment: ± 2.5% ・ Span adjustment: ± 2.5%	・ PWR lamp green ・ Lights when the power is turned on ・ Flashes in about 0.5 seconds in case of non -volatile memory abnormalities	・ ERR lamp red ・ Flashes in about 0.25 seconds when input is 110%or more ・ Flashes in about 0.5 seconds when the input is -10%or less	・ Select the output status (normal, reverse) with the dip switch ・ No.1 OFF: Normal, ON: Reverse	・ Select the output direction (upward, down) when input disconnection with the dip switch ・ No.2 OFF: Up, ON: Bottom	30msec	Monitor the CPU with a watchdog timer, restart with reset operation in the event of abnormalities	100 ~ 240V AC 50/60Hz	85 ~ 264V AC	Approximately 3.5va	-5 ~ 55 ℃	35 ~ 85%RH (but not condensation)
SBD-0105-1F	Available upon quote	DC current: 4 ~ 20mA DC, reception resistance: 50Ω built -in	DC voltage: 0 ~ 1V DC	100Ω or more	0 to 2.5%	97.5 ~ 102.5%	24V DC ± 3V (when loading current is 20 mA)	Within 200mV DC (when loading current is 20 mA)	25ma DC	240Ω (field communicator compatible)	Within ± 0.2%	1 second (0 → 90%) (average 0.5 seconds)	± 0.015%/℃	Input-Output-between power supply: 500V DC 10mΩ or more	Input-Output-Power Source: 2.0kV AC 1 minute	3-port insulation (between input-output-power supply)	Flame -retardant resin color: Light gray	Polycarbonate	Polyamide color green	・ Front potential ・ Zero adjustment: ± 2.5% ・ Span adjustment: ± 2.5%	・ PWR lamp green ・ Lights when the power is turned on ・ Flashes in about 0.5 seconds in case of non -volatile memory abnormalities	・ ERR lamp red ・ Flashes in about 0.25 seconds when input is 110%or more ・ Flashes in about 0.5 seconds when the input is -10%or less	・ Select the output status (normal, reverse) with the dip switch ・ No.1 OFF: Normal, ON: Reverse	・ Select the output direction (upward, down) when input disconnection with the dip switch ・ No.2 OFF: Up, ON: Bottom	30msec	Monitor the CPU with a watchdog timer, restart with reset operation in the event of abnormalities	24V DC	20-28V DC	Approximately 3.5va	-5 ~ 55 ℃	35 ~ 85%RH (but not condensation)
