  4. High frequency heating type temperature programmed desorption analyzer IH-TDS1700 (Electronic Science Co., Ltd.)
High frequency heating type temperature programmed desorption analyzer IH-TDS1700-IH-TDS1700
High frequency heating type temperature programmed desorption analyzer IH-TDS1700-Electronic Science Co., Ltd.

High frequency heating type temperature programmed desorption analyzer IH-TDS1700
Electronic Science Co., Ltd.

Electronic Science Co., Ltd.'s Response Status

Response Rate

100.0%

Response Time

41.3hours

About This Product

■Characteristics of the high-frequency heating type temperature programmed desorption analyzer IH-TDS1700

The IH-TDS1700 high-frequency heating temperature programmable desorption spectrometer uses a quadrupole mass spectrometer (QMS) to detect molecules that are desorbed when a sample is heated programmatically by electromagnetic induction heating in an ultra-high vacuum environment (10-7 Pa or less). ) is an analysis device that performs real-time observation. Due to the ultra-high vacuum environment, highly sensitive observation of desorbed components is possible under ideal conditions where the effects of side reactions (*) are suppressed. *This device was developed with support from the Ichimura Innovation Technology Foundation. A reaction that occurs between a sample heated during measurement and atmospheric components, or a reaction that occurs between a component desorbed from a sample and an atmospheric component. It can efficiently heat metal materials such as steel, and can measure temperatures exceeding 1,700℃. Low-temperature TDS measurements of diffusible hydrogen in steel, which is a factor in hydrogen embrittlement (delayed fracture) in steel materials, are also possible. The device itself is automatically controlled by a PLC (Programmable Logic Controller), and a touch panel is used as the interface.

■Equipped with load lock chamber

A load-lock chamber is essential for high measurement efficiency (high throughput) and high sensitivity. Our load lock chamber and sample transport mechanism allow only the sample to be quickly introduced into the ultra-high vacuum analysis chamber. Without a load-lock chamber, the analysis chamber must be vented to the atmosphere every time a sample is replaced. Once the analysis chamber is opened to the atmosphere, a large amount of atmospheric components (particularly moisture) will be adsorbed inside the analysis chamber, and it will take a long time to fully evacuate the chamber.

■Low-temperature TDS measurement of diffusible hydrogen in steel

Since it is possible to measure cooled steel specimens, it is possible to quantify with high precision without escaping the diffusible hydrogen of BCC steel, which has a large hydrogen diffusion coefficient. Frost builds up on cooled steel specimens, and the detachment of this frost affects the hydrogen signal, contributing to errors in the diffusible hydrogen content (increasing uncertainty). The IH-TDS1700's cold trap (optional) traps frost to minimize the effects of frost, making it possible to obtain a diffusive hydrogen desorption spectrum with less distortion.

■Quantification of desorbed gas

Desorption gas can be quantified using a data processing program. To quantify the desorbed gas, it is necessary to periodically calibrate the sensitivity of the mass spectrometer.

  • Product

    High frequency heating type temperature programmed desorption analyzer IH-TDS1700

Share this product


30+ people viewing

Free
Get started with our free quotation service - no cost, no obligation.

No Phone Required
We respect your privacy. You can receive quotes without sharing your phone number.

1 Models of High frequency heating type temperature programmed desorption analyzer IH-TDS1700

Image Part Number Price (excluding tax)
High frequency heating type temperature programmed desorption analyzer IH-TDS1700-Part Number-IH-TDS1700

IH-TDS1700

Available upon quote

Customers who viewed this product also viewed

Reviews shown here are reviews of companies.

High frequency guidance heating device handheld type TS series-S. workman-. Japan

High frequency guidance heating device handheld type TS series

S. workman-. Japan

350+ people viewing

Last viewed: 7 hours ago

Response time: 1.32 hours

High Frequency Heating Equipment

3 models listed

High -frequency guidance heating device component type Power Cube series-S. workman-. Japan

High -frequency guidance heating device component type Power Cube series

S. workman-. Japan

390+ people viewing

Last viewed: 4 hours ago

Response time: 1.32 hours

High Frequency Heating Equipment

6 models listed

Small high frequency induction heating device MU-α series-SK Medical Electronics Co., Ltd.

Small high frequency induction heating device MU-α series

SK Medical Electronics Co., Ltd.

270+ people viewing

Last viewed: 2 hours ago

Response time: 11.21 hours

High Frequency Heating Equipment

8 models listed

High frequency induction heating device Freestanding automatic type SF-DRU-15K-Seiwa Precision Machinery Co., Ltd.

High frequency induction heating device Freestanding automatic type SF-DRU-15K

Seiwa Precision Machinery Co., Ltd.

4.5

200+ people viewing

Last viewed: 6 hours ago

Response time: 40.78 hours

High Frequency Heating Equipment

2 models listed

Maximum defrosting capacity 15.4 tons per hour Enables delicious defrosting in a short time according to the purpose Microwave defrosting machine MIP type-Meiji Machine Co.,Ltd.

Maximum defrosting capacity 15.4 tons per hour Enables delicious defrosting in a short time according to the purpose Microwave defrosting machine MIP type

Meiji Machine Co.,Ltd.

170+ people viewing

Last viewed: 5 hours ago

High Frequency Heating Equipment

3 models listed

High frequency induction heating device Freestanding manual type SF-DRU-S15K-Seiwa Precision Machinery Co., Ltd.

High frequency induction heating device Freestanding manual type SF-DRU-S15K

Seiwa Precision Machinery Co., Ltd.

4.5

220+ people viewing

Last viewed: 8 hours ago

Response time: 40.78 hours

High Frequency Heating Equipment

2 models listed

Tabletop high frequency induction heating device MU-mini-SK Medical Electronics Co., Ltd.

Tabletop high frequency induction heating device MU-mini

SK Medical Electronics Co., Ltd.

160+ people viewing

Last viewed: 3 hours ago

Response time: 11.21 hours

High Frequency Heating Equipment

3 models listed

High frequency induction heating device tabletop manual type SF-DRU-1.2KT-Seiwa Precision Machinery Co., Ltd.

High frequency induction heating device tabletop manual type SF-DRU-1.2KT

Seiwa Precision Machinery Co., Ltd.

4.5

260+ people viewing

Last viewed: 9 hours ago

Response time: 40.78 hours

High Frequency Heating Equipment

3 models listed

Energy-saving and clean heating method that heats only the target metal High-frequency induction heating device-Toyo Electronics Industry Co., Ltd.

Energy-saving and clean heating method that heats only the target metal High-frequency induction heating device

Toyo Electronics Industry Co., Ltd.

100+ people viewing

High Frequency Heating Equipment

3 models listed

Steel secondary processing machine High frequency bending machine-Tokyo Jizai Kogyo Co., Ltd.

Steel secondary processing machine High frequency bending machine

Tokyo Jizai Kogyo Co., Ltd.

200+ people viewing

Last viewed: 22 hours ago

Response time: 22.39 hours

High Frequency Heating Equipment

3 models listed

Equipment/System High frequency heating device/induction heating device 10kW high frequency power supply device HI-HEATER4010-Daiichi Koshuha Industries Co., Ltd.

Equipment/System High frequency heating device/induction heating device 10kW high frequency power supply device HI-HEATER4010

Daiichi Koshuha Industries Co., Ltd.

30+ people viewing

High Frequency Heating Equipment

2 models listed

Equipment/System High-frequency heating device for strain relief HI-HEATER4040Ⅱ-Daiichi Koshuha Industries Co., Ltd.

Equipment/System High-frequency heating device for strain relief HI-HEATER4040Ⅱ

Daiichi Koshuha Industries Co., Ltd.

30+ people viewing

Last viewed: 15 hours ago

High Frequency Heating Equipment

2 models listed

See More High Frequency Heating Equipment Products

Other products of Electronic Science Co., Ltd.

Reviews shown here are reviews of companies.

Temperature-programmed desorption analyzer TDS1200Ⅱ-Electronic Science Co., Ltd.

Temperature-programmed desorption analyzer TDS1200Ⅱ

Electronic Science Co., Ltd.

50+ people viewing

Last viewed: 12 minutes ago

Response time: 41.34 hours

Gas Analyzers

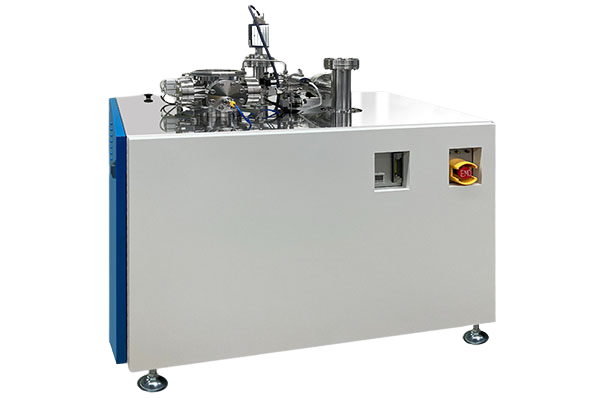

Temperature programmed desorption hydrogen analyzer CryoTDS-100H2-Electronic Science Co., Ltd.
