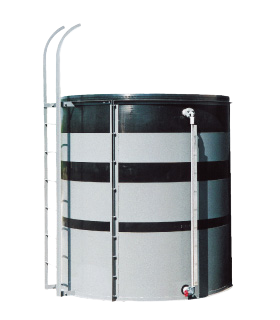

Large poly tank Open round tank MH
Takumina Co., Ltd.
About This Product
Open-type tanks available from a wide range of capacities for use in everything from laboratories to plants.
■Features
・Excellent rigidity due to multilayer structure
・Suitable for various uses from 50L to 15,000L
・As a reaction tank or storage tank
・Inner layer is natural and clean
*Other product numbers are available.
-
Product
Large poly tank Open round tank MH
-
Handling Company
Takumina Co., Ltd.
-
Categories
10 Models of Large poly tank Open round tank MH
Items marked with have different values depending on the model number.
Click on the part number for more information about each product
| Product Image | Part Number | Price (excluding tax) | Capacity L | Flange inner diameter (mm) | Height (mm) | Number of anchors | Outer diameter (mm) | PDC (mm) | Remarks | Standard design specifications | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
MH2-15000 |
Available upon quote | 15,000 | 2,300 | 3,150 | 8 | 2,600 | 2,653 | With triple-layered foamed iron frame |
Liquid specific gravity: 1.6 Liquid temperature: 60℃ |
740 |
|
|
MH2-10000 |
Available upon quote | 10,000 | 2,070 | 2,800 | 6 | 2,280 | 2,333 | With triple-layered foamed iron frame |
Liquid specific gravity: 1.6 Liquid temperature: 60℃ |
570 |
|
|
MH2-8000 |
Available upon quote | 8,000 | 1,970 | 2,465 | 6 | 2,170 | 2,223 | With triple-layered foamed iron frame |
Liquid specific gravity: 1.6 Liquid temperature: 60℃ |
460 |
|
|
MH2-6000 |
Available upon quote | 6,000 | 1,722 | 2,395 | 6 | 1,922 | 1,965 | With triple-layered foamed iron frame |
Liquid specific gravity: 1.6 Liquid temperature: 60℃ |
340 |
|
|
MH2-5000 |
Available upon quote | 5,000 | 1,690 | 2,095 | 6 | 1,890 | 1,933 | With triple-layered foamed iron frame |
Liquid specific gravity: 1.6 Liquid temperature: 60℃ |
290 |
|
|
MH2-4000 |
Available upon quote | 4,000 | 1,540 | 1,985 | 6 | 1,740 | 1,783 | With triple-layered foamed iron frame |
Liquid specific gravity: 1.6 Liquid temperature: 60℃ |
270 |
|
|
MH2-3000 |
Available upon quote | 3,000 | 1,500 | 1,680 | 4 | 1,625 | 1,745 | No double layer iron frame |
Liquid specific gravity: 1.3 Liquid temperature: 40℃ |
210 |
|
|
MH2-2000 |
Available upon quote | 2,000 | 1,320 | 1,560 | 4 | 1,420 | 1,540 | No double layer iron frame |
Liquid specific gravity: 1.3 Liquid temperature: 40℃ |
140 |
|
|
MH2-1000 |
Available upon quote | 1,000 | 960 | 1,250 | 4 | 1,060 | 1,180 | No double layer iron frame |
Liquid specific gravity: 1.3 Liquid temperature: 40℃ |
80 |
|
|
MH2-500 |
Available upon quote | 500 | 800 | 870 | 4 | 900 | 1,020 | No double layer iron frame |
Liquid specific gravity: 1.3 Liquid temperature: 40℃ |
50 |
