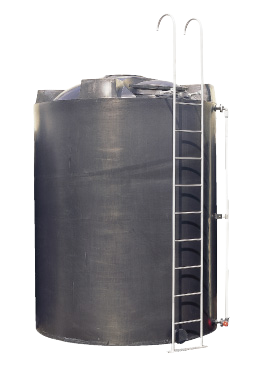

Large poly tank Sealed round tank without iron frame UL
Takumina Co., Ltd.
About This Product
Excellent rigidity and robustness. No need for reinforcing metal frame, eliminating worries about rust.
■Features
・Robust tank with thicker multilayer structure
・Easy maintenance thanks to the clean appearance without iron frame
・Ideal for storing water, chemicals, etc.
・Inner layer is natural and clean
-
Product
Large poly tank Sealed round tank without iron frame UL
-
Handling Company
Takumina Co., Ltd.
-
Categories
8 Models of Large poly tank Sealed round tank without iron frame UL
Items marked with have different values depending on the model number.
Click on the part number for more information about each product
| Product Image | Part Number | Price (excluding tax) | Capacity L | Height body (mm) | Number of anchors | Outer diameter (mm) | Overall height (mm) | PDC (mm) | Remarks | Standard design specifications | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
UL1-20000 |
Available upon quote | 20,000 | 3,810 | 6 | 2,710 | 4,260 | 2,830 | Foam triple-layer iron frameless |
Liquid specific gravity: 1.3 Liquid temperature: 40℃ |
900 |
|
|
UL1-15000 |
Available upon quote | 15,000 | 3,120 | 6 | 2,600 | 3,540 | 2,720 | Foam triple-layer iron frameless |
Liquid specific gravity: 1.3 Liquid temperature: 40℃ |
780 |
|
|
UL1-10000 |
Available upon quote | 10,000 | 2,780 | 6 | 2,280 | 3,190 | 2,400 | Foam triple-layer iron frameless |
Liquid specific gravity: 1.3 Liquid temperature: 40℃ |
520 |
|
|
UL1-8000 |
Available upon quote | 8,000 | 2,415 | 6 | 2,170 | 3,005 | 2,290 | Foam triple-layer iron frameless |
Liquid specific gravity: 1.3 Liquid temperature: 40℃ |
430 |
|
|
UL1-6000 |
Available upon quote | 6,000 | 2,350 | 4 | 1,922 | 2,800 | 2,042 | Foam triple-layer iron frameless |
Liquid specific gravity: 1.3 Liquid temperature: 40℃ |
330 |
|
|
UL1-5000 |
Available upon quote | 5,000 | 2,050 | 4 | 1,890 | 2,480 | 2,010 | Foam triple-layer iron frameless |
Liquid specific gravity: 1.3 Liquid temperature: 40℃ |
270 |
|
|
UL1-4000 |
Available upon quote | 4,000 | 1,940 | 4 | 1,740 | 2,370 | 1,860 | Foam triple-layer iron frameless |
Liquid specific gravity: 1.3 Liquid temperature: 40℃ |
240 |
|
|
UL1-3000 |
Available upon quote | 3,000 | 1,625 | 4 | 1,625 | 2,080 | 1,745 | No double layer iron frame |
Liquid specific gravity: 1.3 Liquid temperature: 40℃ |
120 |
