Large poly tank Sealed round hopper tank HT
Takumina Co., Ltd.
About This Product
Completely drain type with a sloped bottom of the tank. For food processes.
■Features
・Easy to clean with no residual liquid
・Multi-layer structure has outstanding rigidity
・Ideal for the food field with complete liquid extraction
・Ideal for batch-type work
・Inner layer is natural and clean
- High earthquake resistance and high specific gravity can be achieved by changing the specifications of the steel frame.
*Other product numbers are available.
-
Product
Large poly tank Sealed round hopper tank HT
-
Handling Company
Takumina Co., Ltd.
-
Categories
10 Models of Large poly tank Sealed round hopper tank HT
Items marked with have different values depending on the model number.
Click on the part number for more information about each product
| Product Image | Part Number | Price (excluding tax) | Capacity L | Height body (mm) | Height pedestal (mm) | Number of anchors | Outer diameter (mm) | Overall height (mm) | PDC (mm) | Remarks | Standard design specifications | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|

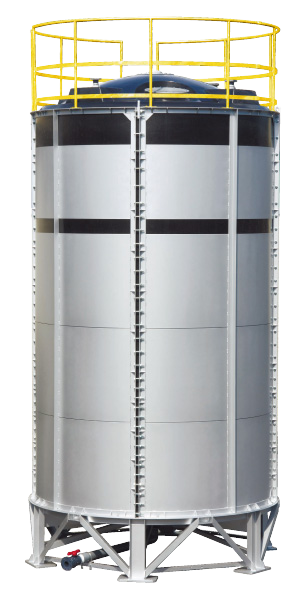

HT2-40000 |
Available upon quote | 40,000 | 5,300 | 800 | 12 | 3,270 | 6,600 | 3,520 | With double-layer iron frame |
Liquid specific gravity 1.6 Liquid temperature 40℃ |
3,930 |
|
|
HT2-30000 |
Available upon quote | 30,000 | 5,000 | 1,000 | 8 | 2,910 | 6,500 | 3,150 | With double-layer iron frame |
Liquid specific gravity 1.6 Liquid temperature 40℃ |
2,880 |
|
|
HT2-20000 |
Available upon quote | 20,000 | 3,300 | 945 | 8 | 2,840 | 4,695 | 3,010 | With double-layer iron frame |
Liquid specific gravity 1.6 Liquid temperature 40℃ |
1,590 |
|
|
HT2-10000 |
Available upon quote | 10,000 | 2,315 | 1,100 | 4 | 2,360 | 3,865 | 2,540 | With double-layer iron frame |
Liquid specific gravity 1.6 Liquid temperature 40℃ |
1,150 |
|
|
HT2-6000 |
Available upon quote | 6,000 | 2,025 | 810 | 4 | 2,010 | 3,230 | 2,135 | No double layer iron frame |
Liquid specific gravity 1.3 Liquid temperature 40℃ |
680 |
|
|
HT2-5000 |
Available upon quote | 5,000 | 1,900 | 780 | 4 | 1,890 | 3,125 | 2,045 | No double layer iron frame |
Liquid specific gravity 1.3 Liquid temperature 40℃ |
630 |
|
|

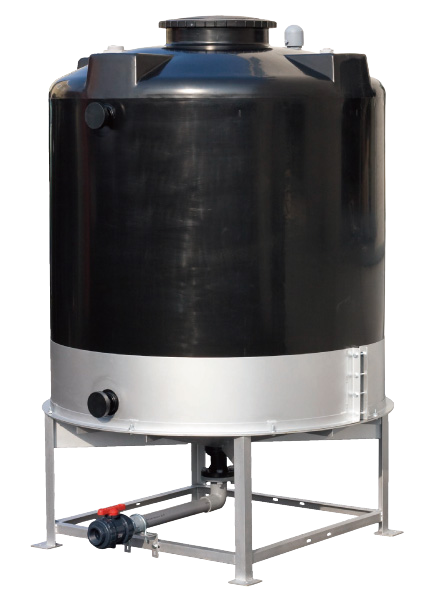

HT2-4000 |
Available upon quote | 4,000 | 1,780 | 760 | 4 | 1,740 | 2,920 | 1,850 | No double layer iron frame |
Liquid specific gravity 1.3 Liquid temperature 40℃ |
460 |
|
|
HT2-3000 |
Available upon quote | 3,000 | 1,580 | 670 | 4 | 1,620 | 2,610 | 1,690 | No double layer iron frame |
Liquid specific gravity 1.3 Liquid temperature 40℃ |
380 |
|
|
HT2-2000 |
Available upon quote | 2,000 | 1,315 | 595 | 4 | 1,420 | 2,260 | 1,560 | No double layer iron frame |
Liquid specific gravity 1.3 Liquid temperature 40℃ |
240 |
|
|
HT2-1000 |
Available upon quote | 1,000 | 1,100 | 550 | 4 | 1,120 | 1,915 | 1,272 | No double layer iron frame |
Liquid specific gravity 1.3 Liquid temperature 40℃ |
160 |
