Positive Displacement Pump Smooth Flow Pump APLS-APLS-1
Positive Displacement Pump Smooth Flow Pump APLS-Takumina Co., Ltd.

Positive Displacement Pump Smooth Flow Pump APLS
Takumina Co., Ltd.

Takumina Co., Ltd.'s Response Status

Response Rate

100.0%

Response Time

13.5hours

Relatively Fast Response


About This Product

For transporting delicate foods and cosmetics that are susceptible to deterioration, such as concentrated fruit juice, food additives, mayonnaise, and emulsion.

■Sanitary specifications that are hygienic and easy to disassemble

Hygienic with stainless steel head and completely sealed structure without mechanical seal. The fittings are also clamp type, making them easy to disassemble and clean.

■Adopts 1 cam 1 head 2 diaphragm mechanism

Although it is a single head and single cam, two diaphragms are placed facing each other to suppress pulsation, which is a characteristic of diaphragms. Pulsation-free continuous flow provides excellent quantitative performance and responsiveness in flow control.

■High-precision constant velocity cam achieves stable constant flow

Takumina's proprietary high-precision constant velocity cam suppresses pulsation, and the two pump heads alternately discharge to maintain a constant flow rate.

■Achieving higher-grade precision transfer

By using a refiner or pulse counter, you can create a flow with even higher precision.

■Double diaphragm prevents liquid leakage

In addition to the PTFE diaphragm, which has excellent durability and corrosion resistance and is suitable for transferring slurry liquid, a protective diaphragm is also included. In addition to the completely sealed structure with no mechanical seals, it firmly prevents liquid leakage even if the diaphragm is damaged. There is no need to worry about contamination with foreign substances.

■ Stable transfer of fluids that are difficult to transfer

Not only slurry liquids, liquids that easily change in quality, liquids that easily vaporize or solidify, and low-viscosity liquids that tend to leak, but also high-viscosity liquids that are difficult to transfer with conventional diaphragm pumps, such as polymer flocculants, can be handled at a constant flow rate of up to 20,000 mPa・s. I can send it.

■Wear-resistant

The highly durable PTFE diaphragm needs to be replaced once a year (4,000 hours). This greatly reduces the need for frequent parts replacement and reduces running costs. *The recommended replacement period for consumables may be shorter depending on the quality of transferred liquid, usage conditions, and some models.

■No burn-in even when running dry

Since there are no sliding parts in the structure, there is no need to worry about the sealing part wearing out or seizing even if it is operated idly.

■The only tools are two types of wrenches. Easy to disassemble and assemble.

With two types of wrenches, anyone can easily disassemble and assemble the wetted parts, making it easy to maintain.

■Others

The cover, diaphragm, pump head, diaphragm, protective diaphragm, and sub-ring are connected in the horizontal direction.The discharge side joint, packing, valve seat set, and suction side joint are connected in the vertical direction.Enlarge image

  • Product

    Positive Displacement Pump Smooth Flow Pump APLS

Share this product


490+ people viewing

Last viewed: 13 hours ago


Free
Get started with our free quotation service - no cost, no obligation.

No Phone Required
We respect your privacy. You can receive quotes without sharing your phone number.

7 Models of Positive Displacement Pump Smooth Flow Pump APLS

Click on the part number for more information about each product

Image Part Number Price (excluding tax) Maximum discharge amount (L/min) Maximum discharge amount (L/h) Maximum discharge pressure (MPa)
Positive Displacement Pump Smooth Flow Pump APLS-Part Number-APLS-1

APLS-1

Available upon quote

1

60

0.5

Positive Displacement Pump Smooth Flow Pump APLS-Part Number-APLS-3

APLS-3

Available upon quote

2

120

0.5

Positive Displacement Pump Smooth Flow Pump APLS-Part Number-APLS-5

APLS-5

Available upon quote

5

300

0.5

Positive Displacement Pump Smooth Flow Pump APLS-Part Number-APLS-10

APLS-10

Available upon quote

10

600

0.5

Positive Displacement Pump Smooth Flow Pump APLS-Part Number-APLS-20

APLS-20

Available upon quote

20

1,200

0.5

Positive Displacement Pump Smooth Flow Pump APLS-Part Number-APLS-35

APLS-35

Available upon quote

35

2,100

0.5

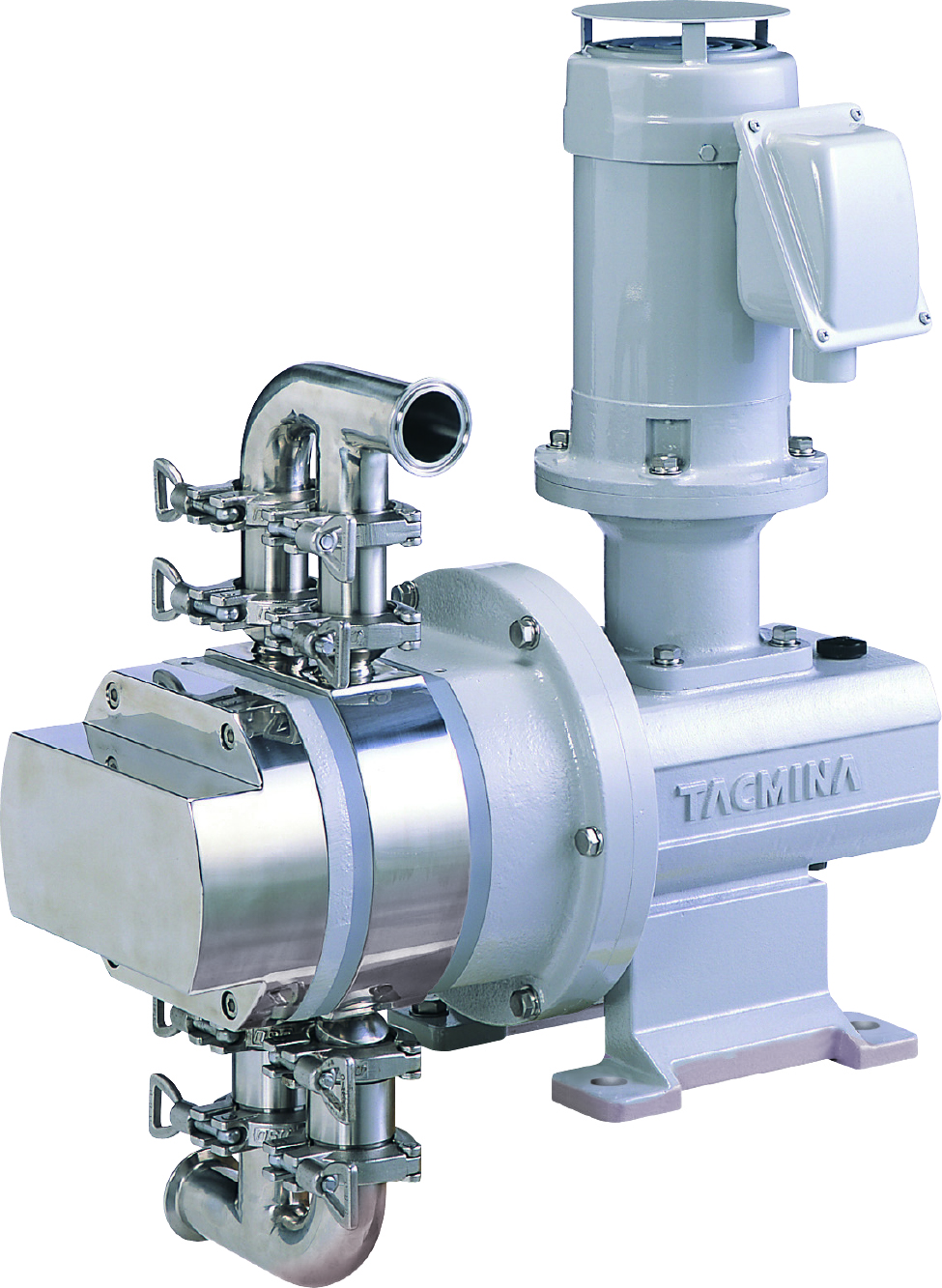

Positive Displacement Pump Smooth Flow Pump APLS-Part Number-APLS-50

APLS-50

Available upon quote

45

2,700

0.5
