Positive Displacement Pump Smooth Flow Pump TPL-TPL1ME-008
Positive Displacement Pump Smooth Flow Pump TPL-Takumina Co., Ltd.

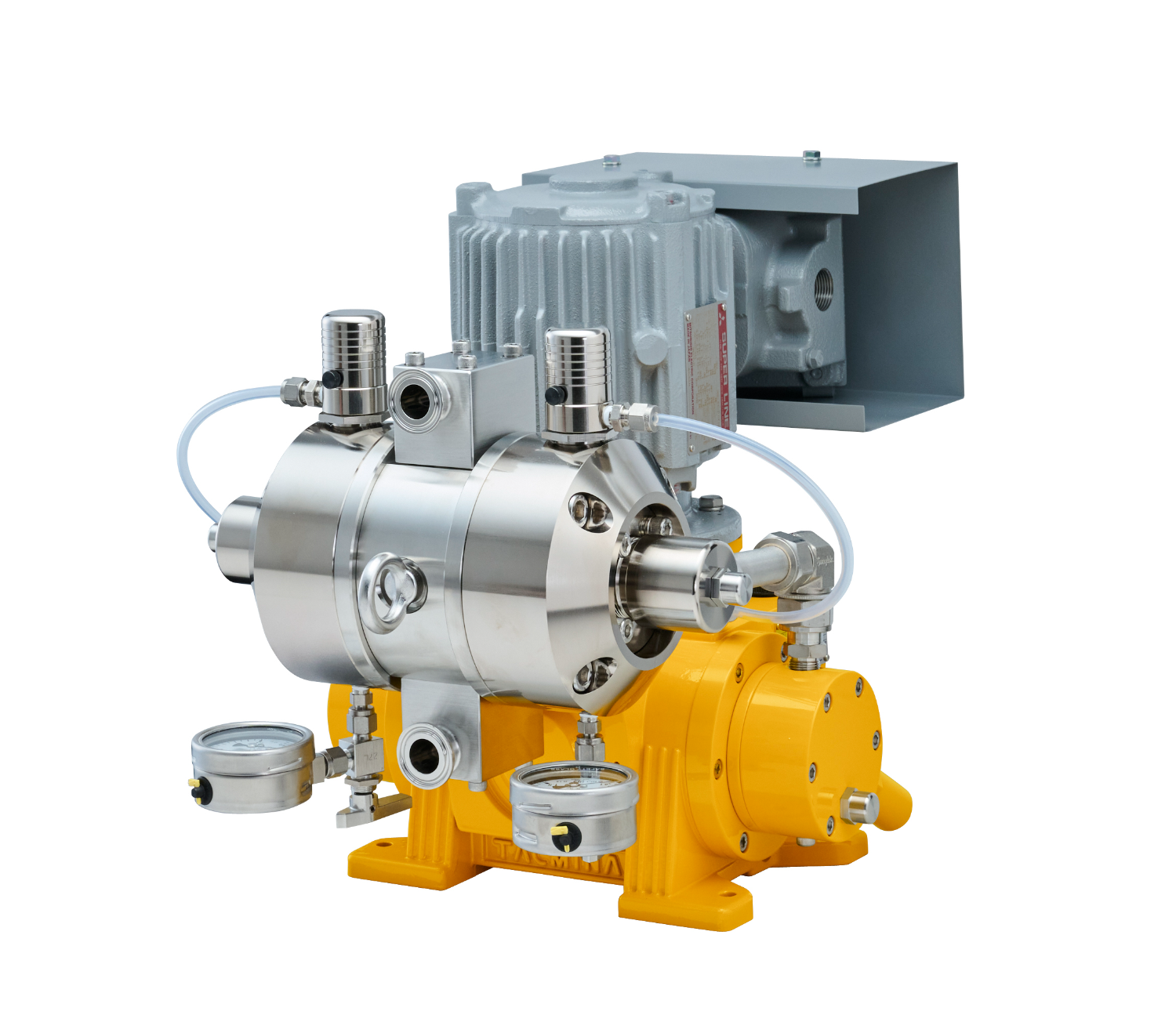

Positive Displacement Pump Smooth Flow Pump TPL
Takumina Co., Ltd.


About This Product

For process lines that require strict control, such as optical films, IT, and expensive pharmaceuticals. Features

■Reproducibility accuracy less than ±0.1%, pulsation rate less than ±1%

Capable of supplying ultra-constant flow with high precision. It is recommended for processes that require strict quality control, such as precision thin film coating, metering processes in cutting-edge fields, in-line injection, and sample liquid supply for liquid chromatography.

■Compact design approximately 1/2 (compared to our previous model)

Compared to our conventional metering pump (equal capacity), the installation space is approximately 1/2, making it more compact. Easy to install and move.

■Parts can be replaced and maintained without removing the chemical piping.

The main body can be easily disassembled into 8 component parts using only a hex wrench and spanner. The pump head is also side-open, allowing internal inspection, cleaning, and parts replacement without removing the piping.

■Extends the life of the diaphragm by approximately 4 times

Through detailed 3D analysis, the "flexibility" has been increased by approximately 4 times (compared to our previous model) and durability has been improved. Furthermore, we have adopted a special hydraulic mechanism that prevents the diaphragm from hitting the front, thereby extending the life of the diaphragm, which is a consumable part.

■Compatible with CIP cleaning

The mirror-finished interior of the pump head prevents chemical adhesion and provides excellent in-line cleaning performance. This reduces cleaning work and contributes to reducing the risk of contamination. *Other product numbers are available.

  • Product

    Positive Displacement Pump Smooth Flow Pump TPL

Share this product


870+ people viewing

Last viewed: 2 hours ago


Free
Get started with our free quotation service - no cost, no obligation.

No Phone Required
We respect your privacy. You can receive quotes without sharing your phone number.

10 Models of Positive Displacement Pump Smooth Flow Pump TPL

Click on the part number for more information about each product

Image Part Number Price (excluding tax) Maximum discharge amount (L/min) Maximum discharge amount (L/h) Maximum discharge pressure (MPa)
Positive Displacement Pump Smooth Flow Pump TPL-Part Number-TPL1ME-008

TPL1ME-008

Available upon quote

0.1

6

0.5

Positive Displacement Pump Smooth Flow Pump TPL-Part Number-TPL1ME-014

TPL1ME-014

Available upon quote

0.3

18

0.5

Positive Displacement Pump Smooth Flow Pump TPL-Part Number-TPL1ME-018

TPL1ME-018

Available upon quote

1

30

1

Positive Displacement Pump Smooth Flow Pump TPL-Part Number-TPL1ME-028

TPL1ME-028

Available upon quote

1.2

72

0.5

Positive Displacement Pump Smooth Flow Pump TPL-Part Number-TPL1MWE-008

TPL1MWE-008

Available upon quote

0.1

6

0.5

Positive Displacement Pump Smooth Flow Pump TPL-Part Number-TPL1MWE-014

TPL1MWE-014

Available upon quote

0.3

18

0.5

Positive Displacement Pump Smooth Flow Pump TPL-Part Number-TPL1MWE-018

TPL1MWE-018

Available upon quote

0.5

30

0.5

Positive Displacement Pump Smooth Flow Pump TPL-Part Number-TPL1MWE-028

TPL1MWE-028

Available upon quote

1.2

72

0.5

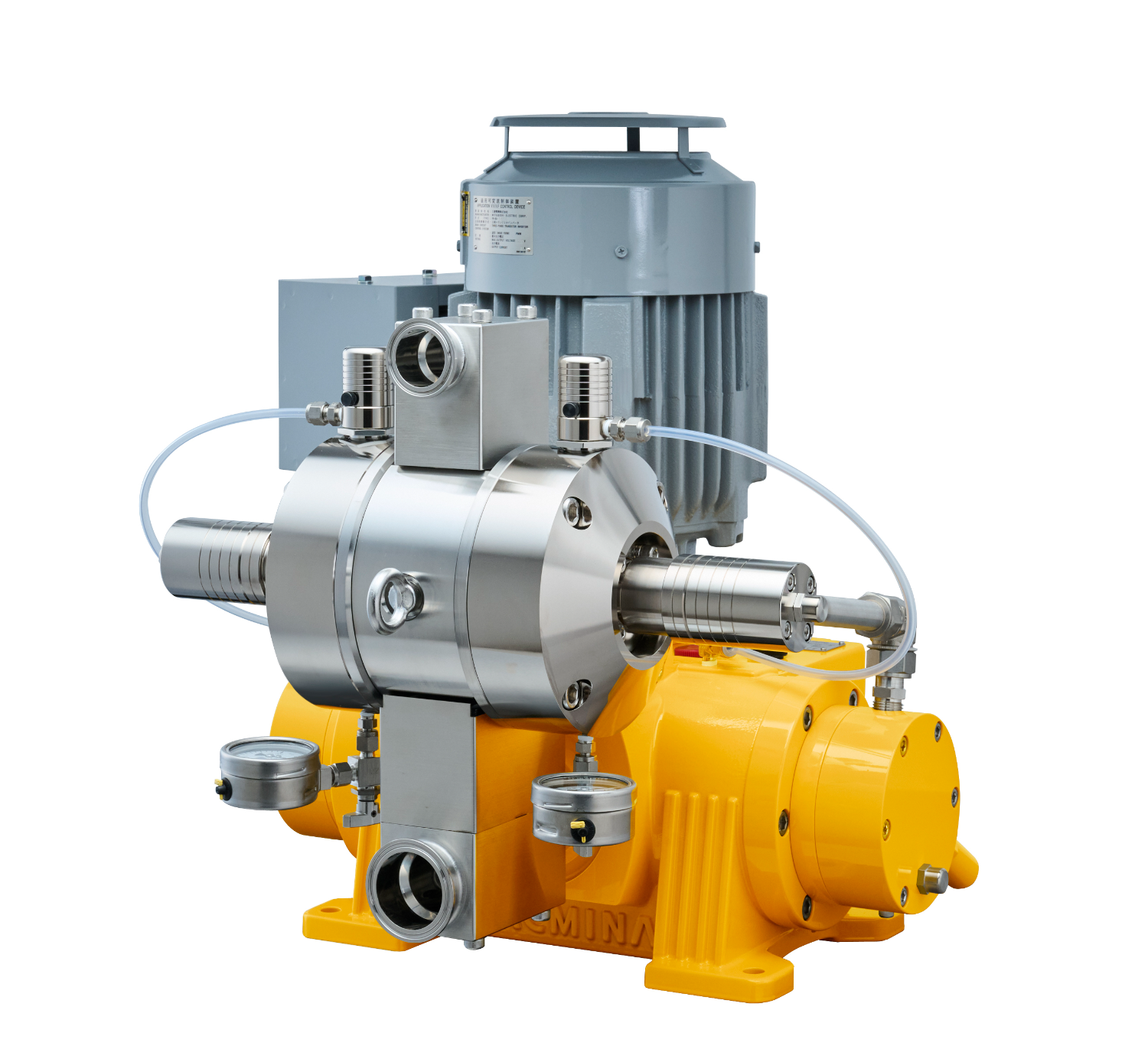

Positive Displacement Pump Smooth Flow Pump TPL-Part Number-TPL2ME-028

TPL2ME-028

Available upon quote

2.6

156

0.5

Positive Displacement Pump Smooth Flow Pump TPL-Part Number-TPL2ME-032

TPL2ME-032

Available upon quote

3.4

204

0.5
