N-One Series Slide Line Selector/Pinless Type SLS-H
Maruyasu Machine Co., Ltd.
About This Product
Features
■Next-generation conveyor that does not compromise on hygiene, safety, and maintenance.
We have positioned the N1 series as a product group that is extremely easy to manage, and have thoroughly pursued hygiene, maintainability, and safety. We aim to be one step ahead in transportation.
■Advantages of line configuration
The short machine length conveyor (SL type) can be used not only as a connecting conveyor between processes, but also by incorporating intermittent operation, it is possible to optimally adjust the pitch, such as controlling conveyed items in groups of four. . In addition, when combined with a shuttle conveyor (SHT), it is possible to construct a conveyor line that is optimal for customers' diverse conveyance needs, such as switching from vertical to horizontal conveyance, switching from one line to multiple lines, and discharging rejected products. I will.

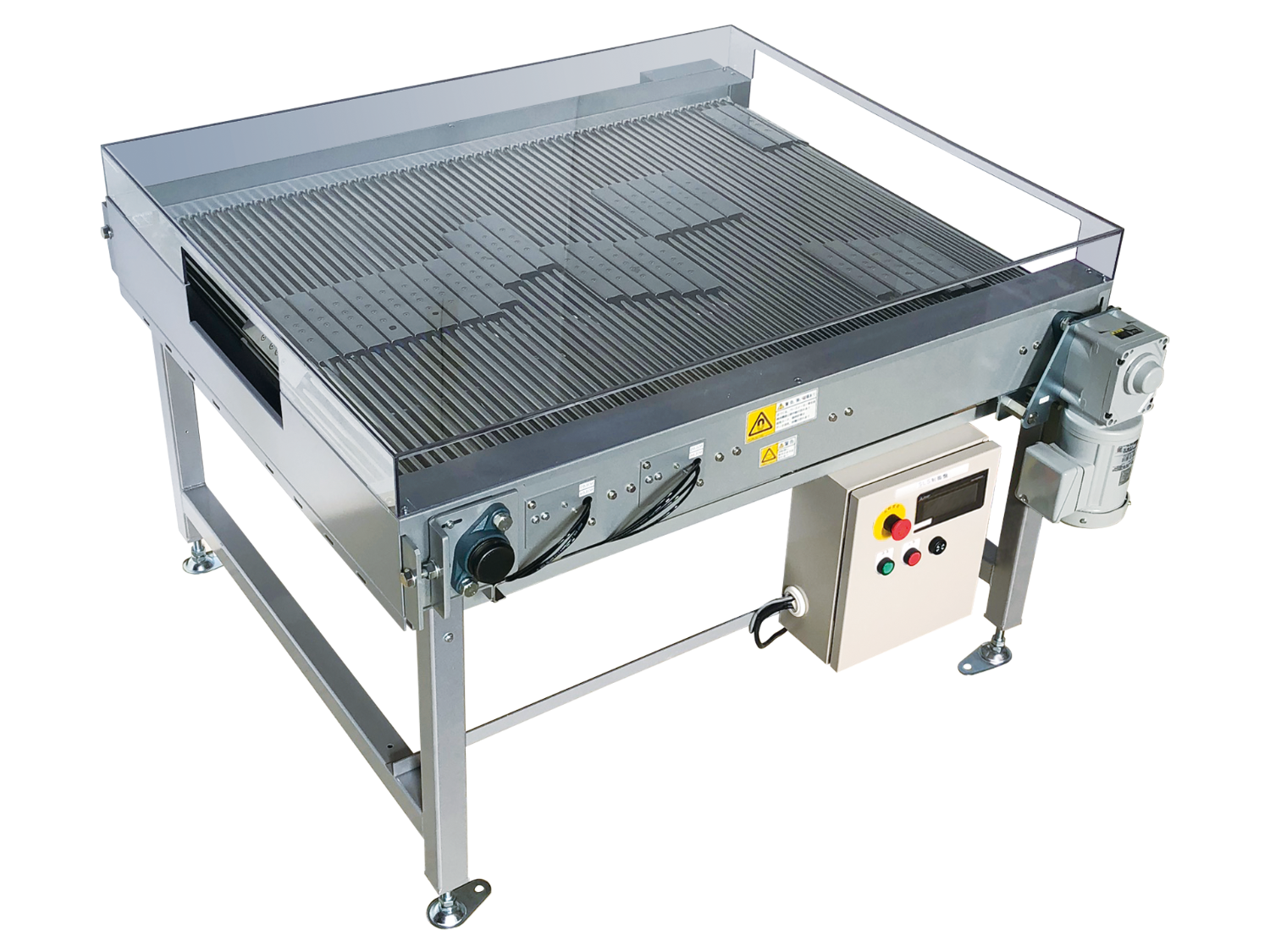

■SLS-H
Objects placed on the slats are sorted in 2 to 5 directions at high speed. Maximum capacity is 350 pieces/minute.
-
Product
N-One Series Slide Line Selector/Pinless Type SLS-H
-
Handling Company
Maruyasu Machine Co., Ltd.
-
Categories
1 Models of N-One Series Slide Line Selector/Pinless Type SLS-H
| Product Image | Part Number | Price (excluding tax) | Actual machine length (cm) | Captain (cm) | Distribution pitch (mm) | Drive/driven pulley (mm) | Frame | Machine height (mm) | Machine width (mm) | Maximum capacity | Maximum speed | Minimum machine height (mm) | Option | Outer diameter | Output | Power supply | Slat width (mm) | Slide pipe | Sorting direction | Transport mass | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
SLS-H |
Available upon quote | 58~127 (depending on distribution pitch) | 51.6~120.2 (depending on distribution pitch) | Depends on slat width (restrictions apply depending on distribution direction) | P.C.D φ84.98 | Steel | 750~1,000±25 | 458~1,058 (depending on distribution pitch) | Max350 pieces/min (capacity varies depending on the size of the transported object) | 70m/min (65.6Hz) | 750 (legs are standard equipment) | Entrapment protection cover, transfer roller, clogging detection sensor | Φ115mm | 0.2kW, 0.4kW | Single phase 100V, single phase 200V, three phase 200V |
2 directions: 100, 150, 200, 250 3 directions: 100, 150, 200, 250 4 directions: 100, 150, 200 5 directions: 100 |
Φ12×t 1.0 (19.05P) | 2 directions, 3 directions, 4 directions, 5 directions | Max100g/cm, max 2kg/unit (distributed load) | Board type (standard), PLC type (optional) |
