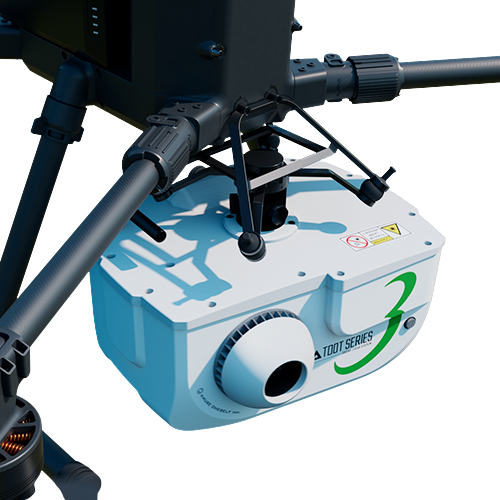

TDOT 7 GREEN, the one and only green laser scanner system that can be used both on land and in shallow waterHandling Company
Amuse One Self Co., Ltd.Categories
| Image | Part Number | Price (excluding tax) | Weight (approx.) | Resolution | Viewing angle | Accuracy | Irradiation rate | Ranging accuracy (1σ) | Sounding performance | Longest measurement distance | Shortest measurement distance | Number of visible camera pixels | Visible camera focal length (35mm equivalent) | Visible camera sensor | Visible camera f value | Visible camera FOV | Specification temperature range | Laser wavelength | Laser class | Beam divergence angle | Scan speed | Thermal camera pixel count | Thermal camera radiometry | Thermal camera FOV | Size (approx.) | Number of echoes | INS specifications speed | INS specification location information | INS specification heading | INS specification pitch/roll |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
TDOT 7 GREEN |
Available upon quote |
3.5kg |
1mm |
120° |
5mm |
160,000Hz |
Echo strength: 4mm |
Best conditions: Reflectance = 0.4 @ 50m altitude 1.43Secchi |
≧10%: 430m |
2.5m |
3,840×3,046 12.4Mpixel |
Approximately 20mm |
1/1.7 type 7.533 (H) ×5.635 (V) mm |
F2.7 |
Approximately 94° |
0~40℃ (no condensation) |
532nm |
Altitude>35m: class3R |
1.5mrad |
80 lines/sec |
640×512pixel |
Possible |
95° |
W250×D310×H135mm |
6 |
0.01m/sec |
5mm |
0.03° |
0.006° |
