Sheet reader SR-130 with CIS camera, further evolved into one suitable for comprehensive document management-SR-130

Sheet reader SR-130 with CIS camera, further evolved into one suitable for comprehensive document management
DUPLODEC Co., Ltd.

🚗 Automotive & Transport Use 💻 Electronics & Electrical Use 🛒 Retail & Distribution Use

About This Product

Equipped with barcode/QR/OCR batch reading & image storage function. It has further evolved into a unit suitable for comprehensive management of slips. Equipped with a contact image sensor "CIS camera", it can scan the entire surface of the document and convert not only barcodes and QR codes but also various character strings into data. You can also save an image of the entire document.

SR-130 solves on-site issues in manufacturing and logistics industries.
■Assignment 1: “I want to read OCR characters and document characters and convert them into data.”[Multi-species reading]
In addition to barcodes and QR, it is possible to read OCR character strings (alphanumeric characters) in up to 4 locations simultaneously.

■Assignment 2: “I want to read barcodes and QRs with different printing positions.”[Reading ability]
It can be read even if the barcode is printed in the wrong position or direction, or if the paper is rotated. It also supports ground color and dropout color. It also supports ``dirty'' and ``chip'' barcodes that are normally difficult to read.

■Assignment 3: “Storing paper is difficult. I want to save it as an image.”[Full-page image reading and image saving possible]
The entire paper can be scanned and saved as an image. You can save the images you need, such as saving all or saving only the scanned error slips.

■Challenge 4: “Paper sorting is troublesome”[Simple sorting]
Equipped with two trays that can be read and one tray that cannot be read. Scanned paper can be easily sorted into two locations.

■Challenge 5: “The operation of the inspection system is complicated and difficult”[Dedicated app that allows easy operation]
A dedicated application is available that is easy to operate. Various settings such as reading conditions and font registration are easy to see on the screen, can be set visually, and can be easily modified.

Other features
■Equipped with ultrasound kitEquipped with an ultrasonic sensor as standard for double feed detection. Among various types of slips, it is effective when reading gift certificates printed in dark colors. It is also equipped with an optical sensor.
*Ultrasonic and optical double feed detection are selective and cannot be used together.

■High-speed sorting of a wide variety of documents. Leader sorter RS-80 (sold separately)- Connects to reader sorter RS-80 to quickly sort a wide variety of documents.
- Speed ​​sorting of up to 200 sheets/min, improving work efficiency.
・10 pockets per tower, 8 towers can be added.

Please contact us for other customization options.

Model
There is 1 model available for this product.

Product
Sheet reader SR-130 with CIS camera, further evolved into one suitable for comprehensive document management

Handling Company
DUPLODEC Co., Ltd.

Categories

Sensors

Barcode Readers

Scanners

Image Scanners

Business Efficiency Systems / Software

Document Scanners

Usage Scenarios
Automotive & Transport Use / Electronics & Electrical Use / Retail & Distribution Use

1180+ people viewing

Last viewed: 1 hour ago

Free
Get started with our free quotation service - no cost, no obligation.

No Phone Required
We respect your privacy. You can receive quotes without sharing your phone number.

1 Models of Sheet reader SR-130 with CIS camera, further evolved into one suitable for comprehensive document management

Image	Part Number	Price (excluding tax)	Power supply	Weight	Paper loading capacity	Paper quality	Paper size	Power consumption	Dimensions in use	Processing speed	Specification	Type	Stacker capacity
	SR-130	Available upon quote	100V 50/60Hz	36kg	40mm	High-quality paper 52.3-157.0g/m2, thermal paper, tack paper (equivalent to high-quality paper), specific PET paper, postcard* *Prior receipt confirmation required	Width 50-150mm Length 78-230mm	Maximum 90W (1.0A) 65W (0.7A) during normal use	W754×D357×H505mm	Maximum 260 sheets/min *Unidirectional/fast setting	CIS camera	Narrow type	Accept 1: 40mm Accept 2: 25mm Reject: 10mm


Part Number

Price (excluding tax)

Power supply

Weight

Paper loading capacity

Paper quality

Paper size

Power consumption

Dimensions in use

Processing speed

Specification

Type

Stacker capacity

SR-130

Available upon quote

100V 50/60Hz

36kg

40mm

High-quality paper 52.3-157.0g/m2, thermal paper*, tack paper (equivalent to high-quality paper), specific PET paper*, postcard*
*Prior receipt confirmation required

Width 50-150mm
Length 78-230mm

Maximum 90W (1.0A) 65W (0.7A) during normal use

W754×D357×H505mm

Maximum 260 sheets/min *Unidirectional/fast setting

CIS camera

Narrow type

Accept 1: 40mm
Accept 2: 25mm
Reject: 10mm

Customers who viewed this product also viewed

Reviews shown here are reviews of companies.

Barcode sheet reader SR-100 series that reads a large number of documents with barcodes printed at high speed

DUPLODEC Co., Ltd.

520+ people viewing

Last viewed: 4 hours ago

Response time: 7.08 hours

Barcode Readers

9 models listed

High-speed barcode reading Compact type barcode sheet reader SR-5

DUPLODEC Co., Ltd.

1080+ people viewing

Last viewed: 2 hours ago

Response time: 7.08 hours

Barcode Readers

3 models listed

Barcode Reader 1D CCD USB Connection FFTA10AP/BP Series

ICT Solutions Division, Inc. Intech Co., Ltd.

5.0

190+ people viewing

Response time: 6.67 hours

Barcode Readers

4 models listed

Handheld Bar Code Scanner 1500 Series that are active in a wide range of applications

IMEX Co., Ltd.

220+ people viewing

Response time: 22.67 hours

Barcode Readers

7 models listed

Barcode collation device TCS-BCC01

Tokuden Co., Ltd.

4.5

530+ people viewing

Response time: 20.45 hours

Barcode Readers

2 models listed

Barcode Reader 1D USB Connection FFTA12U/BNU

ICT Solutions Division, Inc. Intech Co., Ltd.

5.0

250+ people viewing

Last viewed: 21 hours ago

Response time: 6.67 hours

Barcode Readers

2 models listed

ID code reader WID120 for semiconductor wafer

Tokyo Machine Vision System Co., Ltd.

930+ people viewing

Last viewed: 28 minutes ago

Response time: 39.58 hours

Barcode Readers

2 models listed

CCD barcode reader SR-1100

S.R. Co., Ltd.

590+ people viewing

Last viewed: 17 hours ago

Barcode Readers

Barcode Reader 1D USB Connection TD1100W65U/TD1100B65U

ICT Solutions Division, Inc. Intech Co., Ltd.

5.0

240+ people viewing

Response time: 6.67 hours

Barcode Readers

2 models listed

CCD barcode reader SR-600

S.R. Co., Ltd.

350+ people viewing

Barcode Readers

Image recognition app type CAMERA-Type

Asterisk Co., Ltd.

310+ people viewing

Last viewed: 23 hours ago

Response time: 22.52 hours

Barcode Readers

Bar code reader 1D CCD USB connection gun type F560USB/RS

ICT Solutions Division, Inc. Intech Co., Ltd.

5.0

220+ people viewing

Response time: 6.67 hours

Barcode Readers

2 models listed

See More Barcode Readers Products

Other products of DUPLODEC Co., Ltd.

Reviews shown here are reviews of companies.

Barcode sheet reader SR-100 series that reads a large number of documents with barcodes printed at high speed

DUPLODEC Co., Ltd.

520+ people viewing

Last viewed: 4 hours ago

Response time: 7.08 hours

Barcode Readers

9 models listed

High-speed barcode reading Compact type barcode sheet reader SR-5

DUPLODEC Co., Ltd.

1080+ people viewing

Last viewed: 2 hours ago

Response time: 7.08 hours

Barcode Readers

3 models listed

Automate barcode/2D barcode/OCR reading + paper sorting reader sorter RS-80

DUPLODEC Co., Ltd.

1130+ people viewing

Response time: 7.08 hours

Sorters

3 models listed

Camera inspection device Ci200 series that combines simple operation and safety

DUPLODEC Co., Ltd.

860+ people viewing

Last viewed: 6 hours ago

Response time: 7.08 hours

Print Inspection Systems

2 models listed

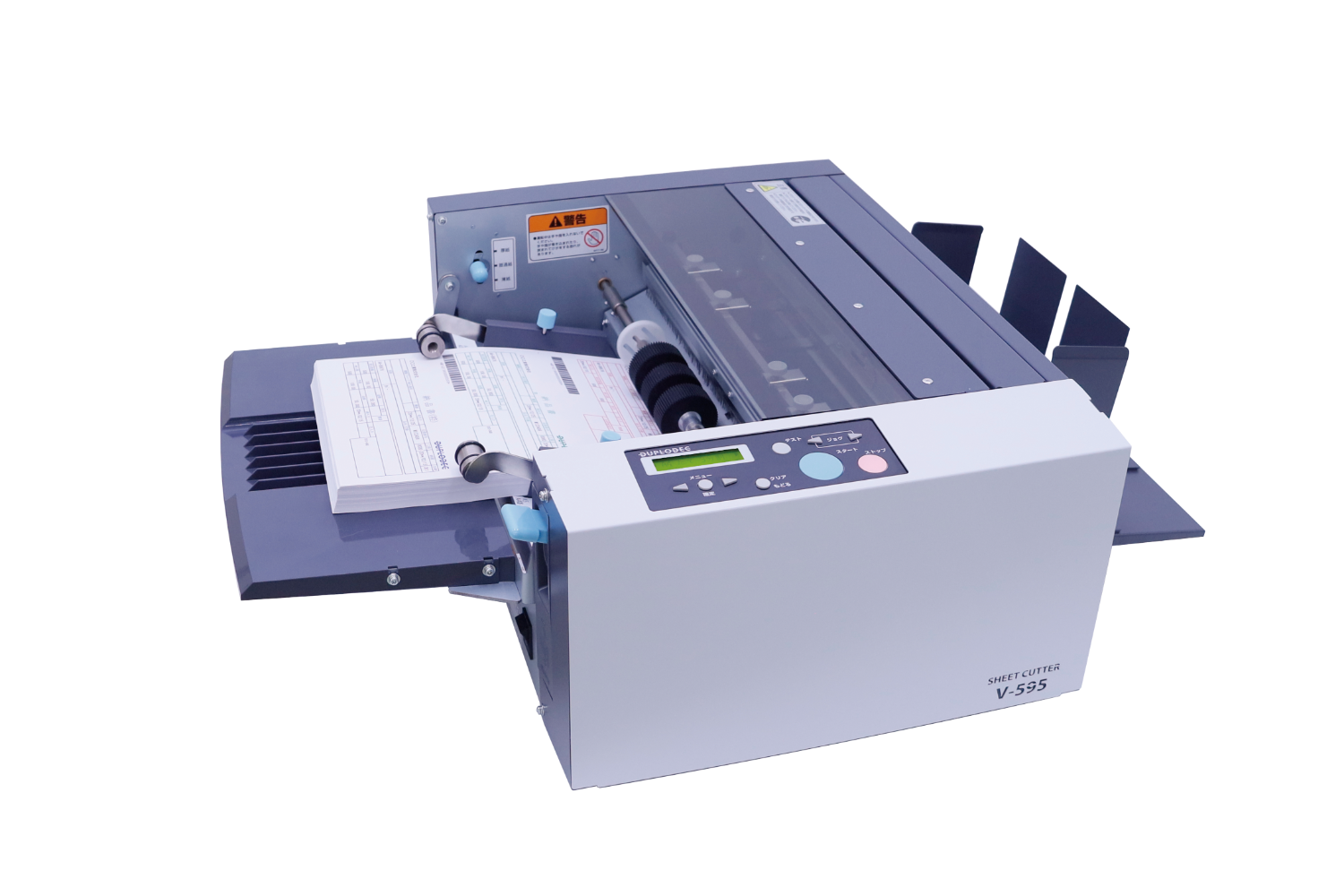

Automatic cutting of cut paper Sheet cutter V-590
