  4. Meandering correction device actuator center pivot type roll guider RCW series (ME Development Giken Co., Ltd.)
Meandering correction device actuator center pivot type roll guider RCW series-Center pivot type roll guider
Meandering correction device actuator center pivot type roll guider RCW series-ME Development Giken Co., Ltd.

Meandering correction device actuator center pivot type roll guider RCW series
ME Development Giken Co., Ltd.

About This Product

■Product introduction

This product is a device that corrects meandering of traveling workpieces caused by misalignment of the web or tilting of the rolls. It is especially suitable for meandering correction of materials where wrinkles are a concern, such as paper and film, and is used when fine meandering correction is required. Roll surface lengths can be manufactured from a minimum of 200mm to a maximum of 2,500mm, and we provide designs that meet customer needs.

  • Product

    Meandering correction device actuator center pivot type roll guider RCW series

Share this product


50+ people viewing

Last viewed: 2 hours ago

Free
Get started with our free quotation service - no cost, no obligation.

No Phone Required
We respect your privacy. You can receive quotes without sharing your phone number.

1 Models of Meandering correction device actuator center pivot type roll guider RCW series

Image Part Number Price (excluding tax) Cable length Roll material example Work path Amount of correction Painting related Compatible controller Compatible sensor Compatible roll width Compatible roll diameter Compatible installation method Correction speed Correction amount Allowable work line tension
Meandering correction device actuator center pivot type roll guider RCW series-Part Number-Center pivot type roll guider

Center pivot type roll guider

Available upon quote

Standard｜5m, Option｜Manufactured to specified length

Stainless steel, rubber wrapping, band wrapping, and other options available.

S-shaped route, U-shaped route

±16mm

Standard｜Silver baking, Option｜Specified color baking

DG-FIXαI・MEPC-100W

UA-15 series・SUA-25・HPA-2

200mm~2,500mm

Φ40~Φ100

Horizontal, vertical, upside down

20mm/sec

±15mm

10kg・f

Customers who viewed this product also viewed

Reviews shown here are reviews of companies.

FESTO plane gantori EXCM series-ORIM VEXTA

FESTO plane gantori EXCM series

ORIM VEXTA

950+ people viewing

Last viewed: 11 hours ago

Response time: 8.24 hours

Electrical Actuators

4 models listed

Valve actuator LSB series-NIPPON GEAR CO., LTD.

Valve actuator LSB series

NIPPON GEAR CO., LTD.

180+ people viewing

Last viewed: 15 hours ago

Response time: 2.08 hours

Electrical Actuators

2 models listed

KTJ electric actuator KT series-Kingtec Japan Co., Ltd.

KTJ electric actuator KT series

Kingtec Japan Co., Ltd.

170+ people viewing

Last viewed: 3 hours ago

Response time: 40.35 hours

Electrical Actuators

5 models listed

Energy-saving, high-power electro-hydraulic servo actuator Electro-hydraulic actuator [HOP series]-Okaya Seiryu Kogyo Co., Ltd.

Energy-saving, high-power electro-hydraulic servo actuator Electro-hydraulic actuator [HOP series]

Okaya Seiryu Kogyo Co., Ltd.

180+ people viewing

Last viewed: 21 hours ago

Response time: 74.97 hours

Electrical Actuators
Electric actuator ELECTRAK® HD-Fourty ICG Japan Co., Ltd.

Electric actuator ELECTRAK® HD

Fourty ICG Japan Co., Ltd.

920+ people viewing

Last viewed: 15 minutes ago

Response time: 6.15 hours

Electrical Actuators

50 models listed

Valve actuator AE series-NIPPON GEAR CO., LTD.

Valve actuator AE series

NIPPON GEAR CO., LTD.

160+ people viewing

Last viewed: 15 hours ago

Response time: 2.08 hours

Electrical Actuators

2 models listed

KTJ electric actuator KN series-Kingtec Japan Co., Ltd.

KTJ electric actuator KN series

Kingtec Japan Co., Ltd.

140+ people viewing

Response time: 40.35 hours

Electrical Actuators

5 models listed

Labor-saving/electrification electric actuator that is friendly to people and the environment-Kanemasa Manufacturing Co., Ltd.

Labor-saving/electrification electric actuator that is friendly to people and the environment

Kanemasa Manufacturing Co., Ltd.

430+ people viewing

Last viewed: 9 hours ago

Electrical Actuators

18 models listed

25 years since the start of sales, the HOP series has shipped over 2,000 units. Electro-hydraulic actuator for steel SST series Electro-hydraulic actuator [SST series]-Okaya Seiryu Kogyo Co., Ltd.

25 years since the start of sales, the HOP series has shipped over 2,000 units. Electro-hydraulic actuator for steel SST series Electro-hydraulic actuator [SST series]

Okaya Seiryu Kogyo Co., Ltd.

160+ people viewing

Last viewed: 6 hours ago

Response time: 74.97 hours

Electrical Actuators
Valve actuator SMB series-NIPPON GEAR CO., LTD.

Valve actuator SMB series

NIPPON GEAR CO., LTD.

230+ people viewing

Last viewed: 2 hours ago

Response time: 2.08 hours

Electrical Actuators

2 models listed

High-power electro-hydraulic servo actuator Electro-hydraulic actuator [EOP series]-Okaya Seiryu Kogyo Co., Ltd.

High-power electro-hydraulic servo actuator Electro-hydraulic actuator [EOP series]

Okaya Seiryu Kogyo Co., Ltd.

170+ people viewing

Response time: 74.97 hours

Electrical Actuators
Valve actuator L120 series-NIPPON GEAR CO., LTD.

Valve actuator L120 series

NIPPON GEAR CO., LTD.

160+ people viewing

Last viewed: 20 hours ago

Response time: 2.08 hours

Electrical Actuators

2 models listed

See More Electrical Actuators Products

Other products of ME Development Giken Co., Ltd.

Reviews shown here are reviews of companies.

Meander correction device sensor Reflective line detection sensor HPA-2-ME Development Giken Co., Ltd.

Meander correction device sensor Reflective line detection sensor HPA-2

ME Development Giken Co., Ltd.

70+ people viewing

Response time: 18.78 hours

Optical Sensors

3 models listed

Meander correction device sensor on/off type edge sensor US-302-ME Development Giken Co., Ltd.

Meander correction device sensor on/off type edge sensor US-302

ME Development Giken Co., Ltd.

80+ people viewing

Response time: 18.78 hours

Optical Sensors

3 models listed

Fabric conveyance device High-speed printer compatible type + jumbo roll compatible machine FDM10-2MBJ-ME Development Giken Co., Ltd.

Fabric conveyance device High-speed printer compatible type + jumbo roll compatible machine FDM10-2MBJ

ME Development Giken Co., Ltd.

40+ people viewing

Response time: 18.78 hours

Conveyor Systems

3 models listed

Meandering correction device sensor Center position detection sensor CP-2100-ME Development Giken Co., Ltd.

Meandering correction device sensor Center position detection sensor CP-2100

ME Development Giken Co., Ltd.

70+ people viewing

Last viewed: 7 hours ago

Response time: 18.78 hours

Optical Sensors

3 models listed

Fabric conveyance device Compatible with low and medium speed inkjet printers + jumbo roll compatible machine FDM8-2MBJ-ME Development Giken Co., Ltd.

Fabric conveyance device Compatible with low and medium speed inkjet printers + jumbo roll compatible machine FDM8-2MBJ

ME Development Giken Co., Ltd.

40+ people viewing

Last viewed: 16 hours ago

Response time: 18.78 hours

Conveyor Systems

3 models listed

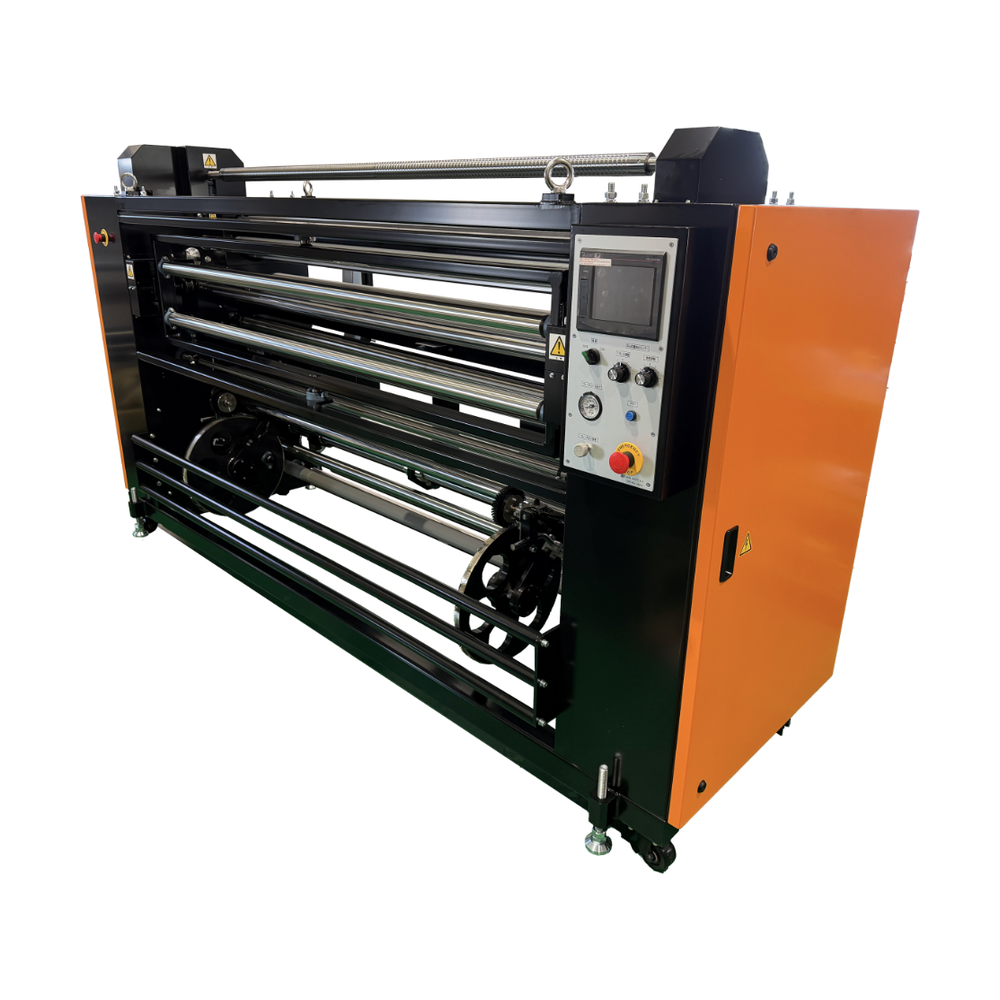

Pinwheel type grain straightening machine for textile printing machine 400 type low speed machine CMK-NA2-ME Development Giken Co., Ltd.
