100m/1,000m/10Gbps compatible SFP transceiver SFP/SFP+
Connection Technology Systems Co., Ltd.
About This Product
Multi -mode, single mode, 2 core/1 core, long -range models are available. It can be used on switches and media converters that support SFP modules.
■ IEEE802.3AE compliant optical interface
・ Electrical interface compliant with SFF-8431 standard
・ SFF compliance
・ SFF-8472 DDMI (Digital Diagnostic Management Interface)
・ Hot swap possible
·Low power consumption
・ All metal housing with excellent EMI performance
・ SFP+solution with high cost for higher port density and wider bandwidth
■ 10g
Equipped with a 10G data transmission function, it is designed to satisfy the high -band width width, which is essential for both conventional Internet services and premium services.
■ Plug & play
Before the introduction, it eliminates the need for more complex and more likely to cause errors, and maximizes devices compatibility in system integration.
-
Product
100m/1,000m/10Gbps compatible SFP transceiver SFP/SFP+
-
Handling Company
Connection Technology Systems Co., Ltd.
8 Models of 100m/1,000m/10Gbps compatible SFP transceiver SFP/SFP+
Items marked with have different values depending on the model number.
Click on the part number for more information about each product
| Product Image | Part Number | Price (excluding tax) | Sending and reception long | Supported fiber | Transmission distance | connector |
|---|---|---|---|---|---|---|
|
|
SFP-51FC |
Available upon quote | 850Nm ~ 1,550nm | 2 core, multi -mode, single mode | 300m ~ 80km | LC |
|
|
SFP-51W2 |
Available upon quote |
・ Sending wavelength/A type: 1,270Nm, B type: 1,330nm ・ Reception wave length/A type: 1,330nm, B type: 1,270Nm |
1 core, single mode | 10km ~ 60km | LC |
|
|
SFP-31FC-DR |
Available upon quote | 1310 | 2 core, multi -mode, single mode | 550m ~ 10km | LC |
|
|
SFP-31W2X-DR |
Available upon quote |
・ Sending wavelength/A type: 1,310nm, B type: 1,550Nm ・ Reception wave length/A type: 1,550Nm, B type: 1,310Nm |
1 core, single mode | 10km ~ 20km | LC |
|
|
SFP-31FC-D |
Available upon quote | 850Nm ~ 1,550nm | 2 core, multi -mode, single mode | 550m ~ 80km | LC |
|
|
SFP-31W2X-D |
Available upon quote |
・ Sending wavelength/A type: 1,310nm, B type: 1,550Nm ・ Reception wave length/A type: 1,550Nm, B type: 1,310Nm |
1 core, single mode | 10km ~ 20km | LC |
|
|
SFP-31FC |
Available upon quote | 850Nm ~ 1,550nm | 2 core, multi -mode, single mode | 550m ~ 120km | LC |
|
|

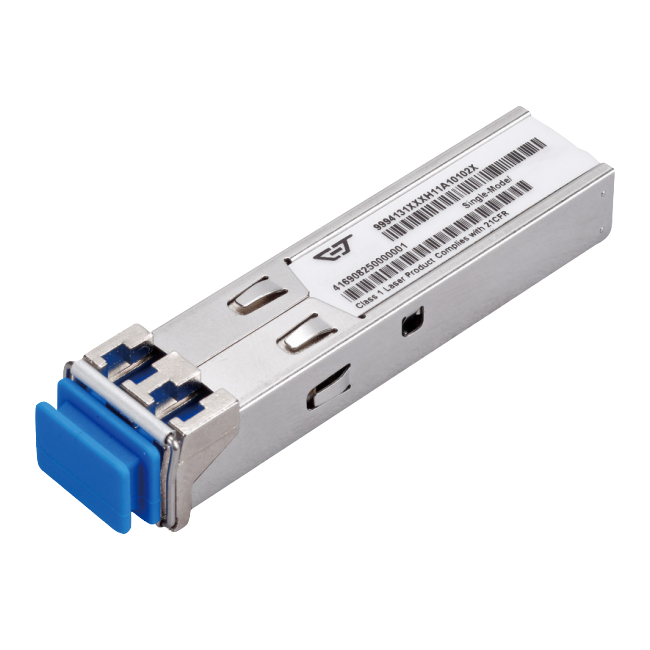

SFP-31W2X |
Available upon quote |
・ Sending wavelength/A type: 1,310/1,510nm, B type: 1,550/1,570nm ・ Reception wavelength/A type: 1,550/1,570Nm, B type: 1,310/1,510nm |
1 core, single mode | 10km ~ 80km | LC |
