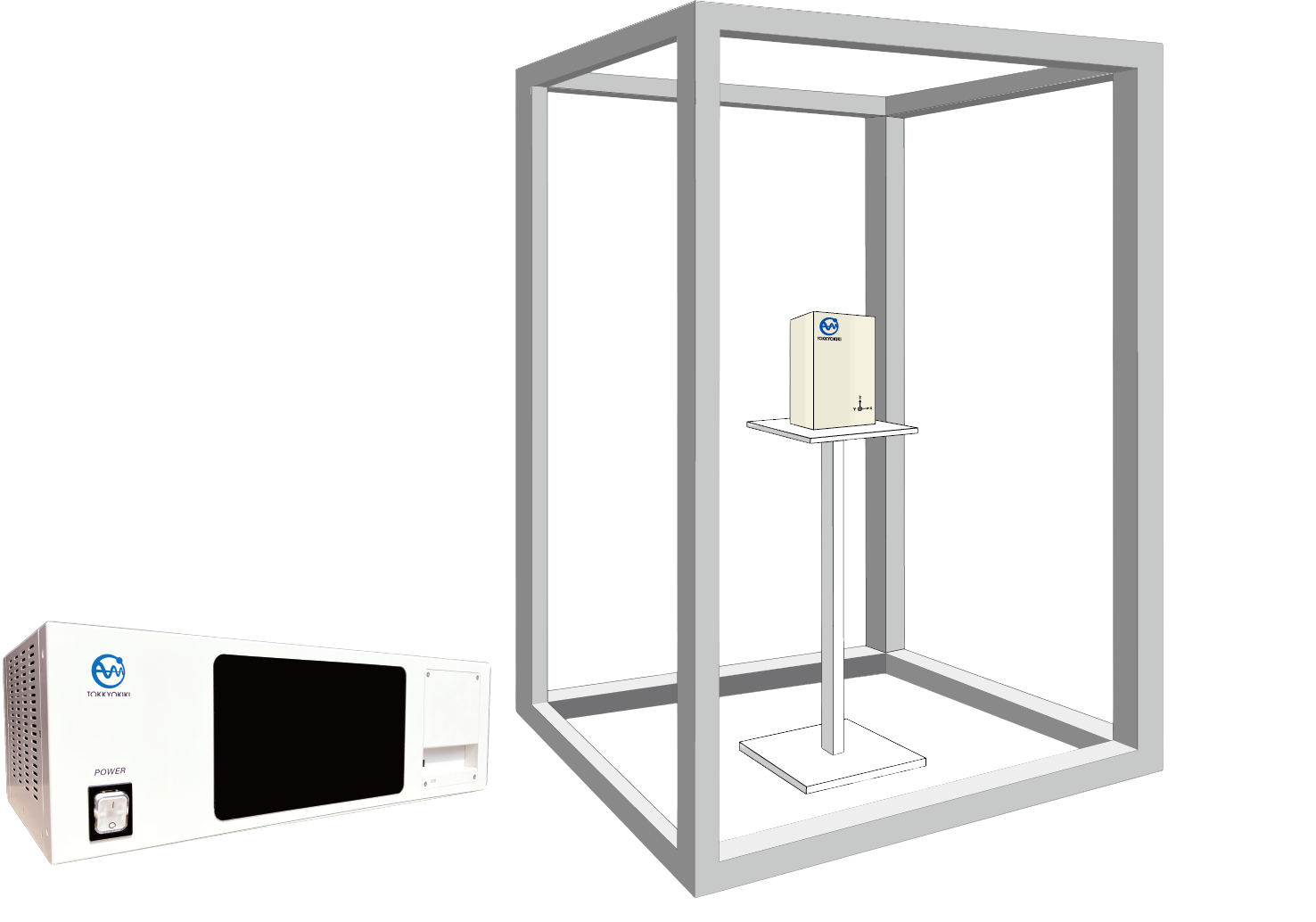

Excellent attenuation performance active magnetic field canceller AMC-331 with up to 40 to 60 dB
Patent equipment Co., Ltd.
About This Product
■ High performance
Excellent attenuation performance of up to 40 to 60dB
■ Low cost
Achieves a cost of about 1/10 compared to a magnetic field countermeasure by shielding
■ Easy construction
Easy construction to fix the coil around the equipment
■ Optimal design
Design a coil according to the target device
■ Digital control
Control multiple outer ranged magnetic fields by pinpoint based on frequency analysis
■ Use
・ Running electron microscope (SEM)
・ Transparent electron microscope (TEM)
・ Collection ion beam (FIB)
・ SEM (CD-SEM)
・ Electronic beam drawing device (EBL)
・ Mass speculation analysis device (MS)
-
Product
Excellent attenuation performance active magnetic field canceller AMC-331 with up to 40 to 60 dB
-
Handling Company
Patent equipment Co., Ltd.
1 Models of Excellent attenuation performance active magnetic field canceller AMC-331 with up to 40 to 60 dB
| Product Image | Part Number | Price (excluding tax) | Attenuation rate | Cile coil output current for magnetic field generation | Coil coil model for magnetic field generation | Control frequency | Control software name | Controlled magnetic field | Controller dimensions | Controller display display | Controller input / output decomposition ability | Controller input channel | Controller main configuration | Controller name | Controller output channel | Controller power supply | Controller sampling frequency | Controller weight | Magnetic field sensor frequency band | Magnetic field sensor measurement range | Magnetic field sensor sensor type | Main function of control software | Major structure | control method |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
AMC-331 |
Available upon quote | Up to 40 ~ 60dB | ± 2a/ch MAX | 3 -axis gauge type Helmholtz | Semi -DC ~ 1kHz | AMC Mon 1.2 | ± 15μt (for 2m square) | 430 (W) ✕460 (D) ✕44.5 (H) mm (excluding protrusions) | Digital display of X/Y/Z EMI value (AC/DC can be switched with sensor points, μTP-P) | A/D 18bit, D/A 16bit | Magnetic field sensor 3ch/3 axis (dual sensor option) | Control / Operation (CPU-DSP) board, sampling (AD-DA) board | Digital Controller DM-70 | Output sensor 3ch/3 axis, sensor monitor output BNC3CH/3 axis (dual sensor option) | AC100-240V 50/60Hz 300W | 2kHz | 4.5kg | DC ~ 1kHz | ± 100μt (1g) | Flux gate |
Real -time waveform monitor (time series orfft) Control parameter control Waving data log file record |
controller Magnetic field sensor Control software Cil for magnetic field generation |
X, Y, Z 3 axis simultaneous control Classic Duration+Exchange Representative Value Control Each axis independent feedback control |
