Label-free cell separation analysis system ELESTA® CROSSORTER® ECS-001
AFI Technology Co., Ltd.

About This Product

“CROSSORTER®” separates and analyzes target cells from a variety of particles mixed in a sample without labeling.The range of applications is wide-ranging, not just regenerative medicine and clinical testing. Features of ELESTA® CROSSORTER®

■Label free

Continuous separation possible without using labeled substances such as antibodies

■No damage

Extremely low invasiveness allows cells to be isolated as is

■Contamination free

All channels are separated without worrying about disposable contamination

■Original innovative filter technology “AMATAR®”

AFI's proprietary technology "AMATAR®" is an unprecedented and innovative separation technology that combines electrical measurement and microfluidic control with analytical technology. Target cells can be isolated from a sample without labeling or damage. This is why AMATAR® is called "innovative filter technology" and is its greatest strength.

■Utilization field

・Regenerative medicine cell therapy ・Cancer research ・Clinical examination ・Cellular agriculture application

■Isolation and concentration of stem cells

It is possible to separate and concentrate necessary cells such as stem cells from a mixture of multiple types of cells such as tissues. Conventionally, when culturing was repeated for cell purification, this method can be expected to shorten the culturing period.

■CTC/Rare cell separation

CTCs (circulating tumor cells) are concentrated and separated from blood without prior removal of red blood cells such as hemolysis. It can also be applied to rare cells other than CTCs.

■Removal of dead cells

Removes dead cells and debris mixed in the cell culture medium, as well as microparticles mixed in from the outside.

■Cell quality control

Changes in the state of cells, such as an increase in the percentage of dead cells during culture, can be detected by analyzing separation characteristics.

■Research and industrialization of animal cells

Since markers such as antibodies are not required for separation, this method is suitable for separating cells that have fewer specific markers compared to humans, such as bovine and porcine cells.

■Research and industrialization of microalgae

It is possible to separate microalgae from natural samples such as seawater. It is also expected to be used for the isolation and analysis of useful cells, such as the production of functional substances using microalgae. It can be used for various purposes other than those listed above, but the separation conditions must be optimized depending on the cell type and condition.

  • Product

    Label-free cell separation analysis system ELESTA® CROSSORTER® ECS-001

Share this product


70+ people viewing

Free
Get started with our free quotation service - no cost, no obligation.

No Phone Required
We respect your privacy. You can receive quotes without sharing your phone number.

1 Models of Label-free cell separation analysis system ELESTA® CROSSORTER® ECS-001

Image Part Number Price (excluding tax) Microscope section maximum resolution Microscope image sensor Objective lens attached to the microscope section Power supply Electrical output characteristic waveform Electrical output characteristic frequency Electrical output characteristics AC voltage Weight Syringe compatible with liquid delivery part Liquid sending part flow rate Power consumption Body size Software support language Software PC/display monitor PC/display memory PC/display storage PC/Display OS PC/Display CPU
Label-free cell separation analysis system ELESTA® CROSSORTER® ECS-001-Part Number-ECS-001

ECS-001

Available upon quote

5,472 x 3,648 pixels (approximately 20 million pixels)

1 inch CMOS color image sensor

X4

AC100-240V50/60Hz

Sine wave

10k~10,000kHz

1~20Vpp

25kg

1mL, 10mL, 20mL compatible syringe liquid delivery part*
* Only disposable syringes specified by our company can be used.

10~100uL/min

50W

Width 520 x depth 313 x height 506mm

Japanese, English

CROSSORTER® dedicated software (included as standard)

23-inch LCD color display (resolution 1,920 x 1,080 pixels)
*Specified model (operation confirmed according to listed specifications)

16GB or more
*Specified model (operation confirmed according to listed specifications)

512GB (SSD)
*Specified model (operation confirmed according to listed specifications)

Windows10Pro (64bit)
*Specified model (operation confirmed according to listed specifications)

Intel Corei7-10700T
*Specified model (operation confirmed according to listed specifications)

Customers who viewed this product also viewed

Reviews shown here are reviews of companies.

Flow cytometer Cytek Aurora CS-

Flow cytometer Cytek Aurora CS

30+ people viewing

Last viewed: 8 hours ago

Cell Sorters

3 models listed

Flow cytometer Cytek Aurora-

Flow cytometer Cytek Aurora

30+ people viewing

Last viewed: 12 hours ago

Cell Sorters

3 models listed

Flow cytometer Cytek Northern Lights-

Flow cytometer Cytek Northern Lights

20+ people viewing

Last viewed: 20 hours ago

Cell Sorters

3 models listed

Single cell analysis ICELL8® cx Single-Cell System-

Single cell analysis ICELL8® cx Single-Cell System

10+ people viewing

Cell Sorters

3 models listed

Desktop -type cello SRT with innovative automation technology Cytoflex SRT-Beckman Coulter Life Sciences

Desktop -type cello SRT with innovative automation technology Cytoflex SRT

Beckman Coulter Life Sciences

230+ people viewing

Response time: 5.46 hours

Cell Sorters

2 models listed

Compatible with complex and advanced sorting moflo Astrios-Beckman Coulter Life Sciences

Compatible with complex and advanced sorting moflo Astrios

Beckman Coulter Life Sciences

260+ people viewing

Response time: 5.46 hours

Cell Sorters

4 models listed

Single cell separation device CellSorter-Kyodo International, Inc.

Single cell separation device CellSorter

Kyodo International, Inc.

40+ people viewing

Cell Sorters

4 models listed

See More Cell Sorters Products

Other products of AFI Technology Co., Ltd.

Reviews shown here are reviews of companies.

Fully automatic pretreatment system LAXIM™ LX-01S-AFI Technology Co., Ltd.

Fully automatic pretreatment system LAXIM™ LX-01S

AFI Technology Co., Ltd.

20+ people viewing

Bipedal Robots

2 models listed

Microbial contamination risk monitoring system ELESTA® PixeeMo® ELS-004-AFI Technology Co., Ltd.

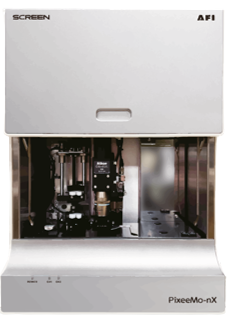

Microbial contamination risk monitoring system ELESTA® PixeeMo® ELS-004
