About This Product

■Product features

It provides strong driving force even on sites with slopes and obstacles.

■Easy to operate/safety

- Can store 10 hoses. - Manual operation is also possible with the neutral mechanism. ・Loading into fire trucks is easy by switching between low and high speeds. - A gap has been left between the top box and the main body to prevent fingers from getting caught when setting the top box. - Equipped with a maintenance-free battery that does not require refilling. ・Use a magnetic outlet for charging. The charger has an auto-cut function. - Front wheel hub diameter can be selected from Φ70 and Φ110.

  • Product

    Electric hose layer

Share this product


90+ people viewing

Free
Get started with our free quotation service - no cost, no obligation.

No Phone Required
We respect your privacy. You can receive quotes without sharing your phone number.

1 Models of Electric hose layer

Image Part Number Price (excluding tax) Parking brake Wheel arrangement Traveling speed Auxiliary brake Loading platform dimensions (excluding upper box) Height (mm) Loading platform dimensions (excluding upper box) Length (mm) Loading platform dimensions (excluding upper box) Width (mm) Empty vehicle weight (kg) Empty vehicle dimensions Wheelbase (mm) Empty vehicle dimensions Overall height (mm) Empty vehicle dimensions Overall length When running (mm) Empty vehicle dimensions Total length when stored (mm) Empty vehicle dimensions Overall width (mm) Climbing ability Minimum Maximum load capacity (kg) Maximum stable tilt angle Minimum ground clearance (mm) Rated output Charger Operating temperature range Main brake Motor Battery Tread rear wheel (mm) Tread front wheel (mm) Tire rear wheel Tire front wheel
Electric hose layer-Part Number-STB21

STB21

Available upon quote

Electromagnetic brake (non-magnetic)

Front wheels: 2 wheels Rear wheels: 2 wheels

High speed: 0~10.okm/h Low speed: 0~2.0km/h

Inner expansion type (when running manually)

420

555

617

192

525

1,035

1,844

872

982

10 degrees

850mm

120

30 degrees

160

200W/20min

Quasi-constant current/constant voltage charging automatic charger with electronic timer, in-vehicle type

-5℃~+50℃

Interlocking motor-generated braking and electromagnetic brake

Permanent magnet DC motor

Small valve regulated lead acid battery 40Ah/20hr 2 pieces in series

530

803

2.50-4 4PR (airless tire)

3.00-14 4PR

Customers who viewed this product also viewed

Reviews shown here are reviews of companies.

Steel Roller Conveyor Slide Shaft Structure Roller RB-4816HE-Makitec Co., Ltd.

Steel Roller Conveyor Slide Shaft Structure Roller RB-4816HE

Makitec Co., Ltd.

5.0

410+ people viewing

Last viewed: 19 hours ago

Response time: 7.96 hours

Transfer Machinery

4 models listed

Belt conveyor-Daito Sangyo Co., Ltd.

Belt conveyor

Daito Sangyo Co., Ltd.

5.0

120+ people viewing

Last viewed: 2 hours ago

Response time: 13.77 hours

Transfer Machinery

3 models listed

Carrier reel RRM series JEITA standard product RRM series-Gold Industry Co., Ltd.

Carrier reel RRM series JEITA standard product RRM series

Gold Industry Co., Ltd.

140+ people viewing

Last viewed: 13 hours ago

Transfer Machinery

2 models listed

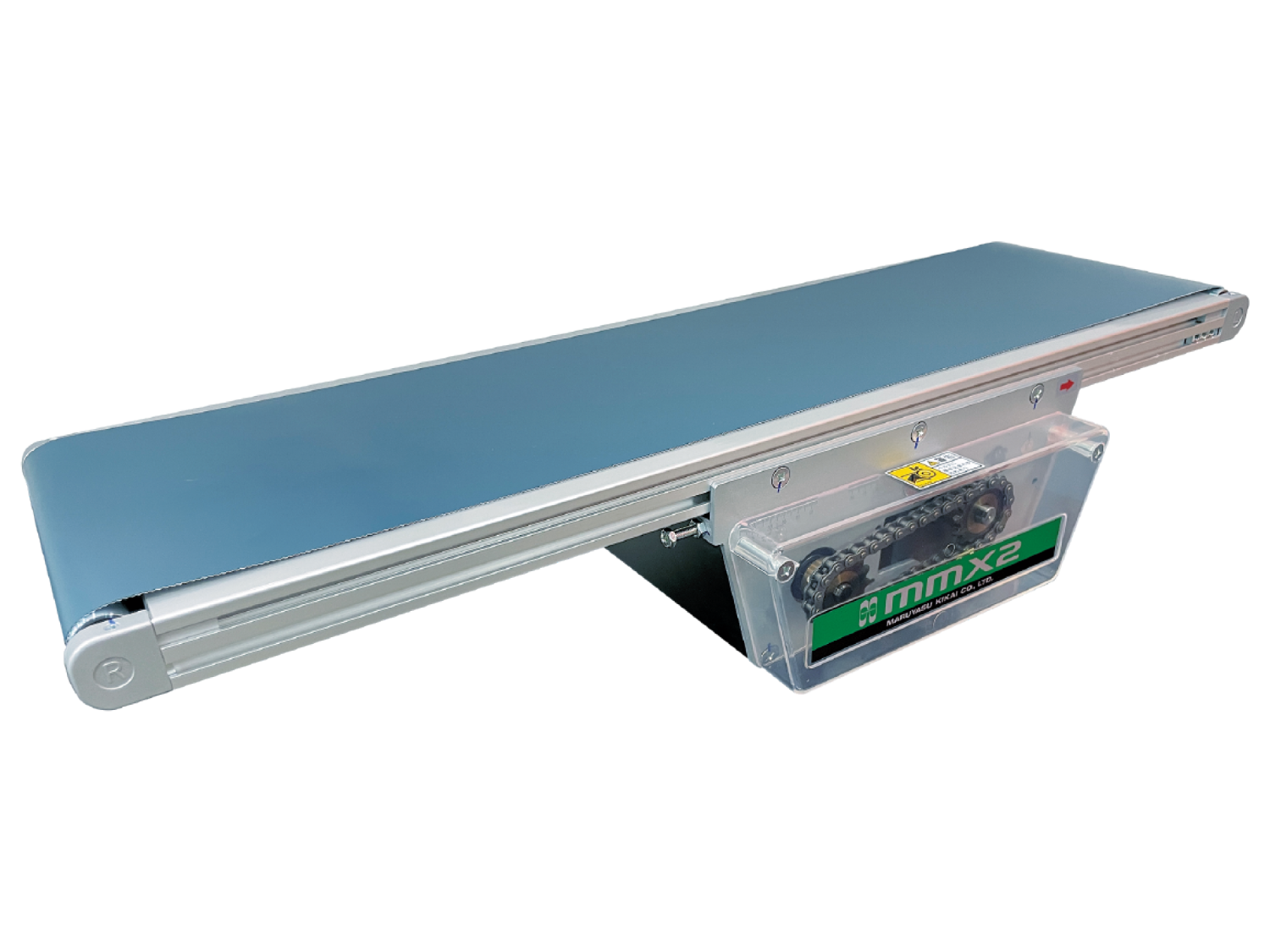

A labor-saving partner for all logistics and production systems Mini series Straight conveyance type Standard & long-selling belt conveyor MMX2-Maruyasu Machine Co., Ltd.
