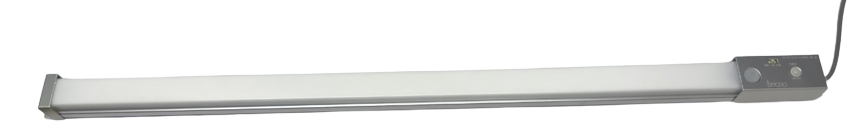

Slim LED lightingHandling Company
Kyodo Electronics Co., Ltd.Categories
| Image | Part Number | Price (excluding tax) | Mass (approx.) (g) | Withstand voltage | Impact resistance (durability) | Vibration resistance (durability) | Insulation resistance | Luminous color | Power consumption | Lifespan | Rated voltage | Appearance material | External dimensions (mm) | Fixing method | Installation dimensions (mm) | Reference illuminance* (lx) at50cm | Input current | Protective structure | Storage temperature | Working voltage range | Usage atmosphere | Operating relative humidity | Place of use | Ambient temperature | Cable used | Number of LEDs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
K002-D024-D006WC |
Available upon quote |
49 |
AC1000V for 1 minute: between live parts and non-live parts |
Compliant with JIS-C60068-2-32 standards, 2 times each in 3 directions |
Frequency 5~55Hz, half amplitude equivalent to 0.5mm |
DC500V 100MΩ: Between live parts and non-live parts |
Milky white |
1.32 |
50,000 hours or more (time when the illuminance is 70% of the initial illuminance in an environment of 25℃) |
DC24V (polarized) White: +24V, Black: 0V |
Frame: Aluminum Surface cover: Acrylic resin (milky white) End cover: Polycarbonate |
135Wx30.6Dx13.2H |
Fixed to the device with two M5 screws |
120 |
135 |
55 |
IP30 |
-10℃~70℃ (However, no freezing) |
DC22.8~25.2V |
No corrosive gas, no flammable gas |
45~85%RH (no condensation) |
Indoor |
-5℃~40℃ (However, no freezing) |
VR-SC 0.2SQmm×2 cores Wire length: 500mm (Polarity white:+, black:-) |
6 |
