Measuring equipment pH meter
Takumina Co., Ltd.
About This Product
Excellent measurement and control performance and a wide range of user-oriented functions and variations.
-
Product
Measuring equipment pH meter
-
Handling Company
Takumina Co., Ltd.
-
Categories
3 Models of Measuring equipment pH meter
Items marked with have different values depending on the model number.
Click on the part number for more information about each product
| Product Image | Part Number | Price (excluding tax) | Alarm contact output | Contact capacity | Contact form | Contact function | Display | Input impedance | Instruction method | Measurement method | Measuring range | Minimum indication value | Number of output points | ON-OFF contact signal | Reproducibility | Resolution | Transmission output | Transmission output range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
P-1500 |
Available upon quote | R1, R2, R3, R4 | AC 240V 3A, DC 30V 3A (resistive load) | Relay contact, SPDT (1c) |
Upper and lower limit operation (ON/OFF control, time division proportional control) Select from abnormal alarm, maintenance in progress |
- | - | - | - |
PH 0~14: Resolution 0.01 pH Temperature: 0~100℃, resolution 1℃ (selective display) |
- | 4 points | - | PH± 0.05 (equivalent input) | - | DC 4~20mA Input/output isolated type Maximum load resistance 900Ω | Any settings can be made within the measurement range |
|
|

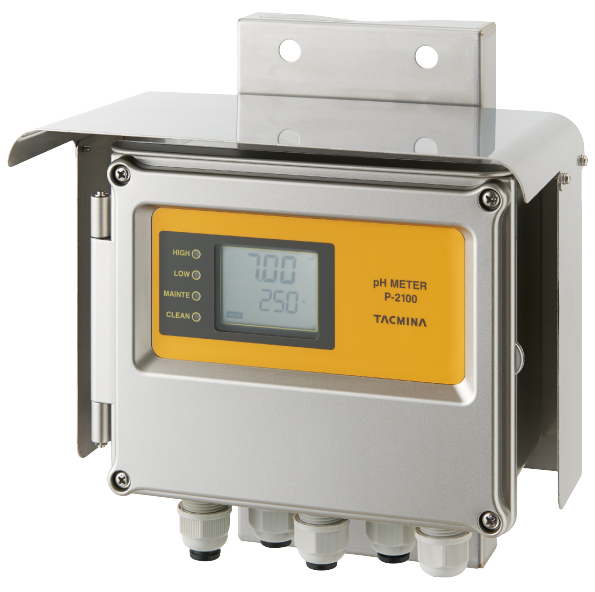

P-2100 |
Available upon quote | - | - | - | - | LCD 4 digits | - | - | Glass electrode method |
PH:0.00~14.00 Water temperature: 0.0~100.0℃ (displayed when using a pH electrode with temperature compensation) |
- | - | - | Within ±0.05pH (at equivalent input) |
PH:0.01 Water temperature: 0.1℃ |
DC4~20mA (isolated type, load resistance 550Ω or less) 0.00~14.00 (at time of shipment) With scaling function (can be set to any range in 1pH intervals) |
Upper and lower limits each a contact (no voltage) Contact capacity: AC200V 1A or less (load resistance) With hysteresis setting function |
|
|
P-505SH |
Available upon quote | - | - | - | - | - | 1×1011Ω or more | Analog display | Glass electrode method | 0~14pH | 0.2pH | - |
Can be set over the entire upper and lower range Meter relay method |
±1% of full scale | - |
DC 4~20mA (burden resistance 500Ω or less) Non-insulated method |
- |
Click on the part number for more information about each product
