Chemical dosing system PTS
Takumina Co., Ltd.
About This Product
Concentrates drug injection functions into one unit. A chemical dosing system that combines a high-performance pump and a multifunctional tank to pursue ease of use and safety.
Features: Easy-to-use design
■Liquid level gauge with simple measurement function
By simply closing the suction valve and shutting off the liquid in the tank, you can easily check the pump discharge amount using a liquid level gauge while the piping is connected.
■ Eliminate waste of chemical solutions
The shape of the tank bottom and suction valve position suppresses the amount of remaining liquid, eliminating waste of chemical liquid.
■Large pump space
・Large pump space for easy operation and maintenance.
・Two units can be installed. (PTS-50/120 only)
■Easy maintenance
Equipped as standard with a drain that drains residual liquid from the suction side piping when the pump is removed.
■Easy installation
Features: Safety and security measures
■Fall prevention
Equipped with a tank fixing part as standard. There is no need to separately prepare fixing parts such as anchor plates.
■Preventing liquid spills
・Equipped with a large slot that makes it easy to fill the chemical solution and prevents it from spilling.
- Slanted structure that prevents chemical liquid from accumulating on the top surface. The liquid drip guard protects the pump from chemical liquids.
■Prevent accidents before they occur
Can be locked with a padlock (optional). The included chemical liquid name sticker prevents incorrect injection of chemical liquids.
■Prevention of shock to pump
Equipped with a pump cover as standard. Prevents external collisions with the pump.
■Preventing foreign matter from entering
The large-diameter suction valve, which can be installed in two units, comes with a strainer to firmly prevent foreign objects and clogging.
■Definitive gas lock countermeasure for sodium hypochlorite injection
In combination with the pump DCLPW equipped with an air block mechanism and an in-line automatic air bleed mechanism, it eliminates injection failures of hypochlorite.
■Why PTS is strong against gas lock
・Bottom tank layout that prevents air bubbles from entering
・Defoaming joint prevents air bubbles from entering
- Automatically exhausts air even if it gets mixed in
-
Product
Chemical dosing system PTS
-
Handling Company
Takumina Co., Ltd.
-
Categories
3 Models of Chemical dosing system PTS
Items marked with have different values depending on the model number.
Click on the part number for more information about each product
| Product Image | Part Number | Price (excluding tax) | Capacity |
|---|---|---|---|
|
|
PTS-30A |
Available upon quote | 30L |
|
|

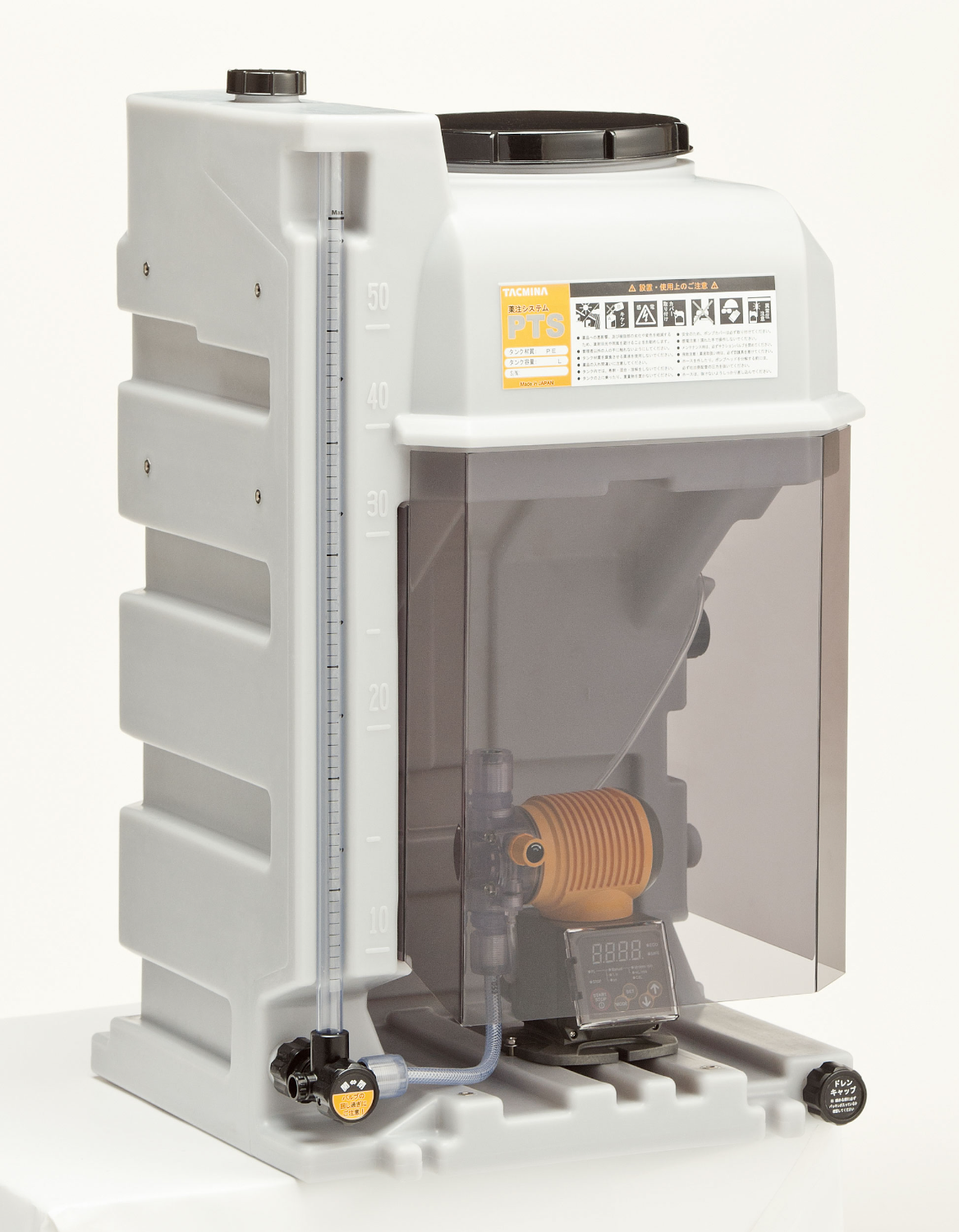

PTS-50 |
Available upon quote | 50L |
|
|

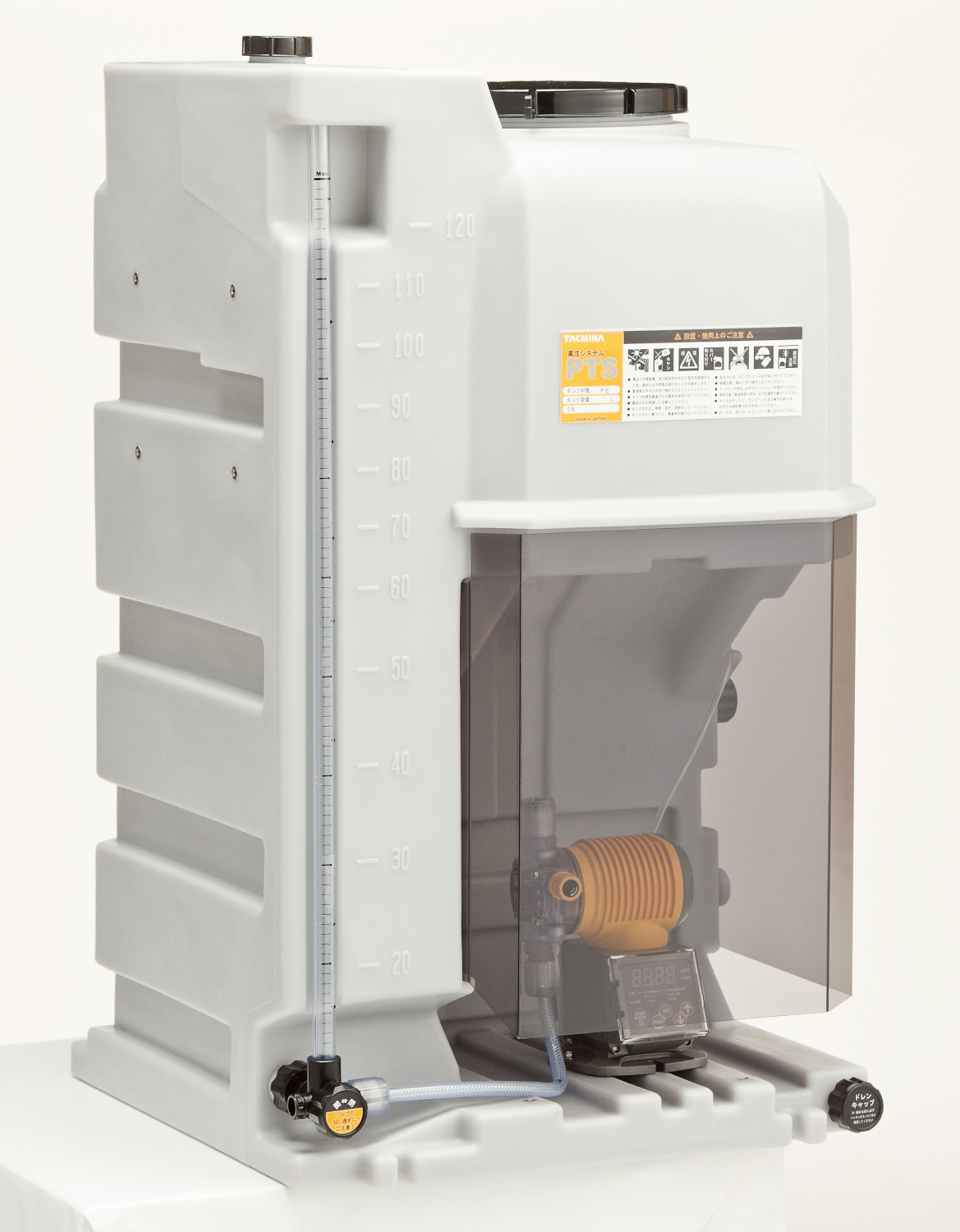

PTS-120 |
Available upon quote | 120L |
