Air driven pump DEPA
Takumina Co., Ltd.
About This Product
■Metal type
-Functional, small, easy to handle, and lightweight.
・It is a general-purpose type that can be immersed and has excellent applicability.
- Standard casing materials are aluminum and stainless steel.
- Strong body with excellent chemical resistance and resistance to wear and corrosion.
- Essentially explosion-proof type.
■Resin type
・A wide variety of pump materials are available.
- Non-wetted parts are also made of PP so that it can be used in corrosive atmospheres.
・The clamp band is also made of stainless steel.
- Suitable for transferring corrosive and abrasive liquids at room temperature.
- Intrinsically explosion-proof specification that can be used in explosion-proof areas.
- Simple structure and easy maintenance.
■Sanitary type
・As a special specification, sanitary types suitable for production processes in the food, pharmaceutical, and cosmetics industries can be manufactured.
- All wetted parts as well as the air chamber and mount are polished.
- Compatible with CIP/SIP.
- No contamination due to smooth and clean surface.
・Both screw and clamp methods are available for the connection. It is also easy to remove.
- Compared to other types of pumps of the same size, the sanitary type has a larger inner diameter of the flow path to allow larger solids to pass through.
*Other product numbers are available.
-
Product
Air driven pump DEPA
-
Handling Company
Takumina Co., Ltd.
-
Categories
10 Models of Air driven pump DEPA
Items marked with have different values depending on the model number.
Click on the part number for more information about each product
| Product Image | Part Number | Price (excluding tax) | Air Air inlet diameter | Air Air supply pressure (MPa) | Air Maximum air consumption (N㎥/min) | Transfer liquid Maximum discharge pressure (MPa) | Transfer liquid connection port size | Transfer liquid maximum discharge amount (㎥/h (L/min) ) |
|---|---|---|---|---|---|---|---|---|
|
|
DH15 |
Available upon quote | G3/8 | 0.3~0.7 | 0.59 | 0.7 | G1/2 | 2.7 (45) |
|
|
DH25 |
Available upon quote | G3/8 | 0.3~0.8 | 1.05 | 0.7 | G1 | 7.5 (125) |
|
|
DH40 |
Available upon quote | G3/8 | 0.3~0.9 | 1.1 | 0.7 | G1 1/2 | 12.0 (200) |
|
|
DH50 |
Available upon quote | G3/4 | 0.3~0.10 | 3.3 | 0.7 | G2 | 29.5 (491) |
|
|
DH80 |
Available upon quote | G3/4 | 0.3~0.11 | 3 | 0.7 | G3 | 36.0 (600) |
|
|
DL15 |
Available upon quote | G1/4 |
DL series:0.3~0.7 DH series:0.4~0.7 |
PP・PL:0.42 PM:0.53 PT・TL:0.5 |
0.7 | JIS10K15A |
PP・PL:1.2 (20) PM:1.8 (30) PT・TL:2.1 (35) |
|
|

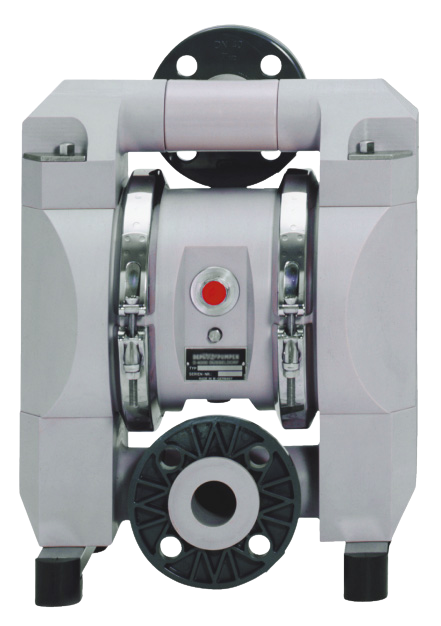

DL25 |
Available upon quote | G3/8 |
DL series:0.3~0.7 DH series:0.3~0.7 |
PP・PL:1.25 PM:1.25 PT・TL:1.0 |
0.7 | JIS10K25A |
PP・PL:7.0 (116) PM:6.7 (111) PT・TL:7.3 (121) |
|
|
DL40 |
Available upon quote | G3/8 |
DL series:0.3~0.7 DH series:0.3~0.7 |
PP・PL:1.5 PM:1.5 PT・TL:0.9 |
0.7 | JIS10K40A |
PP・PL:10.0 (166) PM:10.3 (171) PT・TL:9.0 (150) |
|
|
DL50 |
Available upon quote | G3/4 |
DL series:0.3~0.7 DH series: NULL |
PP・PL:4.9 PM:NULL PT・TL:NULL |
0.7 | JIS10K50A |
PP・PL:28.0 (466) PM:NULL PT・TL:NULL |
|
|
DL80 |
Available upon quote | G3/4 |
DL series:0.3~0.7 DH series: NULL |
PP・PL:4.7 PM:NULL PT・TL:NULL |
0.7 | JIS10K80A |
PP・PL:32.0 (533) PM:NULL PT・TL:NULL |
