  2. Passage shelter TS series HTS (Sekisui Jushi Co., Ltd.)

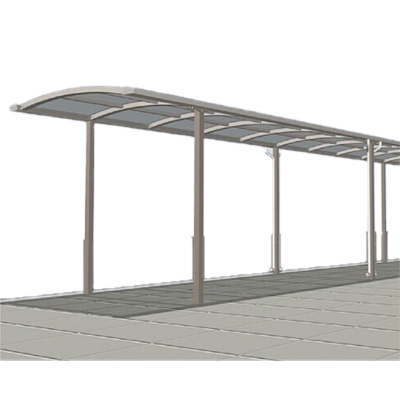

Passage shelter TS series HTS-HTS-W20GR-H21 (HTS-W20GR-H25)
Passage shelter TS series HTS-HTS-W20PC-H21 (HTS-W20PC-H25
Passage shelter TS series HTS-HTS-S20GR-H21 (HTS-S20GR-H25)
Passage shelter TS series HTS-HTS-S20PC-H21 (HTS-S20PC-H25)
Passage shelter TS series HTS-Sekisui Jushi Co., Ltd.

Passage shelter TS series HTS
Sekisui Jushi Co., Ltd.

About This Product

This is a walkway shelter that is both aesthetically pleasing and economical due to its long span (wide spacing between pillars). We offer a total of various specifications required for passage maintenance, such as double support specifications, single support specifications, snow resistance specifications, and roadway crossing specifications. Features

■Achieve economical installation with wide support spacing

・Set the column spacing to a maximum of 4,228mm. *For GR roof type (double support specification/depth 2,000mm). ・Reduces the number of pillars and foundations, making it highly economical.

■Simple structure allows for easy construction

・Girder beams and columns are fixed using a rail structure, allowing for fine adjustments during construction. - Can be assembled with fewer parts and fewer tools.

■Maintenance-free achieved with unique coating technology (electrostatic powder coating)

・Electrostatic powder coating is used for pillars and beam members. ・Maintains aesthetic appearance and durability over a long period of time.

■Roofing material

・GR-ROOF GR Roof is a roofing material made by forming galvalume steel sheets containing 55% aluminum into uneven shapes and then bending them into an arch shape. The arched shape increases the strength of the roofing material itself and allows for a clean ceiling surface. A high-performance roofing material with a luxurious and calming design. ・Polycarbonate roof The translucent material creates a bright and open eaves space. In addition, it is extremely durable as it is made of weather-resistant grade. Thickness: 3mm, weather resistant grade. *This product is made to order.

  • Product

    Passage shelter TS series HTS

Share this product


100+ people viewing

Free
Get started with our free quotation service - no cost, no obligation.

No Phone Required
We respect your privacy. You can receive quotes without sharing your phone number.

8 Models of Passage shelter TS series HTS

Click on the part number for more information about each product

Image Part Number Price (excluding tax) Height Design wind speed Ground surface roughness category III Snow load Prop method Recommended use Roofing material Depth Basic form Span length
Passage shelter TS series HTS-Part Number-HTS-W20GR-H21 (HTS-W20GR-H25)

HTS-W20GR-H21 (HTS-W20GR-H25)

Available upon quote

2,100mm
(2,500mm)

36m/s

600N/㎡

Both support

Aisle

Galvalume steel plate
(GR roof)

2,000mm

Built-in
(Base plate can be customized)

4,228mm

Passage shelter TS series HTS-Part Number-HTS-W25GR-H21 (HTS-W25GR-H25)

HTS-W25GR-H21 (HTS-W25GR-H25)

Available upon quote

2,100mm
(2,500mm)

36m/s

600N/㎡

Both support

Aisle

Galvalume steel plate
(GR roof)

2,500mm

Built-in
(Base plate can be customized)

3,624mm

Passage shelter TS series HTS-Part Number-HTS-W20PC-H21 (HTS-W20PC-H25

HTS-W20PC-H21 (HTS-W20PC-H25

Available upon quote

2,100mm
(2,500mm)

36m/s

600N/㎡

Both support

Aisle

Polycarbonate

2,000mm

Built-in
(Base plate can be customized)

4,000mm

Passage shelter TS series HTS-Part Number-HTS-W25PC-H21 (HTS-W25PC-H25)

HTS-W25PC-H21 (HTS-W25PC-H25)

Available upon quote

2,100mm
(2,500mm)

36m/s

600N/㎡

Both support

Aisle

Polycarbonate

2,500mm

Built-in
(Base plate can be customized)

3,000mm

Passage shelter TS series HTS-Part Number-HTS-S20GR-H21 (HTS-S20GR-H25)

HTS-S20GR-H21 (HTS-S20GR-H25)

Available upon quote

2,100mm
(2,500mm)

36m/s

600N/㎡

Single support

Aisle
bus stop

Galvalume steel plate
(GR roof)

2,000mm

Base plate type
*For bus stop applications, please select H2500.

3,926mm

Passage shelter TS series HTS-Part Number-HTS-S25GR-H21 (HTS-S25GR-H25)

HTS-S25GR-H21 (HTS-S25GR-H25)

Available upon quote

2,100mm
(2,500mm)

36m/s

600N/㎡

Single support

Aisle
bus stop

Galvalume steel plate
(GR roof)

2,500mm

Base plate type
*For bus stop applications, please select H2500.

3,322mm

Passage shelter TS series HTS-Part Number-HTS-S20PC-H21 (HTS-S20PC-H25)

HTS-S20PC-H21 (HTS-S20PC-H25)

Available upon quote

2,100mm
(2,500mm)

36m/s

600N/㎡

Single support

Aisle
bus stop

Polycarbonate

2,000mm

Base plate type
*For bus stop applications, please select H2500.

4,000mm

Passage shelter TS series HTS-Part Number-HTS-S25PC-H21 (HTS-S25PC-H25)

HTS-S25PC-H21 (HTS-S25PC-H25)

Available upon quote

2,100mm
(2,500mm)

36m/s

600N/㎡

Single support

Aisle
bus stop

Polycarbonate

2,500mm

Base plate type
*For bus stop applications, please select H2500.

3,000mm

Click on the part number for more information about each product
