Product
Ultra-lightweight compact unit DM9Handling Company
Technodynamics Co., Ltd.Usage Scenarios
Food Industry Use / Pharmaceutical & Medical Use / Automotive & Transport UseClick on the part number for more information about each product
| Image | Part Number | Price (excluding tax) | Static rated torque Ts (N・m) | Starting/stopping upper limit torque Tu (N・m) | Maximum allowable output rotation speed nm max (rpm) | Allowable average output rotation speed nm max (rpm) | Allowable radial load Pr Max (N) | Allowable moment load | Allowable axial load Pr Max (N) | Repeatability (arc-sec) | Reduction ratio i | Dynamic rated torque (at allowable average output rotation) | Indexing accuracy (arc-sec) | Output hollow diameter (mm) | Dimension between input and output shafts (mm) | Input shaft friction torque (N・m) | Moment of inertia converted to input shaft | Allowable radial load on input shaft (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|

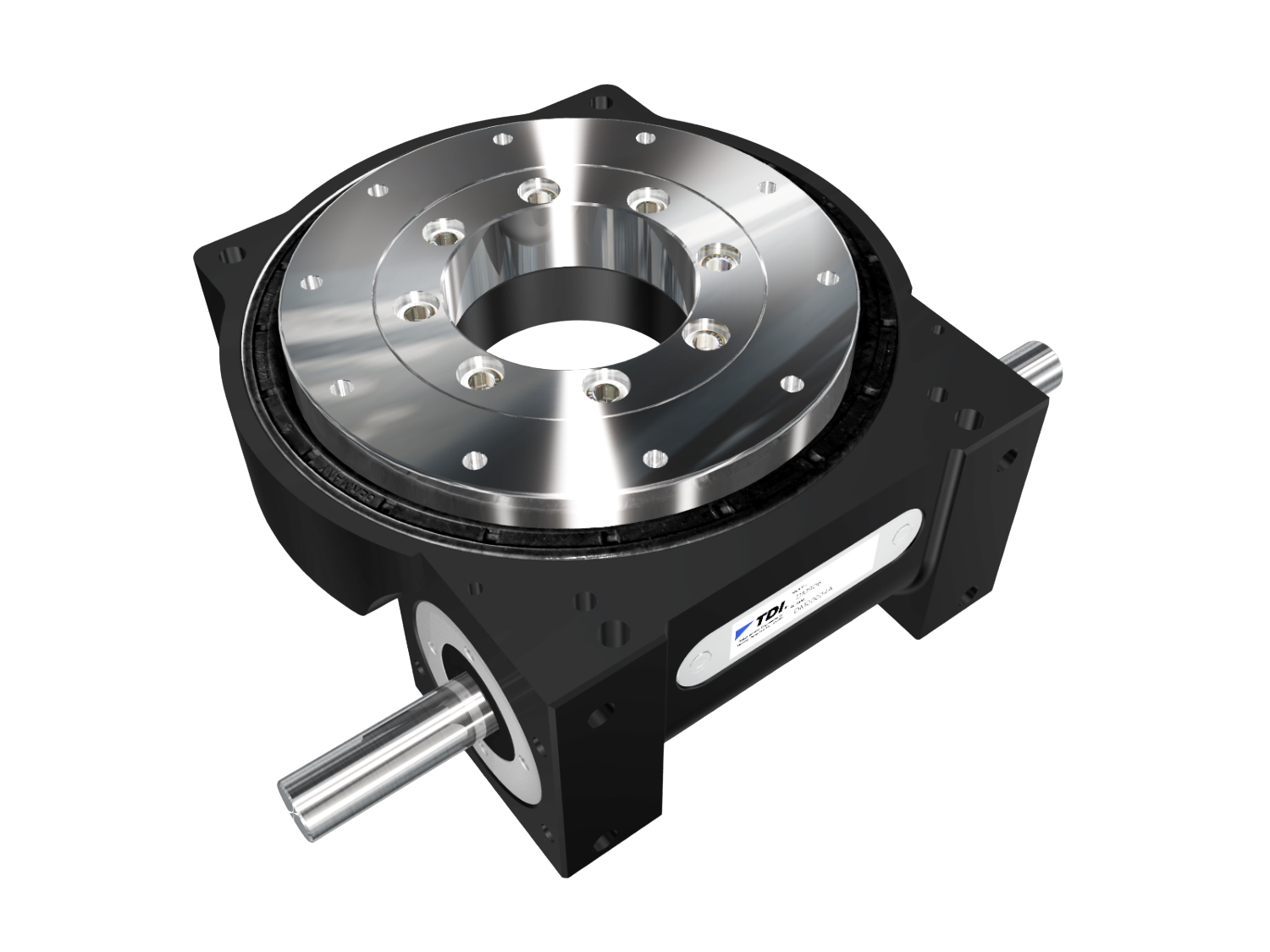

DM903 |
Available upon quote |
125 |
63 |
80 |
60 |
740 |
40 Mmean max (N・m) |
1,100 |
20 |
15 |
29 Top (N・m) |
120 |
Φ18 |
32 |
0.4 |
0.71 J (kg・m2×10^-4) |
247.5 |
|
|
DM904 |
Available upon quote |
230 |
117 |
70 |
55 |
840 |
60 Mmean max (N・m) |
1,200 |
20 |
16 |
57 Top (N・m) |
90 |
Φ35 |
45 |
0.6 |
1.73 J (kg・m2×10^-4) |
247.5 |
|
|
DM906 |
Available upon quote |
380 |
155 |
60 |
50 |
1,600 |
99 Mmean max (N・m) |
2,000 |
14 |
20 |
78 Top (N・m) |
60 |
Φ62 |
60 |
0.8 |
2.55 J (kg・m2×10^-4) |
410 |
|
|
DM908 |
Available upon quote |
909 |
372 |
60 |
50 |
3,200 |
272 Mmean max (N・m) |
4,000 |
10 |
20 |
186 Top (N・m) |
40 |
Φ86 |
80 |
1.2 |
9.54 J (kg・m2×10^-4) |
880 |
|
|
DM910 |
Available upon quote |
1,282 |
547 |
50 |
40 |
3,600 |
384 Mmean max (N・m) |
4,500 |
10 |
Twenty four |
293 Top (N・m) |
40 |
Φ115 |
100 |
1.5 |
12.6 J (kg・m2×10^-4) |
1,360 |
Click on the part number for more information about each product
