ROBO RAIL FRR-001 type: Slim rail & swivel arm evolves robot transportation
FINESYSTEM Co., Ltd.

About This Product

Features

■Space-saving (fits in the space in front of the machine bed of Robodrill, etc.)

ROBO RAIL's rail has a wall-mounted structure that allows for a running rail depth of 300mm. Unlike floor-traveling robot transport, you can secure the work space essential for pre-processing setup work.

■With robot swivel arm

Equipped with a turning function on the traveling carrier. (Arm length 700mm) Even small robots can approach a wide range. The swing arm drive section uses a hollow shaft roller drive with high motor efficiency. Wiring and piping for the mounted robot's cables and hands can also be neatly stored inside the rotating arm.

■With traveling carrier support function

The support cylinder of the traveling carrier captures the stress generated when driving the swing arm or starting the mounted robot on the floor. This reduces the unbalanced load on the running rail of the wall-mounted structure, contributing to improved lifespan and repeatability.

■Controlled only by robot controller

The travel drive unit and swing arm drive unit are additional axes of the robot, so they are controlled by the robot controller.

■Maintenance/safety

・The lubricating grease on the swing arm drive part is maintenance-free. (No need for periodic replacement) ・Grease can be supplied to the linear guide block centrally from the lubrication manifold of the traveling carrier. ・Remove the lubricating unit to refuel the liner of the travel carrier and refuel after 5,000 km of mileage or every six months. - Operated by one robot pendant. (Easy to correct points) ・Since the control device of ROBO RAIL and the installed robot are common, it complies with the robot's safety circuit.

  • Product

    ROBO RAIL FRR-001 type: Slim rail & swivel arm evolves robot transportation

Share this product


180+ people viewing

Last viewed: 18 hours ago

Free
Get started with our free quotation service - no cost, no obligation.

No Phone Required
We respect your privacy. You can receive quotes without sharing your phone number.

1 Models of ROBO RAIL FRR-001 type: Slim rail & swivel arm evolves robot transportation

Image Part Number Price (excluding tax) 1st axis specification with additional travel drive unit Drive system 1st axis specification with added travel drive unit Direct drive unit 1st axis specification with additional travel drive unit Maximum speed 1st axis specification with additional travel drive unit Position repeatability 1st axis specification with travel drive unit Rail production range 1st axis specification with additional travel drive unit Support cylinder Installation format Mechanism mass 2nd axis specification with swivel arm drive unit Drive system 2nd axis specification with swivel arm drive unit Maximum swivel speed 2nd axis specification with additional swing arm drive section Operating range 2nd axis specification with additional rotating arm drive part Position repeatability 2nd axis specification with additional rotating arm drive section Index Robot body Robot control device Utility power supply Utility air
ROBO RAIL FRR-001 type: Slim rail & swivel arm evolves robot transportation-Part Number-FRR-001

FRR-001

Available upon quote

Servo motor (1.6kw3,000rpm)

Liner unit type

1,500mm/sec

±0.1mm

2.7m~27m

Air cylinder

Floor standing

Traveling rail 1m/100kg Traveling carrier 220kg (including swing arm and robot weight)

Servo motor (1.6kw3,000rpm)

180°/sec

±180° from the origin

±0.1mm

Roller cam drive type

FANUC LRMate200iD (payload: 7kg)

R-30iBMate (with small additional axis cabinet)

AC200V3P1.2KVA (60/50Hz compatible)

0.4MPa (dry air)

Customers who viewed this product also viewed

Reviews shown here are reviews of companies.

Automatic transport mobile robot OASIS300E-Tektre Co., Ltd.

Automatic transport mobile robot OASIS300E

Tektre Co., Ltd.

330+ people viewing

Last viewed: 2 minutes ago

Response time: 55.78 hours

Transport Robots

3 models listed

Next generation collaborative robot UR20/UR30-NC Automation Co., Ltd.

Next generation collaborative robot UR20/UR30

NC Automation Co., Ltd.

5.0

100+ people viewing

Last viewed: 6 hours ago

Response time: 19.40 hours

Transport Robots

3 models listed

Automatic transport robot AMR ASPINAMR for manufacturing sites-Shinano Kenshi

Automatic transport robot AMR ASPINAMR for manufacturing sites

Shinano Kenshi

570+ people viewing

Last viewed: 4 hours ago

Response time: 29.95 hours

Transport Robots

3 models listed

Automatic transport mobile robot OASIS600E-Tektre Co., Ltd.

Automatic transport mobile robot OASIS600E

Tektre Co., Ltd.

260+ people viewing

Last viewed: 2 hours ago

Response time: 55.78 hours

Transport Robots

3 models listed

Automatic transport robot AMR ASPINAMR Lift Addition Model-Shinano Kenshi

Automatic transport robot AMR ASPINAMR Lift Addition Model

Shinano Kenshi

410+ people viewing

Last viewed: 2 hours ago

Response time: 29.95 hours

Transport Robots
Multi -guidance method Unmanned automatic transport robot σone100-Sigmatron

Multi -guidance method Unmanned automatic transport robot σone100

Sigmatron

360+ people viewing

Last viewed: 3 hours ago

Transport Robots
Automatic transport mobile robot OASIS1200E-Tektre Co., Ltd.

Automatic transport mobile robot OASIS1200E

Tektre Co., Ltd.

260+ people viewing

Last viewed: 2 hours ago

Response time: 55.78 hours

Transport Robots

3 models listed

General purpose separator USF-1-On Demand Institute Co., Ltd.

General purpose separator USF-1

On Demand Institute Co., Ltd.

80+ people viewing

Last viewed: 1 hour ago

Transport Robots

3 models listed

Devan/vanning equipment Extener I (robot self-propelled)-Omni Yoshida Co., Ltd.

Devan/vanning equipment Extener I (robot self-propelled)

Omni Yoshida Co., Ltd.

100+ people viewing

Last viewed: 7 hours ago

Response time: 47.36 hours

Transport Robots
Intralogistics Transport Conveyor/Automatic transport/Autonomous transport robot (AMR)-Beve Systec Japan Co., Ltd.

Intralogistics Transport Conveyor/Automatic transport/Autonomous transport robot (AMR)

Beve Systec Japan Co., Ltd.

60+ people viewing

Response time: 20.59 hours

Transport Robots

3 models listed

Automatic processing of resins and plastics Automatic panel processing equipment Transfer robot unit-Giken Co., Ltd.

Automatic processing of resins and plastics Automatic panel processing equipment Transfer robot unit

Giken Co., Ltd.

5.0

110+ people viewing

Last viewed: 4 hours ago

Response time: 19.54 hours

Transport Robots

3 models listed

Space automatic transport system (transport robot system)-Japan MDA Robo Co., Ltd.

Space automatic transport system (transport robot system)

Japan MDA Robo Co., Ltd.

140+ people viewing

Last viewed: 3 minutes ago

Transport Robots

4 models listed

See More Transport Robots Products

Other products of FINESYSTEM Co., Ltd.

Reviews shown here are reviews of companies.

Compact deburring robot cell FDM-001 model achieves the level of deburring required by skilled workers through automation-FINESYSTEM Co., Ltd.

Compact deburring robot cell FDM-001 model achieves the level of deburring required by skilled workers through automation

FINESYSTEM Co., Ltd.

170+ people viewing

Last viewed: 18 hours ago

Deburring Machinery

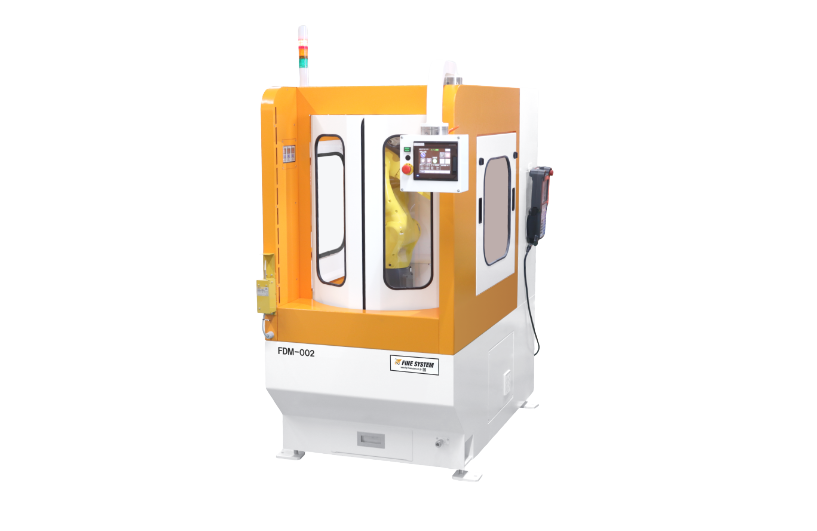

Compact deburring robot cell FDM-002 model achieves the level of deburring required by skilled workers through automation-FINESYSTEM Co., Ltd.
