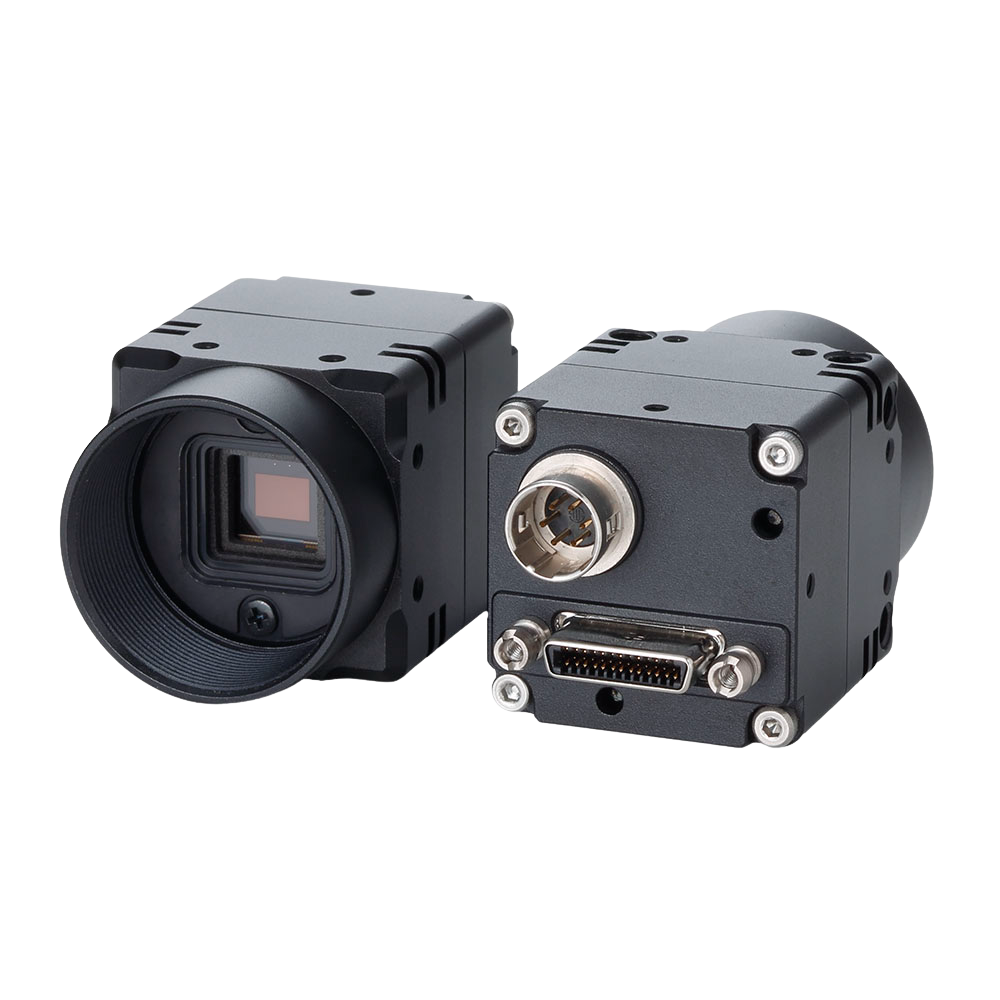

Camera Link CMOS model
Omron Sentech Co., Ltd.
About This Product
■Summary
Camera link series equipped with CMOS sensor.
■Features
Lineup includes models equipped with Sony's CMOS "Pregius". High-performance CMOS sensor can achieve high resolution and high frame rate at the same time.
*Other model numbers are available.
-
Product
Camera Link CMOS model
-
Handling Company
Omron Sentech Co., Ltd.
-
Categories
10 Models of Camera Link CMOS model
Items marked with have different values depending on the model number.
Click on the part number for more information about each product
| Product Image | Part Number | Price (excluding tax) | Cell size (H x V, μm) | Color/monochrome | Effective number of pixels (H x V, pixels) | Frame rate | Lens mount | Remarks | Resolution | Sensor | Sensor size |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
STC-SPB43PCL |
Available upon quote | 6.9x6.9 | Monochrome | 720x540 | 523.6fps | C | PoCL automatic switching, SDR connector x1 | VGA | IMX287 | 1/2.9 |
|
|
STC-SPC43PCL |
Available upon quote | 6.9x6.9 | Color | 720x540 | 523.6fps | C | PoCL automatic switching, SDR connector x1 | VGA | IMX287 | 1/2.9 |
|
|
STC-SPB52PCL |
Available upon quote | 9×9 | Monochrome | 810x620 | 166.5fps | C | PoCL automatic switching, SDR connector x2 | 0.5M | IMX433 | 1/1.7 |
|
|
STC-SPC52PCL |
Available upon quote | 9×9 | Color | 810x620 | 166.5fps | C | PoCL automatic switching, SDR connector x2 | 0.5M | IMX433 | 1/1.7 |
|
|
STC-SPB163PCL |
Available upon quote | 3.45x3.45 | Monochrome | 1,440x1,080 | 152.4fps | C | PoCL automatic switching, SDR connector x1 | 1.6M | IMX273 | 1/2.9 |
|
|
STC-SPC163PCL |
Available upon quote | 3.45x3.45 | Color | 1,440x1,080 | 152.4fps | C | PoCL automatic switching, SDR connector x1 | 1.6M | IMX273 | 1/2.9 |
|
|
STC-SPB202PCL |
Available upon quote | 4.5x4.5 | Monochrome | 1,620x1,240 | 89.1fps | C | PoCL automatic switching, SDR connector x2 | 2M | IMX430 | 1/1.7 |
|
|
STC-SPC202PCL |
Available upon quote | 4.5x4.5 | Color | 1,620x1,240 | 89.1fps | C | PoCL automatic switching, SDR connector x2 | 2M | IMX430 | 1/1.7 |
|
|
STC-CMB200PCL |
Available upon quote | 5.5x5.5 | Monochrome | 2,048x1,088 | 333fps | C | PoCL automatic switching, SDR connector x2 | 2M | CMV2000 | 2/3 |
|
|
STC-CMC200PCL |
Available upon quote | 5.5x5.5 | Color | 2,048x1,088 | 333fps | C | PoCL automatic switching, SDR connector x2 | 2M | CMV2000 | 2/3 |
