CoaXPress model
Omron Sentech Co., Ltd.
About This Product
■Summary

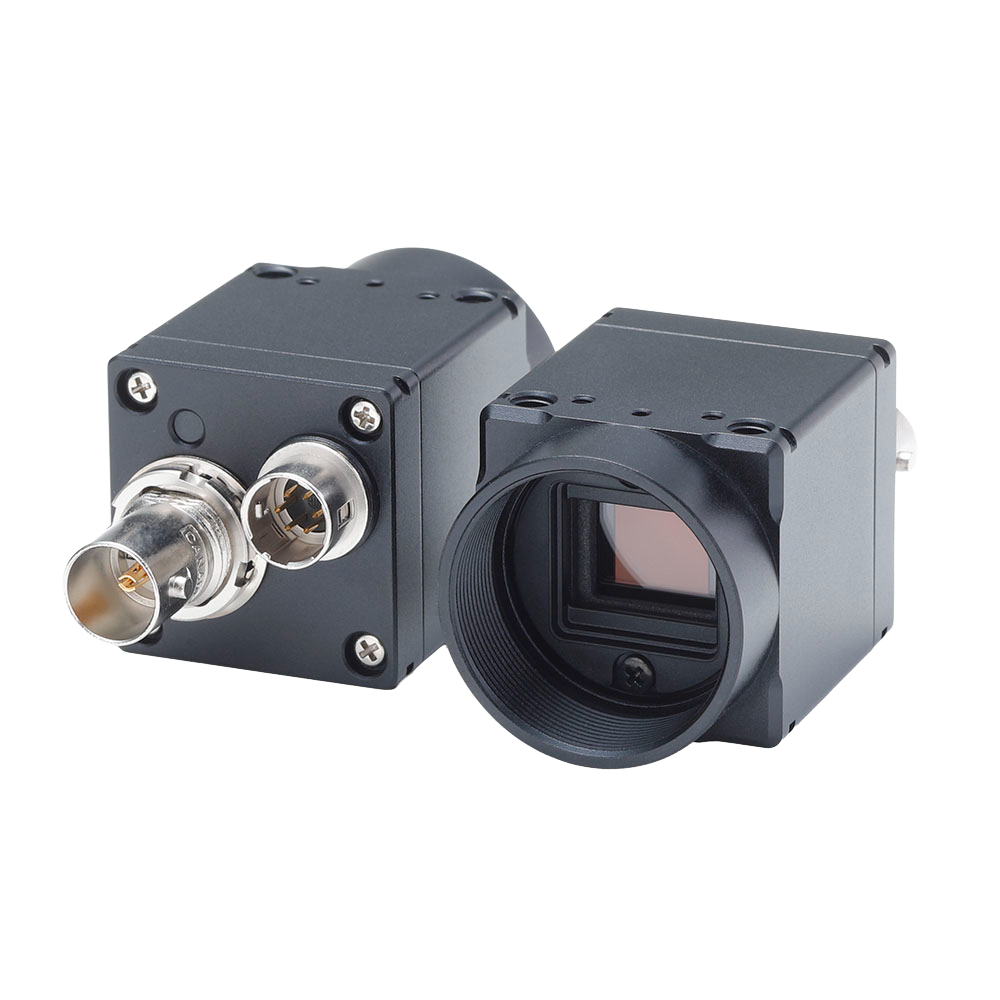

CoaXPress model equipped with high-speed CMOS sensor
■Features
28x28mm size 2M/5M type available. The 12M pixel model achieves a high frame rate of 186fps.
*Other model numbers are available.
-
Product
CoaXPress model
-
Handling Company
Omron Sentech Co., Ltd.
-
Categories
10 Models of CoaXPress model
Items marked with have different values depending on the model number.
Click on the part number for more information about each product
| Product Image | Part Number | Price (excluding tax) | Cell size (H x V, μm) | Color/monochrome | Effective number of pixels (H x V, pixels) | Frame rate | Lens | Remarks | Resolution | Sensor | Sensor size |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
STC-MBS43CXP3 |
Available upon quote | 6.9×6.9 | Monochrome | 720x540 | 523fps | C | PoCXP compatible, 1 lane, connector at rear | VGA | IMX287 | 1/2.9 |
|
|
STC-MCS43CXP3 |
Available upon quote | 6.9×6.9 | Color | 720x540 | 523fps | C | PoCXP compatible, 1 lane, connector at rear | VGA | IMX287 | 1/2.9 |
|
|
STC-MBS163CXP6 |
Available upon quote | 3.45×3.45 | Monochrome | 1,440x1,080 | 278fps | C | PoCXP compatible, 1 lane, connector at rear | 1.6M | IMX273 | 1/2.9 |
|
|
STC-MCS163CXP6 |
Available upon quote | 3.45×3.45 | Color | 1,440x1,080 | 278fps | C | PoCXP compatible, 1 lane, connector at rear | 1.6M | IMX273 | 1/2.9 |
|
|
STC-MBS212CXP6 |
Available upon quote | 4.5×4.5 | Monochrome | 1,632x1,240 | 239fps | C | PoCXP compatible, 1 lane, connector at rear | 2M | IMX422 | 1/1.7 |
|
|
STC-MCS212CXP6 |
Available upon quote | 4.5×4.5 | Color | 1,632x1,240 | 239fps | C | PoCXP compatible, 1 lane, connector at rear | 2M | IMX422 | 1/1.7 |
|
|
STC-MBS322CXP6 |
Available upon quote | 3.45×3.45 | Monochrome | 2,048x1,536 | 152fps | C | PoCXP compatible, 1 lane, connector at rear | 3.2M | IMX252 | 1/1.8 |
|
|
STC-MCS322CXP6 |
Available upon quote | 3.45×3.45 | Color | 2,048x1,536 | 152fps | C | PoCXP compatible, 1 lane, connector at rear | 3.2M | IMX252 | 1/1.8 |
|
|
STC-CMB401CXP |
Available upon quote | 5.5×5.5 | Monochrome | 2,048x2,048 | 142.5fps | C | PoCXP compatible, 1 lane, connector at rear | 4M | CMV4000 | 1 |
|
|
STC-CMC401CXP |
Available upon quote | 5.5×5.5 | Color | 2,048x2,048 | 142.5fps | C | PoCXP compatible, 1 lane, connector at rear | 4M | CMV4000 | 1 |
Click on the part number for more information about each product
