Realize high -precision rolling for plate material for board material
Yasuoka Co., Ltd.
About This Product
■ Design, manufacture, and sales of high -precision rolling -up gymnastics measuring instruments
We design, manufacture, and sell plate thickness measuring instruments for wires and plate thickness measuring instruments for plate materials. There are many devices that measure stationary goods, but the dimensions of the moving item (tender processing material) can be measured in 1/1,000 mm (micron) units of the intermittent dimensions.
"I've been using a interpreted dimension measuring instrument of another company so far, but it's no longer available." The vessel and plate thickness measuring instrument will be solved.
■ About demonstration of intermittent dimensions measuring instrument
It is possible to measure the thickness of the endless belt in the laboratory assuming the actual machine line. Before the introduction, you can check our intermittent dimensions measuring instrument. Please feel free to contact us about the demonstration.
■ Metal plate thickness measuring instrument for plate materials
The thickness and width of the driving plate will be measured in microns and output to the external recorder. The mushroom thickness measuring instrument achieves high accuracy rolling.
■ Applicable performance line
・ Coil Cold Reverse Cressing Line
・ Coil hot floor rolling line
・ Slitter inspection line
・ Copper capulation line
・ Aluminum pressing line
■ Latest manufacturing case

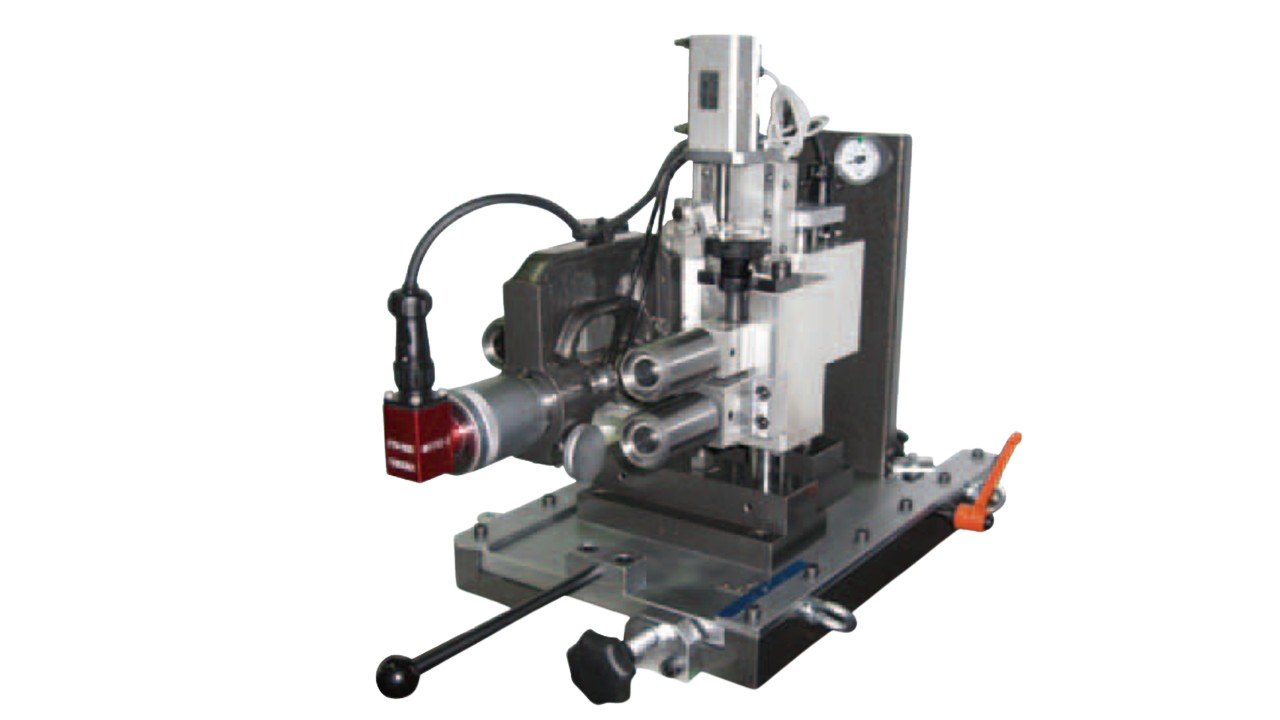

Mashiman thickness measuring instrument FB80R
Since the sensor of the direct motion is built in, it is possible to output the plate thickness set with the micrometer head to the instructionor. In addition, by combining with the type of the indicated FTC-200AXS, it is possible to set the plate thickness up to 4 mm while maintaining the decomposition ability of the deviation measurement.
・ Measurement range: 4,000 μmmAX
・ Measurement point: 80mm from the work end
・ Following speed: 200m/min max
・ Deviation repetition accuracy: ± 1 μm or less
・ Measurer Laura Fleet Accuracy: ± 2 μm or less
・ Absolute price positioning accuracy: ± 2 μm or less
・ Instruction error: ± 0.25 %
・ Measurer: Rotated carbide rotation type
・ Measurement child dimensions: upper R6mm, lower R6mm
・ Measurement force: 800g Standard adjustment machine
In addition, the latest manufacturing examples include the "Matoma plate thickness measuring instrument FB75D" and "run -out plate thickness measuring instrument FB125D". Please check the specifications of the measuring instrument on the website.
-
