  4. Film thickness sensor for vacuum deposition Film thickness monitor crystal 5MHz (Piezo Parts Co., Ltd.)
Film thickness sensor for vacuum deposition Film thickness monitor crystal 5MHz-5A500
Film thickness sensor for vacuum deposition Film thickness monitor crystal 5MHz-Piezo Parts Co., Ltd.

Film thickness sensor for vacuum deposition Film thickness monitor crystal 5MHz
Piezo Parts Co., Ltd.

Piezo Parts Co., Ltd.'s Response Status

Response Rate

100.0%

Response Time

4.1hours

Very Fast Response

About This Product

The vacuum deposition film thickness sensor (hereinafter referred to as "film thickness monitor crystal") is a sensor used during vacuum film formation to detect the physical film thickness. Our film thickness monitor crystals are designed and manufactured using advanced technology. We offer sensors with even lower oscillation variations. In our business of recycling crystals entrusted to us by our customers, we provide feedback on the results.

■What is the vacuum deposition film thickness sensor?

The heated evaporation material adheres to the film thickness monitor crystal as well as the substrate. When the deposition material adheres to the film thickness monitor crystal, the frequency of the film thickness monitor crystal changes according to the change in the mass of the deposited material. The amount of change in this frequency is used to measure the film thickness and film formation rate, and in film formation equipment such as vacuum evaporation equipment, feedback is sent to the heating control device of the evaporation source to control the evaporation rate to the substrate at a constant level. It can be done.

  • Product

    Film thickness sensor for vacuum deposition Film thickness monitor crystal 5MHz

Share this product


100+ people viewing

Last viewed: 19 hours ago

Free
Get started with our free quotation service - no cost, no obligation.

No Phone Required
We respect your privacy. You can receive quotes without sharing your phone number.

1 Models of Film thickness sensor for vacuum deposition Film thickness monitor crystal 5MHz

Image Part Number Price (excluding tax) Electrode material Series resistance External dimensions Frequency tolerance range Frequency temperature characteristics Operating temperature range Center frequency
Film thickness sensor for vacuum deposition Film thickness monitor crystal 5MHz-Part Number-5A500

5A500

Available upon quote

Au

15Ωmax

Φ12.5

±5.0kHz

±50ppm

25~120℃

5,000kHz

Customers who viewed this product also viewed

Reviews shown here are reviews of companies.

Film thickness distribution measuring device FiDiCa® S series standard model-JFE Techno Research Co., Ltd.

Film thickness distribution measuring device FiDiCa® S series standard model

JFE Techno Research Co., Ltd.

160+ people viewing

Last viewed: 1 minute ago

Film Thickness Meters
Film thickness sensor for vacuum deposition Film thickness monitor for vacuum deposition 6MHz-Piezo Parts Co., Ltd.

Film thickness sensor for vacuum deposition Film thickness monitor for vacuum deposition 6MHz

Piezo Parts Co., Ltd.

90+ people viewing

Last viewed: 5 hours ago

Response time: 4.12 hours

Film Thickness Meters
Film thickness distribution measuring device FiDiCa® H series high resolution model FDC-H1510-JFE Techno Research Co., Ltd.

Film thickness distribution measuring device FiDiCa® H series high resolution model FDC-H1510

JFE Techno Research Co., Ltd.

120+ people viewing

Last viewed: 21 minutes ago

Film Thickness Meters
Automatic ellipsometer system LM series-Miwa Opto Co., Ltd.

Automatic ellipsometer system LM series

Miwa Opto Co., Ltd.

100+ people viewing

Last viewed: 1 hour ago

Film Thickness Meters

3 models listed

Small film thickness meter Deltascope FMP10-F.I. Tech Co., Ltd.

Small film thickness meter Deltascope FMP10

F.I. Tech Co., Ltd.

100+ people viewing

Last viewed: 5 hours ago

Film Thickness Meters

3 models listed

Automatically recognizes and measurement metals SWT-NEO-FN-SANKO ELECTRONIC LABORATORY CO.,LTD

Automatically recognizes and measurement metals SWT-NEO-FN

SANKO ELECTRONIC LABORATORY CO.,LTD

270+ people viewing

Response time: 12.53 hours

Film Thickness Meters
Film thickness distribution measuring device FiDiCa® W series web inspection model-JFE Techno Research Co., Ltd.

Film thickness distribution measuring device FiDiCa® W series web inspection model

JFE Techno Research Co., Ltd.

200+ people viewing

Film Thickness Meters

2 models listed

Ultrasonic thickness meter ZX-6 series for general/corrosion inspection-Dakota Japan Co., Ltd.

Ultrasonic thickness meter ZX-6 series for general/corrosion inspection

Dakota Japan Co., Ltd.

120+ people viewing

Last viewed: 11 minutes ago

Response time: 0.10 hours

Film Thickness Meters

3 models listed

Film thickness meter Laser type ellipsometer-Miwa Opto Co., Ltd.

Film thickness meter Laser type ellipsometer

Miwa Opto Co., Ltd.

110+ people viewing

Last viewed: 1 hour ago

Film Thickness Meters

3 models listed

Small film thickness meter Isoscope FMP10-F.I. Tech Co., Ltd.

Small film thickness meter Isoscope FMP10

F.I. Tech Co., Ltd.

110+ people viewing

Last viewed: 8 hours ago

Film Thickness Meters

2 models listed

Connection probe can be selected according to the measurement application dual type membrane thick meter SWT-N232C-SANKO ELECTRONIC LABORATORY CO.,LTD

Connection probe can be selected according to the measurement application dual type membrane thick meter SWT-N232C

SANKO ELECTRONIC LABORATORY CO.,LTD

360+ people viewing

Last viewed: 12 hours ago

Response time: 12.53 hours

Film Thickness Meters

2 models listed

Film thickness distribution measuring device FiDiCa® D series wide range model FDC-D30HU-JFE Techno Research Co., Ltd.

Film thickness distribution measuring device FiDiCa® D series wide range model FDC-D30HU

JFE Techno Research Co., Ltd.

120+ people viewing

Film Thickness Meters
See More Film Thickness Meters Products

Other products of Piezo Parts Co., Ltd.

Reviews shown here are reviews of companies.

Film thickness sensor for vacuum deposition Film thickness monitor for vacuum deposition 6MHz-Piezo Parts Co., Ltd.

Film thickness sensor for vacuum deposition Film thickness monitor for vacuum deposition 6MHz

Piezo Parts Co., Ltd.

90+ people viewing

Last viewed: 5 hours ago

Response time: 4.12 hours

Film Thickness Meters
AFFINIX series AFFINIX QN QCM2008-STKIT-Piezo Parts Co., Ltd.

AFFINIX series AFFINIX QN QCM2008-STKIT

Piezo Parts Co., Ltd.

50+ people viewing

Last viewed: 19 hours ago

Response time: 4.12 hours

AFFINIX series AFFINIX QN μ (micro) QCM2008-LVKIT-Piezo Parts Co., Ltd.

AFFINIX series AFFINIX QN μ (micro) QCM2008-LVKIT

Piezo Parts Co., Ltd.

70+ people viewing

Last viewed: 19 hours ago

Response time: 4.12 hours

AFFINIX Series AFFINIX QN Pro QCM2008-PRKIT-Piezo Parts Co., Ltd.

AFFINIX Series AFFINIX QN Pro QCM2008-PRKIT

Piezo Parts Co., Ltd.

100+ people viewing

Last viewed: 17 hours ago

Response time: 4.12 hours

Dynamic Mechanical Analyzers (DMA)
AFFINIX series AFFINIX Q8-Piezo Parts Co., Ltd.

AFFINIX series AFFINIX Q8

Piezo Parts Co., Ltd.

80+ people viewing

Last viewed: 19 hours ago

Response time: 4.12 hours

QCM Trial Kit-Piezo Parts Co., Ltd.

QCM Trial Kit

Piezo Parts Co., Ltd.

70+ people viewing

Last viewed: 8 hours ago

Response time: 4.12 hours

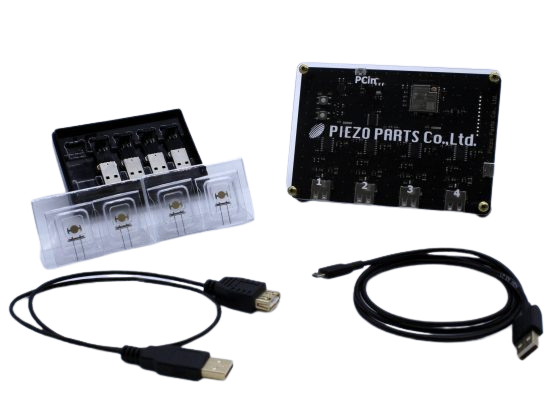

QCM TQCM-Piezo Parts Co., Ltd.
