Dynamic viscoelasticity measuring device Rheosol-G series G5000NT-G5000NT

Dynamic viscoelasticity measuring device Rheosol-G series G5000NT
UBM Co., Ltd.

About This Product

The Rheosol-G series is a rotational strain control type dynamic viscoelasticity measuring device that can perform a wide range of measurement and analysis from steady flow viscosity to dynamic viscoelastic modulus. This measuring instrument is ideal for evaluating the temperature characteristics of thermoplastic resins and thermosetting resins in their molten state, as well as the viscoelastic characteristics of various liquid samples such as ink, skin care creams, and seasonings.

When evaluating resin materials, the liquefaction behavior of a sample can be observed from the viscosity curve on the temperature axis, and the molecular structure can be inferred from various information on the viscoelastic state from the glass transition of the material. It is now possible to measure and evaluate the ease of drying, ease of application, and thickness of ink, skin care creams, seasonings, etc., and it is possible to improve the usability of ink, skin care creams, and seasonings, and to improve the feel of ink, skin care creams, and seasonings. It can be used to improve texture and shape retention.

When dynamic strain is applied to a sample in the rotational direction, the stress response and displacement are sensed and stored as data. Depending on the measurement method, it is possible to perform the following evaluations.

■When measuring by tension, compression, or bendingE* (Pa) Complex longitudinal elastic modulus, E’ (Pa) Storage longitudinal elastic modulus, E’’ (Pa) Loss longitudinal elastic modulus, tanδ Vibration absorption coefficient (loss tangent), δ (deg) Phase difference.

■When measuring by cone plate, parallel plate, double cylinder, or torsionG* (Pa) Complex shear modulus, G' (Pa) Storage shear modulus, G'' (Pa) Loss shear modulus, η* (Pa.s) Complex viscosity, η' (Pa.s) Dynamic Loss viscosity, η'' (Pa.s) Loss viscosity, η'=G''/ω η”=G'/ω　ω Angular velocity (rad/sec) , tanδ vibration absorption coefficient (loss tangent), δ (deg) phase difference

■Excellent basic performance (move accurately and read accurately)- Stable elastic modulus can be measured by highly accurate strain control.
・Improved data reliability through precision metal processing technology and inspection.

■Refined ease of use (various measurements can be easily designed and operated.)- Compatible with various samples such as solutions and gel samples.
・Measurements can be performed according to the characteristics of the sample using closed jigs or disposable jigs.
・Supports measurement of tensile modulus of longitudinal elasticity of film shapes.
・Comfortable automatic driving is possible by linking with a computer.

Compact design.

Model
There are 1 models for this product.

Product
Dynamic viscoelasticity measuring device Rheosol-G series G5000NT

Handling Company
UBM Co., Ltd.

Categories

Meters & Instruments

Rheometers

Meters & Instruments

Dynamic Mechanical Analyzers (DMA)

60+ people viewing

Last viewed: 1 hour ago

Free
Get started with our free quotation service - no cost, no obligation.

No Phone Required
We respect your privacy. You can receive quotes without sharing your phone number.

1 Models of Dynamic viscoelasticity measuring device Rheosol-G series G5000NT

Image	Part Number	Price (excluding tax)	Static load control	Weight (kg)	Measuring jig torsion	Measuring jig tension	Measuring jig double cylinder	Measuring jig parallel plate	Measuring jig cone plate	Measurement mode	Temperature control	Temperature (℃)	Waveform	External dimensions (W×D×H (mm))	Rotation speed (rpm)	Frequency range (Hz)	Tabletop installation space (W×D×H (mm))	Dynamic viscoelasticity	Dynamic control method	Dynamic strain (µm)	Dynamic strain (deg)	Load (N)	Utility	Torque (Nm)	Data analysis	Data processing tabulation	Data processing drawing	Constant gap control	Air	Shear rate (1/sec (*cone angle 2°))
	G5000NT	Available upon quote	Automatic	Measuring instrument body: 64 Measurement control unit: 17	○	○	○	○	○	Dynamic viscoelasticity, stress relaxation, steady flow viscosity, thixotropy	Air heater	-150~400	Sine wave	Measuring device body: 370 x 410 x 760 Measurement control unit: 430×490×170	0.003~120	0.0001~20	1,200×700×700	Frequency, temperature, time, strain, frequency temperature	Strain control	10~10,000	0.001~5	±0.05~100	Power supply AC100V 1φ 15A Liquid nitrogen (below room temperature)	0.00001~0.2	Master curve, activation energy, relaxation spectrum, relaxation modulus, etc.	UBM-V3 ① Sort ② Save in Excel ③ Peak search ④ List display format Transfer to Microsoft Excel	UBM-V3 ① Overwrite ② Paste in Excel ③ Peak search ④ Auto scale ⑤ Batch print ⑥ Tg analysis ⑦ Save plotting conditions ⑧ Save plotting file ⑨ Memo label ⑩ Smoothing Transfer to Microsoft Excel	Automatic	0.4MPa 30L/min	0.009~350

Customers who viewed this product also viewed

Reviews shown here are reviews of companies.

Inline rheometer “KIR-1”

Kyowa Finetech Co., Ltd.

100+ people viewing

Last viewed: 56 minutes ago

Rheometers

3 models listed

Dynamic viscoelasticity measuring device Rheogel-E series E4000

UBM Co., Ltd.

70+ people viewing

Last viewed: 11 minutes ago

Rheometers

2 models listed

Rheometer complex unit HFRU

High Frequency Viscoelastic Co., Ltd.

200+ people viewing

Last viewed: 17 minutes ago

Rheometers

2 models listed

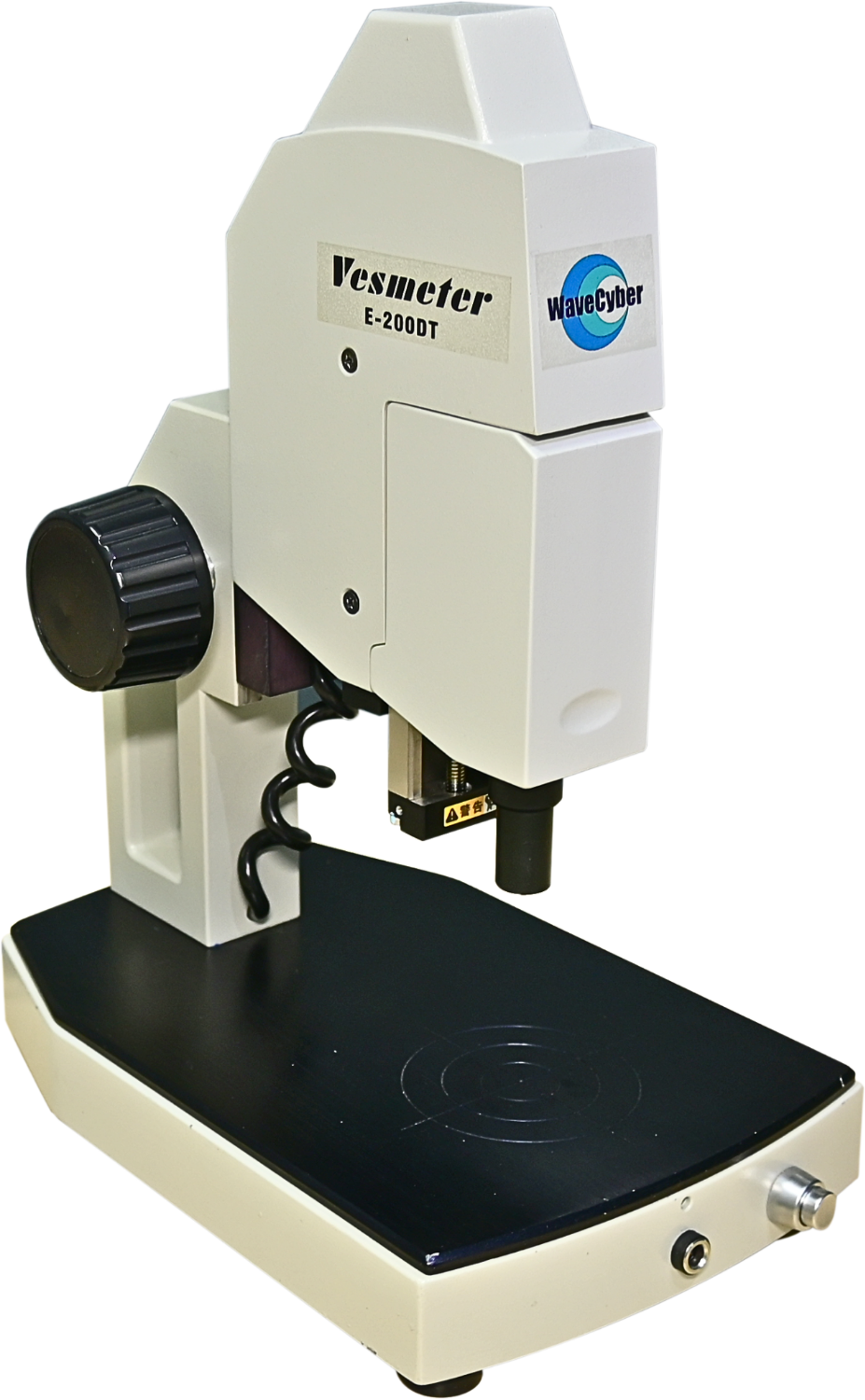

Stationary viscoelasticity measuring device VESMETER® E-200DT
