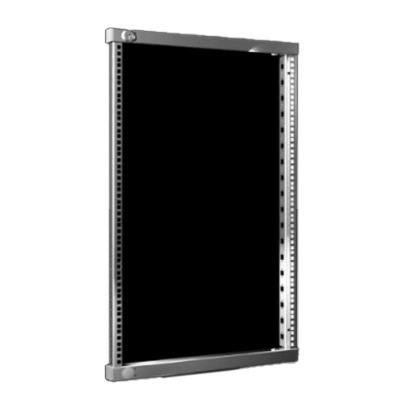

19" accessory system small swing frame for VX, VX SE and AX enclosures in widths of 600 mm and 800 mm
Rittal GmbH & Co. KG

About This Product

■Summary

Used to install 482.6 mm (19 in.) rack mount components.

■Included items

・2 x Hinge 130° ・Includes cam lock and double bit lock insert ・Materials for fixing to the mounting kit

■Note

- A swing frame fixing device is required to fix the swing frame in the open state. ・Depending on implementation, system section 23 x 64 mm may be required ・Within VX SE, when used with VX adapter rail, on enclosure profile (frame) -For other customizations, please see "Detailed technical information".

  • Product

    19" accessory system small swing frame for VX, VX SE and AX enclosures in widths of 600 mm and 800 mm

Share this product


40+ people viewing

Free
Get started with our free quotation service - no cost, no obligation.

No Phone Required
We respect your privacy. You can receive quotes without sharing your phone number.

6 Models of 19" accessory system small swing frame for VX, VX SE and AX enclosures in widths of 600 mm and 800 mm

Click on the part number for more information about each product

Image Part Number Price (excluding tax) Height unit (unit) Applicable width (mm) Mass/pack (kg) Surface Material Enclosure type 1 pack (pieces) Applicable height (mm) About the product number
19" accessory system small swing frame for VX, VX SE and AX enclosures in widths of 600 mm and 800 mm-Part Number-VX 8619.500

VX 8619.500

Available upon quote

3 U

600mm, 800mm

4.6

Galvanized

Made of steel plate

VX, VX SE, AX

1

≥380mm

To install on AX you will also need an AX mounting kit

19" accessory system small swing frame for VX, VX SE and AX enclosures in widths of 600 mm and 800 mm-Part Number-VX 8619.510

VX 8619.510

Available upon quote

6U

600mm, 800mm

3.06

Galvanized

Made of steel plate

VX, VX SE, AX

1

≥600mm

To install on AX you will also need an AX mounting kit

19" accessory system small swing frame for VX, VX SE and AX enclosures in widths of 600 mm and 800 mm-Part Number-VX 8619.520

VX 8619.520

Available upon quote

9U

600mm, 800mm

5.09

Galvanized

Made of steel plate

VX, VX SE, AX

1

≥600mm

To install on AX you will also need an AX mounting kit

19" accessory system small swing frame for VX, VX SE and AX enclosures in widths of 600 mm and 800 mm-Part Number-VX 8619.530

VX 8619.530

Available upon quote

12U

600mm, 800mm

6.19

Galvanized

Made of steel plate

VX, VX SE, AX

1

≥760mm

To install on AX you will also need an AX mounting kit

19" accessory system small swing frame for VX, VX SE and AX enclosures in widths of 600 mm and 800 mm-Part Number-VX 8619.540

VX 8619.540

Available upon quote

15U

600mm, 800mm

4.14

Galvanized

Made of steel plate

VX, VX SE

1

- -
19" accessory system small swing frame for VX, VX SE and AX enclosures in widths of 600 mm and 800 mm-Part Number-VX 8619.550

VX 8619.550

Available upon quote

18U

600mm, 800mm

4.74

Galvanized

Made of steel plate

VX, VX SE

1

- -
