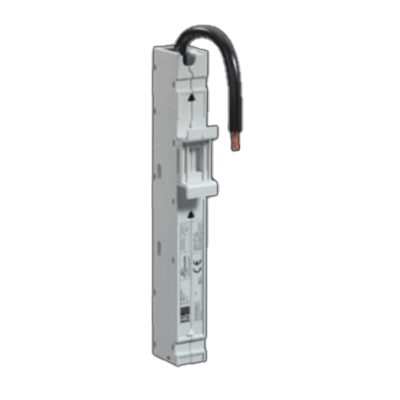

Busbar System RiLine Compact 1 Pole Unit AdapterHandling Company
Rittal GmbH & Co. KGClick on the part number for more information about each product
| Image | Part Number | Price (excluding tax) | Height (mm) | Copper content (kg / piece) | Mass/pack (kg) | Function method | Number of poles | Material | Connection cable length (mm) | Connection cable (AWG) | Width (mm) | Rated current maximum (A) | Rated voltage | Depth (mm) | Paint color | Specification | Mount rail type | Mounting rail, number/height (mm) | 1 pack (pieces) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
SV9635.371 |
Available upon quote |
160 |
0.006 |
0.354 |
Used for mechanical fixation and direct connection of electrical equipment on the board |
1 |
Polyamide, flame resistant UL 94 compliant |
100 |
AWG 14 |
18 |
16 |
690V (AC), single phase |
35 |
RAL 7035 |
L1 |
Fixed type |
1/10 |
6 |
|
|
SV 9635.372 |
Available upon quote |
160 |
0.008 |
0.372 |
Used for mechanical fixation and direct connection of electrical equipment on the board |
1 |
Polyamide, flame resistant UL 94 compliant |
100 |
AWG 14 |
18 |
16 |
690V (AC), single phase |
35 |
RAL 7035 |
L2 |
Fixed type |
1/10 |
6 |
|
|
SV9635.373 |
Available upon quote |
160 |
0.009 |
0.378 |
Used for mechanical fixation and direct connection of electrical equipment on the board |
1 |
Polyamide, flame resistant UL 94 compliant |
100 |
AWG 14 |
18 |
16 |
690V (AC), single phase |
35 |
RAL 7035 |
L3 |
Fixed type |
1/10 |
6 |
|
|
SV 9635.381 |
Available upon quote |
160 |
0.015 |
0.36 |
Used for mechanical fixation and direct connection of electrical equipment on the board |
1 |
Polyamide, flame resistant UL 94 compliant |
100 |
AWG 8 |
18 |
63 |
690V (AC), single phase |
35 |
RAL 7035 |
L1 |
Fixed type |
1/10 |
6 |
|
|
SV9635.382 |
Available upon quote |
160 |
0.021 |
0.396 |
Used for mechanical fixation and direct connection of electrical equipment on the board |
1 |
Polyamide, flame resistant UL 94 compliant |
100 |
AWG 8 |
18 |
63 |
690V (AC), single phase |
35 |
RAL 7035 |
L2 |
Fixed type |
1/10 |
6 |
|
|
SV9635.383 |
Available upon quote |
160 |
0.026 |
0.438 |
Used for mechanical fixation and direct connection of electrical equipment on the board |
1 |
Polyamide, flame resistant UL 94 compliant |
100 |
AWG 8 |
18 |
63 |
690V (AC), single phase |
35 |
RAL 7035 |
L3 |
Fixed type |
1/10 |
6 |
Click on the part number for more information about each product
