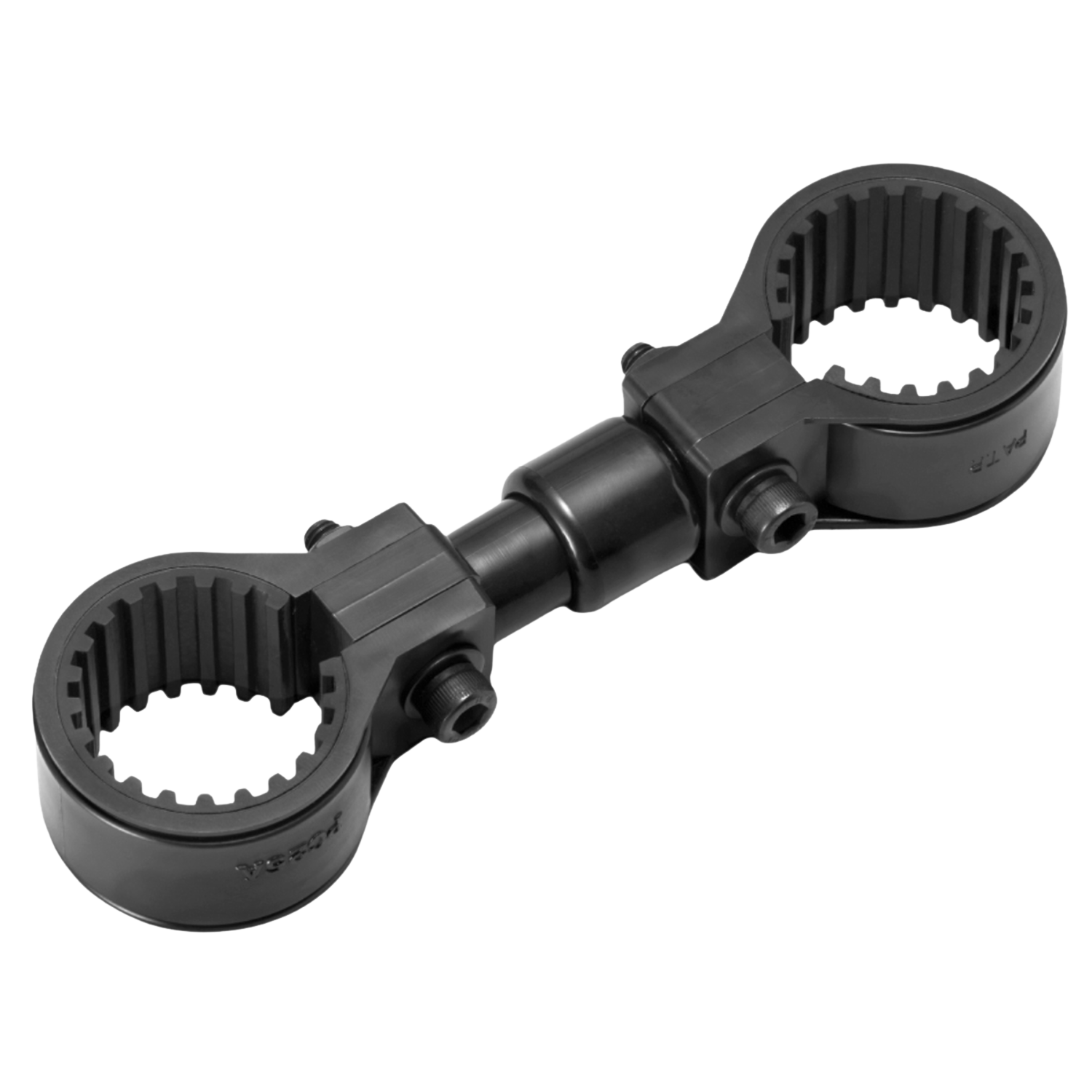

Anti-vibration resin double pipe clamp bracket set｜Fix two pipes in parallel or perpendicular position
Koyuei Nariyama Nanashi Factory
🏗️
Architecture & Construction Use
💻
Electronics & Electrical Use
🧪
Chemical Industry Use
About This Product
■Fix two pipes parallel and orthogonally
Can be used as a spectacle band for supporting piping, a column connection fitting, and a fall prevention fitting for steady rest support.
■Can accommodate two different pipe diameters
By rearranging the anti-vibration resin pipe clamp, it can accommodate pipes of different sizes.
■Selectable bracket size
・16φ×50L/100L/150L/200L →Regular size
・20φ×75L/125L →For more sturdy installation
*For 55φ or more, only 20φ×100L, 150L, 200L
*White and light gray only, available in 200-300L
■Length adjustment possible
You can easily cut the bracket to adjust it to your desired length.
*Please use a PVC cutter or saw for cutting.
■Angle adjustment possible
The bracket and cap joint are unthreaded, so you can adjust them to any angle you like.
*Please use hard plastic adhesive to completely adhere.
■Excellent holding power
A reinforced anti-vibration rubber is bonded to the inside, which helps prevent slipping, assists with anti-vibration, and prevents damage to pipes.
*This product alone does not have a clear reduction effect on vibration transmission rate.
■Lightweight
The extremely light material reduces power energy.
■Easy installation
The material is both moderately flexible and strong, so it can be easily removed and installed from the middle of the pipe.
*Excessive expansion may damage the base material.
■Safe for use around water and outdoors
Uses weather-resistant grade polypropylene resin as the base material. It also has excellent corrosion resistance and electrical insulation properties.
*Deterioration may progress depending on the usage environment.
■A wide variety of colors (up to 7 colors)
・Black・White・Gray・Light gray・Silver・Milky・Chocolate
■Wide range of sizes (up to 65 sizes)
In addition to being sized to meet various piping standards, it also fits perfectly into various cylindrical objects.
*Applicable pipe outer diameter (A): 8 to 106φ *Approx. 1mm increments
*The thickness of the anti-vibration rubber and seal differs depending on the size.
*If you need to make minor adjustments to the size, please contact us separately.
■Reliable domestic products
We do everything in-house, from mold polishing to molding processing, inspection and deburring, rubber cutting and gluing, and packaging.
*Due to the large number of manual processes involved, delivery may take some time depending on the amount ordered.
(Note)
Because there are many variations in size, color, and tightening accessories, only some model numbers are listed.
*If your desired size/color combination is not available, please contact us separately.
-
Product
Anti-vibration resin double pipe clamp bracket set｜Fix two pipes in parallel or perpendicular position
-
Handling Company
Koyuei Nariyama Nanashi Factory
-
Categories
-
Usage Scenarios
Architecture & Construction Use / Electronics & Electrical Use / Chemical Industry Use
51 Models of Anti-vibration resin double pipe clamp bracket set｜Fix two pipes in parallel or perpendicular position
Items marked with have different values depending on the model number.
Click on the part number for more information about each product
| Product Image | Part Number | Price (excluding tax) | A | Brand | Color | G×L | Material | Tightening bolts and nuts |
|---|---|---|---|---|---|---|---|---|
|
|
KFBS25B-5415 |
Available upon quote | 10mm | Koei Kasei | Black | 16φ×50L | Weather-resistant PP｜ABS | SUS bolt nut |
|
|
KFBS25B-1115 |
Available upon quote | 18mm | Koei Kasei | Black | 16φ×50L | Weather-resistant PP｜ABS | SUS bolt nut |
|
|
KFBS25B-2215 |
Available upon quote | 19mm | Koei Kasei | Black | 16φ×50L | Weather-resistant PP｜ABS | SUS bolt nut |
|
|
KFBS25B-3015 |
Available upon quote | 20mm | Koei Kasei | Black | 16φ×50L | Weather-resistant PP｜ABS | SUS bolt nut |
|
|
KFBS25B-1215 |
Available upon quote | 22mm | Koei Kasei | Black | 16φ×50L | Weather-resistant PP｜ABS | SUS bolt nut |
|
|
KFBS25B-4315 |
Available upon quote | 25mm | Koei Kasei | Black | 16φ×50L | Weather-resistant PP｜ABS | SUS bolt nut |
|
|
KFBS25B-1315 |
Available upon quote | 26mm | Koei Kasei | Black | 16φ×50L | Weather-resistant PP｜ABS | SUS bolt nut |
|
|
KFBS25B-3115 |
Available upon quote | 28mm | Koei Kasei | Black | 16φ×50L | Weather-resistant PP｜ABS | SUS bolt nut |
|
|
KFBS25B-8415 |
Available upon quote | 30mm | Koei Kasei | Black | 16φ×50L | Weather-resistant PP｜ABS | SUS bolt nut |
|
|
KFBS25B-1415 |
Available upon quote | 32mm | Koei Kasei | Black | 16φ×50L | Weather-resistant PP｜ABS | SUS bolt nut |
|
|
KFBS25B-5465 |
Available upon quote | 10mm | Koei Kasei | Black | 20φ×75L | Weather-resistant PP｜ABS | SUS bolt nut |
|
|
KFBS25B-1165 |
Available upon quote | 18mm | Koei Kasei | Black | 20φ×75L | Weather-resistant PP｜ABS | SUS bolt nut |
|
|
KFBS25B-2265 |
Available upon quote | 19mm | Koei Kasei | Black | 20φ×75L | Weather-resistant PP｜ABS | SUS bolt nut |
|
|
KFBS25B-3065 |
Available upon quote | 20mm | Koei Kasei | Black | 20φ×75L | Weather-resistant PP｜ABS | SUS bolt nut |
|
|
KFBS25B-1265 |
Available upon quote | 22mm | Koei Kasei | Black | 20φ×75L | Weather-resistant PP｜ABS | SUS bolt nut |
|
|
KFBS25B-4365 |
Available upon quote | 25mm | Koei Kasei | Black | 20φ×75L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS25B-1365 |
Available upon quote | 26mm | Koei Kasei | Black | 20φ×75L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS25B-3165 |
Available upon quote | 28mm | Koei Kasei | Black | 20φ×75L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS25B-8465 |
Available upon quote | 30mm | Koei Kasei | Black | 20φ×75L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS25B-1465 |
Available upon quote | 32mm | Koei Kasei | Black | 20φ×75L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS25B-5425 |
Available upon quote | 10mm | Koei Kasei | Black | 16φ×100L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS25B-1125 |
Available upon quote | 18mm | Koei Kasei | Black | 16φ×100L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS25B-2225 |
Available upon quote | 19mm | Koei Kasei | Black | 16φ×100L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS25B-3025 |
Available upon quote | 20mm | Koei Kasei | Black | 16φ×100L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS25B-1225 |
Available upon quote | 22mm | Koei Kasei | Black | 16φ×100L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS25B-4325 |
Available upon quote | 25mm | Koei Kasei | Black | 16φ×100L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS25B-1325 |
Available upon quote | 26mm | Koei Kasei | Black | 16φ×100L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS25B-3125 |
Available upon quote | 28mm | Koei Kasei | Black | 16φ×100L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS25B-8425 |
Available upon quote | 30mm | Koei Kasei | Black | 16φ×100L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS25B-1425 |
Available upon quote | 32mm | Koei Kasei | Black | 16φ×100L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS25B-5485 |
Available upon quote | 10mm | Koei Kasei | Black | 20φ×125L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS25B-1185 |
Available upon quote | 18mm | Koei Kasei | Black | 20φ×125L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS25B-2285 |
Available upon quote | 19mm | Koei Kasei | Black | 20φ×125L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS25B-3085 |
Available upon quote | 20mm | Koei Kasei | Black | 20φ×125L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS25B-1285 |
Available upon quote | 22mm | Koei Kasei | Black | 20φ×125L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS25B-4385 |
Available upon quote | 25mm | Koei Kasei | Black | 20φ×125L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS25B-1385 |
Available upon quote | 26mm | Koei Kasei | Black | 20φ×125L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS25B-3185 |
Available upon quote | 28mm | Koei Kasei | Black | 20φ×125L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS25B-8485 |
Available upon quote | 30mm | Koei Kasei | Black | 20φ×125L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS25B-1485 |
Available upon quote | 32mm | Koei Kasei | Black | 20φ×125L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS25B-5435 |
Available upon quote | 10mm | Koei Kasei | Black | 16φ×150L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS25B-1135 |
Available upon quote | 18mm | Koei Kasei | Black | 16φ×150L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS25B-2235 |
Available upon quote | 19mm | Koei Kasei | Black | 16φ×150L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS25B-3035 |
Available upon quote | 20mm | Koei Kasei | Black | 16φ×150L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS25B-1235 |
Available upon quote | 22mm | Koei Kasei | Black | 16φ×150L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS25B-4335 |
Available upon quote | 25mm | Koei Kasei | Black | 16φ×150L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS25B-1335 |
Available upon quote | 26mm | Koei Kasei | Black | 16φ×150L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS25B-3135 |
Available upon quote | 28mm | Koei Kasei | Black | 16φ×150L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS25B-8435 |
Available upon quote | 30mm | Koei Kasei | Black | 16φ×150L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS25B-1435 |
Available upon quote | 32mm | Koei Kasei | Black | 16φ×150L | Weather-resistant PP｜ABS | SUS bolt nut |
|
|
KFBS25B-8115 |
Available upon quote | 8mm | Koei Kasei | Black | 16φ×50L | Weather-resistant PP｜ABS | SUS bolt nut |
Click on the part number for more information about each product
Customers who viewed this product also viewed

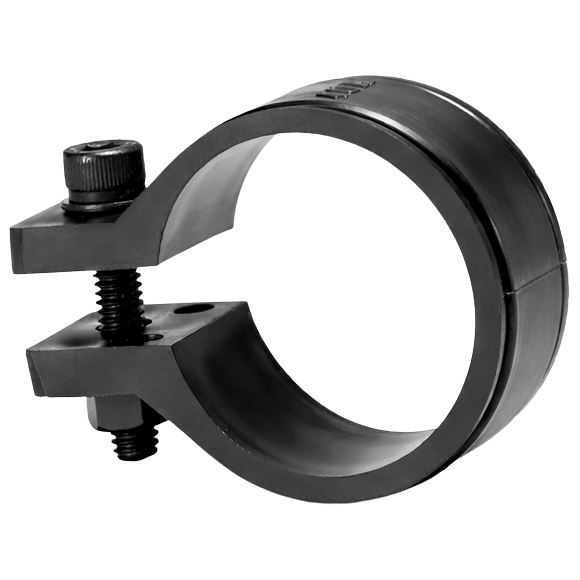

Other products of Koyuei Nariyama Nanashi Factory
