About This Product

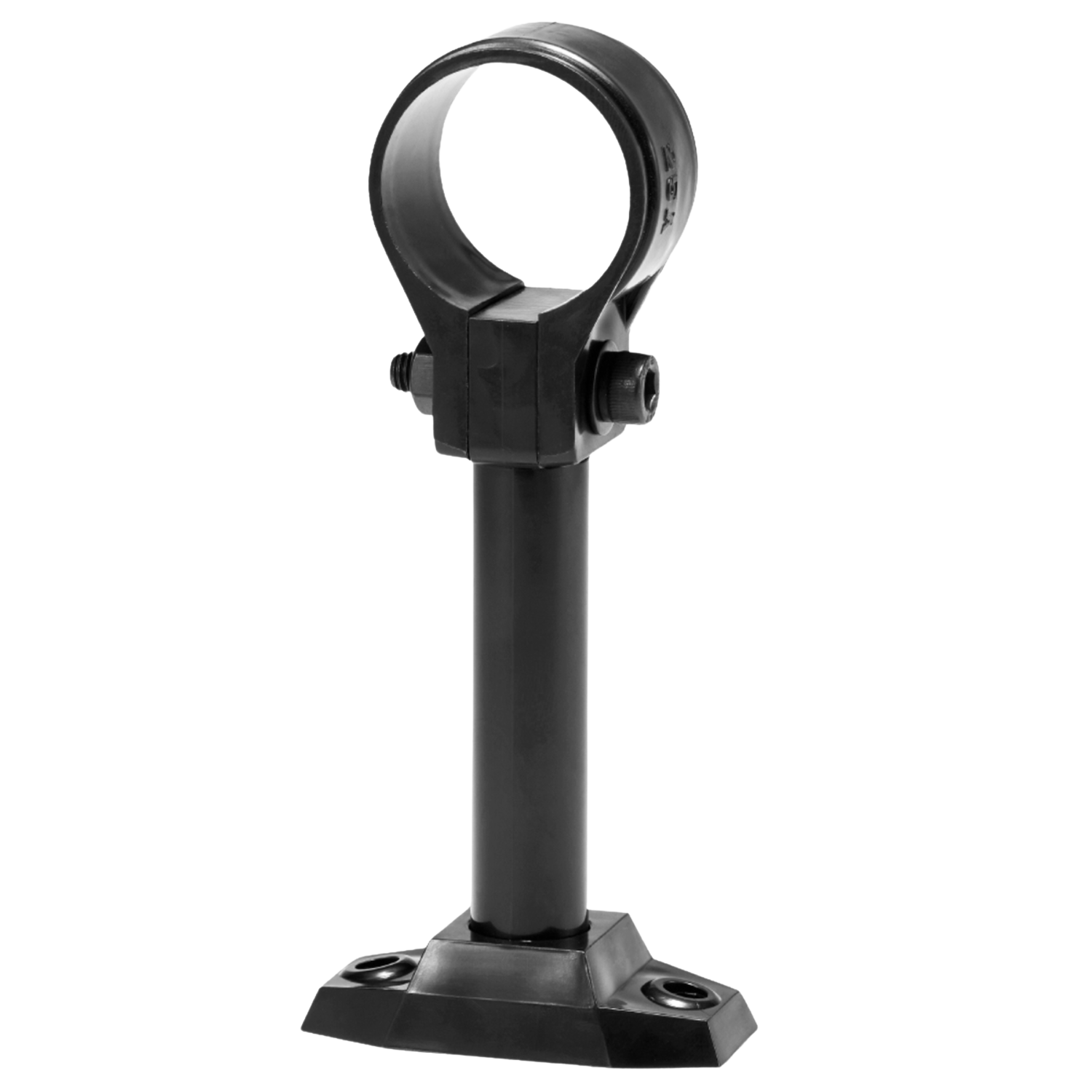

■For support and steady rest of standpipe
Secure the height from the wall and use it as a support metal fitting (standing band) for steadying the standpipe.
■Selectable bracket size
・16φ×50L/100L/150L/200L →Regular size
・20φ×75L/125L →For more sturdy installation
*For 66.7φ or more, only 20φ×100L, 150L, 200L
*White and light gray only, available in 200-300L
■Height adjustable
You can easily cut the bracket to adjust it to your desired height.
*Please use a PVC cutter or saw for cutting.
■Angle adjustment possible
You can use it by adjusting the bracket and pedestal to your desired angle.
*Please use hard plastic adhesive to completely adhere.
■Lightweight
The extremely light material reduces power energy.
■Easy installation
The material is both moderately flexible and strong, so it can be easily removed and installed from the middle of the pipe.
*Excessive expansion may damage the base material.
■Safe for use around water and outdoors
Uses weather-resistant grade polypropylene resin as the base material. It also has excellent corrosion resistance and electrical insulation properties.
*Deterioration may progress depending on the usage environment.
■A wide variety of colors (up to 8 colors)
・Black, White, Gray, Light Gray, Silver, Milky, Ivory, Chocolate
■Wide size range (up to 29 sizes)
Matches piping standards such as gas pipes, PVC pipes, copper pipes, coated steel pipes, and cross-linked polyethylene pipes.
* Applicable pipe outer diameter (A): 16φ to 114φ
■Reliable domestic products
We do everything in-house, from mold polishing to molding processing, inspection, deburring, and packaging.
*Due to the large number of manual processes involved, delivery may take some time depending on the amount ordered.
(Note)
Because there are many variations in size, color, and tightening accessories, only some model numbers are listed.
*If your desired size/color combination is not available, please contact us separately.
-
Product
Resin pipe clamp bracket set | For supporting and steadying stand pipes
-
Handling Company
Koyuei Nariyama Nanashi Factory
-
Categories
-
Usage Scenarios
Architecture & Construction Use / Chemical Industry Use / Electronics & Electrical Use
50 Models of Resin pipe clamp bracket set | For supporting and steadying stand pipes
Items marked with have different values depending on the model number.
Click on the part number for more information about each product
| Product Image | Part Number | Price (excluding tax) | A | Brand | Color | G×L | Material | Tightening accessories |
|---|---|---|---|---|---|---|---|---|
|
|
KFBS23-1115 |
Available upon quote | 18mm | Koei Kasei | Black | 16φ×50L | Weather-resistant PP｜ABS | SUS bolt nut |
|
|
KFBS23-2215 |
Available upon quote | 19mm | Koei Kasei | Black | 16φ×50L | Weather-resistant PP｜ABS | SUS bolt nut |
|
|
KFBS23-3015 |
Available upon quote | 20mm | Koei Kasei | Black | 16φ×50L | Weather-resistant PP｜ABS | SUS bolt nut |
|
|
KFBS23-1215 |
Available upon quote | 22mm | Koei Kasei | Black | 16φ×50L | Weather-resistant PP｜ABS | SUS bolt nut |
|
|
KFBS23-1315 |
Available upon quote | 26mm | Koei Kasei | Black | 16φ×50L | Weather-resistant PP｜ABS | SUS bolt nut |
|
|
KFBS23-0315 |
Available upon quote | 27.2mm | Koei Kasei | Black | 16φ×50L | Weather-resistant PP｜ABS | SUS bolt nut |
|
|
KFBS23-1415 |
Available upon quote | 32mm | Koei Kasei | Black | 16φ×50L | Weather-resistant PP｜ABS | SUS bolt nut |
|
|
KFBS23-0415 |
Available upon quote | 34mm | Koei Kasei | Black | 16φ×50L | Weather-resistant PP｜ABS | SUS bolt nut |
|
|
KFBS23-1515 |
Available upon quote | 38mm | Koei Kasei | Black | 16φ×50L | Weather-resistant PP｜ABS | SUS bolt nut |
|
|
KFBS23-2165 |
Available upon quote | 16mm | Koei Kasei | Black | 20φ×75L | Weather-resistant PP｜ABS | SUS bolt nut |
|
|
KFBS23-1165 |
Available upon quote | 18mm | Koei Kasei | Black | 20φ×75L | Weather-resistant PP｜ABS | SUS bolt nut |
|
|
KFBS23-2265 |
Available upon quote | 19mm | Koei Kasei | Black | 20φ×75L | Weather-resistant PP｜ABS | SUS bolt nut |
|
|
KFBS23-3065 |
Available upon quote | 20mm | Koei Kasei | Black | 20φ×75L | Weather-resistant PP｜ABS | SUS bolt nut |
|
|
KFBS23-1265 |
Available upon quote | 22mm | Koei Kasei | Black | 20φ×75L | Weather-resistant PP｜ABS | SUS bolt nut |
|
|
KFBS23-1365 |
Available upon quote | 26mm | Koei Kasei | Black | 20φ×75L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS23-0365 |
Available upon quote | 27.2mm | Koei Kasei | Black | 20φ×75L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS23-1465 |
Available upon quote | 32mm | Koei Kasei | Black | 20φ×75L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS23-0465 |
Available upon quote | 34mm | Koei Kasei | Black | 20φ×75L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS23-1565 |
Available upon quote | 38mm | Koei Kasei | Black | 20φ×75L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS23-2125 |
Available upon quote | 16mm | Koei Kasei | Black | 16φ×100L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS23-1125 |
Available upon quote | 18mm | Koei Kasei | Black | 16φ×100L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS23-2225 |
Available upon quote | 19mm | Koei Kasei | Black | 16φ×100L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS23-3025 |
Available upon quote | 20mm | Koei Kasei | Black | 16φ×100L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS23-1225 |
Available upon quote | 22mm | Koei Kasei | Black | 16φ×100L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS23-1325 |
Available upon quote | 26mm | Koei Kasei | Black | 16φ×100L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS23-0325 |
Available upon quote | 27.2mm | Koei Kasei | Black | 16φ×100L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS23-1425 |
Available upon quote | 32mm | Koei Kasei | Black | 16φ×100L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS23-0425 |
Available upon quote | 34mm | Koei Kasei | Black | 16φ×100L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS23-1525 |
Available upon quote | 38mm | Koei Kasei | Black | 16φ×100L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS23-2185 |
Available upon quote | 16mm | Koei Kasei | Black | 20φ×125L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS23-1185 |
Available upon quote | 18mm | Koei Kasei | Black | 20φ×125L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS23-2285 |
Available upon quote | 19mm | Koei Kasei | Black | 20φ×125L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS23-3085 |
Available upon quote | 20mm | Koei Kasei | Black | 20φ×125L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS23-1285 |
Available upon quote | 22mm | Koei Kasei | Black | 20φ×125L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS23-1385 |
Available upon quote | 26mm | Koei Kasei | Black | 20φ×125L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS23-0385 |
Available upon quote | 27.2mm | Koei Kasei | Black | 20φ×125L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS23-1485 |
Available upon quote | 32mm | Koei Kasei | Black | 20φ×125L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS23-0485 |
Available upon quote | 34mm | Koei Kasei | Black | 20φ×125L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS23-1585 |
Available upon quote | 38mm | Koei Kasei | Black | 20φ×125L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS23-2135 |
Available upon quote | 16mm | Koei Kasei | Black | 16φ×150L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS23-1135 |
Available upon quote | 18mm | Koei Kasei | Black | 16φ×150L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS23-2235 |
Available upon quote | 19mm | Koei Kasei | Black | 16φ×150L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS23-3035 |
Available upon quote | 20mm | Koei Kasei | Black | 16φ×150L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS23-1235 |
Available upon quote | 22mm | Koei Kasei | Black | 16φ×150L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS23-1335 |
Available upon quote | 26mm | Koei Kasei | Black | 16φ×150L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS23-0335 |
Available upon quote | 27.2mm | Koei Kasei | Black | 16φ×150L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS23-1435 |
Available upon quote | 32mm | Koei Kasei | Black | 16φ×150L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS23-0435 |
Available upon quote | 34mm | Koei Kasei | Black | 16φ×150L | Weather-resistant PP｜ABS | SUS bolt nut |
|
KFBS23-1535 |
Available upon quote | 38mm | Koei Kasei | Black | 16φ×150L | Weather-resistant PP｜ABS | SUS bolt nut |
|
|
KFBS23-2115 |
Available upon quote | 16mm | Koei Kasei | Black | 16φ×50L | Weather-resistant PP｜ABS | SUS bolt nut |
