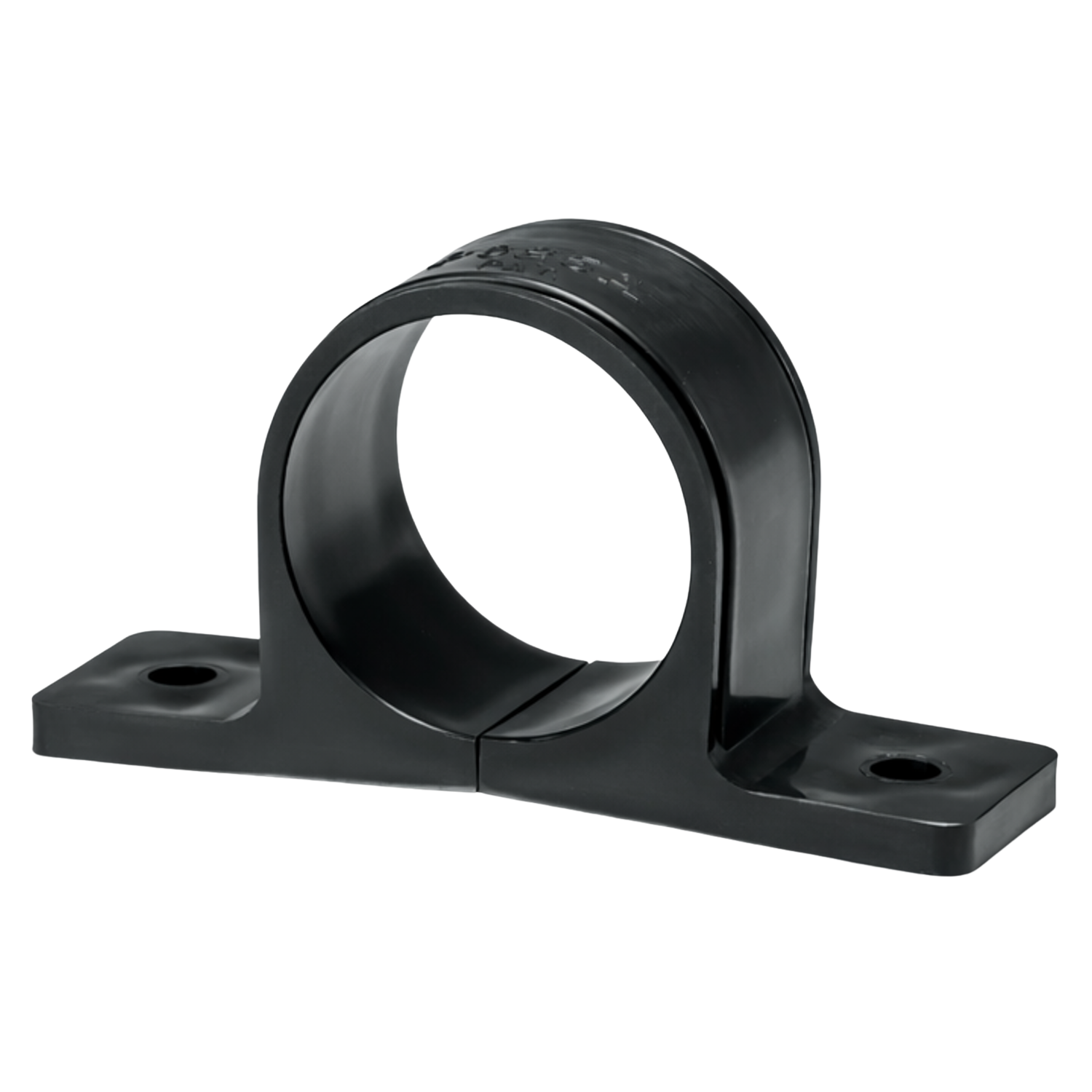

Resin saddle band｜Supports and fixes the pipe by lifting it up
Koyuei Nariyama Nanashi Factory
🏗️
Architecture & Construction Use
🧪
Chemical Industry Use
💻
Electronics & Electrical Use
About This Product
■Fixed by lifting it off the wall or floor
Prevents dust accumulation on the mounting surface, corrosion, and damage to the pipe.
■Height adjustable
By stacking resin saddle band bases (sold separately), the mounting height can be adjusted in 5mm increments, making it possible to install on uneven or stepped surfaces.
■Lightweight
The extremely light material reduces power energy.
■Easy installation
The material is both moderately flexible and strong, so it can be easily removed and installed from the middle of the pipe.
*Excessive expansion may damage the base material.
■Safe for use around water and outdoors
Uses weather-resistant grade polypropylene resin as the base material. It also has excellent corrosion resistance and electrical insulation properties.
*Deterioration may progress depending on the usage environment.
■A wide variety of colors (up to 9 colors)
・Black, White, Gray, Light Gray, Silver, Milky, Ivory, Natural, Chocolate
■Wide range of sizes (up to 27 sizes)
Matches piping standards such as gas pipes, PVC pipes, copper pipes, coated steel pipes, and cross-linked polyethylene pipes.
* Applicable pipe outer diameter: 13φ to 60.5φ
*The number of sizes available varies depending on the color.
■Useful in various usage scenes
・Cable storage fasteners around the desk
・Mounting stays for the top and side panels of metal racks
- Fall prevention fittings for various supports such as antenna masts
・Security camera mounting stay for rain gutter
・Joints of various pipes such as erector pipes
- Fasteners such as wood that are fixed to single pipes
・Various piping support (support for cross-linked polyethylene pipes with heat insulating material under the floor, etc.)
■Reliable domestic products
We do everything in-house, from mold polishing to molding processing, inspection, deburring, and packaging.
*Due to the large number of manual processes involved, delivery may take some time depending on the amount ordered.
(Note)
Because there are many variations in size and color, only some model numbers are listed.
*If your desired size/color combination is not available, please contact us separately.
-
Product
Resin saddle band｜Supports and fixes the pipe by lifting it up
-
Handling Company
Koyuei Nariyama Nanashi Factory
-
Categories
-
Usage Scenarios
Architecture & Construction Use / Chemical Industry Use / Electronics & Electrical Use
54 Models of Resin saddle band｜Supports and fixes the pipe by lifting it up
Items marked with have different values depending on the model number.
Click on the part number for more information about each product
| Product Image | Part Number | Price (excluding tax) | A | Brand | Color | Compatible pedestal | Material |
|---|---|---|---|---|---|---|---|
|
|
KFBS01-2105 |
Available upon quote | 16mm | Koei Kasei | Black | No. 1 | Weather resistant PP |
|
|
KFBS01-0105 |
Available upon quote | 17.3mm | Koei Kasei | Black | No. 1 | Weather resistant PP |
|
|
KFBS01-1105 |
Available upon quote | 18mm | Koei Kasei | Black | No. 1 | Weather resistant PP |
|
|
KFBS01-2205 |
Available upon quote | 19mm | Koei Kasei | Black | No. 1 | Weather resistant PP |
|
|
KFBS01-3005 |
Available upon quote | 20mm | Koei Kasei | Black | No. 1 | Weather resistant PP |
|
|
KFBS01-0205 |
Available upon quote | 21.7mm | Koei Kasei | Black | No. 1 | Weather resistant PP |
|
|
KFBS01-1205 |
Available upon quote | 22mm | Koei Kasei | Black | No. 1 | Weather resistant PP |
|
|
KFBS01-2305 |
Available upon quote | 22.2mm | Koei Kasei | Black | No. 1 | Weather resistant PP |
|
|
KFBS01-3305 |
Available upon quote | 23mm | Koei Kasei | Black | No. 1 | Weather resistant PP |
|
|
KFBS01-3605 |
Available upon quote | 25.4mm | Koei Kasei | Black | No. 2 | Weather resistant PP |
|
|
KFBS01-1305 |
Available upon quote | 26mm | Koei Kasei | Black | No. 2 | Weather resistant PP |
|
|
KFBS01-0305 |
Available upon quote | 27.2mm | Koei Kasei | Black | No. 2 | Weather resistant PP |
|
|
KFBS01-2405 |
Available upon quote | 28.6mm | Koei Kasei | Black | No. 2 | Weather resistant PP |
|
|
KFBS01-3405 |
Available upon quote | 31mm | Koei Kasei | Black | No. 3 | Weather resistant PP |
|
|
KFBS01-1405 |
Available upon quote | 32mm | Koei Kasei | Black | No. 3 | Weather resistant PP |
|
KFBS01-0405 |
Available upon quote | 34mm | Koei Kasei | Black | No. 3 | Weather resistant PP |
|
KFBS01-2505 |
Available upon quote | 34.9mm | Koei Kasei | Black | No. 3 | Weather resistant PP |
|
KFBS01-3805 |
Available upon quote | 37.6mm | Koei Kasei | Black | No. 4 | Weather resistant PP |
|
KFBS01-1505 |
Available upon quote | 38mm | Koei Kasei | Black | No. 4 | Weather resistant PP |
|
KFBS01-2605 |
Available upon quote | 41.3mm | Koei Kasei | Black | No. 4 | Weather resistant PP |
|
KFBS01-0505 |
Available upon quote | 42.7mm | Koei Kasei | Black | No. 4 | Weather resistant PP |
|
KFBS01-3905 |
Available upon quote | 45.8mm | Koei Kasei | Black | No. 5 | Weather resistant PP |
|
KFBS01-1605 |
Available upon quote | 48mm | Koei Kasei | Black | No. 5 | Weather resistant PP |
|
KFBS01-0605 |
Available upon quote | 48.6mm | Koei Kasei | Black | No. 5 | Weather resistant PP |
|
KFBS01-4005 |
Available upon quote | 52mm | Koei Kasei | Black | No. 6 | Weather resistant PP |
|
KFBS01-0705 |
Available upon quote | 60.5mm | Koei Kasei | Black | No. 6 | Weather resistant PP |
|
KFBS01-5700 |
Available upon quote | 13mm | Koei Kasei | White | No. 1 | Weather resistant PP |
|
KFBS01-2100 |
Available upon quote | 16mm | Koei Kasei | White | No. 1 | Weather resistant PP |
|
KFBS01-0100 |
Available upon quote | 17.3mm | Koei Kasei | White | No. 1 | Weather resistant PP |
|
KFBS01-1100 |
Available upon quote | 18mm | Koei Kasei | White | No. 1 | Weather resistant PP |
|
KFBS01-2200 |
Available upon quote | 19mm | Koei Kasei | White | No. 1 | Weather resistant PP |
|
KFBS01-3000 |
Available upon quote | 20mm | Koei Kasei | White | No. 1 | Weather resistant PP |
|
KFBS01-0200 |
Available upon quote | 21.7mm | Koei Kasei | White | No. 1 | Weather resistant PP |
|
KFBS01-1200 |
Available upon quote | 22mm | Koei Kasei | White | No. 1 | Weather resistant PP |
|
KFBS01-2300 |
Available upon quote | 22.2mm | Koei Kasei | White | No. 1 | Weather resistant PP |
|
KFBS01-3300 |
Available upon quote | 23mm | Koei Kasei | White | No. 1 | Weather resistant PP |
|
KFBS01-3600 |
Available upon quote | 25.4mm | Koei Kasei | White | No. 2 | Weather resistant PP |
|
KFBS01-1300 |
Available upon quote | 26mm | Koei Kasei | White | No. 2 | Weather resistant PP |
|
KFBS01-0300 |
Available upon quote | 27.2mm | Koei Kasei | White | No. 2 | Weather resistant PP |
|
KFBS01-2400 |
Available upon quote | 28.6mm | Koei Kasei | White | No. 2 | Weather resistant PP |
|
KFBS01-3400 |
Available upon quote | 31mm | Koei Kasei | White | No. 3 | Weather resistant PP |
|
KFBS01-1400 |
Available upon quote | 32mm | Koei Kasei | White | No. 3 | Weather resistant PP |
|
KFBS01-0400 |
Available upon quote | 34mm | Koei Kasei | White | No. 3 | Weather resistant PP |
|
KFBS01-2500 |
Available upon quote | 34.9mm | Koei Kasei | White | No. 3 | Weather resistant PP |
|
KFBS01-3800 |
Available upon quote | 37.6mm | Koei Kasei | White | No. 4 | Weather resistant PP |
|
KFBS01-1500 |
Available upon quote | 38mm | Koei Kasei | White | No. 4 | Weather resistant PP |
|
KFBS01-2600 |
Available upon quote | 41.3mm | Koei Kasei | White | No. 4 | Weather resistant PP |
|
KFBS01-0500 |
Available upon quote | 42.7mm | Koei Kasei | White | No. 4 | Weather resistant PP |
|
KFBS01-3900 |
Available upon quote | 45.8mm | Koei Kasei | White | No. 5 | Weather resistant PP |
|
KFBS01-1600 |
Available upon quote | 48mm | Koei Kasei | White | No. 5 | Weather resistant PP |
|
KFBS01-0600 |
Available upon quote | 48.6mm | Koei Kasei | White | No. 5 | Weather resistant PP |
|
KFBS01-4000 |
Available upon quote | 52mm | Koei Kasei | White | No. 6 | Weather resistant PP |
|
KFBS01-0700 |
Available upon quote | 60.5mm | Koei Kasei | White | No. 6 | Weather resistant PP |
|
KFBS01-5705 |
Available upon quote | 13mm | Koei Kasei | Black | No. 1 | Weather resistant PP |
Click on the part number for more information about each product
