10 mSATA SSD Manufacturers in 2024
This section provides an overview for msata ssds as well as their applications and principles. Also, please take a look at the list of 10 msata ssd manufacturers and their company rankings. Here are the top-ranked msata ssd companies as of November, 2024: 1.Exascend, 2.Transcend Information. Inc., 3.KanBkam.
Table of Contents
What Is MSATA SSD?
MSATA SSD is used primarily as a storage device in notebooks and compact desktop PCs.
MSATA indicates the connection method and is used by plugging into the connection terminals provided on the motherboard. SSD is also a type of storage device. Unlike HDD, which is a magnetic storage device, SSD is a semiconductor storage device.
MSATA SSDs are characterized by their connection method and bare form. This thin and compact shape allows more space for incorporation in PCs. This contributes to the development of thin and light PCs.
Uses for MSATA SSDs
As mentioned above, MSATA SSD is mainly used as a storage device in notebook PCs and compact desktop PCs. Because of its thin card shape and compact form, it is often installed in small-sized PCs and notebook PCs.
Contributing to thinner and lighter PCs, MASATA SSD is used as a drive for storing OS, applications, and data in notebook PCs and compact desktop PCs.
Thus, it is an indispensable storage device for PCs that require compact and lightweight specifications.
Principle of MSATA SSDs
MSATA SSD is a semiconductor storage device equipped with an interface that reads and writes in accordance with the MSATA standard to a Solid State Drive (SSD).
Flash memory records data by storing and releasing electrons in a structure called a cell. The cells in which electrons are stored are insulated so that even if the power supply is cut off, the electrons are retained and can be used as nonvolatile memory.
MSATA (mini serial ATA) is a type of SATA interface standard that uses a single transfer path to send data, eliminating the wait time caused by misalignment of transmission paths that occurs when data is sent over multiple paths, thereby achieving higher speeds.
MSATA achieves a maximum speed of 6 Gbps.
MSATA SSD combines SSD and MSATA technology to achieve both smaller size and lighter weight and higher speed.

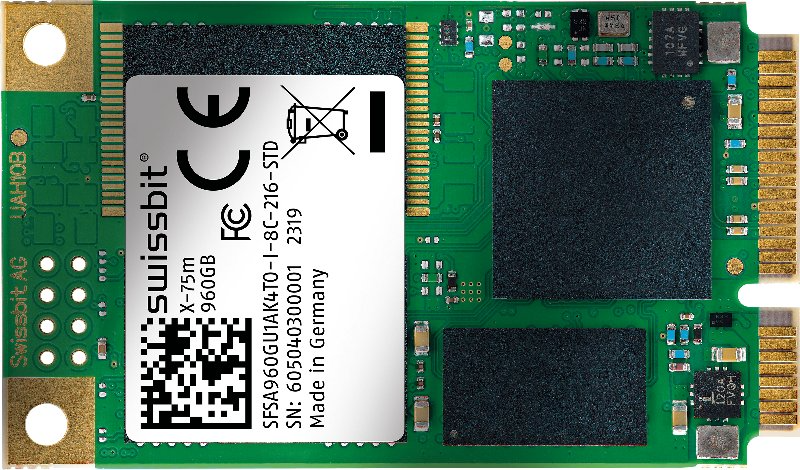

Structure of MSATA SSD
The shape of MSATA SSD is that of a card, which is much thinner than the thin rectangular shape of SSDs. This allows for further space saving.
Taking advantage of the small size of MSATA SSD, some models can be retrofitted with MSATA SSD even in PCs equipped with SSDs. In addition, MSATA SSD is characterized by its bare base.
Other Information about MSATA SSD
1. Similar Products to MSATA SSD
There are other storage devices using SSDs besides MSATA SSDs. The differences between them are as follows:
2.5-inch SSD
2.5-inch SSDs are 2.5 inches in size and have a SATA connection interface. 2.5-inch SSDs have the same shape as 2.5-inch HDDs and are used to speed up bootup and data transfer speeds in notebook PCs. They are larger than MSATA SSDs but offer larger storage capacities.
M.2 SSD
M.2 SSD is the successor to MSATA SSD and, like MSATA SSD, is plugged into the motherboard connector. MSATA SSD has a theoretical transfer rate of 40 Gbps, which is 6.7 times faster than MSATA SSD. It is also stick-shaped and more compact than MSATA SSD.
2. Merits and Demerits of MSATA SSD
The merits and demerits of MSATA SSD are described below, using a 2.5-inch HDD as a comparison target.
Merit
MSATA SSD is smaller and thinner than 2.5-inch HDDs. Although the speed of the connection interface is the same, MSATA SSD is several to ten times faster than 2.5-inch HDDs when considering the access speed including storage devices.
In addition, MSATA SSDs are more resistant to vibration and shock, as they have no mechanical parts.
Disadvantages
The price per GB for MSATA SDD is several times higher than for 2.5-inch HDDs, making them very expensive when large capacities are needed. Maximum capacity is also limited to 1TB for mSATA SSD, while 2.5-inch HDDs are offered in capacities of 4TB or more.
List of 10 mSATA SSD Manufacturers
*Including some distributors, etc.
Sort by Features
- Default
- Company Size: largest first
- Year Founded: oldest first
- Year Founded: earliest first
Sort by Area
- United States of America
- China
- Germany
- Taiwan
- United Kingdom
-
-
-
Delkin Devices
Industrial mSATA SSD
Manufacturer Overview
Delkin Devices, established in 1986, is an American manufacturer headquartered in Poway, San Diego County, California, specializing in industrial flash storage solutions. Their product portfolio includes NAND-flash storage-based solutions such as industrial secure digital (SD) and compact flash (CF) cards, solid-state drives (SSD), and universal serial bus (USB) devices. These products are utilized for high data integration processes, such as booting operating systems (OS), loading custom application software, and logging critical data. Delkin caters to a wide range of industries to meet the growing demands of the Internet of Things (IoT), including healthcare, transportation, aerospace, embedded computing, and security.
-
-
-
-
-
-
-
Transcend Information. Inc.
mSATA SSDs
Manufacturer Overview
Transcend Information Inc, founded in 1988 in Taiwan, China is a manufacturer of digital storage and multimedia products for commercial, industrial and personal uses. The company with their cutting-edge digital storage and multimedia solutions, make advanced peripherals that relate with modernized high-tech lifestyles involving SSDs, memory modules, USB flash drives, dashcams and personal storage cloud services, which usually find applications in industrial automation, consumer electronics, healthcare, transportation and enterprise applications. They are the second organization in the world to receive ISO 9001, ISO 14001, and QC080000 approval at once.
-
-
-
-
-
Shenzhen KingSpec Electronics Technology Co., Ltd.
M.2 SATA SSD NT 2280
Manufacturer Overview
Shenzhen KingSpec Electronics Technology Co., Ltd., established in 2007, is a key manufacturer and supplier of Solid State Drives (SSD) headquartered in Guangdong Province, China. KingSpec boasts a highly skilled research and development team devoted to advancing and exploring industrial solid-state drive (SSD) technology. The company's primary attention lies in researching and developing wide temperature range SSDs. Applying Aspec SSD is relevant in challenging situations characterized by extreme hot and cold temperatures, elevated pressure, inclement weather conditions, and rugged terrains.
-
-
-
-
-
Advantech Co., Ltd.
mSATA SSDs
Manufacturer Overview
Advantech Co., Ltd., established in 1981 in Neihu District, Taipei, is a pioneering manufacturer and designer of a range of products, solutions, and services. The company boasts an extensive product portfolio that includes system integration, customer-centric design services, cutting-edge embedded systems, automation products, and global logistics support. Its aim is to usher in an era of an intelligent planet through its automation and embedded computing products and solutions. These diverse products and services empower smarter ways of working and living to enhance the quality of life and productivity across various industries.
-
-
-
-
-
-
-
-
-
-
-
-
-
KanBkam
Dogfish mSATA SSD
-
-
mSATA SSD Manufacturer Ranking
*Including some distributors, etc.Ranking as of November 2024
Derivation Method| Rank | Company | Click Share |
|---|---|---|
| 1 | Exascend |
35.6%
|
| 2 | Transcend Information. Inc. |
12.9%
|
| 3 | KanBkam |
9.9%
|
| 4 | VisionTek Products LLC |
8.9%
|
| 5 | Delkin Devices |
8.9%
|
| 6 | Alfa Memory |
6.9%
|
| 7 | ICP Deutschland GmbH |
6.9%
|
| 8 | HONG KONG HUATOOP TECHNOLOGY LIMITED |
5.0%
|
| 9 | Shenzhen KingSpec Electronics Technology Co., Ltd. |
4.0%
|
| 10 | Advantech Co., Ltd. |
1.0%
|
Derivation Method
The ranking is calculated based on the click share within the msata ssd page as of November 2024. Click share is defined as the total number of clicks for all companies during the period divided by the number of clicks for each company.Number of Employees
Newly Established Company
- KanBkam: 2016 (8 years ago)
- HONG KONG HUATOOP TECHNOLOGY LIMITED: 2008 (16 years ago)
- Shenzhen KingSpec Electronics Technology Co., Ltd.: 2007 (17 years ago)
Company with a History
- Delkin Devices: 1986 (38 years ago)
- VisionTek Products LLC: 1988 (36 years ago)
- Transcend Information. Inc.: 1989 (35 years ago)
mSATA SSD Manufacturers in United States
*Including some distributors, etc.
Global Distribution of mSATA SSD Manufacturers by Country
*Including some distributors, etc.
| Country | Number of Companies | Share (%) |
|---|---|---|
United States of America
|
2 | 25.0% |
China
|
2 | 25.0% |
Taiwan
|
2 | 25.0% |
United Kingdom
|
1 | 12.5% |
Germany
|
1 | 12.5% |
