High performance 1D barcode reader BCN-1200U
Busicom Co., Ltd.
About This Product
Long range (separate reading) CCD reader with excellent workability and operability.
■Features
・Maximum reading distance is 480mm
・Can read barcodes on paper as well as on LCD screens
・Compliant with protection class IP42, durable with drop resistance of 1.5m. No moving parts in the module, reinforced internal and external structure
■Long range type
It is a long range type with a maximum reading distance of 480mm*, so barcodes can be read from a distance. *When JAN code magnification is 100%
■LCD screen compatible
It reads barcodes displayed and printed on various media, including barcodes on paper, electronic payment barcodes displayed on smartphones, and barcodes on membership card apps.
■Hands-free stand (optional)
When used with a stand (sold separately), speedy hands-free reading is possible.
-
Product
High performance 1D barcode reader BCN-1200U
-
Handling Company
Busicom Co., Ltd.
-
Categories
3 Models of High performance 1D barcode reader BCN-1200U
Items marked with have different values depending on the model number.
Click on the part number for more information about each product
| Product Image | Part Number | Price (excluding tax) | Body color | CPU | Cable (approx.) | Compatible barcode 1 | Compatible barcode 2 | Correspondence | Current consumption (mA) / Power consumption (mW) | External dimensions (approx.) | Interface | JAN code | Light source | Minimum resolution | Operating temperature/humidity (non-condensing) | PCS value | Product type | Reading confirmation | Reading distance (CODE39/5mil) | Reading method | Safety standards | Scan speed | Warranty period | Weight (approx.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
BCN-1200U-W |
Available upon quote | Snow white | 32bit | 1.1m (Snow White only), 2.0m straight cable | JAN/EAN/UPC, book JAN → ISBN conversion, new magazine code (JAN13 + add-on 5), CODE39, CODE128, NW-7 (Codabar), ITF | GS1-128 (UCC/EAN128): Read only, cannot be edited, GS1 DataBar: Read only, cannot be edited | - | Maximum operation: 100mA, standby: 40mA | 75 (W) ×49 (D) ×150 (H) mm | USB Type-A | 4993707002261 | Red LED | 0.1mm | 0℃~40℃/10%~90% | 90% | High performance 1D barcode reader | Buzzer (selectable from 3 tones), LED (blue) | 0~40mm (depending on conditions) | 2,500pixel CCD | FCC Class-A, CE, RoHS | 300 scans/sec | 1 year | 85g (excluding cable) |
|
|

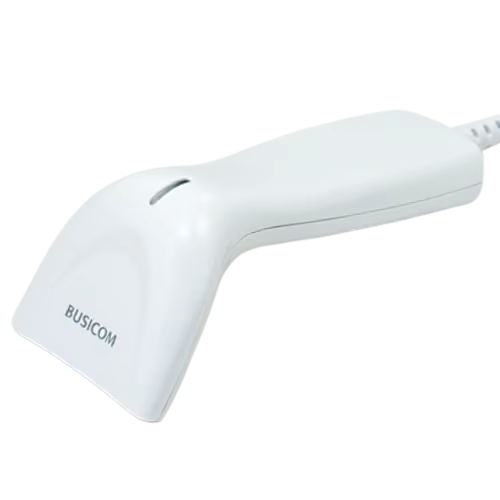

BCN-1200U-W-11 |
Available upon quote | Snow white | 32bit | 1.1m (Snow White only), 2.0m straight cable | JAN/EAN/UPC, book JAN → ISBN conversion, new magazine code (JAN13 + add-on 5), CODE39, CODE128, NW-7 (Codabar), ITF | GS1-128 (UCC/EAN128): Read only, cannot be edited, GS1 DataBar: Read only, cannot be edited | Short cable | Maximum operation: 100mA, standby: 40mA | 75 (W) ×49 (D) ×150 (H) mm | USB Type-A | 4993707002315 (short cable) | Red LED | 0.1mm | 0℃~40℃/10%~90% | 90% | High performance 1D barcode reader | Buzzer (selectable from 3 tones), LED (blue) | 0~40mm (depending on conditions) | 2,500pixel CCD | FCC Class-A, CE, RoHS | 300 scans/sec | 1 year | 85g (excluding cable) |
|
|

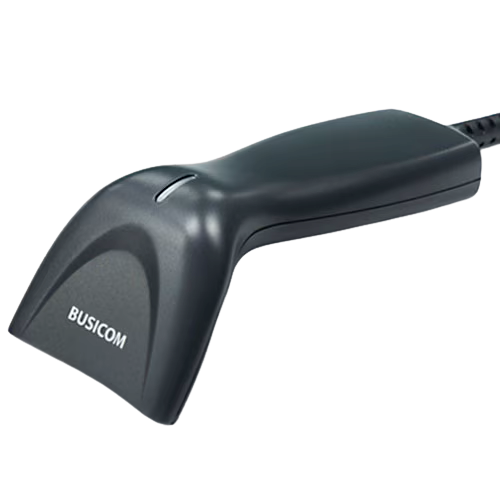

BCN-1200U-B |
Available upon quote | Silky black | 32bit | 1.1m (Snow White only), 2.0m straight cable | JAN/EAN/UPC, book JAN → ISBN conversion, new magazine code (JAN13 + add-on 5), CODE39, CODE128, NW-7 (Codabar), ITF | GS1-128 (UCC/EAN128): Read only, cannot be edited, GS1 DataBar: Read only, cannot be edited | - | Maximum operation: 100mA, standby: 40mA | 75 (W) ×49 (D) ×150 (H) mm | USB Type-A | 4993707002278 | Red LED | 0.1mm | 0℃~40℃/10%~90% | 90% | High performance 1D barcode reader | Buzzer (selectable from 3 tones), LED (blue) | 0~40mm (depending on conditions) | 2,500pixel CCD | FCC Class-A, CE, RoHS | 300 scans/sec | 1 year | 85g (excluding cable) |
