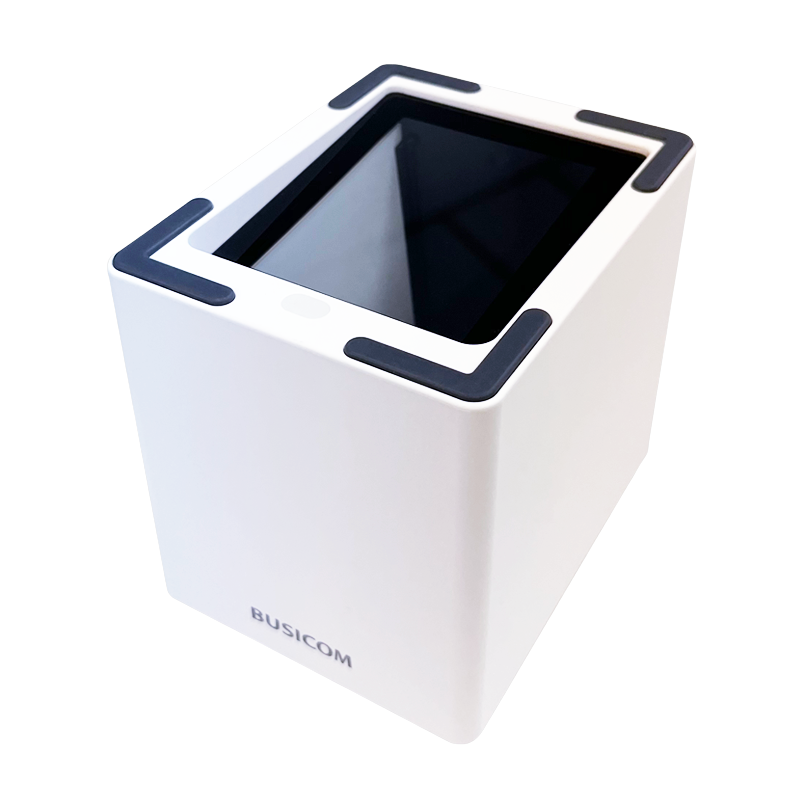

Tabletop QR code reader BC-NL3000UⅡ
Busicom Co., Ltd.
About This Product
Easy reading of smartphone payments and membership cards using QR codes and barcodes, just by holding them up.
■Features
・Desktop type ideal for reading QR codes/barcodes on smartphone screens and cards
・Proprietary scan engine achieves high quality reading
・3-year warranty for peace of mind
- Capable of reading QR code double-byte characters, including Japanese (Windows only, subject to other conditions)
■Simply hold up the 1D/2D barcode
For various mobile services such as membership cards, tickets, coupons, and QR code payments. After reading, it will go to automatic sleep mode. It can also be used outdoors with an illuminance limit of 100,000 lux.
■Multimedia compatible
It reads one-dimensional, two-dimensional, and QR codes displayed and printed on various media, such as QR codes for electronic payments displayed on QR payment apps, and codes on app membership cards using smartphones.
■Can also be connected to an iPad (connection example)
Wired connection is also possible with an iPad by using a conversion adapter or a dedicated USB Type-C cable.
-
Product
Tabletop QR code reader BC-NL3000UⅡ
-
Handling Company
Busicom Co., Ltd.
-
Categories
4 Models of Tabletop QR code reader BC-NL3000UⅡ
Items marked with have different values depending on the model number.
Click on the part number for more information about each product
| Product Image | Part Number | Price (excluding tax) | Body color | CPU | Cable (approx.) | Compatible barcode 1 | Compatible barcode 2 | Correspondence | Current consumption (mA) / Power consumption (mW) | External dimensions (approx.) | IP standard | Interface | JAN code | Light source | Minimum resolution | Operating temperature/humidity (non-condensing) | PCS value | Product type | Reading confirmation | Reading distance (CODE39/5mil) | Reading method | Safety standards | Scan speed | Warranty period | Weight (approx.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
BC-NL3000U2-W |
Available upon quote | White | 32bit | 2.0m straight cable | JAN/EAN/UPC, book JAN → ISBN conversion, new magazine code (JAN13 + add-on 5), CODE39, CODE128, NW-7 (Codabar), ITF | GS1-128 (UCC/EAN128): Read only, not editable, GS1 DataBar: Read only, not editable, QRcode, PDF417, Data Matrix, Micro QR | - | Maximum operating: 92.4mA, standby: 78mA, maximum power consumption 462mW | 89 (W) ×113 (D) ×104 (H) mm | IP42 | USB Type-A or USB Type-C | 4993707002629 | White LED | 0.1016mm | -20℃~50℃/5%~95% | Twenty five% | Tabletop QR code reader | Buzzer (3 tones, adjustable pitch), LED (green) | 10~70mm (depending on conditions) | 640×480pixel CMOS sensor | FCC Part15 Class-B, CE EMC Class-B01 | 30 scans/sec | 3 years | 282g (excluding cable) |
|
|
BC-NL3000U2-W-C |
Available upon quote | White | 32bit | 2.0m straight cable | JAN/EAN/UPC, book JAN → ISBN conversion, new magazine code (JAN13 + add-on 5), CODE39, CODE128, NW-7 (Codabar), ITF | GS1-128 (UCC/EAN128): Read only, not editable, GS1 DataBar: Read only, not editable, QRcode, PDF417, Data Matrix, Micro QR | USB Type-C | Maximum operating: 92.4mA, standby: 78mA, maximum power consumption 462mW | 89 (W) ×113 (D) ×104 (H) mm | IP42 | USB Type-A or USB Type-C | 4993707002742 (USB Type-C) | White LED | 0.1016mm | -20℃~50℃/5%~95% | Twenty five% | Tabletop QR code reader | Buzzer (3 tones, adjustable pitch), LED (green) | 10~70mm (depending on conditions) | 640×480pixel CMOS sensor | FCC Part15 Class-B, CE EMC Class-B01 | 30 scans/sec | 3 years | 282g (excluding cable) |
|
|
BC-NL3000U2-B |
Available upon quote | Black | 32bit | 2.0m straight cable | JAN/EAN/UPC, book JAN → ISBN conversion, new magazine code (JAN13 + add-on 5), CODE39, CODE128, NW-7 (Codabar), ITF | GS1-128 (UCC/EAN128): Read only, not editable, GS1 DataBar: Read only, not editable, QRcode, PDF417, Data Matrix, Micro QR | - | Maximum operating: 92.4mA, standby: 78mA, maximum power consumption 462mW | 89 (W) ×113 (D) ×104 (H) mm | IP42 | USB Type-A or USB Type-C | 4993707002636 | White LED | 0.1016mm | -20℃~50℃/5%~95% | Twenty five% | Tabletop QR code reader | Buzzer (3 tones, adjustable pitch), LED (green) | 10~70mm (depending on conditions) | 640×480pixel CMOS sensor | FCC Part15 Class-B, CE EMC Class-B01 | 30 scans/sec | 3 years | 282g (excluding cable) |
|
|
BC-NL3000U2-B-C |
Available upon quote | Black | 32bit | 2.0m straight cable | JAN/EAN/UPC, book JAN → ISBN conversion, new magazine code (JAN13 + add-on 5), CODE39, CODE128, NW-7 (Codabar), ITF | GS1-128 (UCC/EAN128): Read only, not editable, GS1 DataBar: Read only, not editable, QRcode, PDF417, Data Matrix, Micro QR | USB Type-C | Maximum operating: 92.4mA, standby: 78mA, maximum power consumption 462mW | 89 (W) ×113 (D) ×104 (H) mm | IP42 | USB Type-A or USB Type-C | 4993707002759 (USB Type-C) | White LED | 0.1016mm | -20℃~50℃/5%~95% | Twenty five% | Tabletop QR code reader | Buzzer (3 tones, adjustable pitch), LED (green) | 10~70mm (depending on conditions) | 640×480pixel CMOS sensor | FCC Part15 Class-B, CE EMC Class-B01 | 30 scans/sec | 3 years | 282g (excluding cable) |
Click on the part number for more information about each product
