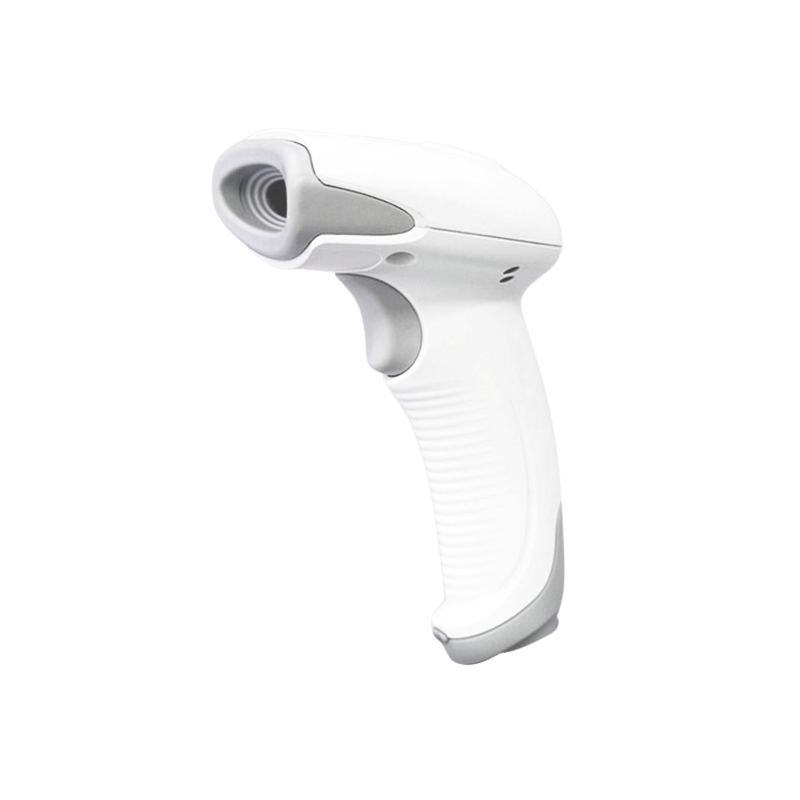

2D barcode reader BC-NL2200UⅢ
Busicom Co., Ltd.
About This Product
Both QR code and JAN code can be read with this one device. Compatible with major 1D and 2D barcodes.
■Features
・High-speed scanning of barcodes on the LCD screen
・Compliant with protection class IP42, durable with drop resistance of 1.2m
・Can be read from any direction in 360° without worrying about the orientation of the barcode
- Capable of reading QR code double-byte characters, including Japanese (Windows only, subject to other conditions)
■One-dimensional and two-dimensional barcodes can also be done with this one device.
It also supports major 1D and 2D barcodes and linked QR codes such as vehicle inspection certificates. High-speed scanning is possible not only on paper but also on barcodes on the LCD screen.
■Can be read in all directions
Can be read from any 360° direction. You can scan barcodes without worrying about their orientation, increasing work efficiency.
■Design based on ergonomics
BC-NL2200UⅢ has an ergonomic design that makes it easy to hold and use. Easy to fit in your hand, reducing stress and fatigue during long hours of work.
-
Product
2D barcode reader BC-NL2200UⅢ
-
Handling Company
Busicom Co., Ltd.
-
Categories
4 Models of 2D barcode reader BC-NL2200UⅢ
Items marked with have different values depending on the model number.
Click on the part number for more information about each product
| Product Image | Part Number | Price (excluding tax) | Body color | CPU | Cable (approx.) | Compatible barcode 1 | Compatible barcode 2 | Compatible barcode 3 | Correspondence | Current consumption (mA) / Power consumption (mW) | External dimensions (approx.) | IP standard | Interface | JAN code | Light source | Minimum resolution | Operating temperature/humidity (non-condensing) | PCS value | Product type | Reading confirmation | Reading distance (CODE39/5mil) | Reading method | Safety standards | Scan speed | Warranty period | Weight (approx.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
BC-NL2200U3-W |
Available upon quote | Snow white | 32bit | 1.9m straight cable | JAN/EAN/UPC, book JAN → ISBN conversion, new magazine code (JAN13 + add-on 5), CODE39, CODE128, NW-7 (Codabar), ITF | GS1-128 (UCC/EAN128): Read only, cannot edit, GS1 DataBar: Read only, cannot edit, QRcode, PDF417, Micro PDF, Data Matrix | Micro QR, GS1 DataBar (RSS/RSS composite symbol): Depending on conditions | - | Maximum operating: 201mA, standby: 35mA, maximum power consumption 950mW | 68 (W) ×101 (D) ×145 (H) mm | IP42 | USB Type-A or USB Type-C | 4993707002605 | White LED | 0.076mm | -20℃~60℃/5%~95% | 20% | 2D barcode reader | Buzzer (3 tones, adjustable pitch), LED (green) | 50~115mm | 640×480pixel CMOS sensor | FCC Class-A, CE, RoHS | 100 scans/sec | 1 year | 112g (excluding cable) |
|
|
BC-NL2200U3-W-C |
Available upon quote | Snow white | 32bit | 1.9m straight cable | JAN/EAN/UPC, book JAN → ISBN conversion, new magazine code (JAN13 + add-on 5), CODE39, CODE128, NW-7 (Codabar), ITF | GS1-128 (UCC/EAN128): Read only, cannot edit, GS1 DataBar: Read only, cannot edit, QRcode, PDF417, Micro PDF, Data Matrix | Micro QR, GS1 DataBar (RSS/RSS composite symbol): Depending on conditions | USB Type-C | Maximum operating: 201mA, standby: 35mA, maximum power consumption 950mW | 68 (W) ×101 (D) ×145 (H) mm | IP42 | USB Type-A or USB Type-C | 4993707002728 (USB Type-C) | White LED | 0.076mm | -20℃~60℃/5%~95% | 20% | 2D barcode reader | Buzzer (3 tones, adjustable pitch), LED (green) | 50~115mm | 640×480pixel CMOS sensor | FCC Class-A, CE, RoHS | 100 scans/sec | 1 year | 112g (excluding cable) |
|
|

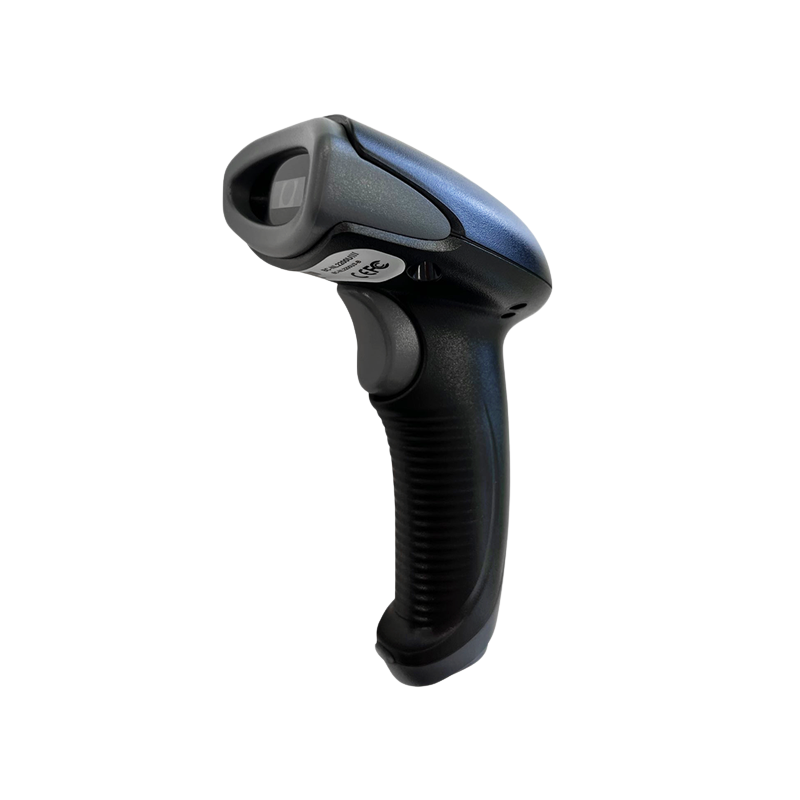

BC-NL2200U3-B |
Available upon quote | Matte black | 32bit | 1.9m straight cable | JAN/EAN/UPC, book JAN → ISBN conversion, new magazine code (JAN13 + add-on 5), CODE39, CODE128, NW-7 (Codabar), ITF | GS1-128 (UCC/EAN128): Read only, cannot edit, GS1 DataBar: Read only, cannot edit, QRcode, PDF417, Micro PDF, Data Matrix | Micro QR, GS1 DataBar (RSS/RSS composite symbol): Depending on conditions | - | Maximum operating: 201mA, standby: 35mA, maximum power consumption 950mW | 68 (W) ×101 (D) ×145 (H) mm | IP42 | USB Type-A or USB Type-C | 4993707002612 | White LED | 0.076mm | -20℃~60℃/5%~95% | 20% | 2D barcode reader | Buzzer (3 tones, adjustable pitch), LED (green) | 50~115mm | 640×480pixel CMOS sensor | FCC Class-A, CE, RoHS | 100 scans/sec | 1 year | 112g (excluding cable) |
|
|
BC-NL2200U3-B-C |
Available upon quote | Matte black | 32bit | 1.9m straight cable | JAN/EAN/UPC, book JAN → ISBN conversion, new magazine code (JAN13 + add-on 5), CODE39, CODE128, NW-7 (Codabar), ITF | GS1-128 (UCC/EAN128): Read only, cannot edit, GS1 DataBar: Read only, cannot edit, QRcode, PDF417, Micro PDF, Data Matrix | Micro QR, GS1 DataBar (RSS/RSS composite symbol): Depending on conditions | USB Type-C | Maximum operating: 201mA, standby: 35mA, maximum power consumption 950mW | 68 (W) ×101 (D) ×145 (H) mm | IP42 | USB Type-A or USB Type-C | 4993707002735 (USB Type-C) | White LED | 0.076mm | -20℃~60℃/5%~95% | 20% | 2D barcode reader | Buzzer (3 tones, adjustable pitch), LED (green) | 50~115mm | 640×480pixel CMOS sensor | FCC Class-A, CE, RoHS | 100 scans/sec | 1 year | 112g (excluding cable) |
