1D barcode reader BC-BR1000U
Busicom Co., Ltd.
About This Product
A power-saving barcode reader equipped with a CMOS sensor.
■Features
・GS1 DataBar compatible
・Highly accurate and smooth reading with a scanning speed of 200 scans/second and a minimum resolution of 0.07 mm
・The cable uses TPE, a high-quality material that is “strong,” “light,” and “flexible,” and has passed a 500,000-times bending test.
・A USB Type-C compatible model is also available, perfect for connecting laptops, tablets, etc.
■Excellent durability
The main body has a robust design that complies with protection class IP30 and is resistant to drops of 1.5m. Also suitable for business use.
■Low power consumption design
Equipped with a CMOS sensor, allowing operation with low power consumption. It will work even if connected to a tablet device that is not powered. (Depends on the device, environment, etc.)
■Replaceable USB cable
The main body USB cable is removable. Replacement cables are available as an option.
-
Product
1D barcode reader BC-BR1000U
-
Handling Company
Busicom Co., Ltd.
-
Categories
6 Models of 1D barcode reader BC-BR1000U
Items marked with have different values depending on the model number.
Click on the part number for more information about each product
| Product Image | Part Number | Price (excluding tax) | Body color | CPU | Cable (approx.) | Compatible barcode 1 | Compatible barcode 2 | Correspondence | Current consumption (mA) / Power consumption (mW) | External dimensions (approx.) | IP standard | Interface | JAN code | Light source | Minimum resolution | Operating temperature/humidity (non-condensing) | PCS value | Product type | Reading confirmation | Reading distance (CODE39/5mil) | Reading method | Safety standards | Scan speed | Warranty period | Weight (approx.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
BC-BR1000U-W |
Available upon quote | White | 32bit | 1.7m straight cable | JAN/EAN/UPC, book JAN → ISBN conversion, new magazine code (JAN13 + add-on 5), CODE39, CODE128, NW-7 (Codabar), ITF | GS1-128 (UCC/EAN128): Read only, cannot be edited, GS1 DataBar: Read only, cannot be edited | - | Maximum operation: 70mA, standby: 43mA | 80 (W) × 48 (D) × 161.5 (H) mm | IP30 | USB Type-A or USB Type-C | 4993707002476 | Red LED | 0.07mm | 0℃~40℃/5%~85% | 60% | 1D barcode reader | Buzzer (3 tones, pitch adjustable), LED (blue) | 0~50mm (depending on conditions) | 2,500pixel CMOS sensor | RoHS | 200 scans/sec | 1 year | 110g (excluding cable) |
|
|

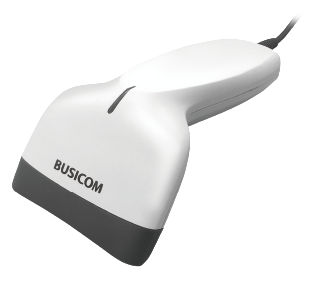

BC-BR1000U-W-C |
Available upon quote | White | 32bit | 1.7m straight cable | JAN/EAN/UPC, book JAN → ISBN conversion, new magazine code (JAN13 + add-on 5), CODE39, CODE128, NW-7 (Codabar), ITF | GS1-128 (UCC/EAN128): Read only, cannot be edited, GS1 DataBar: Read only, cannot be edited | USB Type-C | Maximum operation: 70mA, standby: 43mA | 80 (W) × 48 (D) × 161.5 (H) mm | IP30 | USB Type-A or USB Type-C | 4993707002667 (USB Type-C) | Red LED | 0.07mm | 0℃~40℃/5%~85% | 60% | 1D barcode reader | Buzzer (3 tones, pitch adjustable), LED (blue) | 0~50mm (depending on conditions) | 2,500pixel CMOS sensor | RoHS | 200 scans/sec | 1 year | 110g (excluding cable) |
|
|
BC-BR1000U-W-C11 |
Available upon quote | White | 32bit | 1.7m straight cable | JAN/EAN/UPC, book JAN → ISBN conversion, new magazine code (JAN13 + add-on 5), CODE39, CODE128, NW-7 (Codabar), ITF | GS1-128 (UCC/EAN128): Read only, cannot be edited, GS1 DataBar: Read only, cannot be edited | Type-C short cable | Maximum operation: 70mA, standby: 43mA | 80 (W) × 48 (D) × 161.5 (H) mm | IP30 | USB Type-A or USB Type-C | 4993707002681 (Type-C short cable) | Red LED | 0.07mm | 0℃~40℃/5%~85% | 60% | 1D barcode reader | Buzzer (3 tones, pitch adjustable), LED (blue) | 0~50mm (depending on conditions) | 2,500pixel CMOS sensor | RoHS | 200 scans/sec | 1 year | 110g (excluding cable) |
|
|

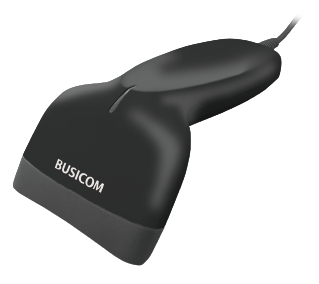

BC-BR1000U-B |
Available upon quote | Black | 32bit | 1.7m straight cable | JAN/EAN/UPC, book JAN → ISBN conversion, new magazine code (JAN13 + add-on 5), CODE39, CODE128, NW-7 (Codabar), ITF | GS1-128 (UCC/EAN128): Read only, cannot be edited, GS1 DataBar: Read only, cannot be edited | - | Maximum operation: 70mA, standby: 43mA | 80 (W) × 48 (D) × 161.5 (H) mm | IP30 | USB Type-A or USB Type-C | 4993707002483 | Red LED | 0.07mm | 0℃~40℃/5%~85% | 60% | 1D barcode reader | Buzzer (3 tones, pitch adjustable), LED (blue) | 0~50mm (depending on conditions) | 2,500pixel CMOS sensor | RoHS | 200 scans/sec | 1 year | 110g (excluding cable) |
|
|
BC-BR1000U-B-C |
Available upon quote | Black | 32bit | 1.7m straight cable | JAN/EAN/UPC, book JAN → ISBN conversion, new magazine code (JAN13 + add-on 5), CODE39, CODE128, NW-7 (Codabar), ITF | GS1-128 (UCC/EAN128): Read only, cannot be edited, GS1 DataBar: Read only, cannot be edited | USB Type-C | Maximum operation: 70mA, standby: 43mA | 80 (W) × 48 (D) × 161.5 (H) mm | IP30 | USB Type-A or USB Type-C | 4993707002674 (USB Type-C) | Red LED | 0.07mm | 0℃~40℃/5%~85% | 60% | 1D barcode reader | Buzzer (3 tones, pitch adjustable), LED (blue) | 0~50mm (depending on conditions) | 2,500pixel CMOS sensor | RoHS | 200 scans/sec | 1 year | 110g (excluding cable) |
|
|
BC-BR1000U-B-C11 |
Available upon quote | Black | 32bit | 1.7m straight cable | JAN/EAN/UPC, book JAN → ISBN conversion, new magazine code (JAN13 + add-on 5), CODE39, CODE128, NW-7 (Codabar), ITF | GS1-128 (UCC/EAN128): Read only, cannot be edited, GS1 DataBar: Read only, cannot be edited | Type-C short cable | Maximum operation: 70mA, standby: 43mA | 80 (W) × 48 (D) × 161.5 (H) mm | IP30 | USB Type-A or USB Type-C | 4993707002698 (Type-C short cable) | Red LED | 0.07mm | 0℃~40℃/5%~85% | 60% | 1D barcode reader | Buzzer (3 tones, pitch adjustable), LED (blue) | 0~50mm (depending on conditions) | 2,500pixel CMOS sensor | RoHS | 200 scans/sec | 1 year | 110g (excluding cable) |
Click on the part number for more information about each product
