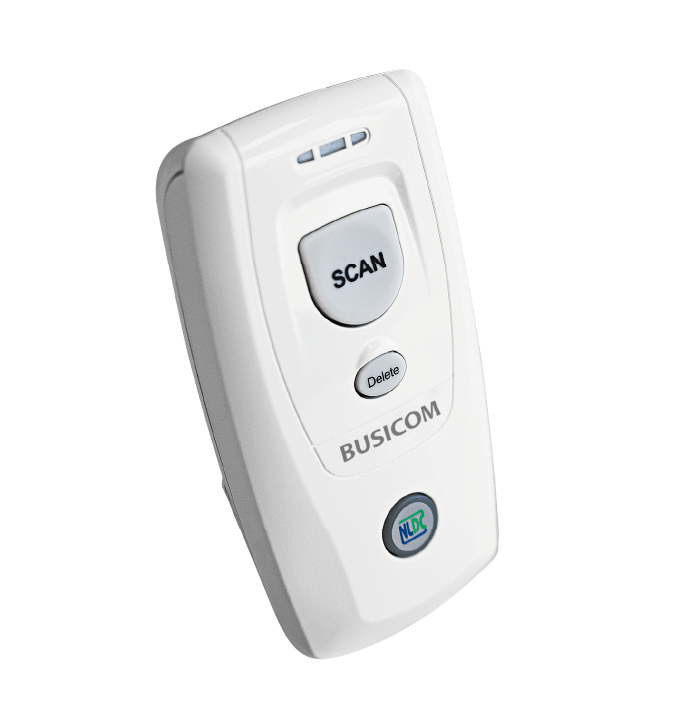

Bluetooth barcode reader BC-BS80Ⅱ series
Busicom Co., Ltd.
About This Product
A 1D/2D wireless barcode reader with antibacterial specifications that emphasizes hygiene.
■Features
・Antibacterial specification to suppress bacterial growth
・As a data collector, it is also possible to temporarily save data in memory and send it.
・"Bluetooth mode" and "USB mode", communication methods that can be selected according to the usage scene
・Choose from ``1D'' or ``2D'' models depending on the application
■Alcohol cleaning OK
The main body is made of antibacterial material that can be cleaned with alcohol*. It is also ideal for use in environments where hygiene is particularly important, such as medical institutions and nursing care facilities. *Alcohol with a concentration of 75% or less
■High performance and comfortable reading
Built-in high-level decoding chip provides excellent reading performance. The 2D model can be read in all directions, so you can scan the barcode without worrying about its orientation.
■As a data collector
Read data can be sent in real time or saved in memory. Saved data can be sent to smartphones, tablets, and PCs via Bluetooth or USB connection.
■Lightweight and compact size
The main body is compact enough to fit comfortably in the palm of your hand, and the buttons are designed to be easy to operate. It is also lightweight at approximately 63g*, making it ideal for mobile operation. *Depends on model
-
Product
Bluetooth barcode reader BC-BS80Ⅱ series
-
Handling Company
Busicom Co., Ltd.
-
Categories
2 Models of Bluetooth barcode reader BC-BS80Ⅱ series
Items marked with have different values depending on the model number.
Click on the part number for more information about each product
| Product Image | Part Number | Price (excluding tax) | Body color | Compatible barcode 1 | Compatible barcode 2 | Compatible barcode 3 | External dimensions (approx.) | IP standard | Interface | JAN code | Light source | Minimum resolution | Operating temperature/humidity (non-condensing) | Operating time/charging time | PCS value | Product type | Reading confirmation | Reading distance (CODE39/5mil) | Reading method | Safety standards | Scan speed | Warranty period | Weight (approx.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
BC-BS801D-V2-CW |
Available upon quote | Clean white | JAN/EAN/UPC, book JAN → ISBN conversion, new magazine code (JAN13 + add-on 5), CODE39, CODE128, NW-7 (Codabar), ITF | S1-128 (UCC/EAN128): Read only, not editable, GS1 DataBar: Read only, not editable | - | 46 (W) ×24.5 (D) ×88 (H) mm | IP42 | Wireless: Bluetooth 4.0 (HID/SPP/BLE), Wired: USB (terminal side/USB Type-C, host side/USB Type-A) | 4993707002797 | Red LED | 0.127mm | -20℃~50℃/5%~95% | Can be used continuously for 6.5 hours (depending on conditions) / about 5 hours | Twenty five% | Bluetooth barcode reader 1D model | Buzzer (adjustable in settings), LED (green), vibration | 70mm~185mm (depending on conditions) | 2,500pixel linear imager | Specified wireless equipment (technical compliance mark), LED safety standard: IEC62471, antibacterial standard: ISO 22196:2011 (case, buttons only), RoHS | 100 scans/sec | 1 year | 67g (excluding strap) |
|
|
BC-BS802D-V2-CW |
Available upon quote | Clean white | JAN/EAN/UPC, book JAN → ISBN conversion, new magazine code (JAN13 + add-on 5), CODE39, CODE128, NW-7 (Codabar), ITF | GS1-128 (UCC/EAN128): Read only, cannot edit, GS1 DataBar: Read only, cannot edit, QRcode, PDF417, Micro PDF, Data Matrix | Micro QR, GS1 DataBar (RSS/RSS composite symbol): Depending on conditions | 46 (W) ×24.5 (D) ×88 (H) mm | IP42 | Wireless: Bluetooth 4.0 (HID/SPP/BLE), Wired: USB (terminal side/USB Type-C, host side/USB Type-A) | 4993707002803 | Red LED | 0.127mm | -20℃~50℃/5%~95% | Can be used continuously for 5 hours (depending on conditions) / approx. 3.5 hours | 20% | Bluetooth barcode reader 2D model | Buzzer (adjustable in settings), LED (green), vibration | 65mm~260mm (depending on conditions) | 1,280×800pixel CMOS sensor | Specified wireless equipment (technical compliance mark), LED safety standard: IEC62471, laser safety standard: IEC60825-1 (class 1), antibacterial standard: ISO 22196:2011 (case, button only), RoHS | 100 scans/sec | 1 year | 63g (excluding strap) |
Click on the part number for more information about each product
